Exhaust Y-Pipe: Installation

NOTE: Always install new fasteners and gaskets. Clean flange faces prior to new gasket installation to make sure of correct sealing.

1.

Install the exhaust Y-pipe with a new gasket and nuts.
- Using soapy water, attach the isolator to the exhaust Y-pipe.
- Hand-tighten all fasteners.

Courtesy of FORD MOTOR COMPANY

2.

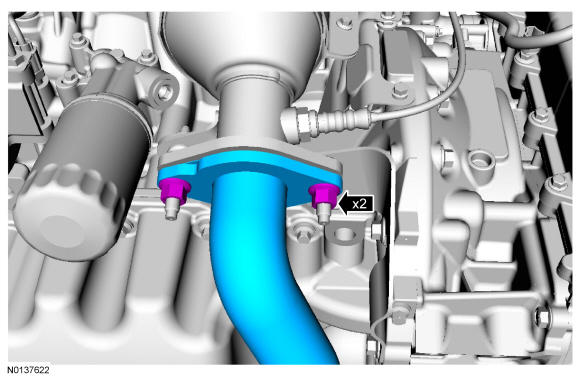

Tighten the exhaust Y-pipe-to-LH catalytic converter manifold nuts.
- Tighten to 40 Nm (30 lb-ft).

Courtesy of FORD MOTOR COMPANY

3.

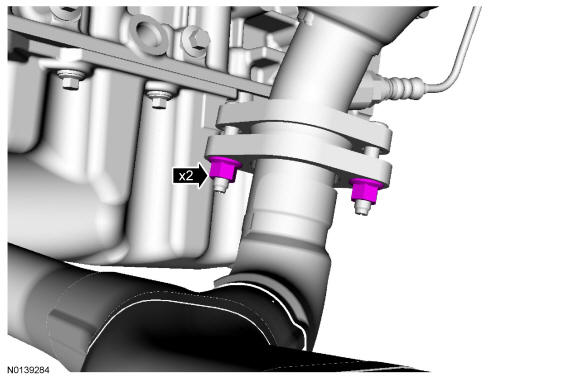

Tighten the exhaust Y-pipe-to-RH catalytic converter nuts.
- Alternately tighten the 2 nuts to 40 Nm (30 lb-ft).

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY
