Front Seat Motor Cable: Removal

WARNING: Wear protective gloves when handling components or parts that have pointed or sharp edges. Failure to follow this instruction may result in serious personal injury.

NOTE: Typical driver seat shown in illustration, others similar.

1.

Remove the seat. Refer to Seat - Front .

2.

If equipped.

GFD59526

Courtesy of FORD MOTOR COMPANY

3.
1. 1.

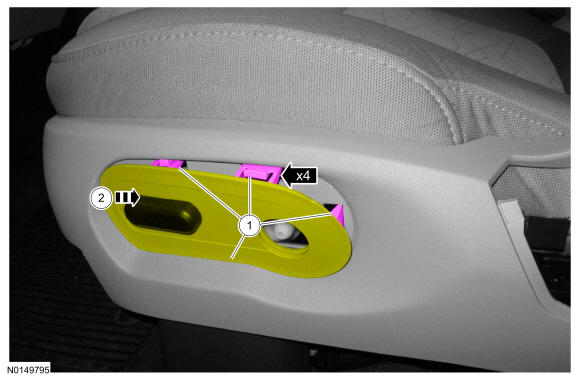

  From under the cushion side shield, push out from behind the seat control switch bezel to start detachment.
1. 2.

  NOTE: Do not pull out at the front of the seat control switch bezel, slide it rearward. Otherwise, seat control switch bezel retainers can break.

  -

GFD59527

Courtesy of FORD MOTOR COMPANY

GFD59528

Courtesy of FORD MOTOR COMPANY

GFD59529

Courtesy of FORD MOTOR COMPANY

GFD59530

Courtesy of FORD MOTOR COMPANY

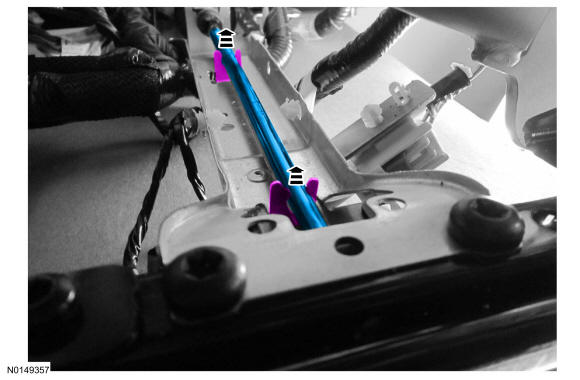

GFD59621

Courtesy of FORD MOTOR COMPANY
