Front Controls Interface Module (FCIM)

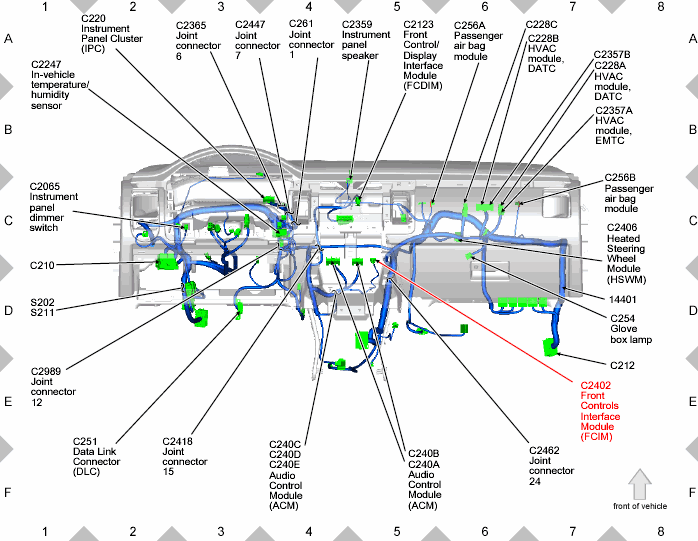

Fig 1: Front Controls Interface Module (FCIM) Component Location Chart

G00571483

Courtesy of FORD MOTOR COMPANY
