Lower Intake Manifold: Installation

1.

NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

Using new lower intake manifold and thermostat housing gaskets, install the lower intake manifold and the 10 bolts.
- Tighten in the sequence shown in illustration to 10 Nm (89 lb-in).

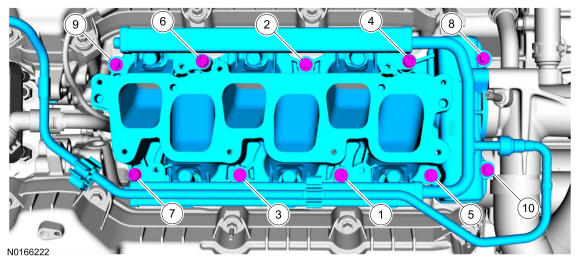

Fig 1: Lower Intake Manifold Bolts Tightening Sequence

GFD147982

Courtesy of FORD MOTOR COMPANY

2.

Install the 2 thermostat housing-to-lower intake manifold bolts.
- Tighten to 10 Nm (89 lb-in).

GFD56575

Courtesy of FORD MOTOR COMPANY

3.

Connect the fuel supply tube-to-fuel rail quick connect coupling. For additional information, refer to the quick connect coupling procedure in Fuel System - General Information .
- Install the fuel supply tube-to-engine front cover bolt and tighten to 10 Nm (89 lb-in).

GFD56574

Courtesy of FORD MOTOR COMPANY

4.

Connect the 6 fuel injector electrical connectors.

GFD56573

Courtesy of FORD MOTOR COMPANY

5.

Install the upper intake manifold. For additional information, refer to Upper Intake Manifold .

6.

Connect the battery ground cable. For additional information, refer to Battery, Mounting and Cables .

7.

Fill and bleed the cooling system. For additional information, refer to Engine Cooling .
