Cylinder Head: Assembly

All cylinder heads

1. 1.

   Install the valve.

Courtesy of FORD MOTOR COMPANY

1. 2.


   NOTE: Lubricate the valve stem seal with clean engine oil prior to installation.

   Using the Valve Stem Oil Seal Installer, install a new valve stem seal.

Courtesy of FORD MOTOR COMPANY

1. 3.

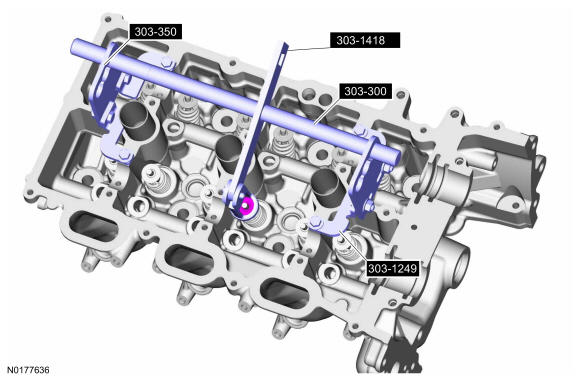

   Using the Valve Spring Compressors, install the valve spring, retainer and key.

Courtesy of FORD MOTOR COMPANY

1. 4.

   Repeat the above steps for each valve.

1. 5.

   Install the timing chain guide pin.
   • Tighten to 10 Nm (89 lb-in).

Courtesy of FORD MOTOR COMPANY

RH cylinder head

1. 6.

   Install the timing chain tensioner arm pin.
   • Tighten to 10 Nm (89 lb-in).

Courtesy of FORD MOTOR COMPANY

1. 7.

   Install a new CHT sensor.
   • Tighten to 10 Nm (89 lb-in).

Courtesy of FORD MOTOR COMPANY
