Engine Identification
For quick identification, refer to the safety certification decal.
The decal is located on the LH front door lock face panel.
Engine Code Information Label
| Item | Description |
|---|---|
| 1 | Engine part number |
| 2 | Engine plant (Lima) |
| 3 | Engine displacement |
| 4 | Engine configuration |
| 5 | Twin independent VCT |
| 6 | Bar code |
| 7 | Bar code |
| 8 | Running number |
| 9 | Engine build date (DDMMYY) |
| 10 | Plant shift line |
| 11 | Derivative code |

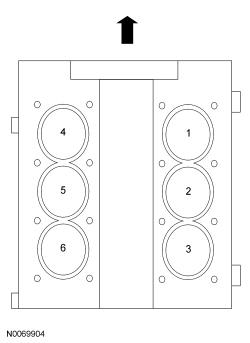

Engine Cylinder Identification
