Lumbar Assembly: Removal
NOTE:
Removal steps in this procedure may contain installation details.
1.
Remove the front seat backrest cover. Refer to:
Front Seat Backrest Cover
.
2.

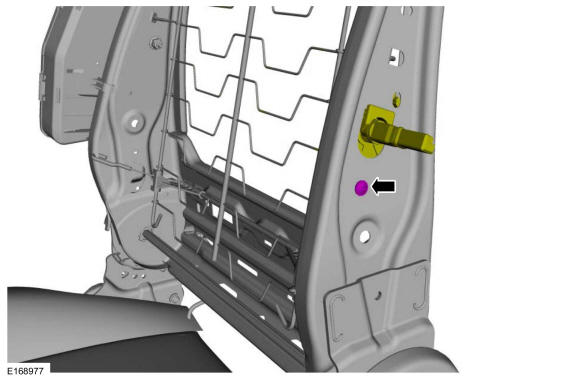

Remove the screw and position the lumbar actuator aside.
Torque: 31 lb.in (3.5 Nm)
Courtesy of FORD MOTOR COMPANY
3.

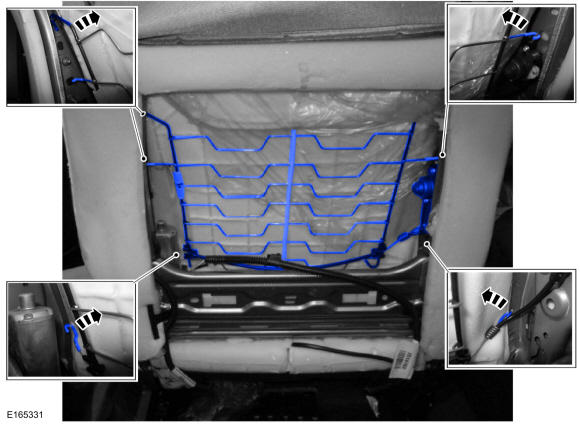

Detach the lumbar assembly J-hooks and remove the lumbar assembly.
Courtesy of FORD MOTOR COMPANY
