Front Seat: Removal

1.

Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering and Repowering .

2.

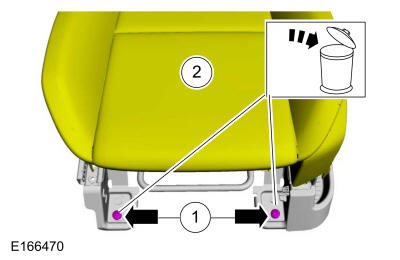

NOTE: Follow the unique instruction or graphic for this step in the installation.

Position the seat rearward. Remove and discard the seat track bolts.

GFD141591

Courtesy of FORD MOTOR COMPANY

3.

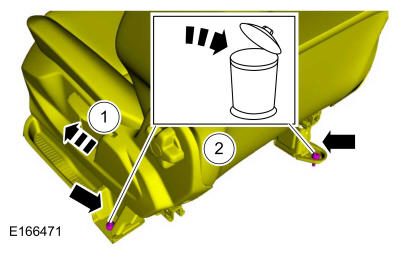

NOTE: Follow the unique instruction or graphic for this step in the installation.

Position the seat forward. Remove and discard the seat track bolts.

GFD141592

Courtesy of FORD MOTOR COMPANY

4.

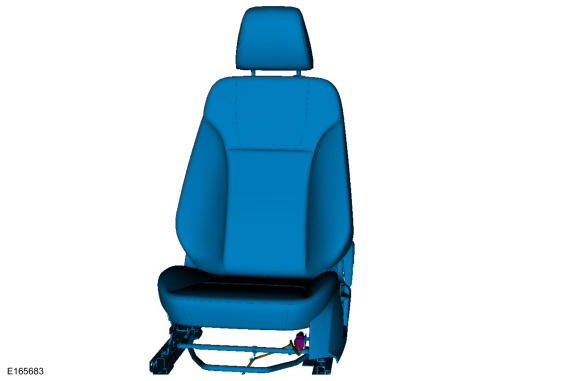

Disconnect the front seat electrical connector and remove the front seat.

GFD141593

Courtesy of FORD MOTOR COMPANY
