Front Seat Backrest: Removal
NOTE:
Driver seat shown, passenger seat similar.
- 1.
Remove the front seat. Refer to: Front Seat .
- 2.
- 1.

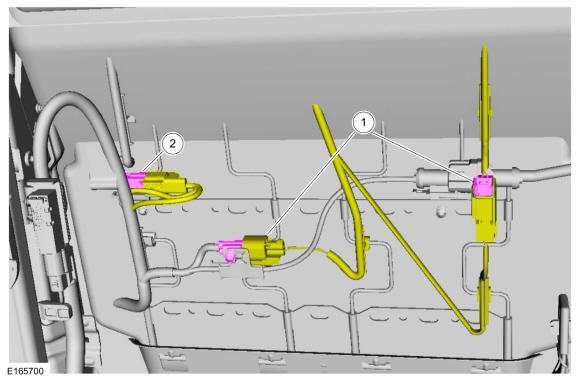

If equipped.Disconnect the heated seat electrical connectors and position the wiring harness aside.
- 2.
Disconnect the electrical connector and position the wiring harness aside.
- 1.
- 3.NOTE: Base seat shown, Recaro seat similar.

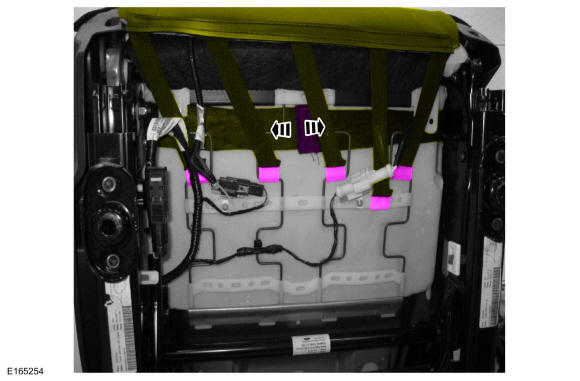

Detach the backrest cover straps and position the backrest cover aside.
- 5.
- 1.

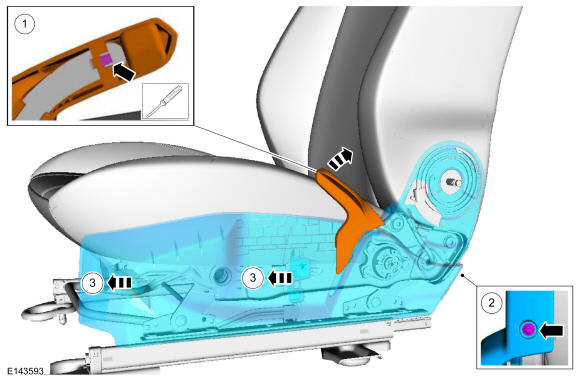

If equipped.Release the tab and remove the height adjustment handle.Use the General Equipment: Flat Headed Screw Driver
- 2.
Remove the screw.
- 3.
Slide forward and remove the side shield.
- 1.
- 6.
- 1.

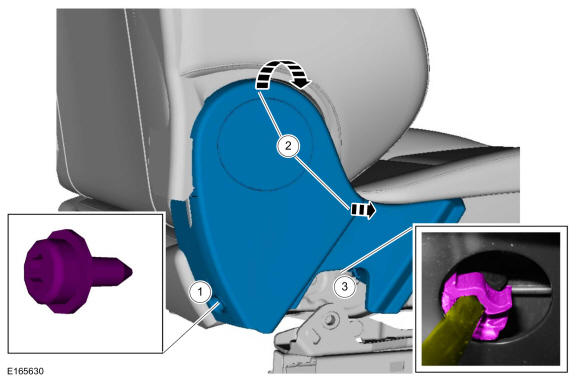

Remove the screw.
- 2.
Pull the recliner cover up then out.
- 3.
Release the clip and remove the recliner cover.
- 1.
