Accelerator Pedal - Adjustable, Exploded View
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

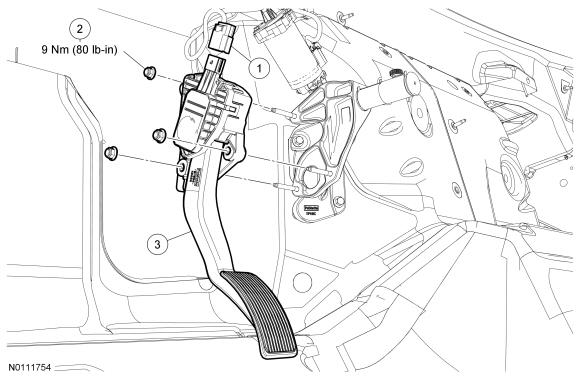

Accelerator pedal and position sensor assembly
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Accelerator pedal and position sensor assembly electrical connector (part of 14A005) |
| 2 | W520101 | Accelerator pedal and position sensor assembly nut (3 required) |
| 3 | 9F836 | Accelerator pedal and position sensor assembly |

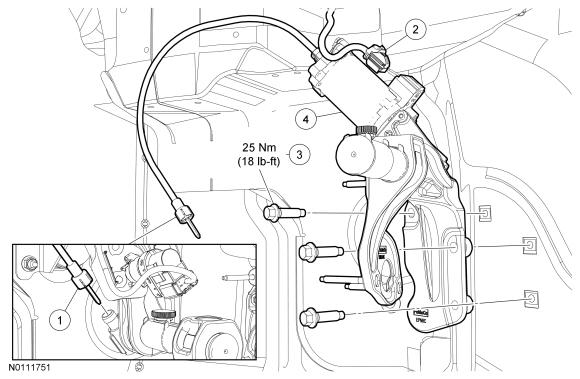

Adjustable pedal motor and bracket assembly
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Adjustable pedal motor-to-brake pedal drive cable (part of 9C803) |
| 2 | - | Adjustable pedal motor electrical connector (part of 14A005) |
| 3 | W611636 | Adjustable pedal motor and bracket assembly bolt (3 required) |
| 4 | 9C803 | Adjustable pedal motor and bracket assembly |
- 1.NOTE: To prevent setting DTCs, make sure the ignition switch is in the OFF position prior to disconnecting the accelerator pedal electrical connectors.NOTE: The brake pedal and the accelerator pedal must be indexed when installing a new cable or a new adjustable pedal motor and bracket assembly.NOTE: Index the adjustable pedal assemblies. For additional information, refer to Hydraulic Brake Actuation .
Refer to the procedures and/or exploded views in this article for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
