External Controls - Component Location

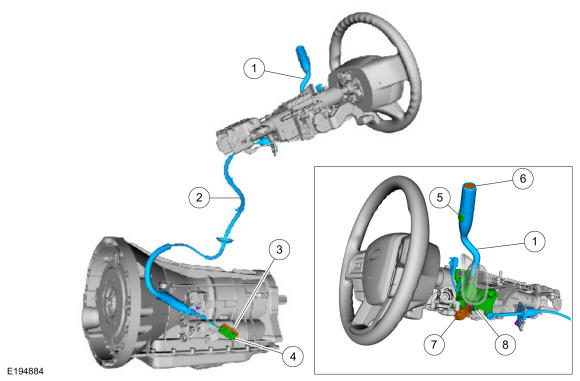

Column Shift
| Item | Part Number | Description |
|---|---|---|
| 1 | 7A256 | Selector lever |
| 2 | 7E395 | Selector lever cable |
| 3 | - | Selector lever cable adjuster lock (part of 7E395) |
| 4 | - | Selector lever cable adjuster (part of 7E395) |
| 5 | - | SelectShift™ switch (part of 7A256) |
| 6 | - | Transmission control switch (part of 7A256) |
| 7 | 3Z719 | Brake shift interlock actuator |
| 8 | - | Selector lever mechanism (part of 7210) |

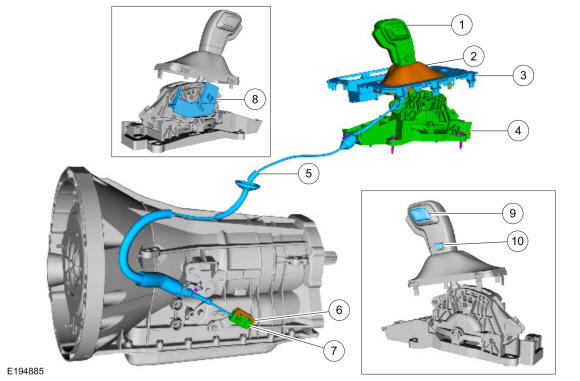

Floor Shift
| Item | Part Number | Description |
|---|---|---|
| 1 | 7213 | Selector lever knob |
| 2 | 7277 | Selector lever boot |
| 3 | 1504567 | Selector lever bezel |
| 4 | 7210 | Selector lever assembly |
| 5 | 7E395 | Selector lever cable |
| 6 | - | Selector lever cable adjuster lock (part of 7E395) |
| 7 | - | Selector lever adjuster (part of 7E395) |
| 8 | - | Brake shift interlock actuator (part of 7210) |
| 9 | - | SelectShift™ switch (part of 7213) |
| 10 | - | Transmission control switch (part of 7213) |
