Main Control Cover: Installation

1. 1.

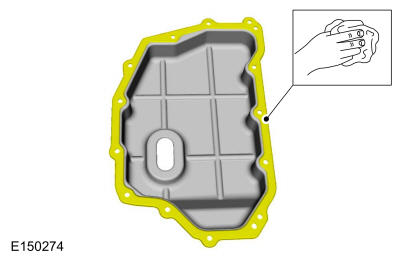

   NOTE: Do not use metal scrapers, wire brushes, power abrasive discs, or other abrasive means to clean sealing surfaces. These tools cause scratches and gouges which make leak paths.

   Make sure that the mating faces are clean and free of foreign material. REFER to: RTV Sealing Surface Cleaning and Preparation .

Courtesy of FORD MOTOR COMPANY

1. 2.

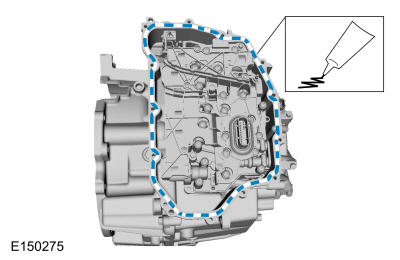

   Apply Ultra Silicone Sealant to the main control sealing surface of the transmission case.

   Material

   : Motorcraft® Ultra Silicone Sealant / TA-29

Courtesy of FORD MOTOR COMPANY

1. 3.


   NOTE: Install the stud bolts in the locations noted during disassembly.

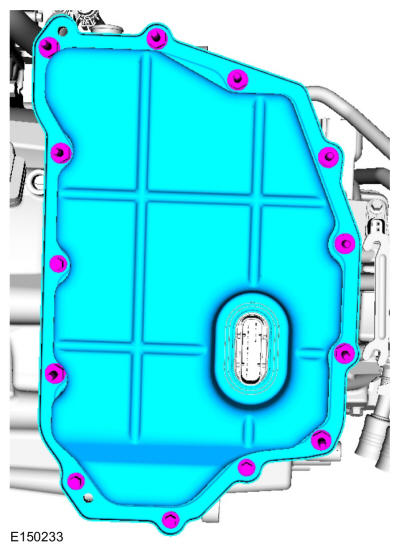

   Install the main control cover, the bolts and the stud bolts.

   Torque

   : 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

1. 4.

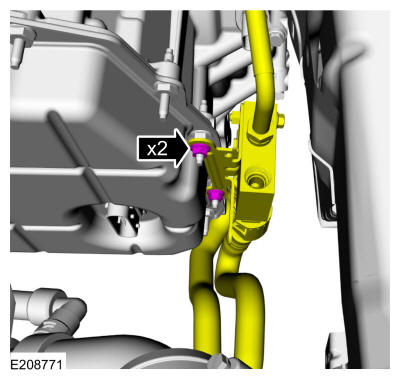

   Position the transmission fluid thermal bypass valve and install the transmission fluid thermal bypass valve nuts.

Courtesy of FORD MOTOR COMPANY

1. 5.

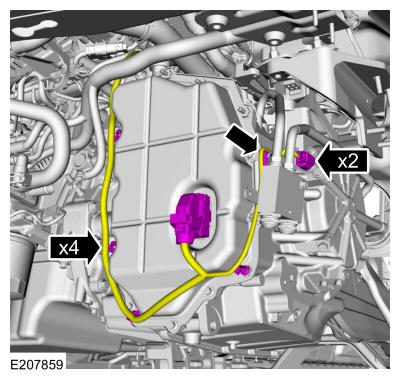

   Connect the electrical connectors and wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

1. 6.

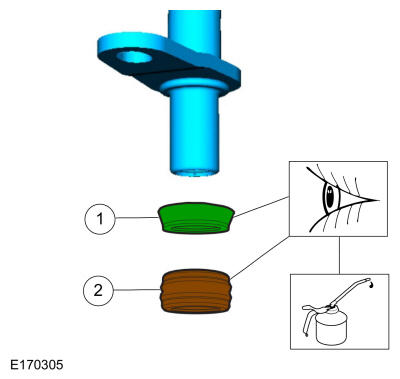

   Inspect the transmission mounted transmission fluid cooler tube backing ring and seal for damage and install a new backing ring or seal if necessary.

   1. 1.

      Install the backing ring (7J324)

   1. 2.

      Lubricate and install the seal (7D258)

      Material

      : Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON® LV) (WSS-M2C938-A)

Courtesy of FORD MOTOR COMPANY

1. 7.

   Install the transmission mounted transmission fluid cooler inlet tube and tighten the fitting.

   Torque

   : 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

1. 8.

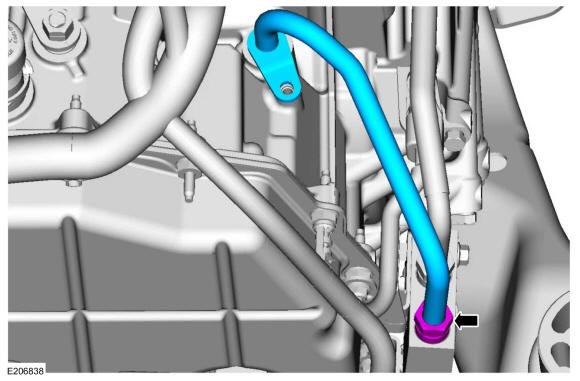

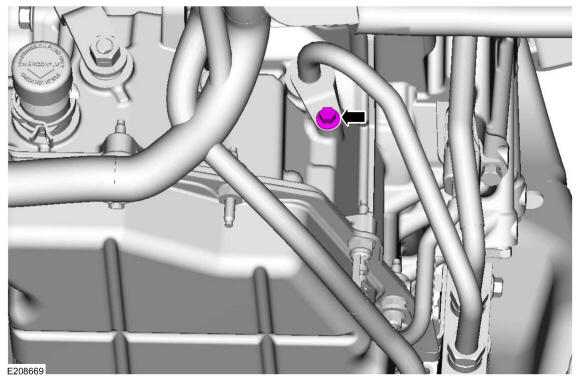

   Install a new transmission mounted transmission fluid cooler inlet tube bolt.

   Torque

   : 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

1. 9.

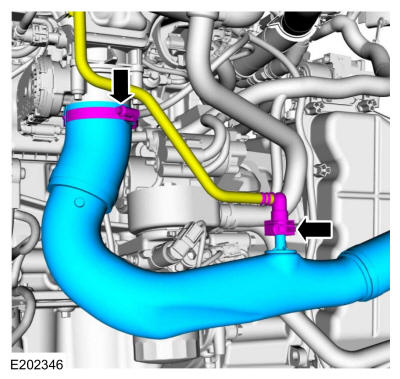

   Install the CAC tube, connect the EVAP canister purge valve tube and tighten the clamp.

   Torque

   : 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

1. 10.

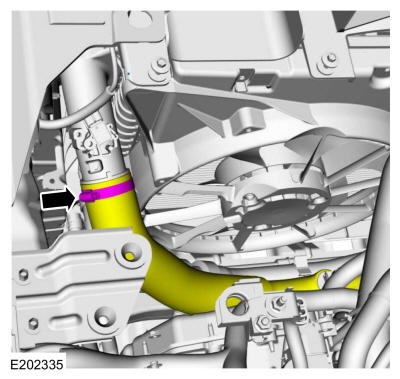

   Connect the CAC outlet pipe and tighten the clamp.

   Torque

   : 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

1. 11.

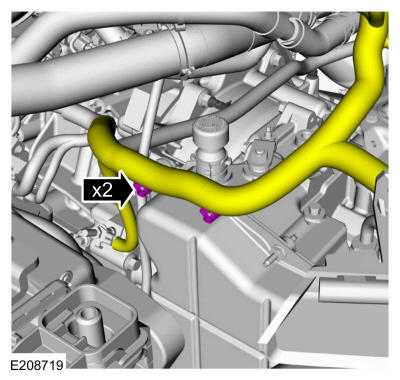

   Connect the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

1. 12.

   Install the air cleaner assembly. REFER to: Air Cleaner .

1. 13.

   Fill the transmission with transmission fluid. REFER to: Transmission Fluid Drain and Refill .

Refer to: Engine Undershield .
