Roll Restrictor RH
>>
Removal
Roll Restrictor RH: Removal
1.
With the vehicle in NEUTRAL, position it on a hoist. REFER to:
Jacking and Lifting - Overview
Refer to:
Engine Undershield
2.

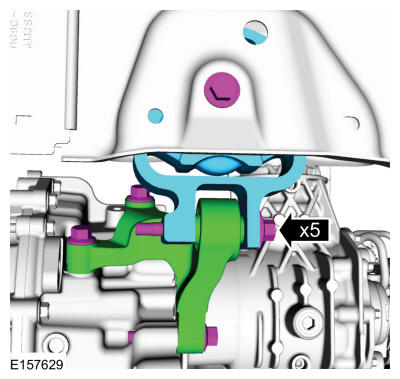

Remove the bolts, the roll restrictor and the roll restrictor bracket.
Courtesy of FORD MOTOR COMPANY
