Roll Restrictor RH: Installation

• 1.

  Install the roll restrictor and the roll restrictor bracket and tighten the bolts in the sequence shown below.

  • 1.

    Torque

    : 59 lb.ft (80 Nm)

  • 2.

    Torque

    : 59 lb.ft (80 Nm)

  • 3.

    Torque

    : 59 lb.ft (80 Nm)

  • 4.

    Material

    : Motorcraft® Threadlock and Sealer / TA-25-B

    Torque

    : 92 lb.ft (125 Nm)

  • 5.

    Material

    : Motorcraft® Threadlock and Sealer / TA-25-B

    Torque

    : 92 lb.ft (125 Nm)

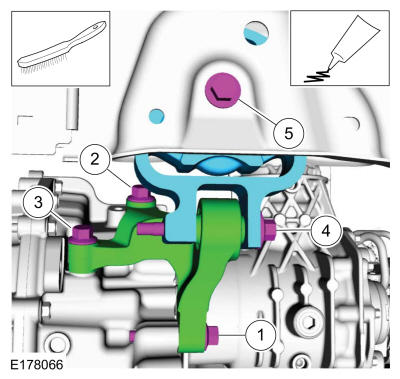

Fig 1: Roll Restrictor Bracket Bolts Tightening Sequence

Courtesy of FORD MOTOR CO.

Refer to: Engine Undershield
