Low One-Way Clutch Assembly
Low One-Way Clutch Assembly

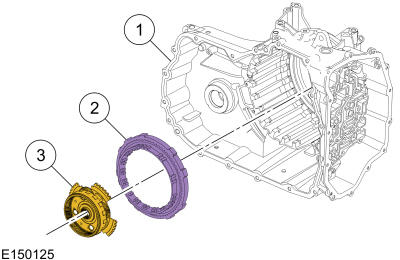

Low One-Way Clutch Exploded View
| Item | Description |
|---|---|
| 1 | Transmission case |
| 2 | Low One-Way Clutch |
| 3 | Rear planetary carrier |

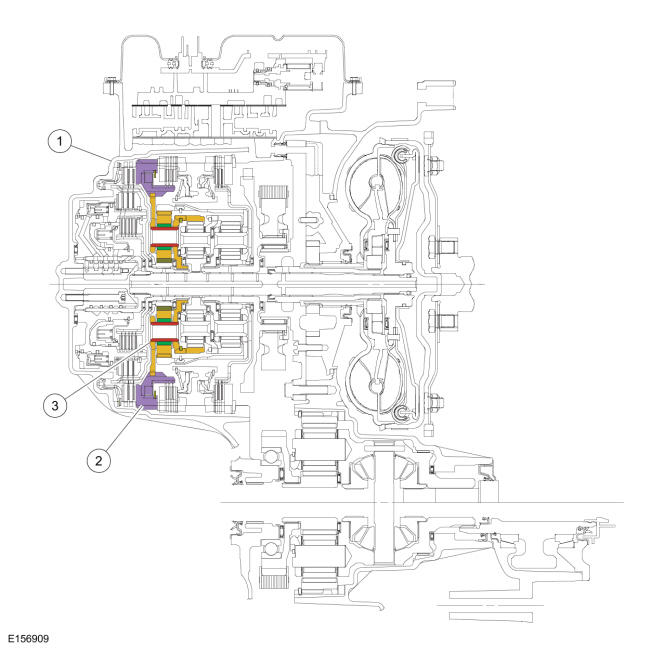

Low One-Way Clutch Cutaway View
Low One way Clutch
The low One-Way Clutch (OWC) is a brake clutch that holds the rear planetary carrier in one direction and allows it to freewheel in the opposite direction which eliminates engine braking in 1st gear when the transmission is in DRIVE. The low One-Way Clutch (OWC) is also the pressure plate for the intermediate (2, 6) clutch.
