Seat Control Switch, 10-Way Driver Power Seat With Memory

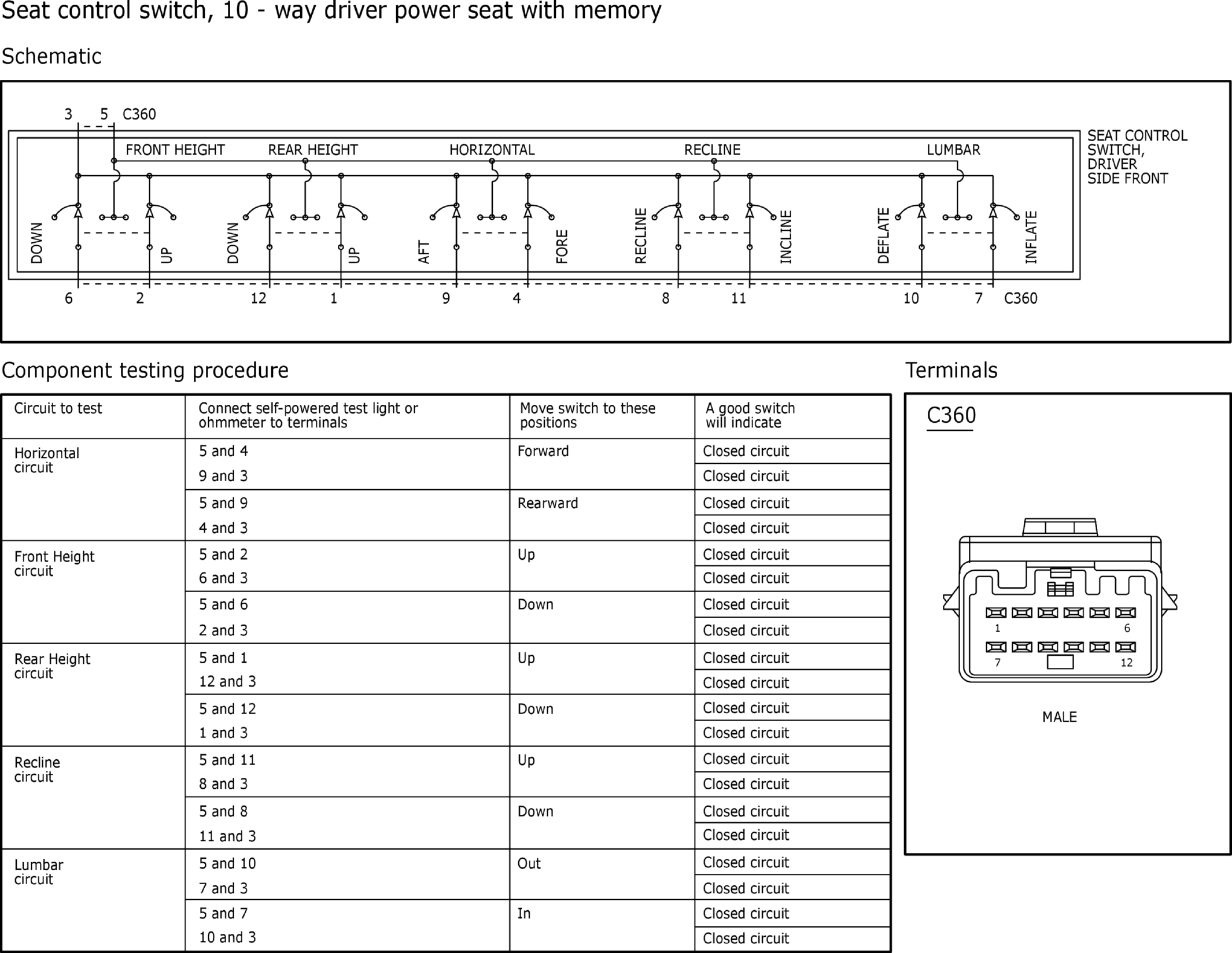

Fig 1: Seat Control Switch, 10-Way Driver Power Seat With Memory

GFDW48247

Courtesy of FORD MOTOR COMPANY
