Component Testing: Relays

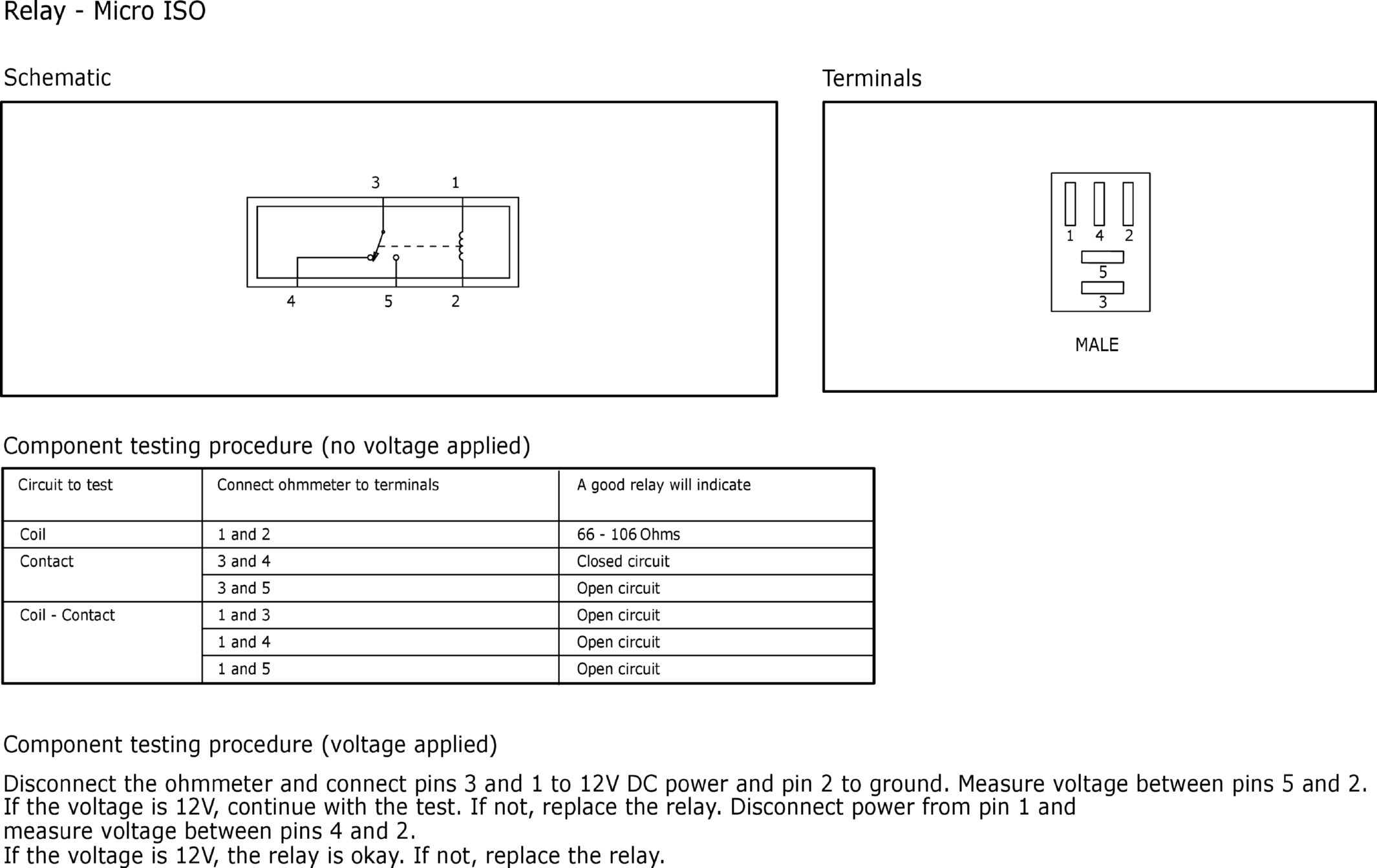

Fig 1: Relay - Micro ISO
GFDW48238Courtesy of FORD MOTOR COMPANY

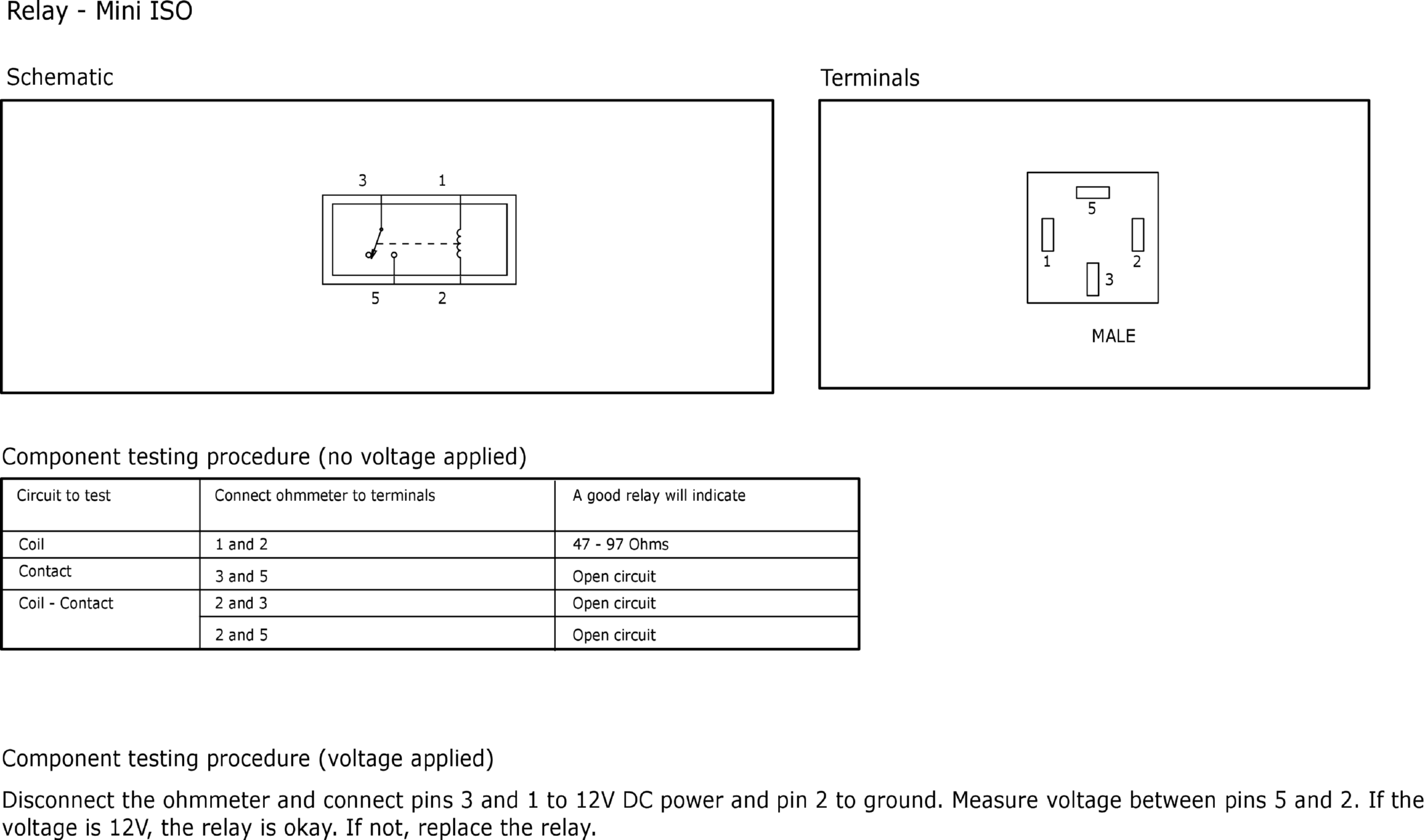

Fig 2: Relay - Mini ISO
GFDW48239Courtesy of FORD MOTOR COMPANY

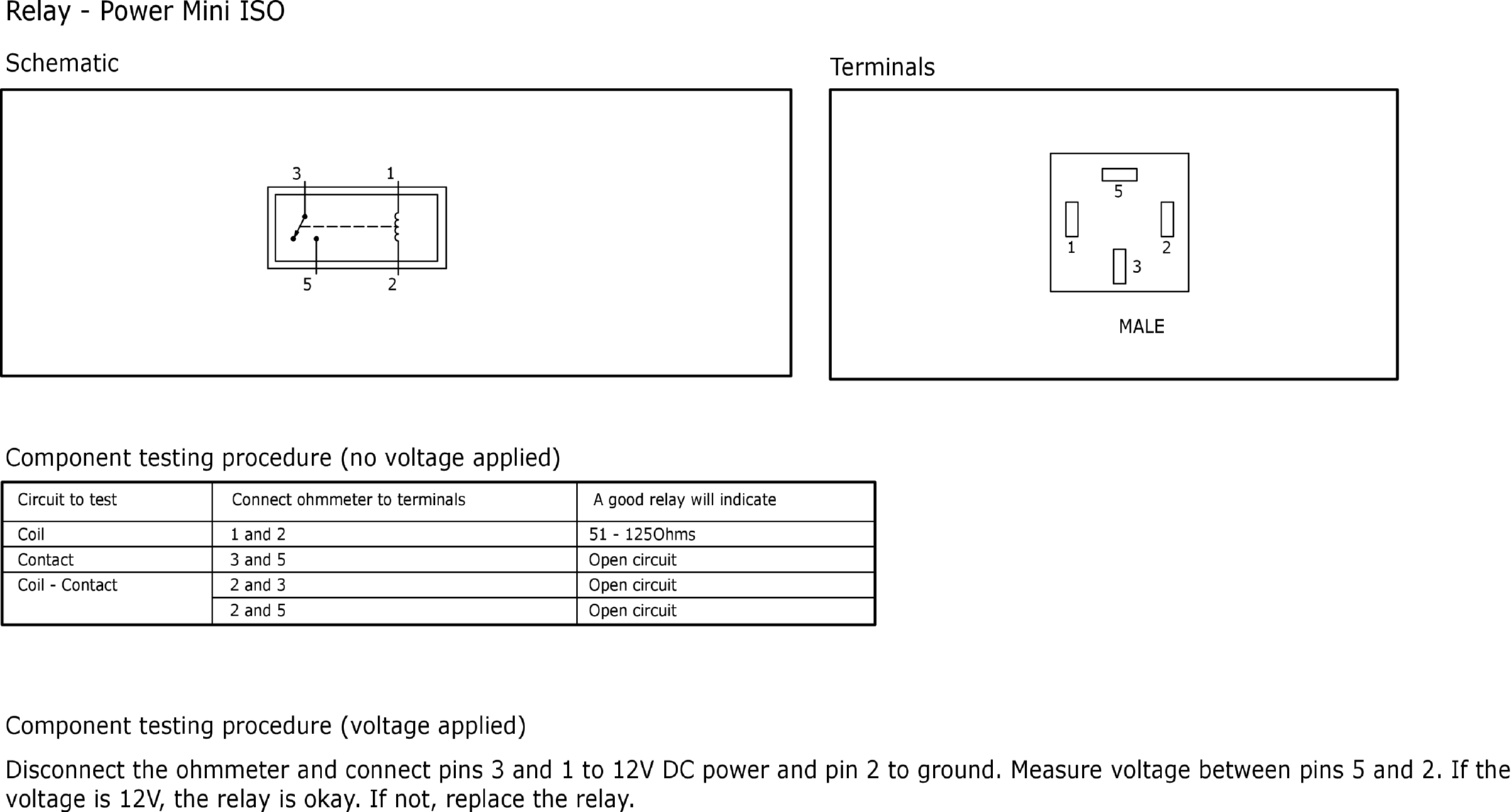

Fig 3: Relay - Power Mini ISO
GFDW48240Courtesy of FORD MOTOR COMPANY
