Home >> Ford >> 2016 >> Escape S >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Electrical Wiring Diagram Introduction >> Introduction

OEM Electrical Wiring Diagram Introduction: Introduction

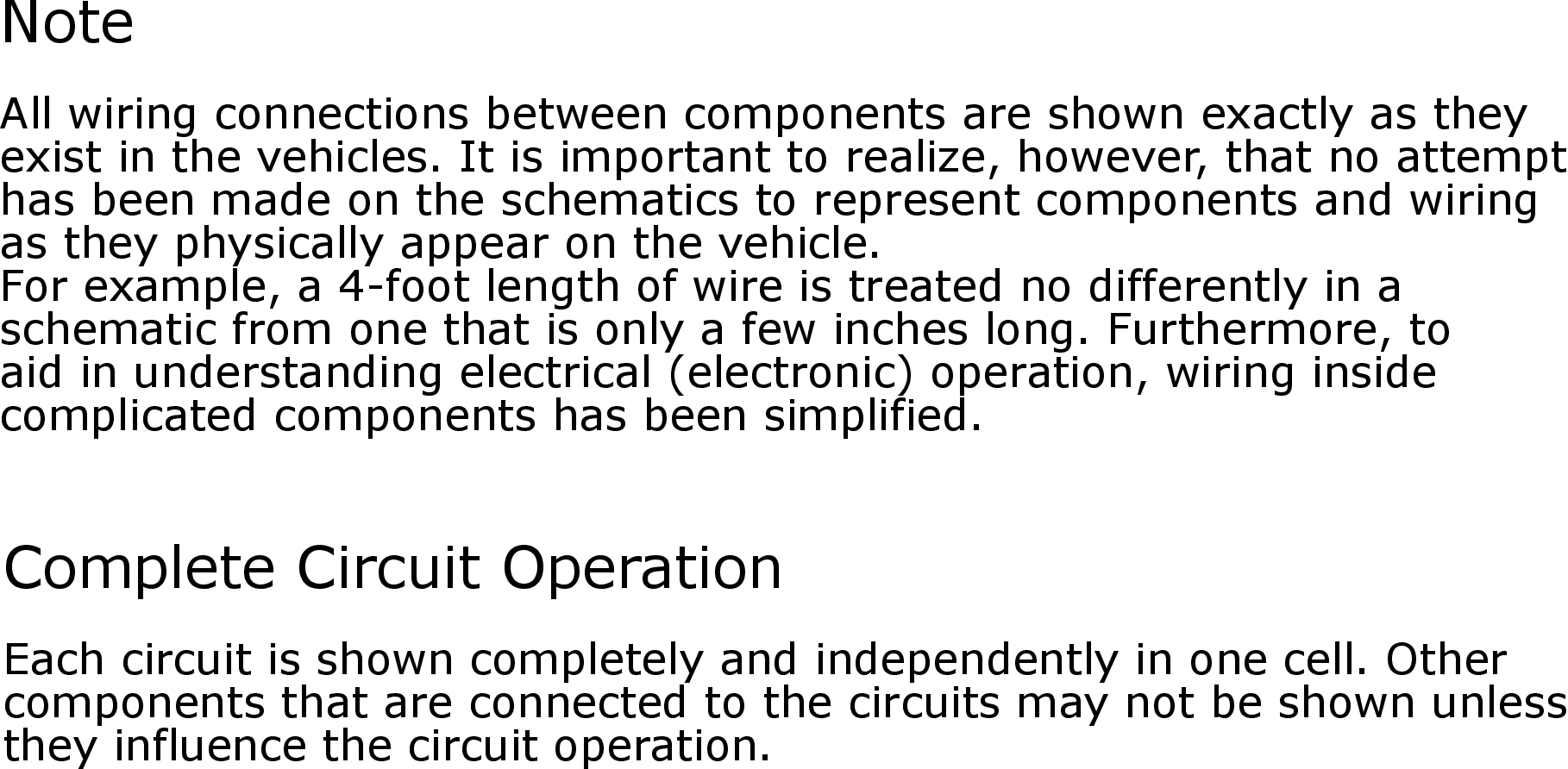

GFDW47944Courtesy of FORD MOTOR COMPANY

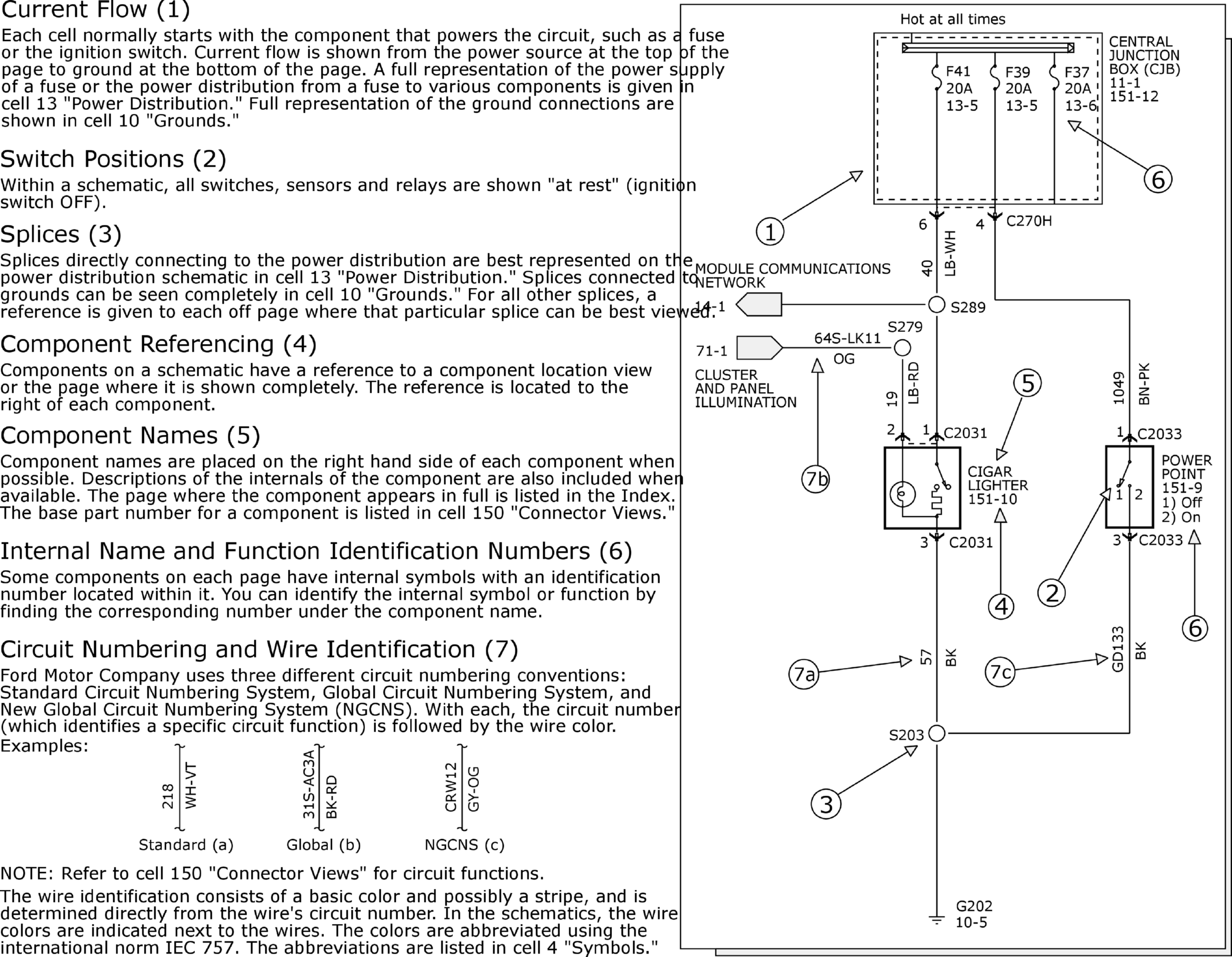

GFDW47945Courtesy of FORD MOTOR COMPANY

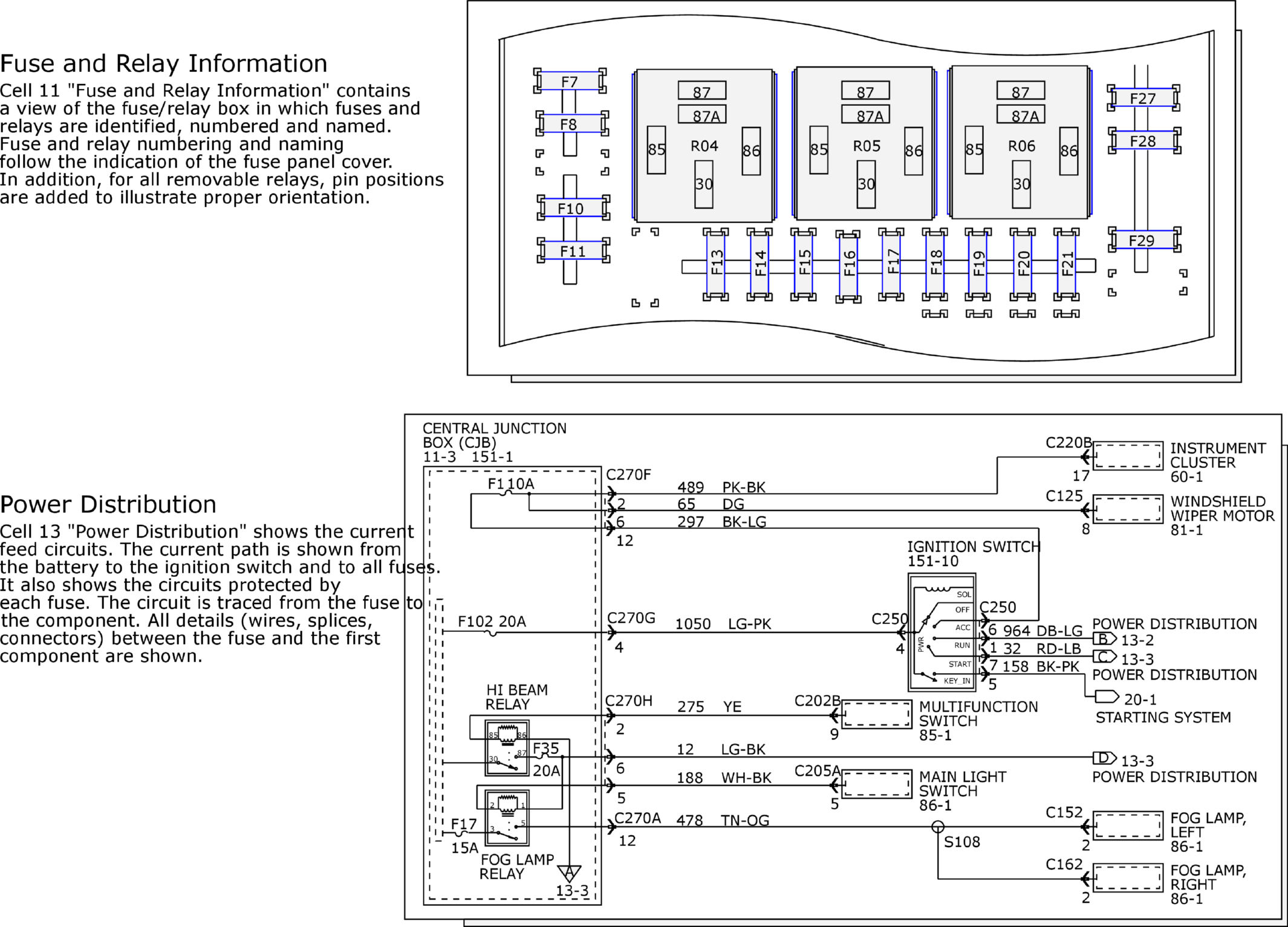

GFDW47946Courtesy of FORD MOTOR COMPANY

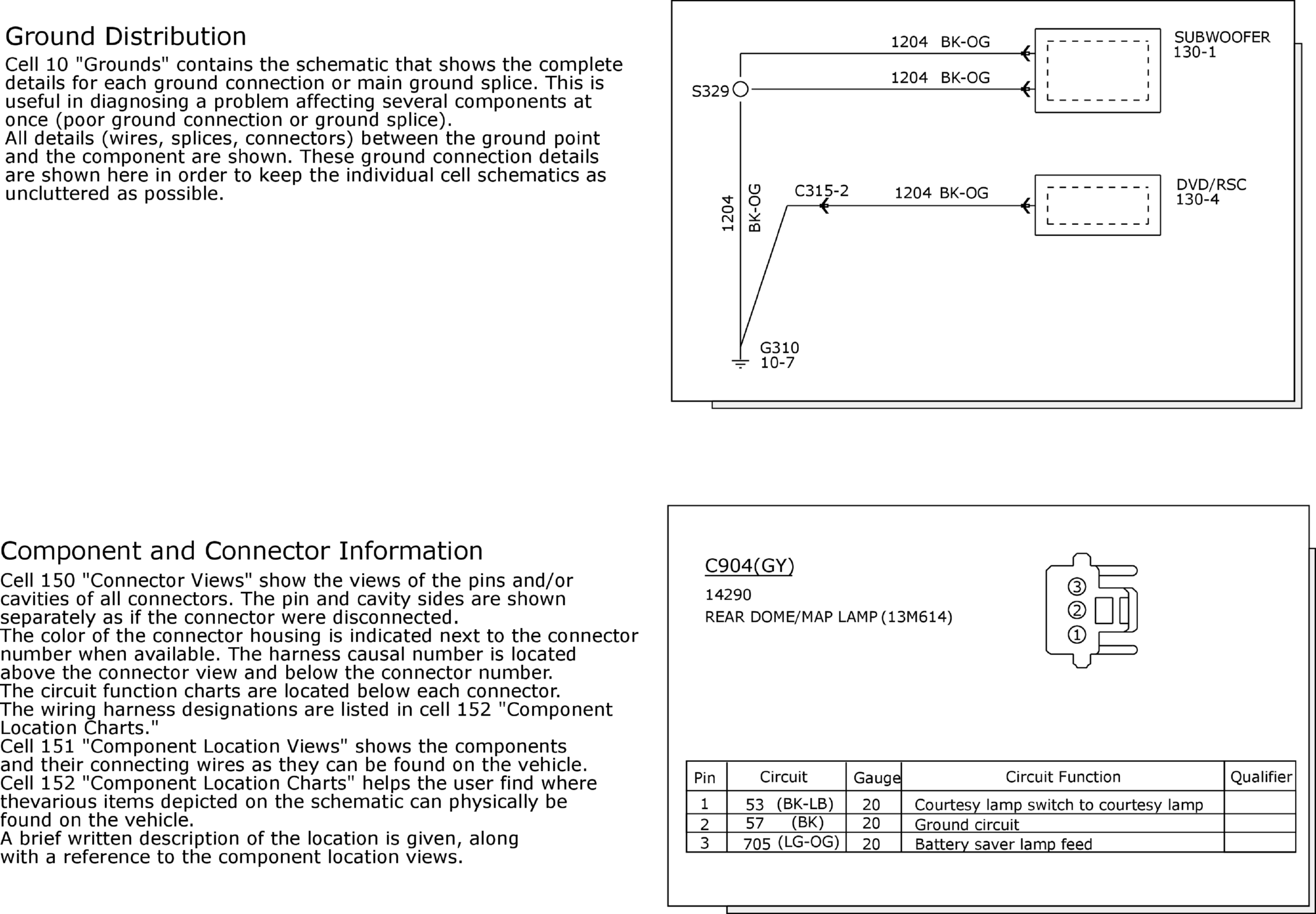

GFDW47947Courtesy of FORD MOTOR COMPANY

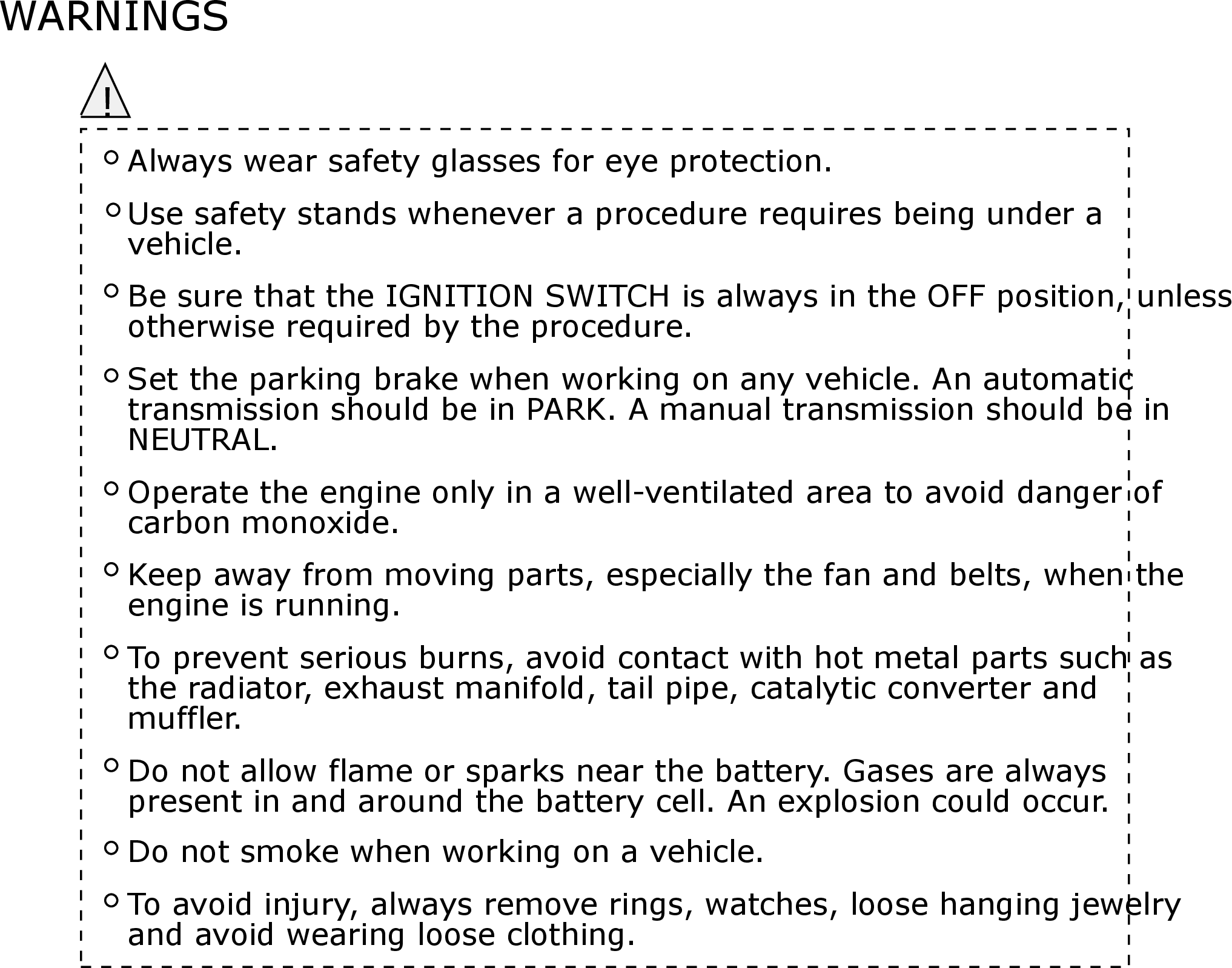

GFDW47948Courtesy of FORD MOTOR COMPANY
