Component Location Views

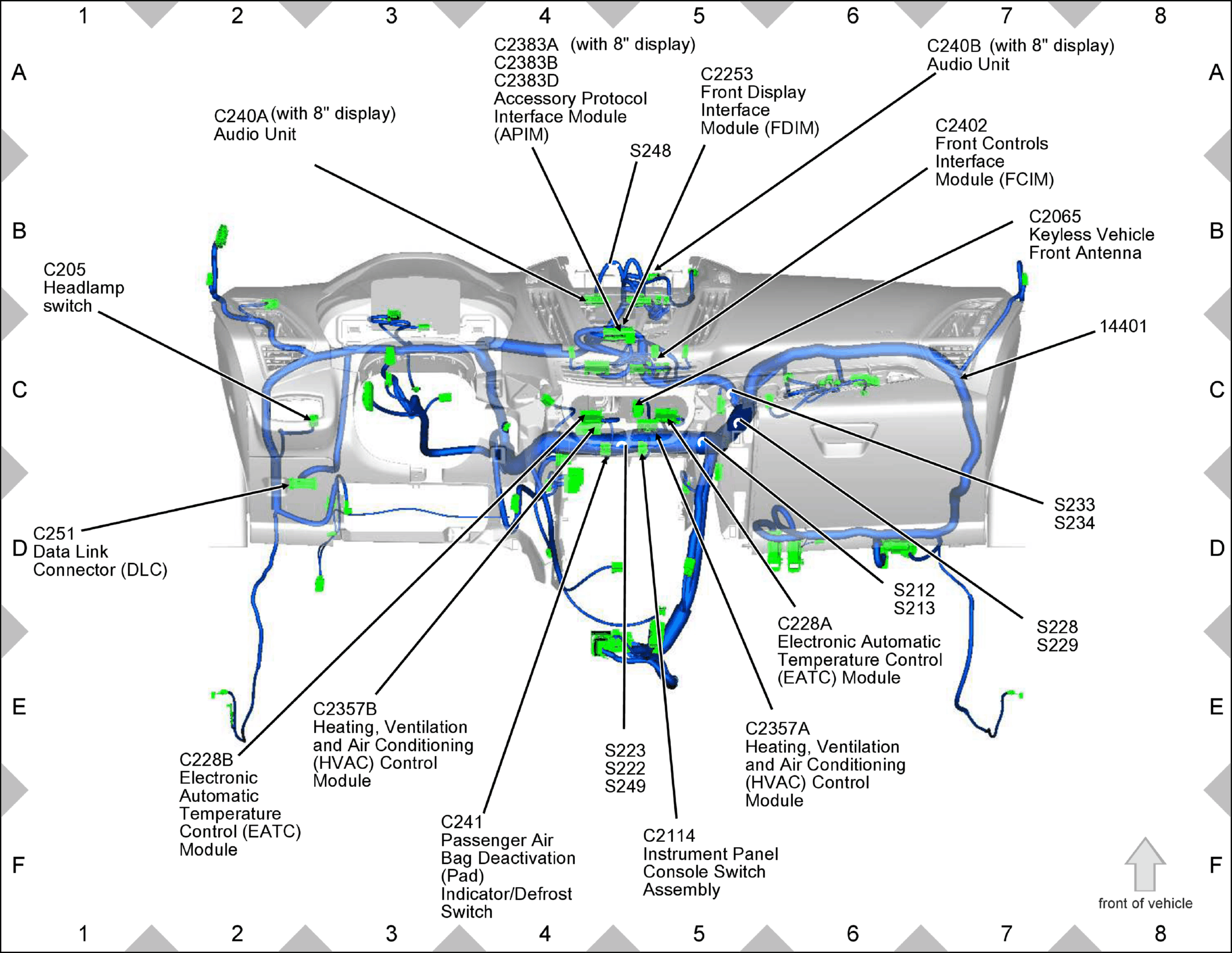

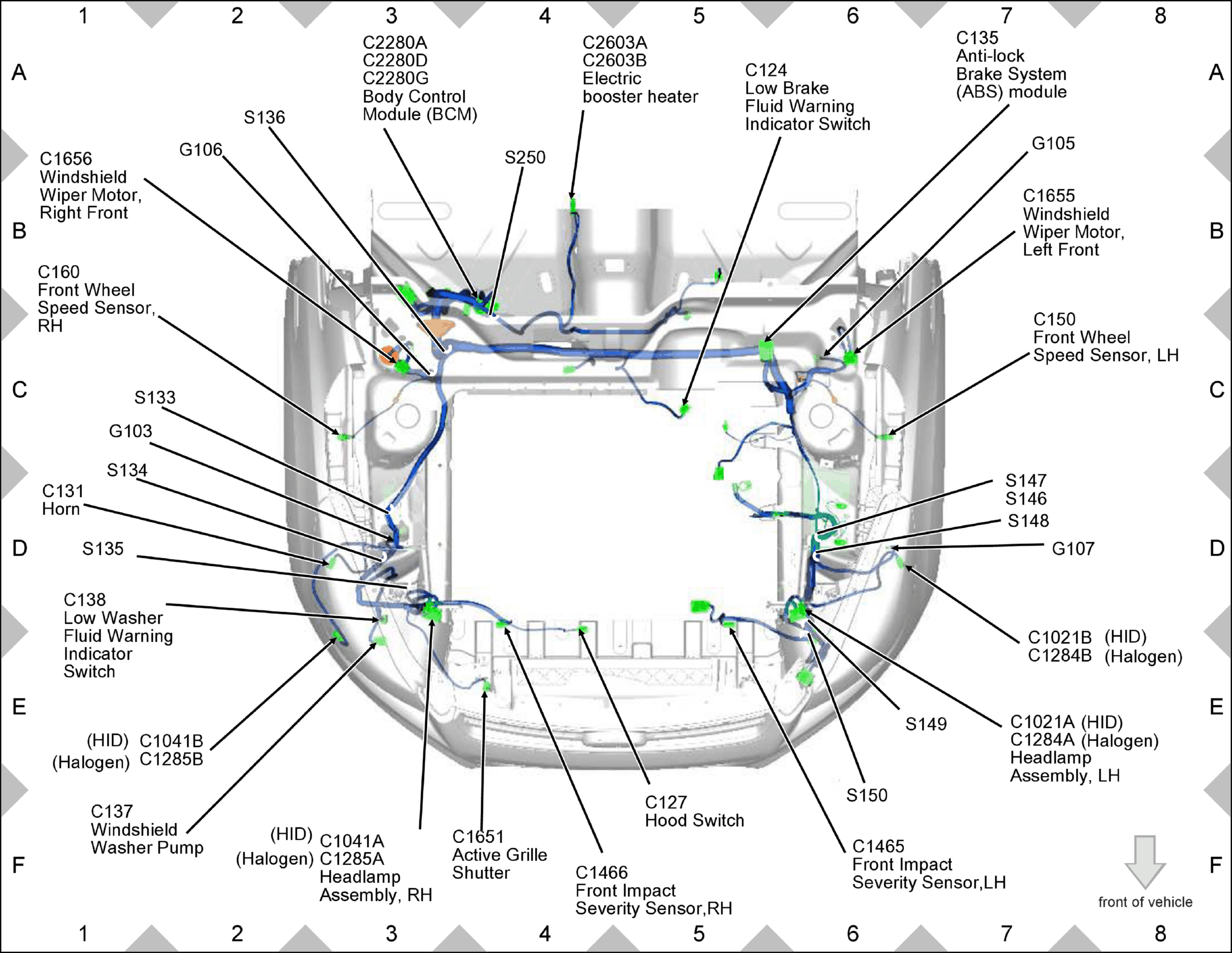

GFDW47401Courtesy of FORD MOTOR COMPANY

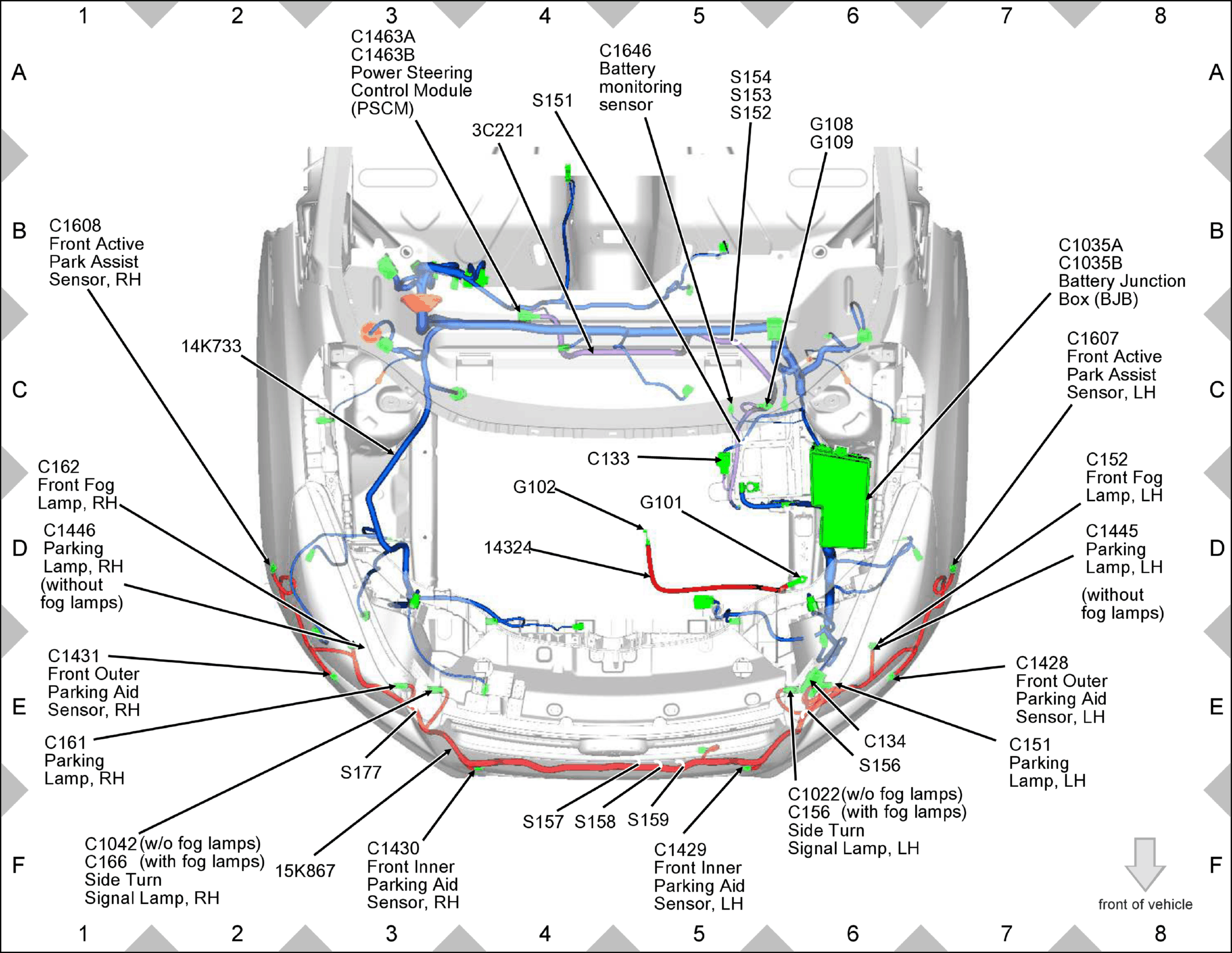

GFDW47402Courtesy of FORD MOTOR COMPANY

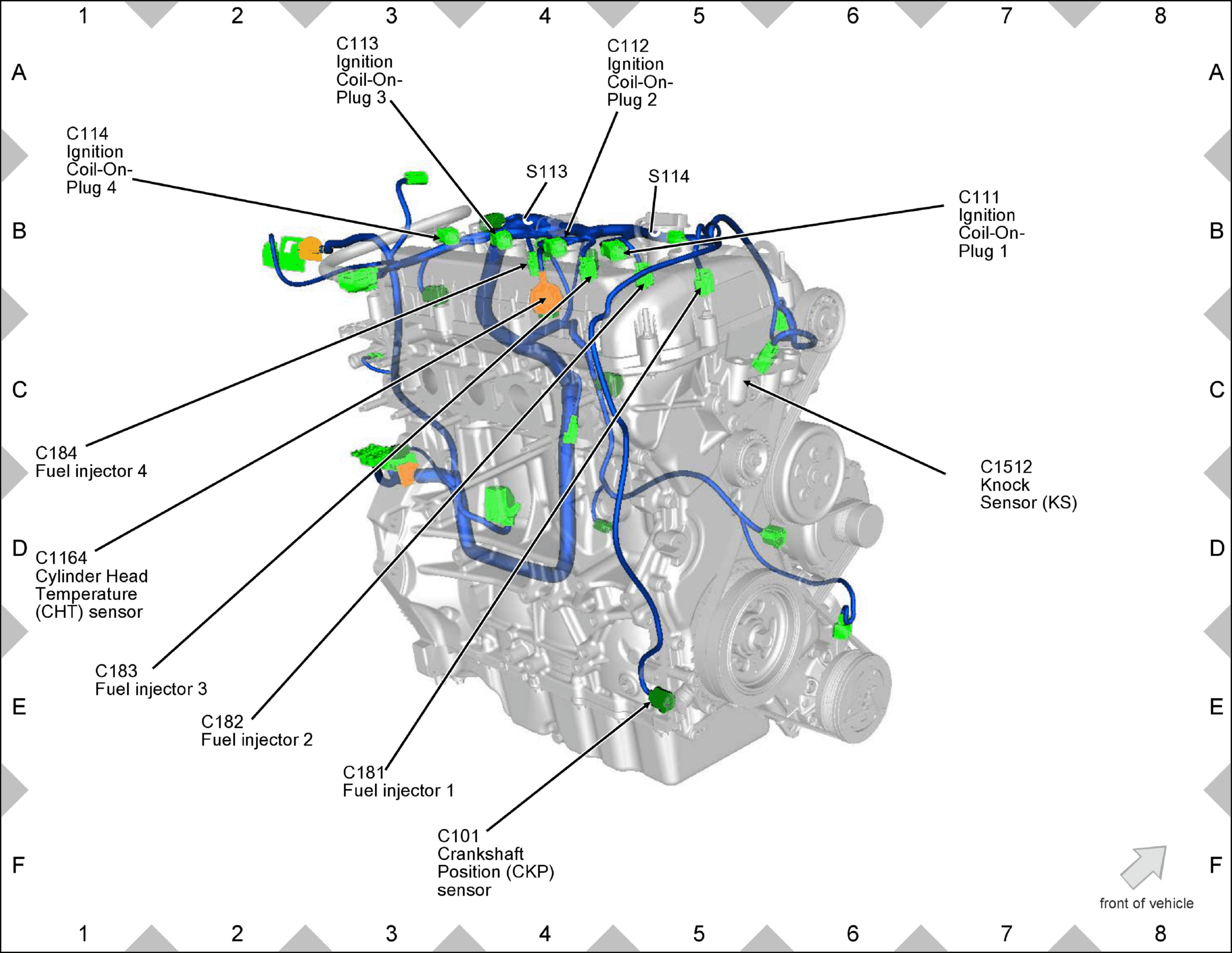

GFDW47403Courtesy of FORD MOTOR COMPANY

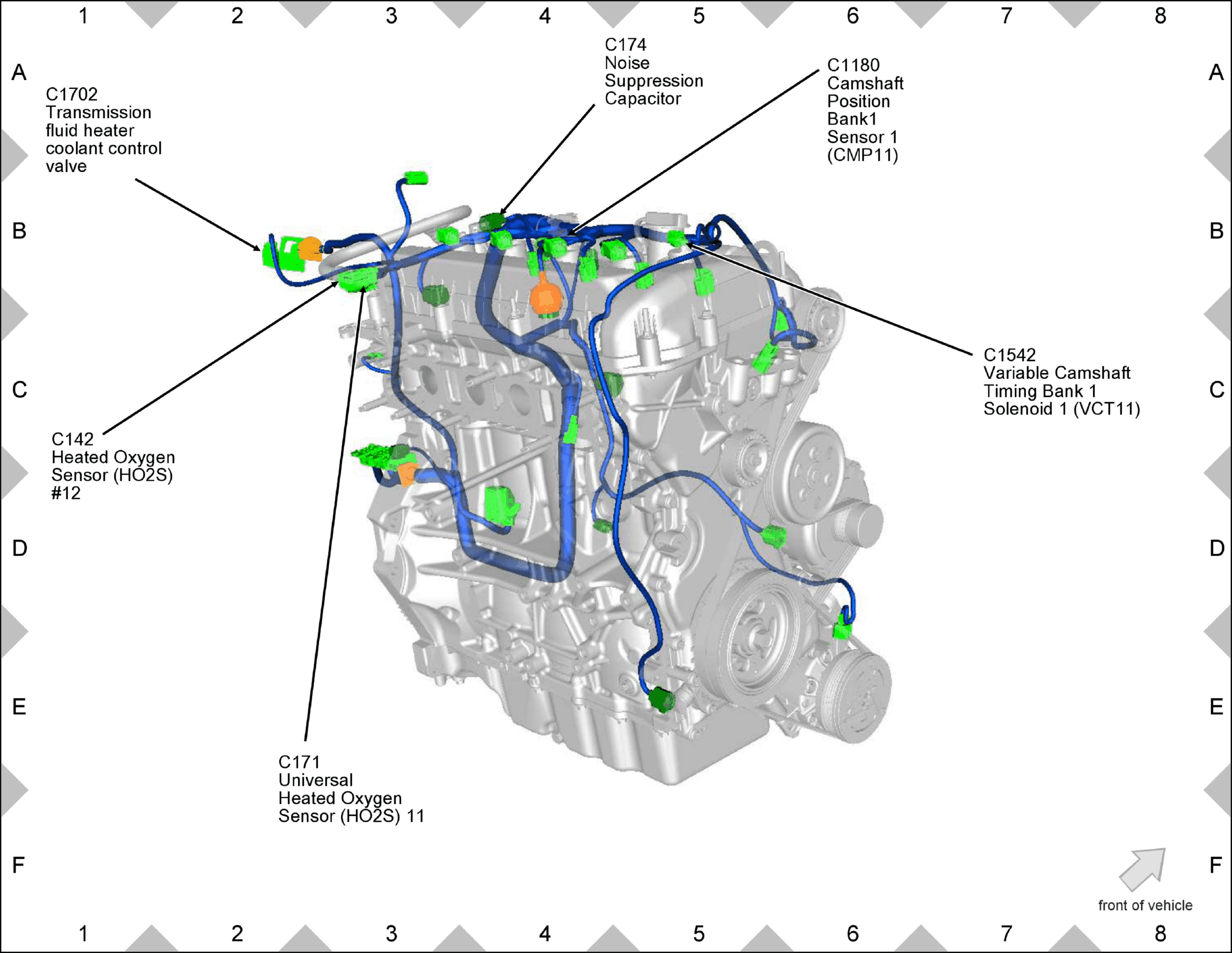

GFDW47404Courtesy of FORD MOTOR COMPANY

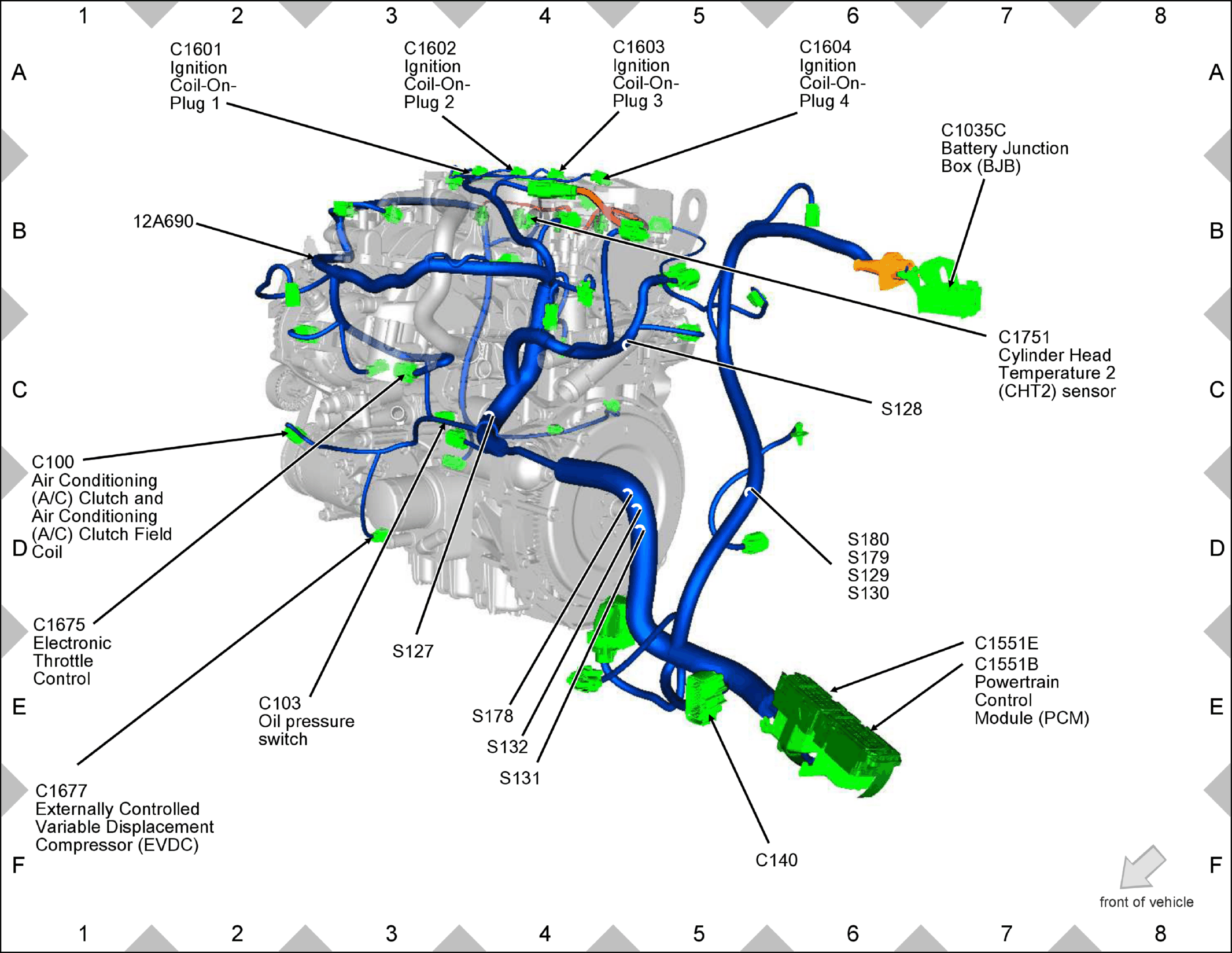

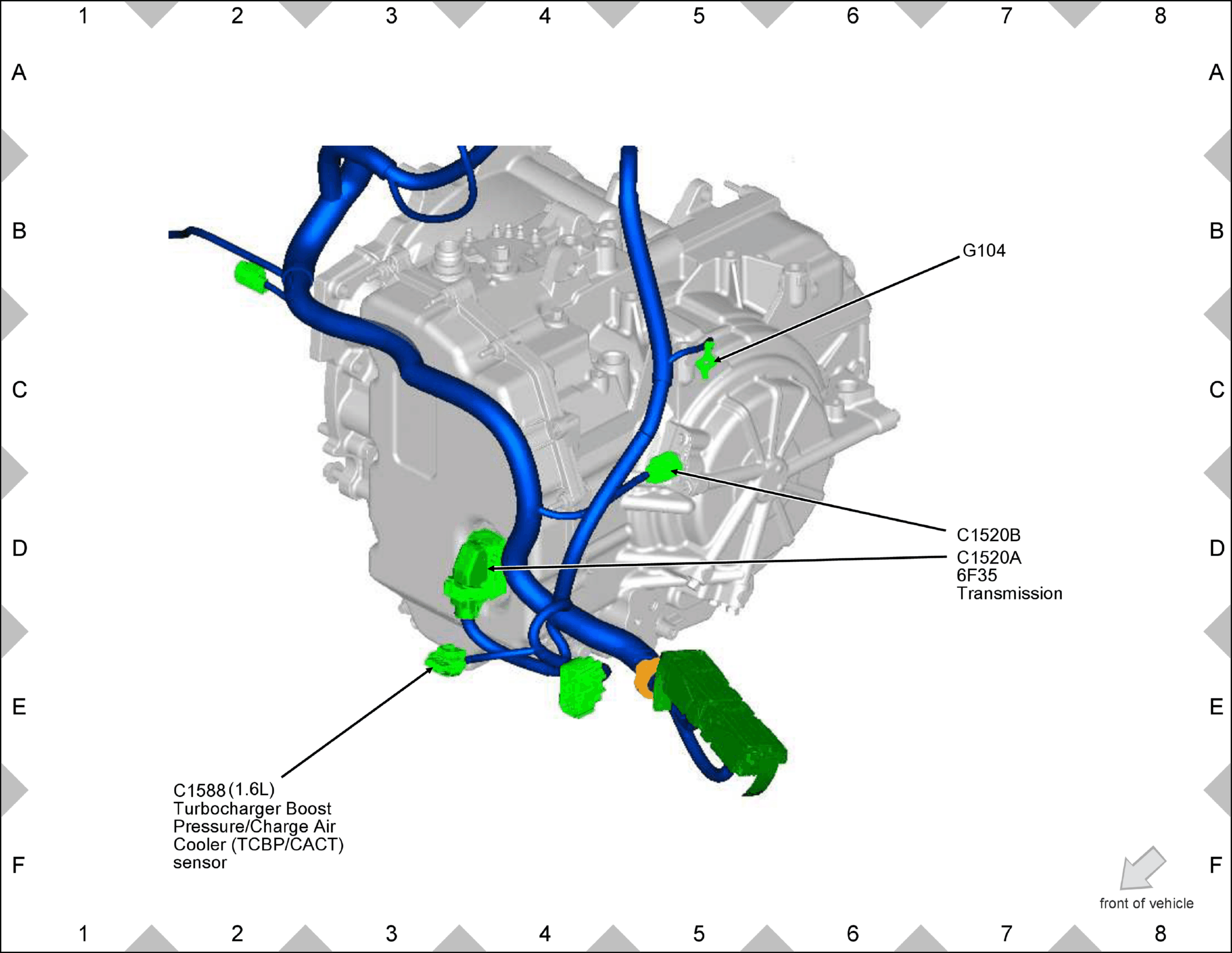

GFDW47405Courtesy of FORD MOTOR COMPANY
GFDW47406Courtesy of FORD MOTOR COMPANY

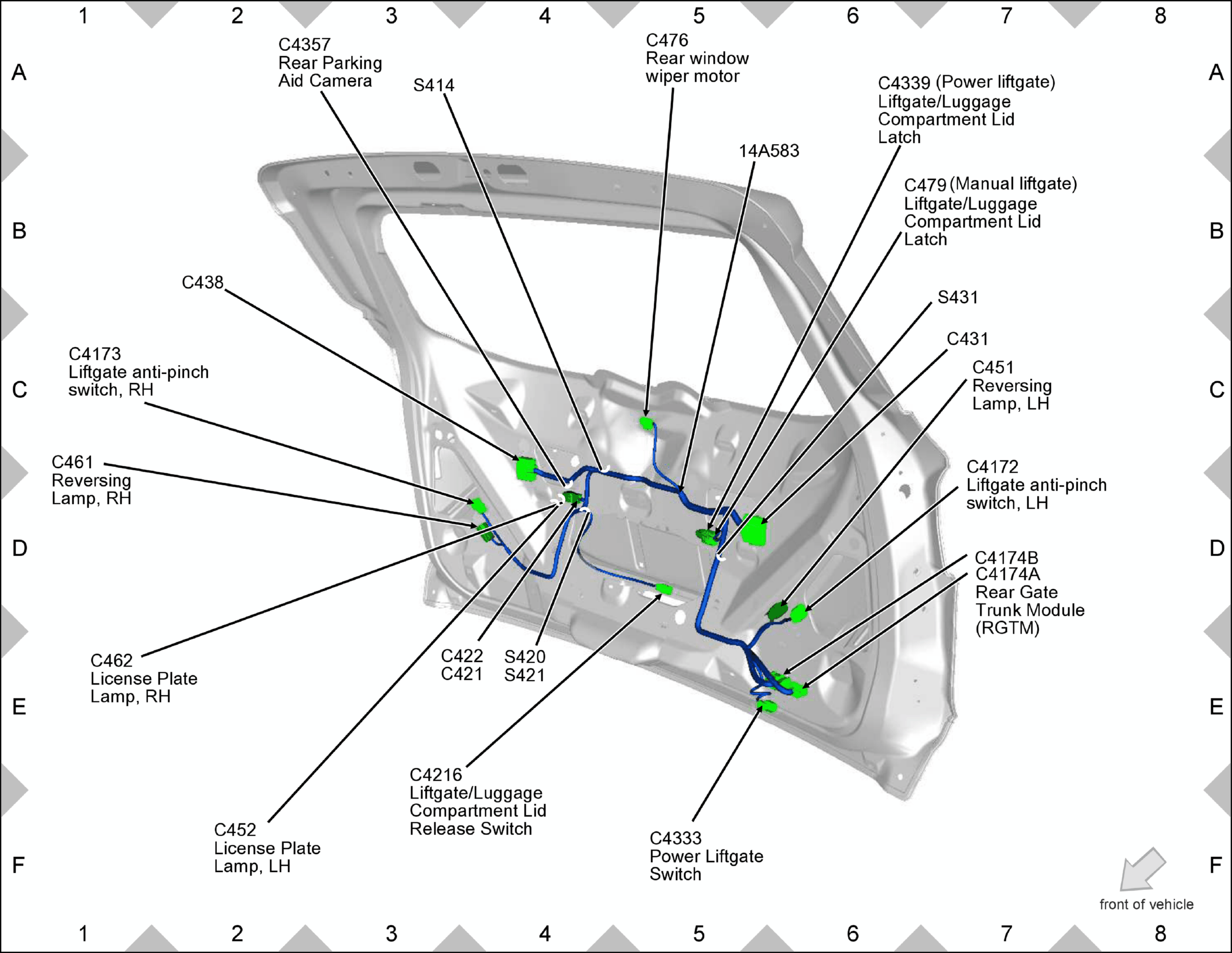

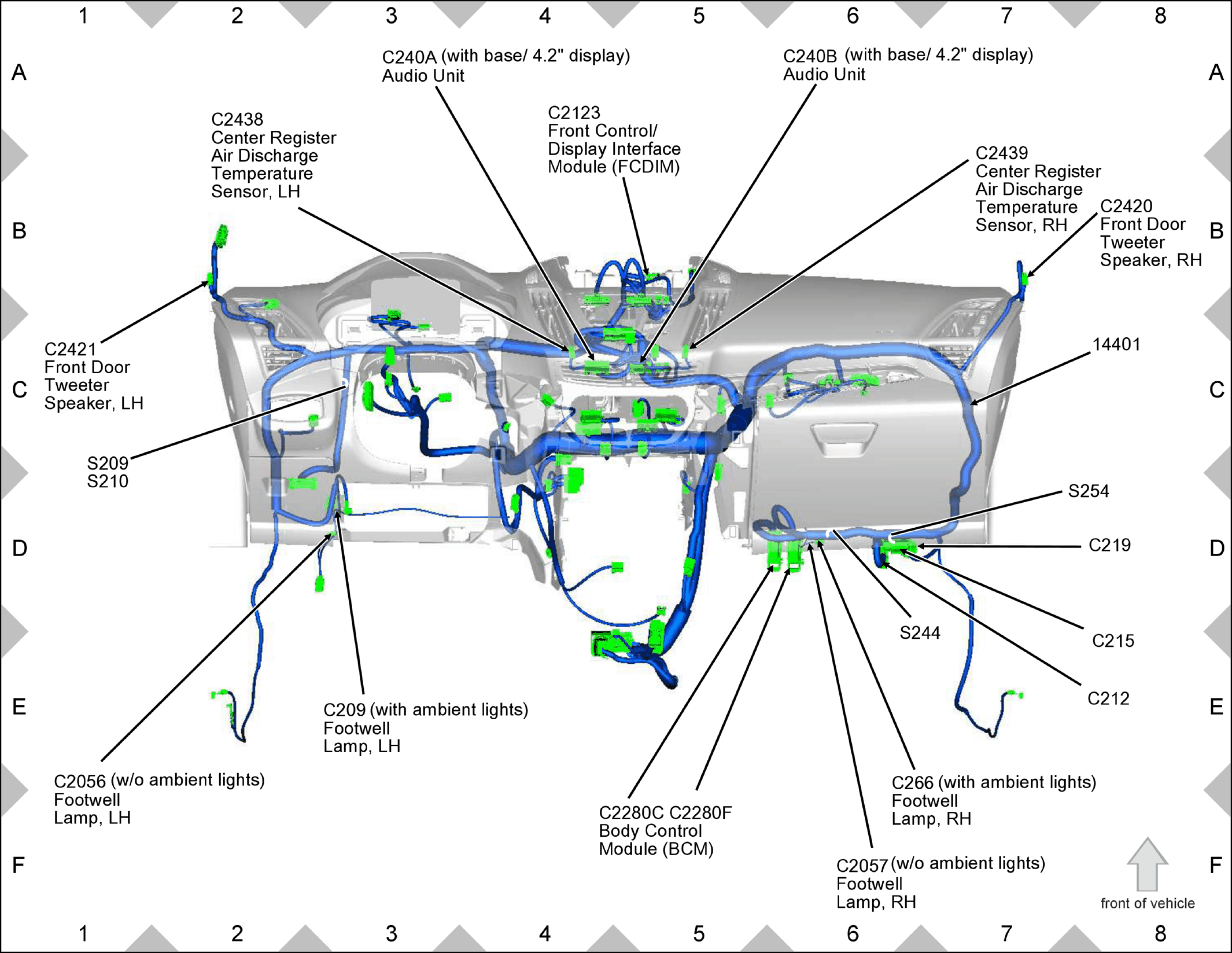

GFDW47407Courtesy of FORD MOTOR COMPANY

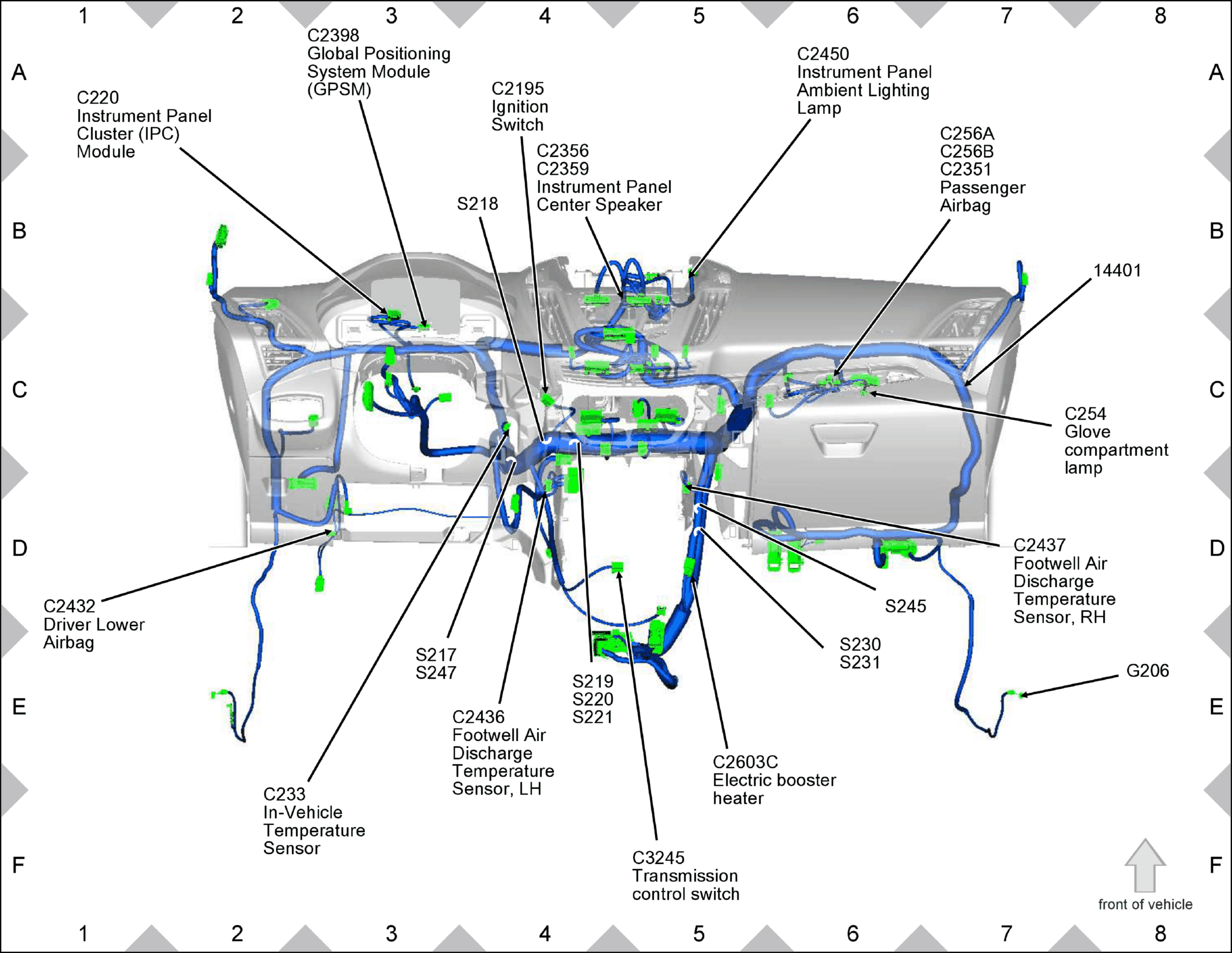

GFDW47408Courtesy of FORD MOTOR COMPANY

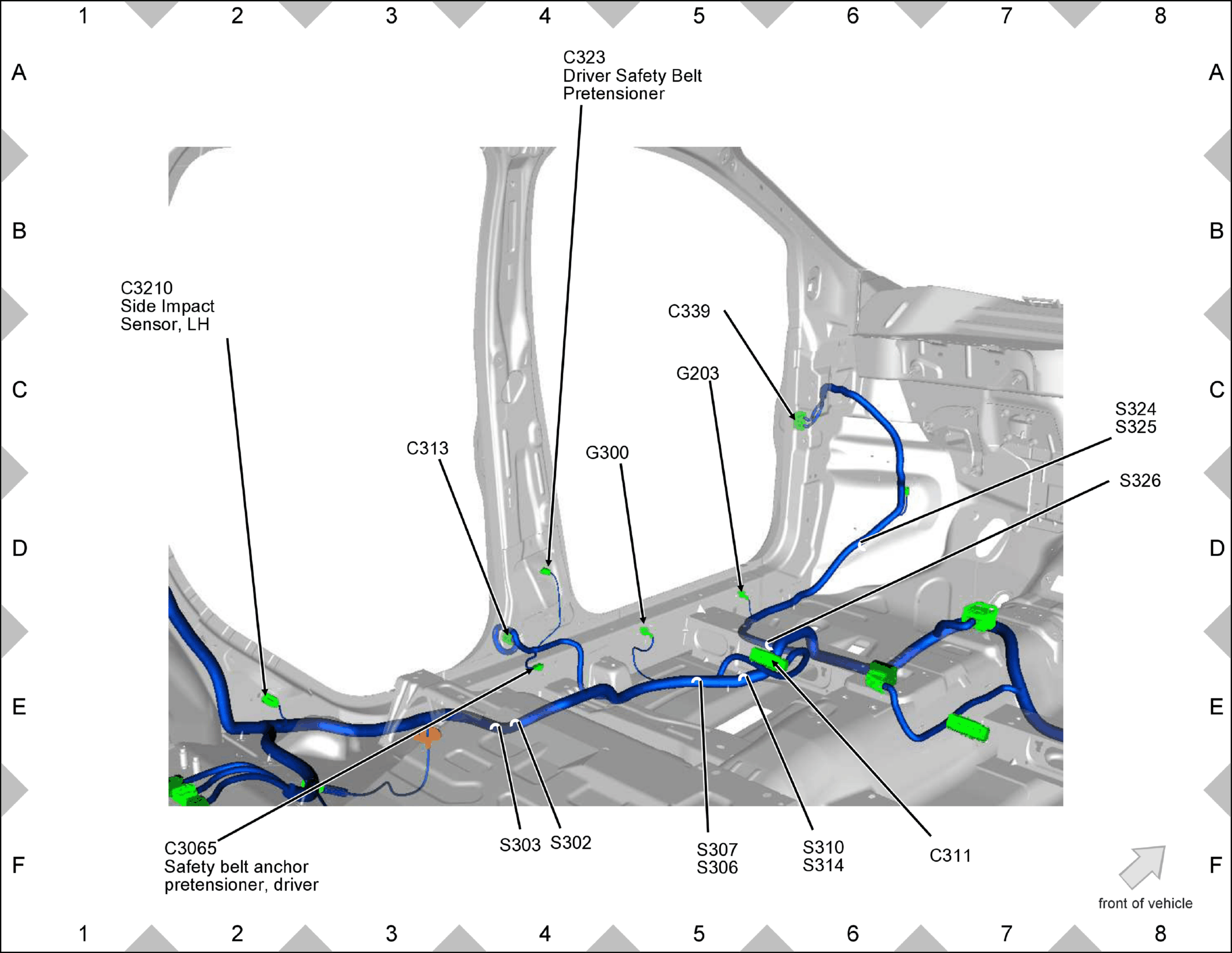

GFDW47409Courtesy of FORD MOTOR COMPANY

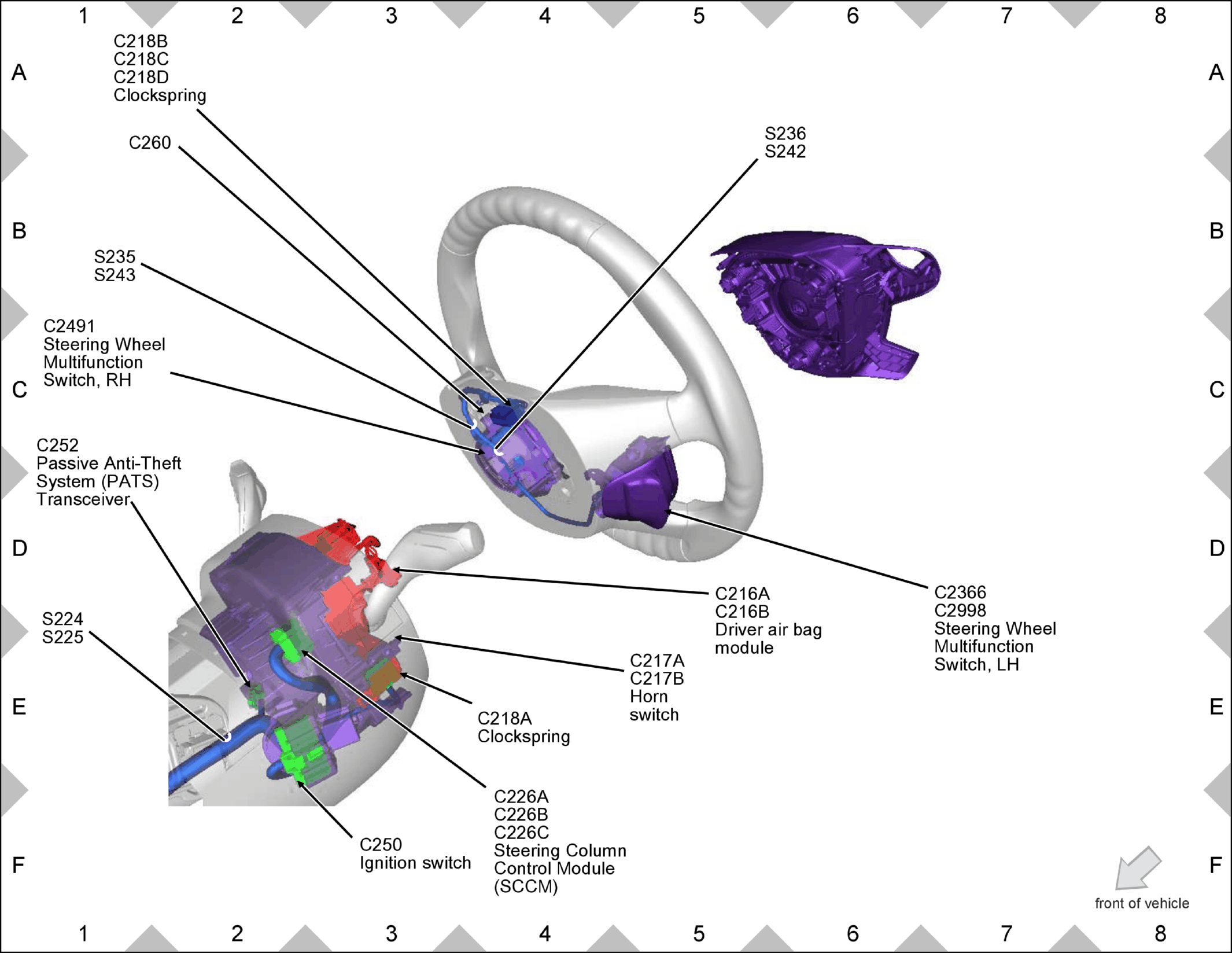

GFDW47410Courtesy of FORD MOTOR COMPANY

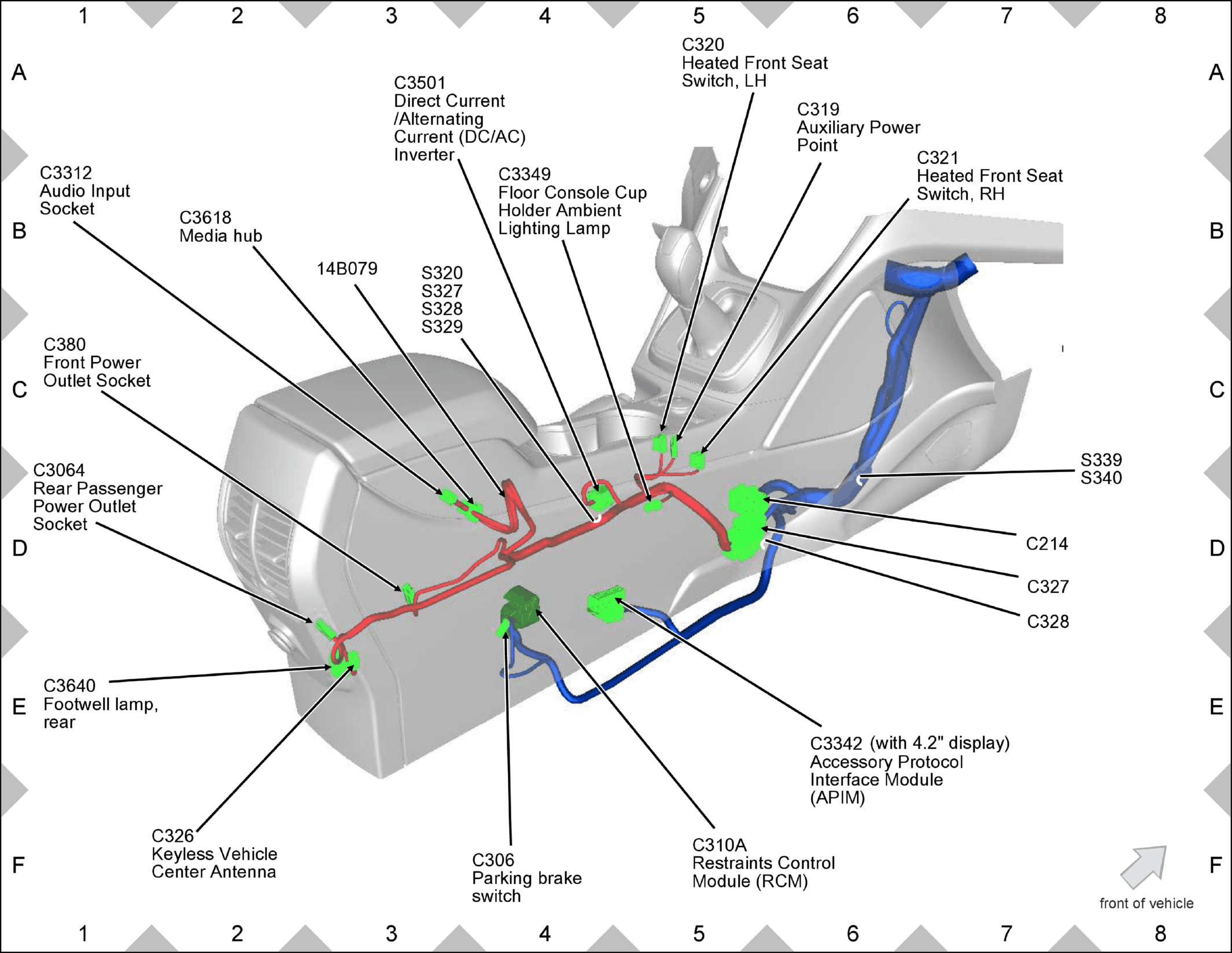

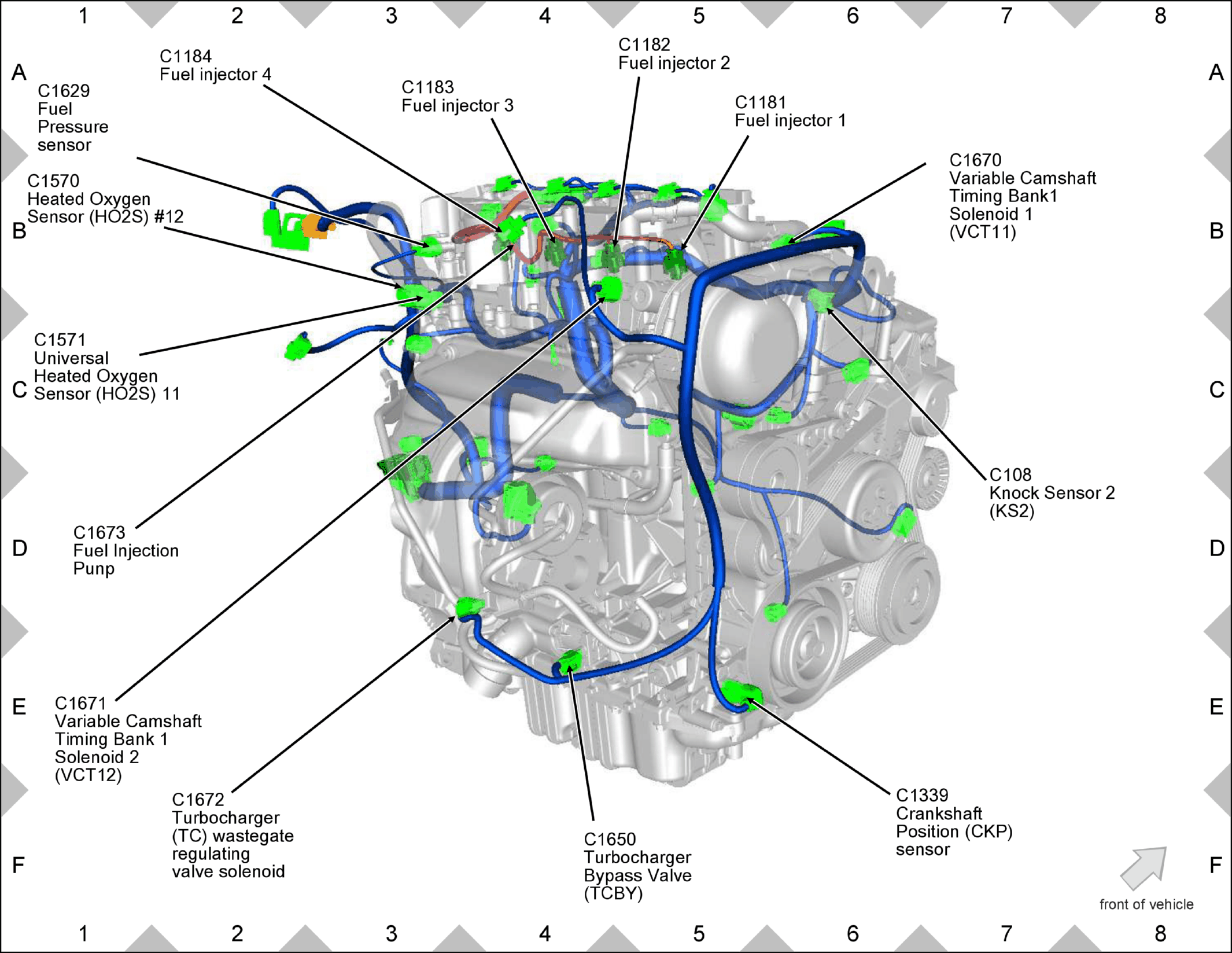

GFDW47411Courtesy of FORD MOTOR COMPANY

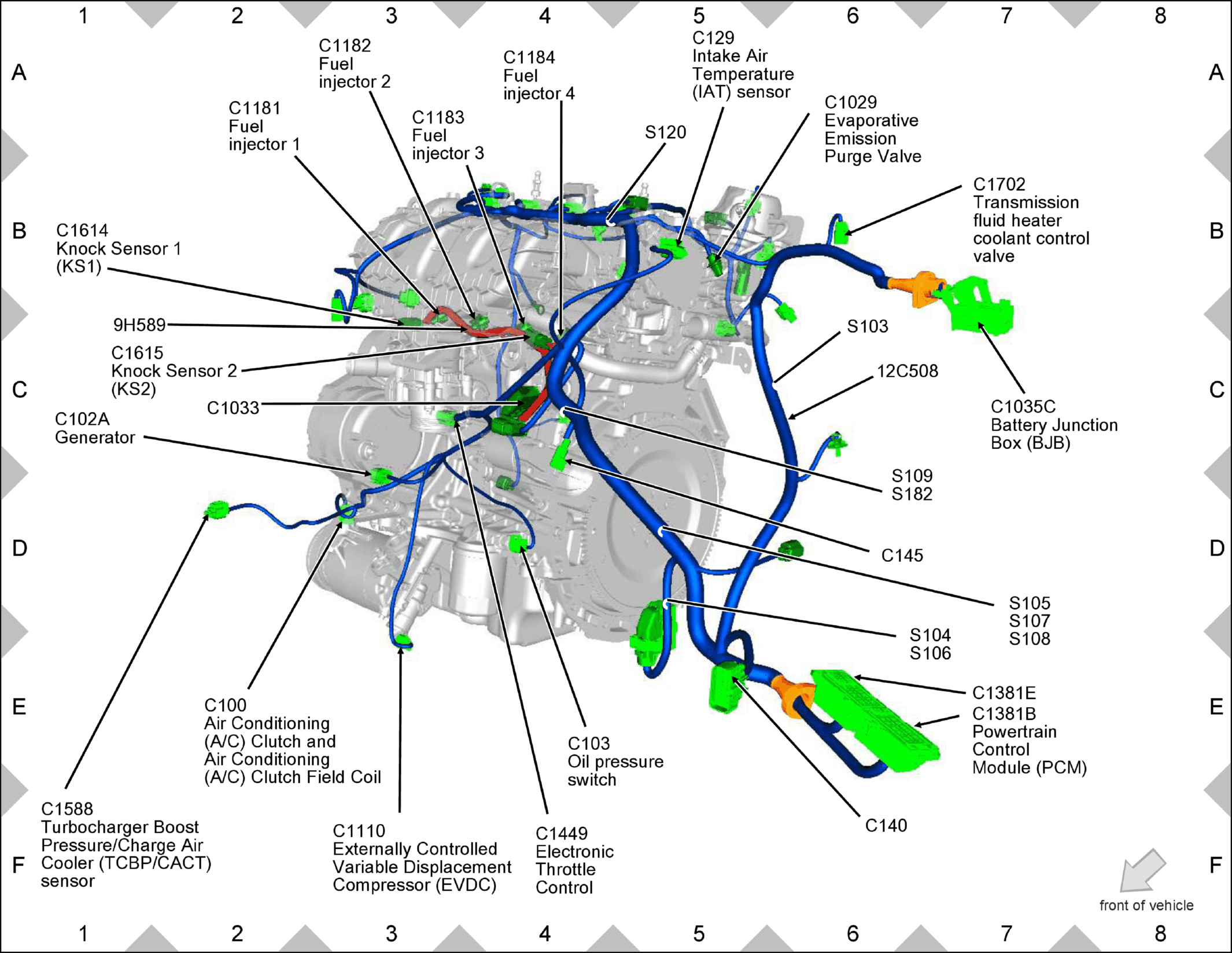

GFDW47412Courtesy of FORD MOTOR COMPANY

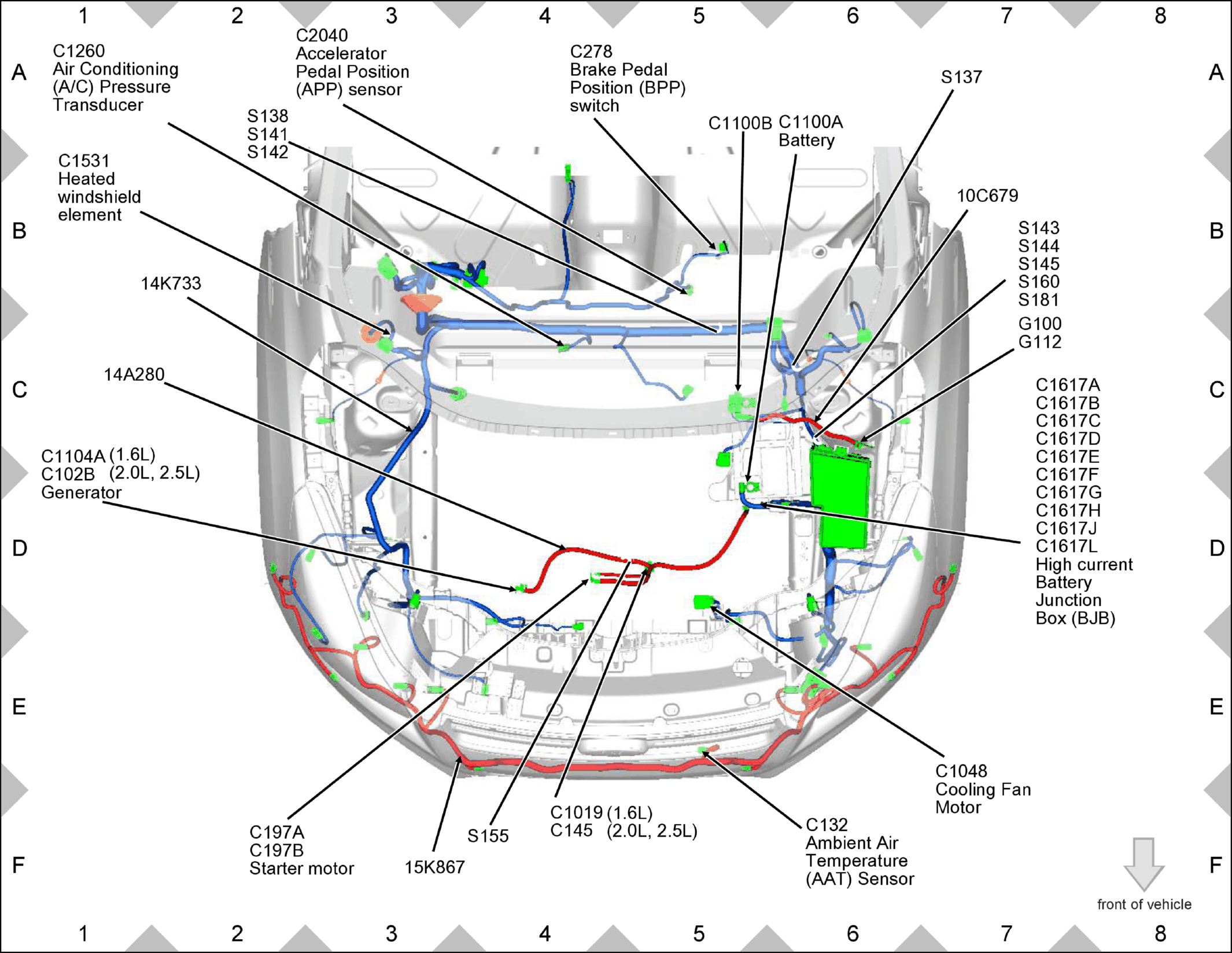

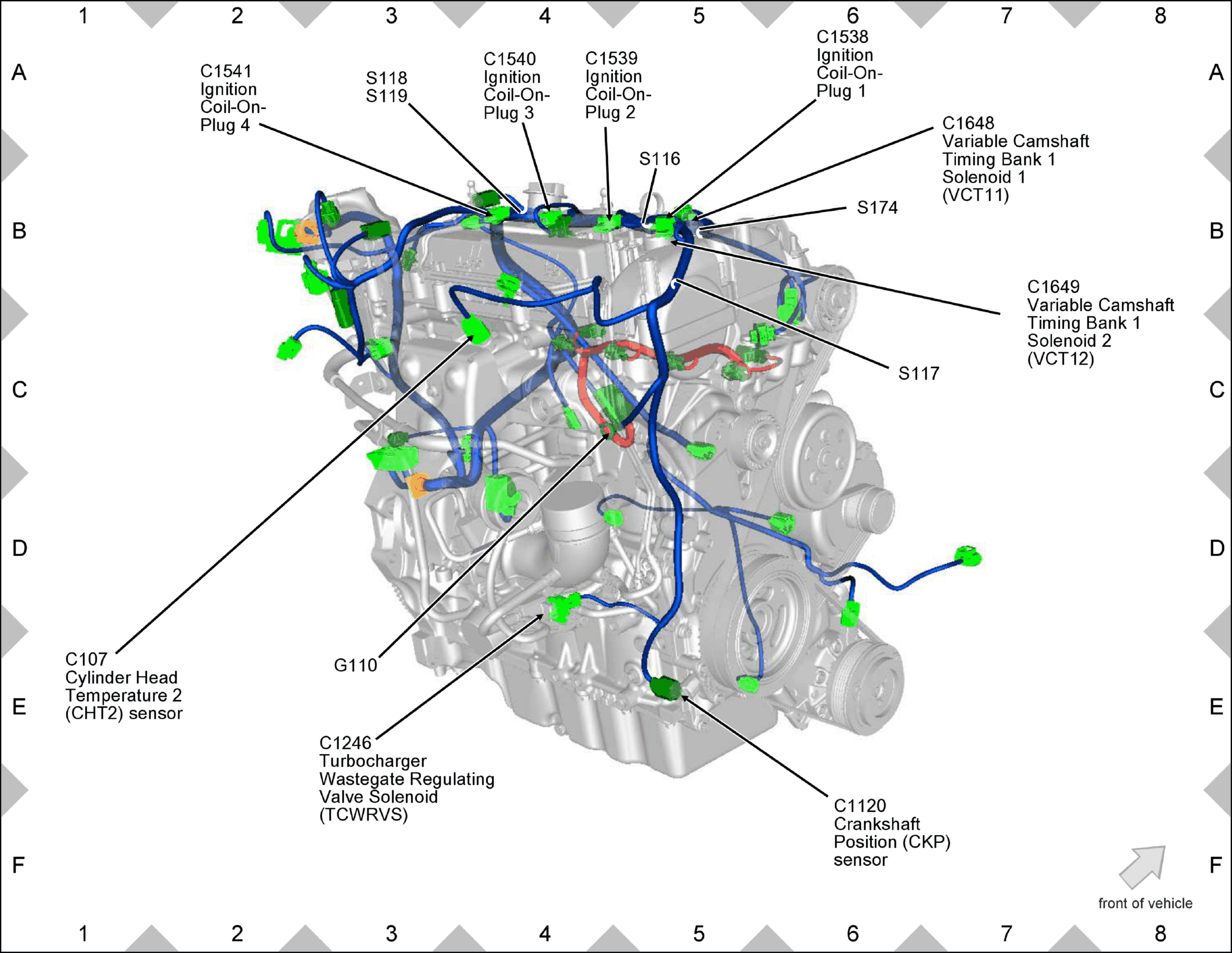

GFDW47413Courtesy of FORD MOTOR COMPANY

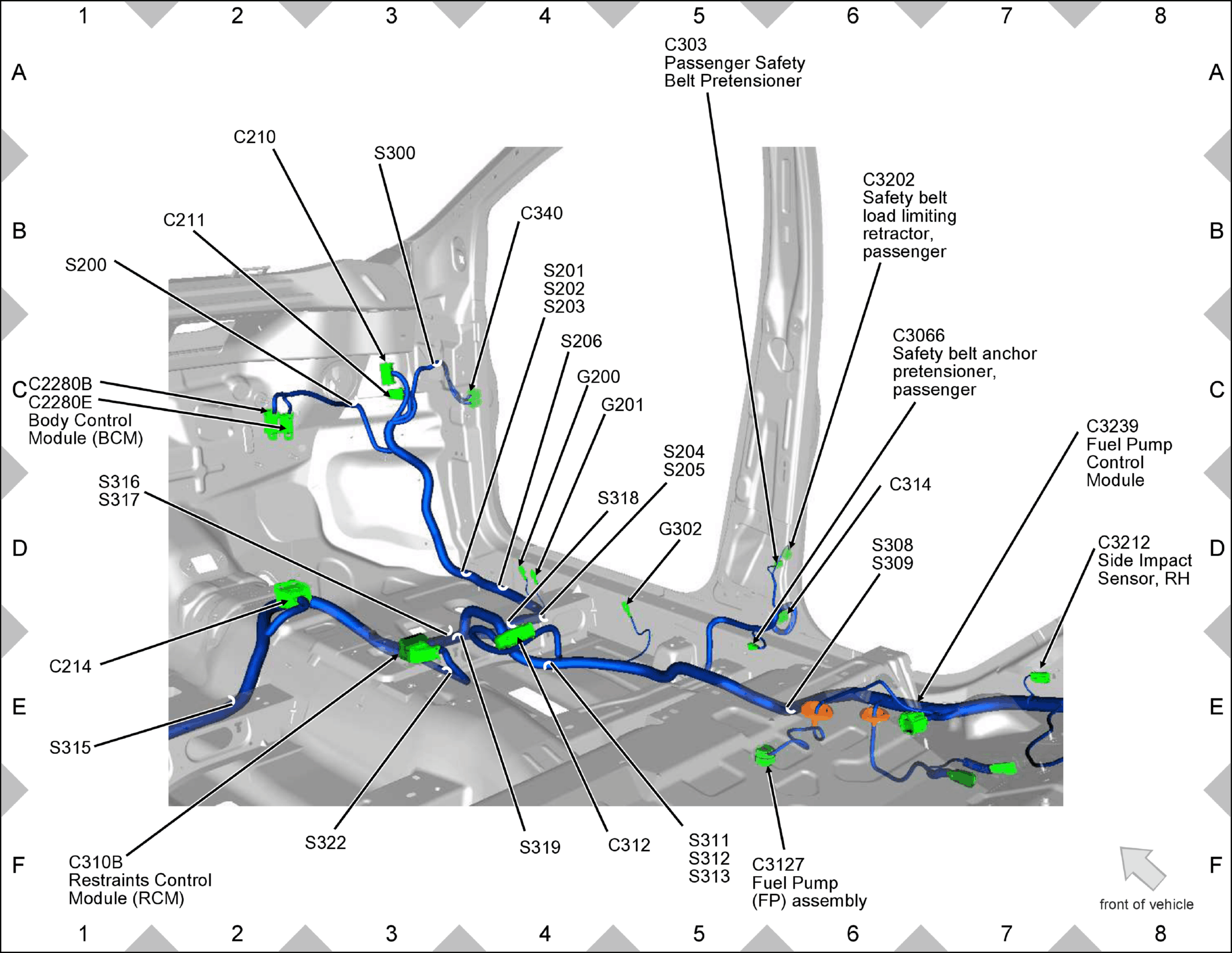

GFDW47414Courtesy of FORD MOTOR COMPANY

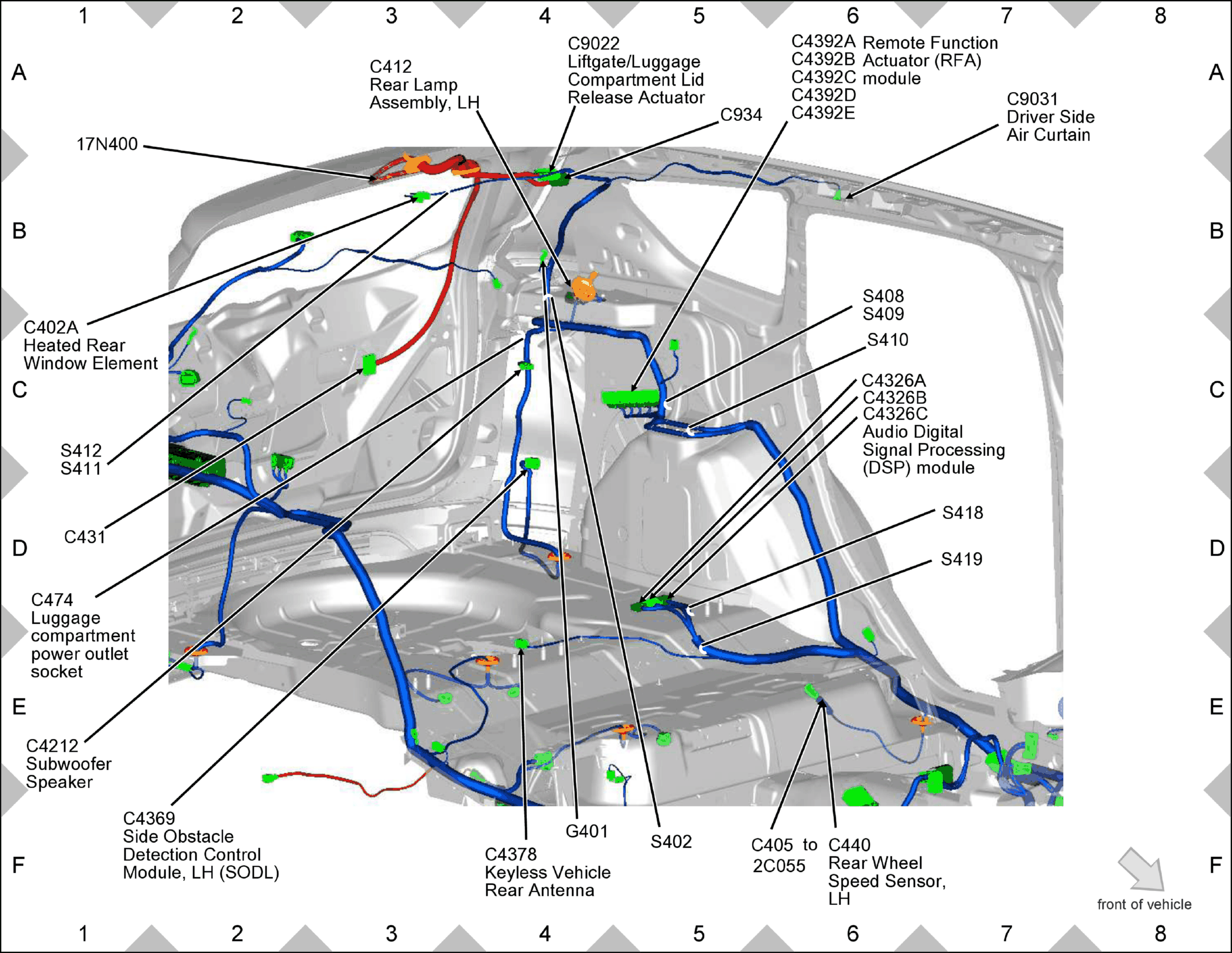

GFDW47415Courtesy of FORD MOTOR COMPANY

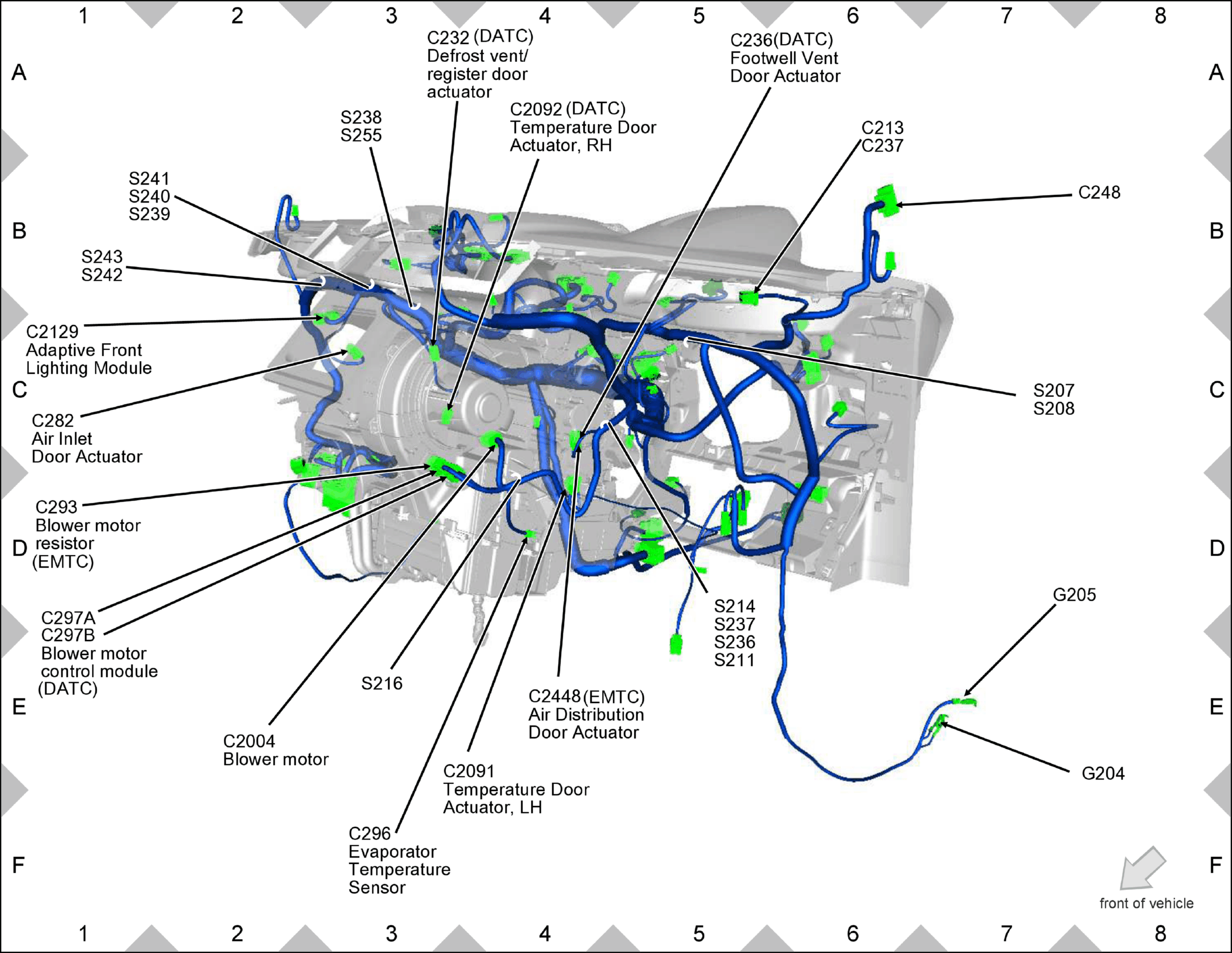

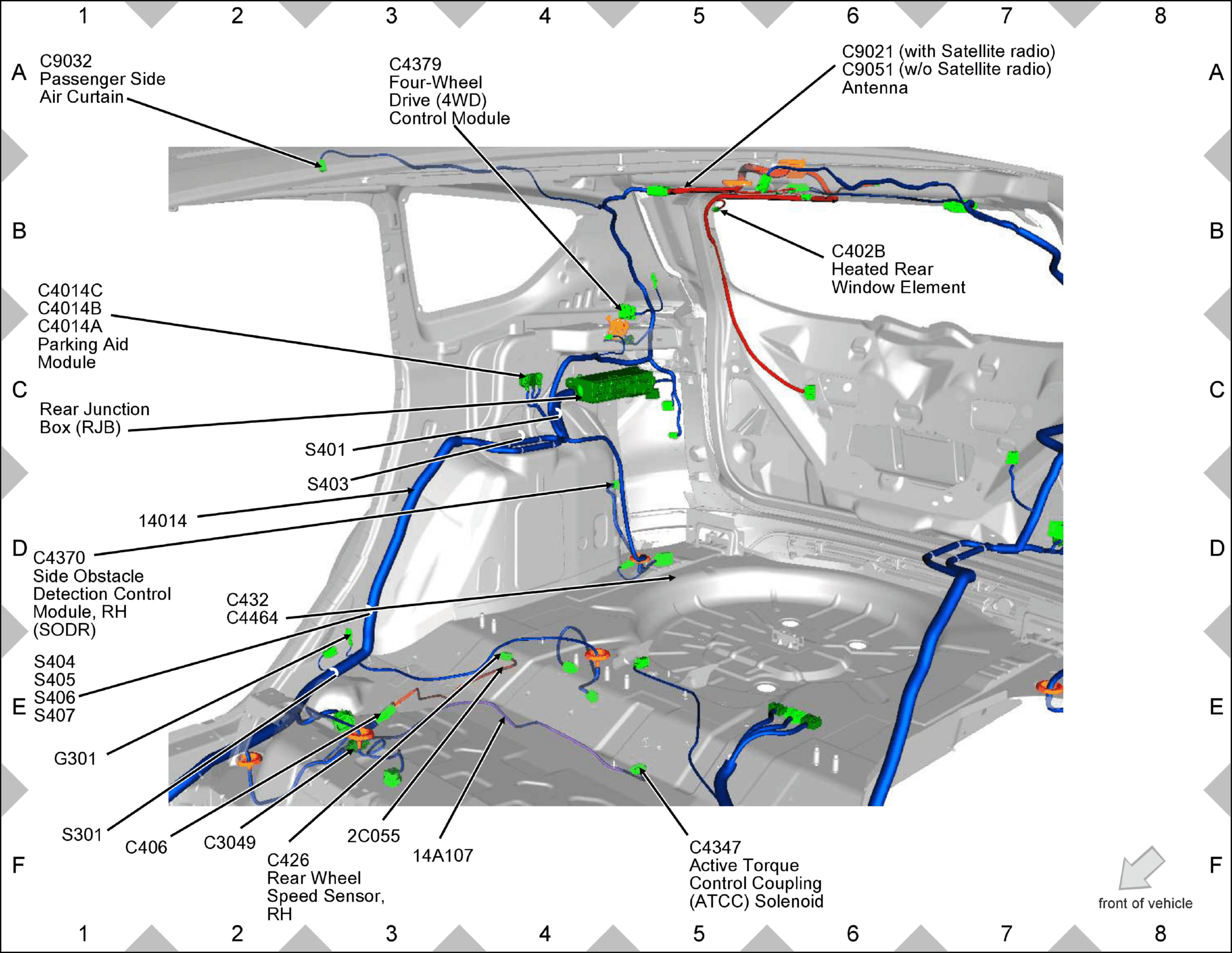

GFDW47416Courtesy of FORD MOTOR COMPANY

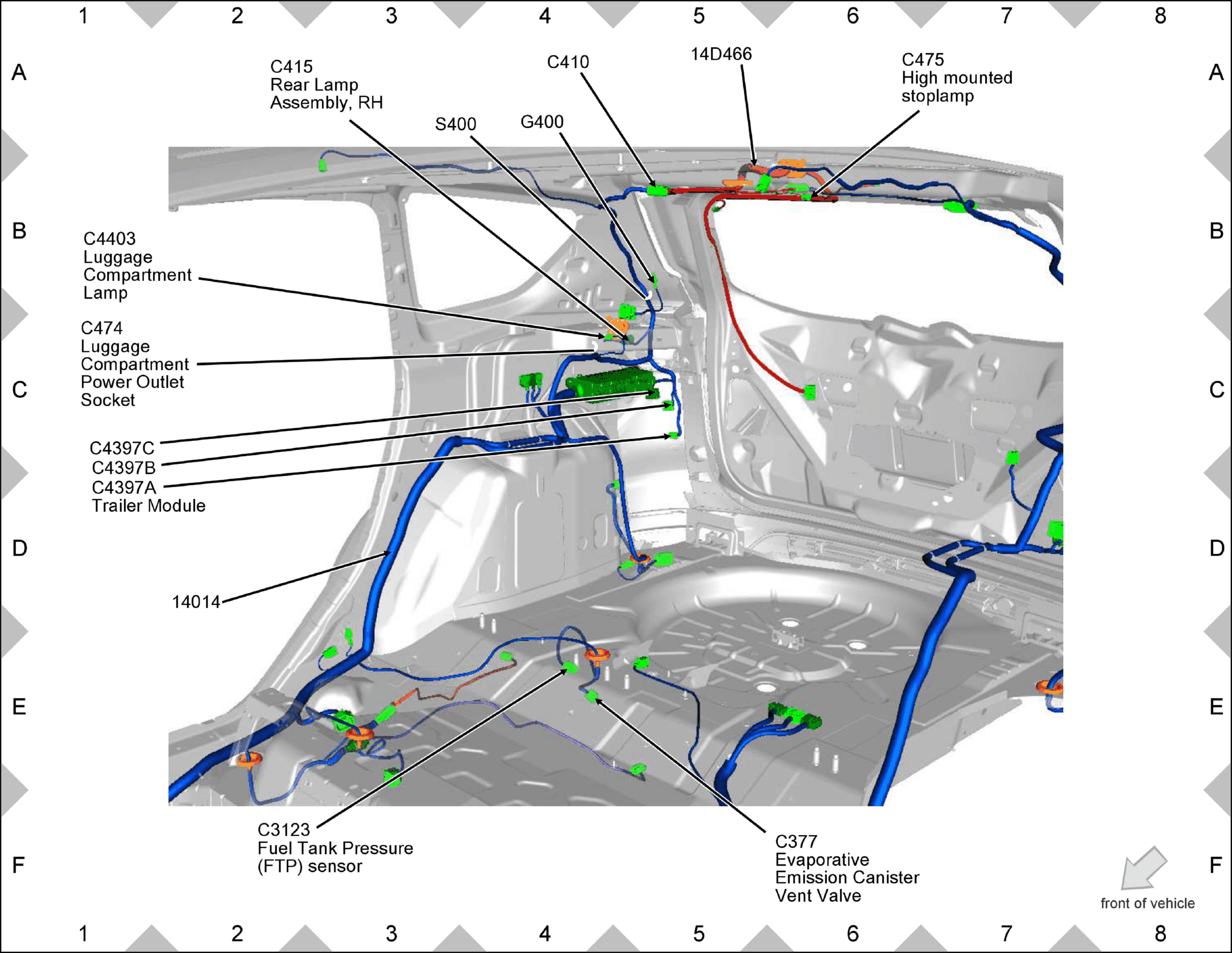

GFDW47417Courtesy of FORD MOTOR COMPANY

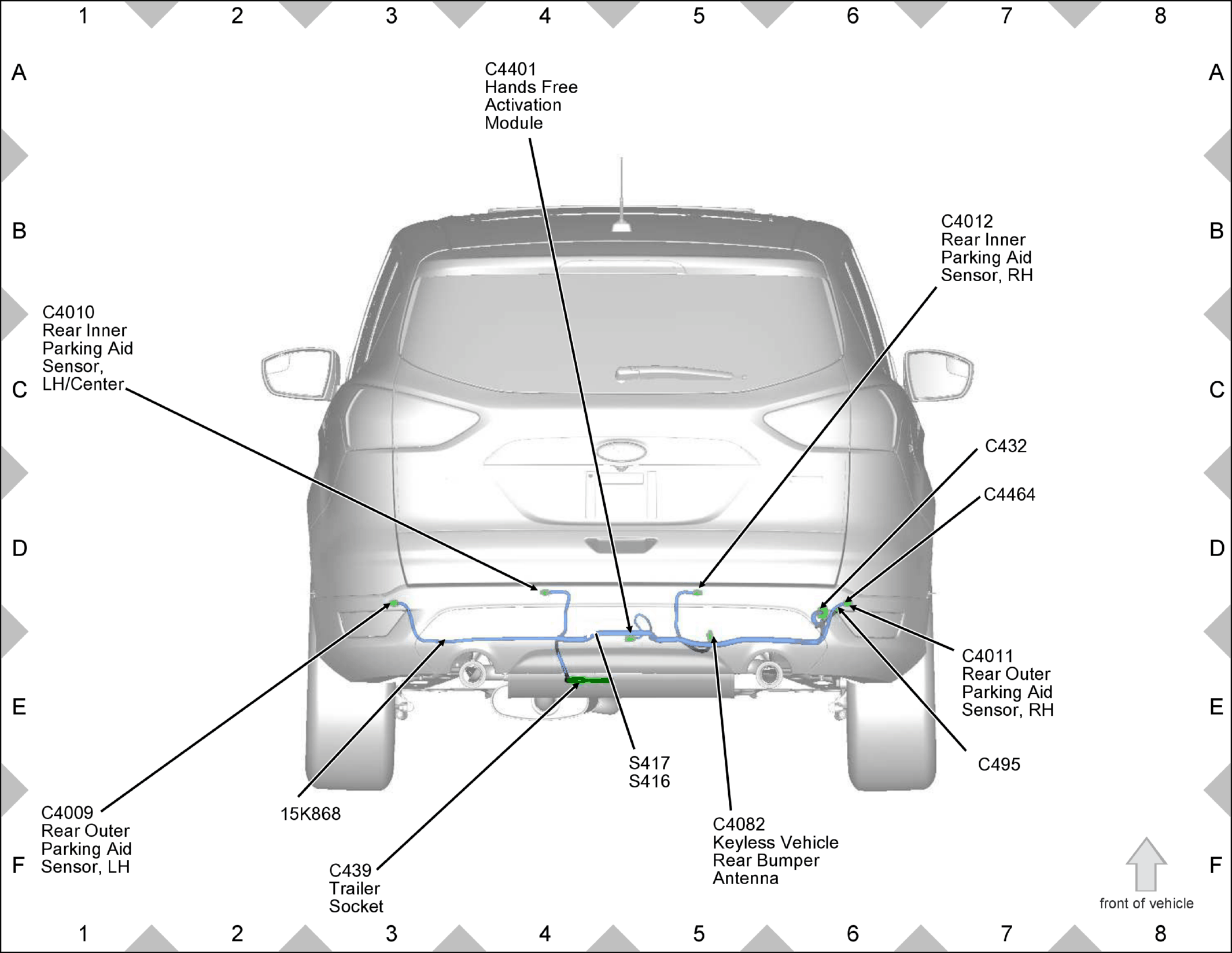

GFDW47418Courtesy of FORD MOTOR COMPANY

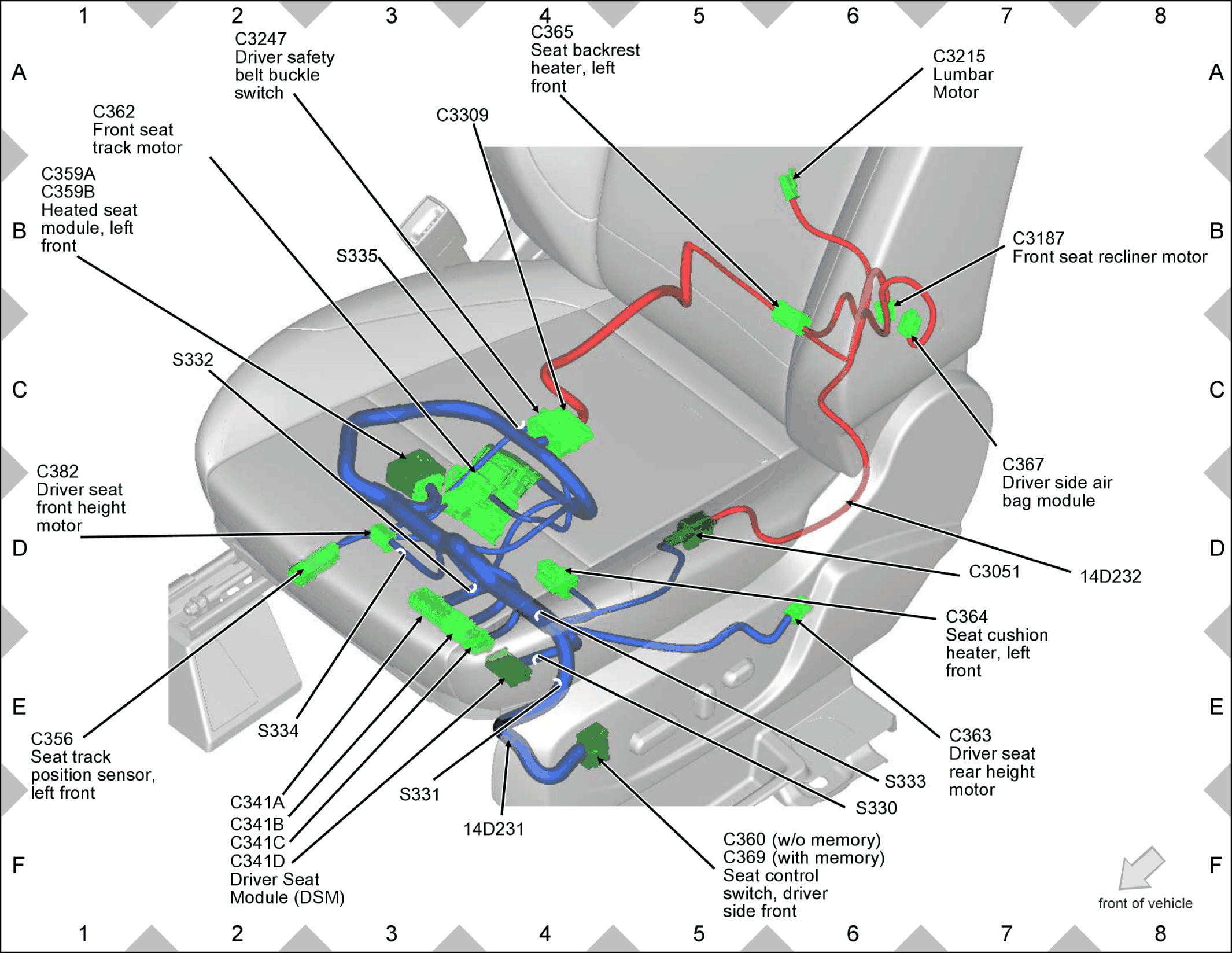

GFDW47419Courtesy of FORD MOTOR COMPANY

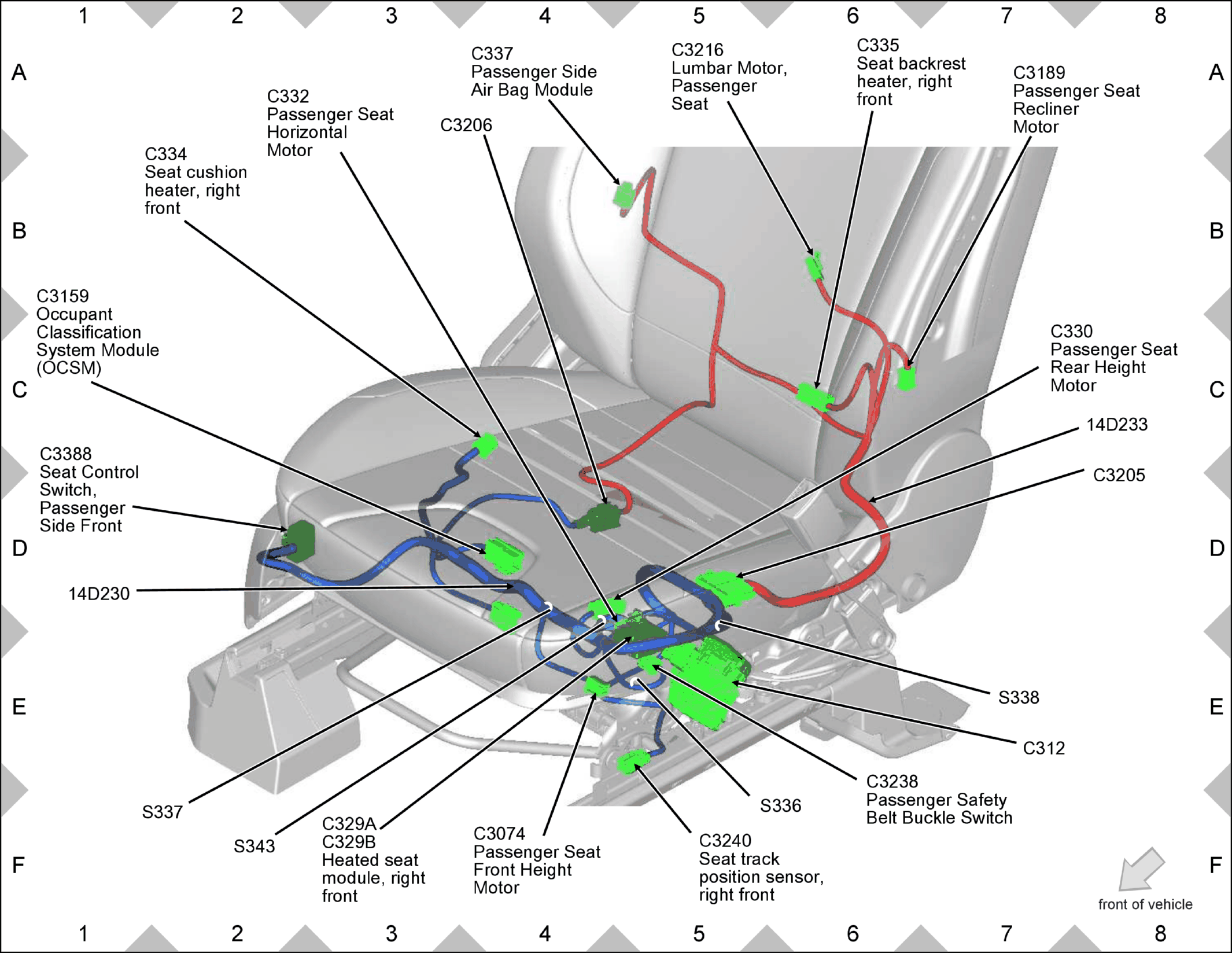

GFDW47420Courtesy of FORD MOTOR COMPANY

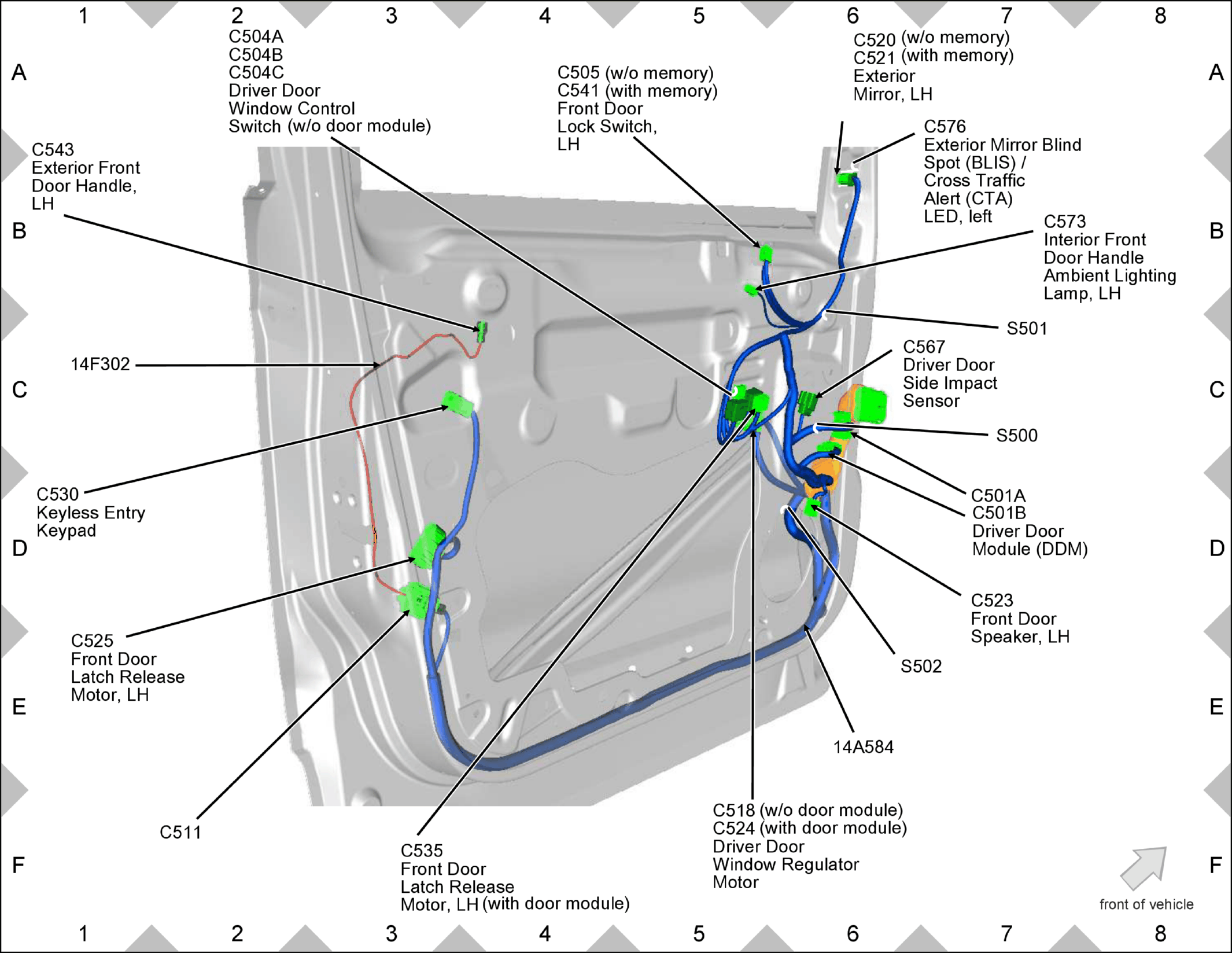

GFDW47421Courtesy of FORD MOTOR COMPANY

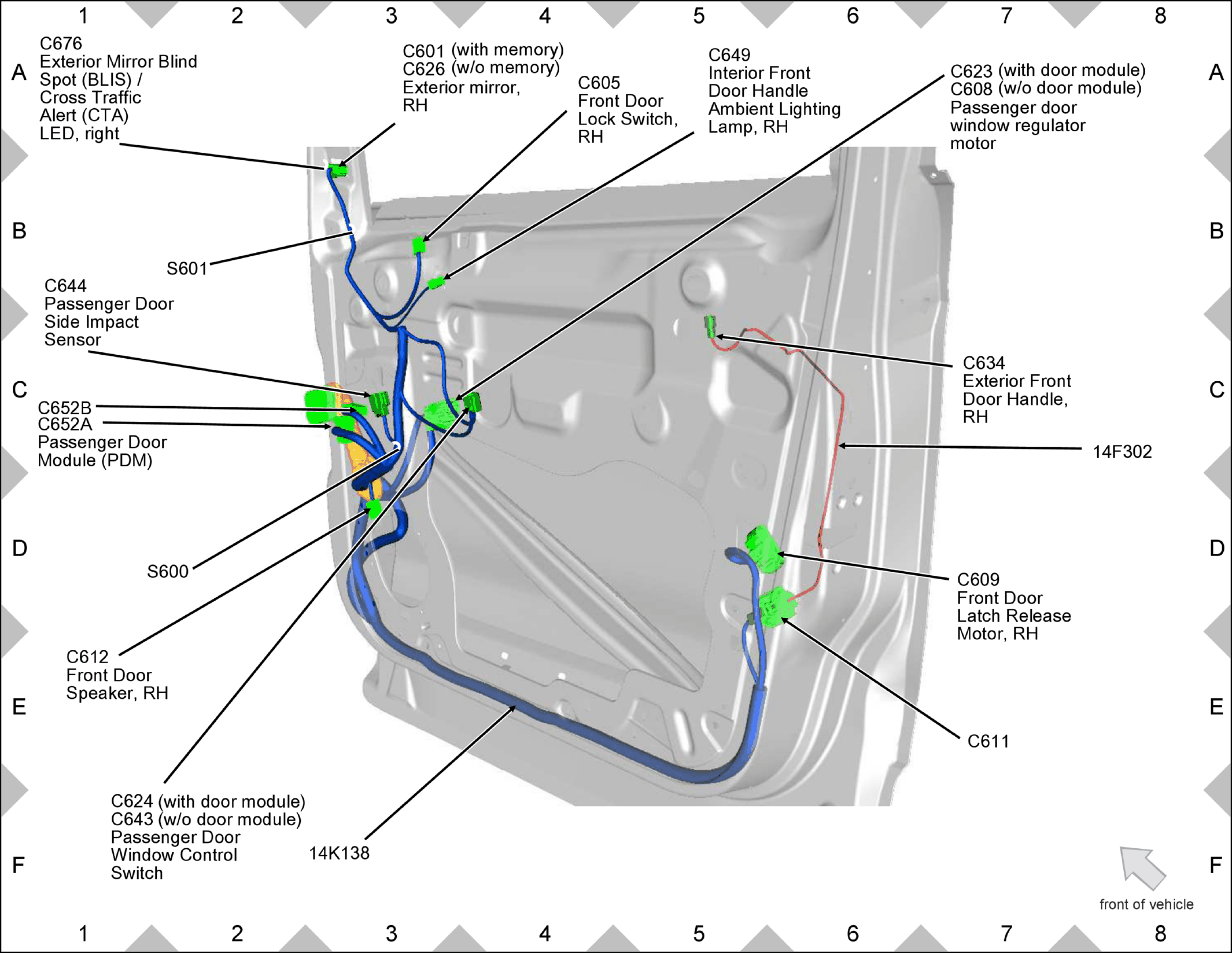

GFDW47422Courtesy of FORD MOTOR COMPANY

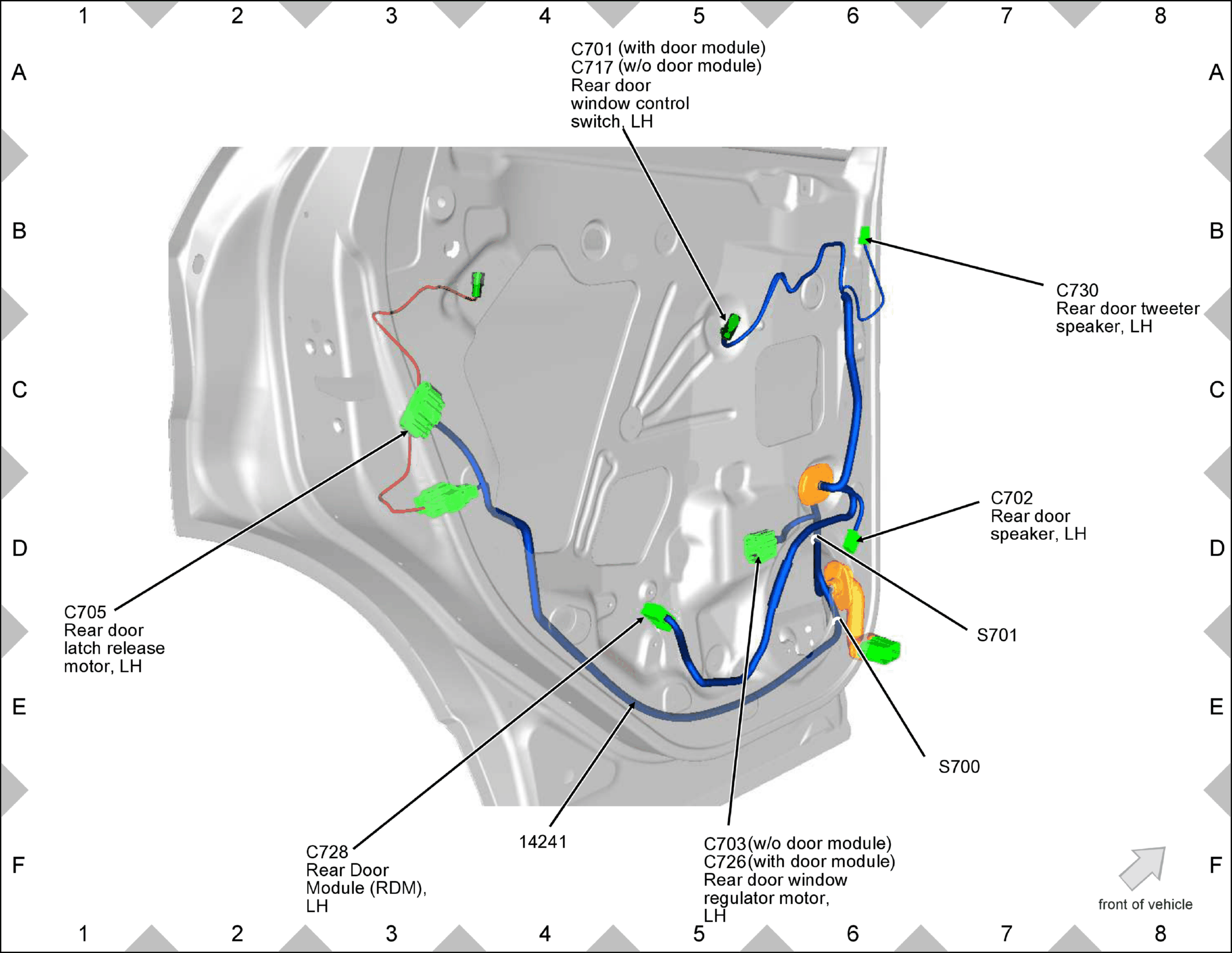

GFDW47423Courtesy of FORD MOTOR COMPANY
GFDW47424Courtesy of FORD MOTOR COMPANY

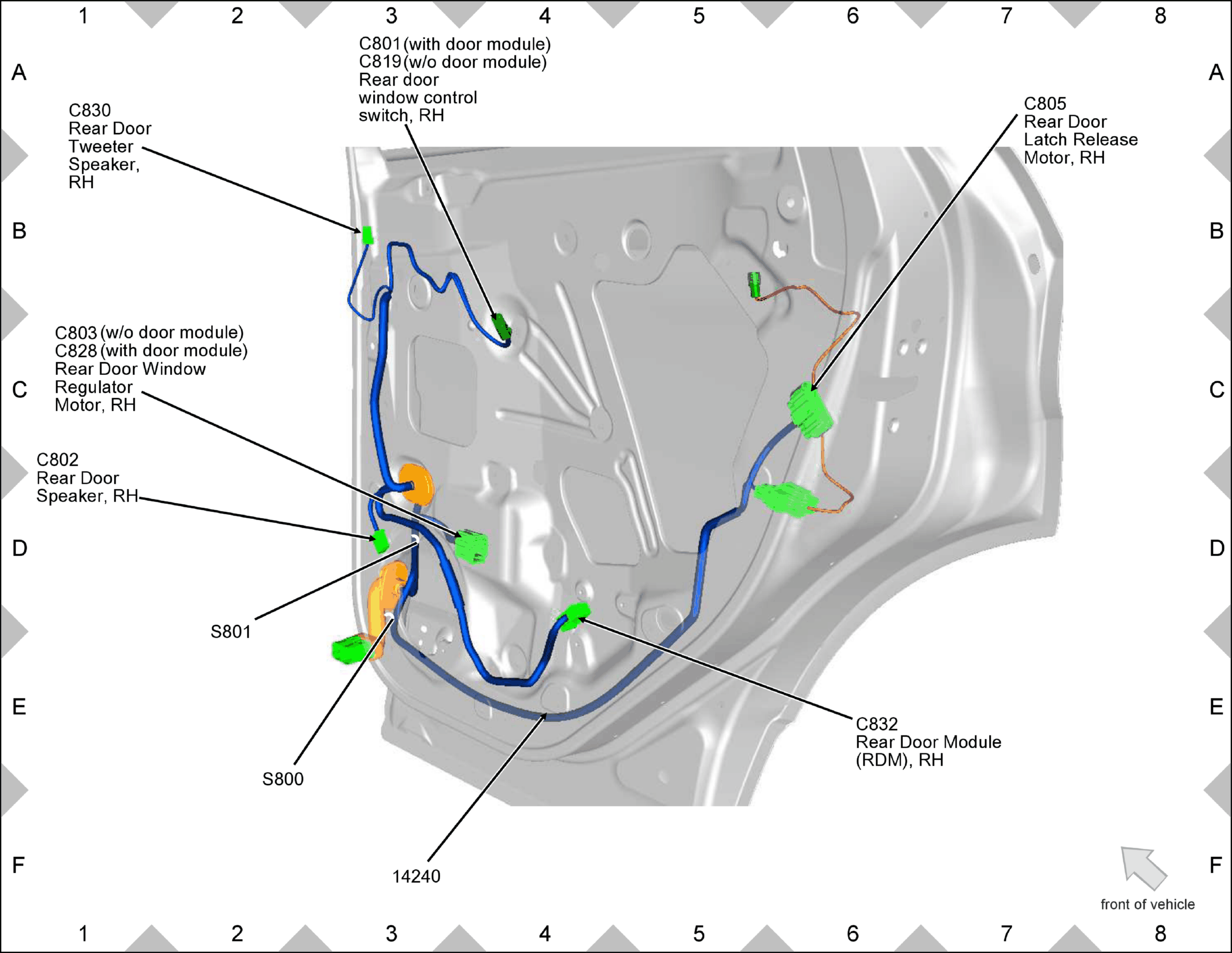

GFDW47425Courtesy of FORD MOTOR COMPANY

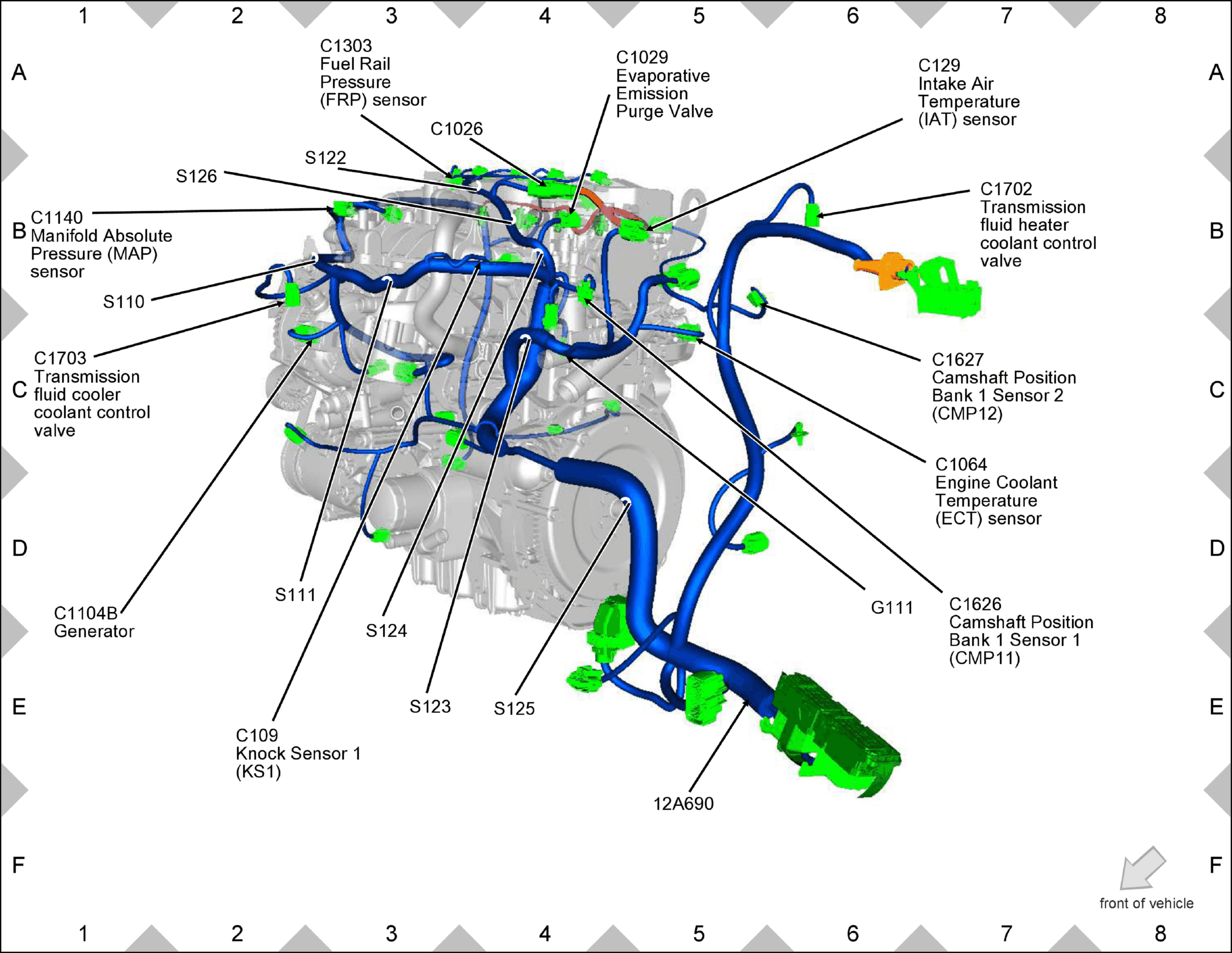

GFDW47426Courtesy of FORD MOTOR COMPANY

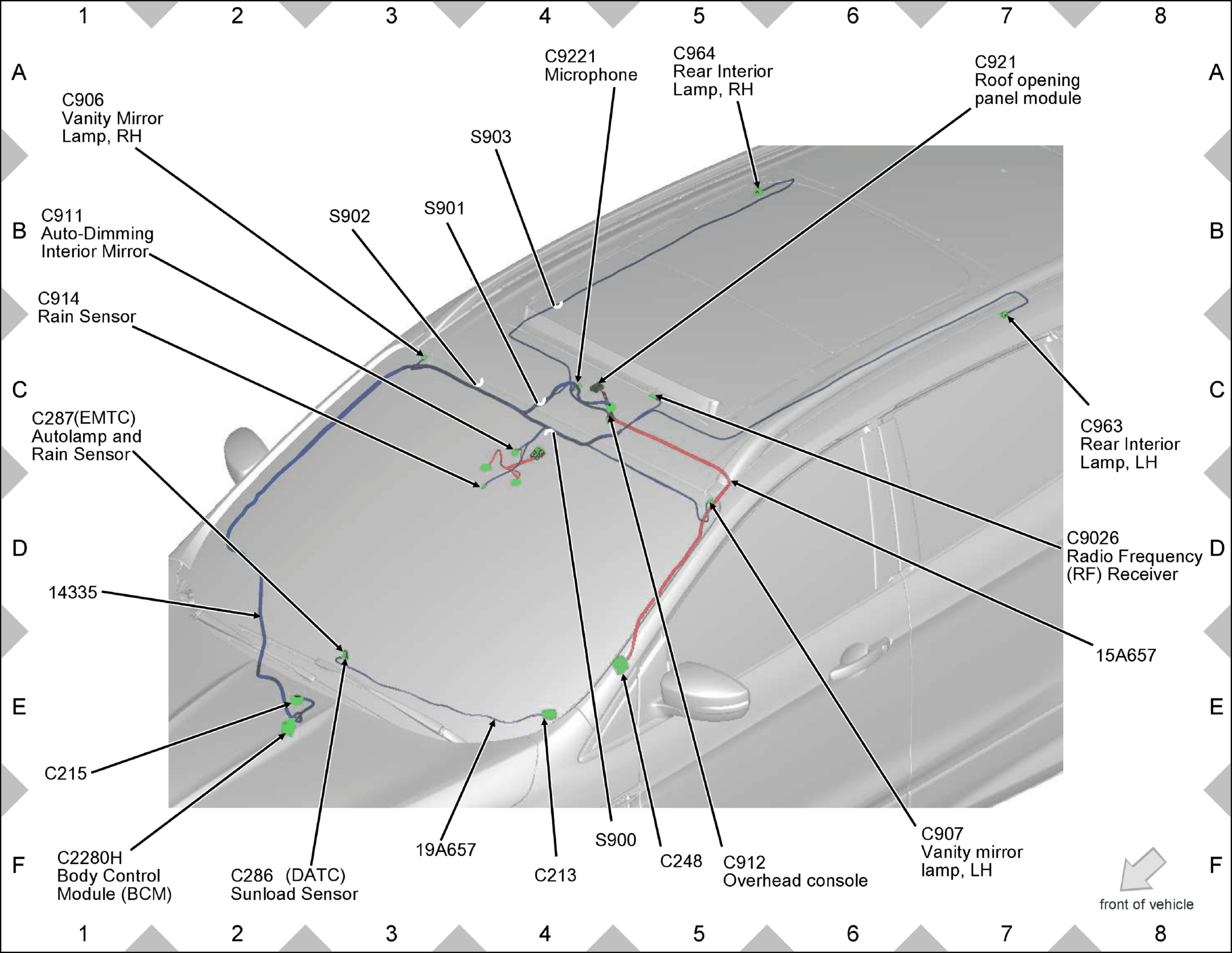

GFDW47427Courtesy of FORD MOTOR COMPANY

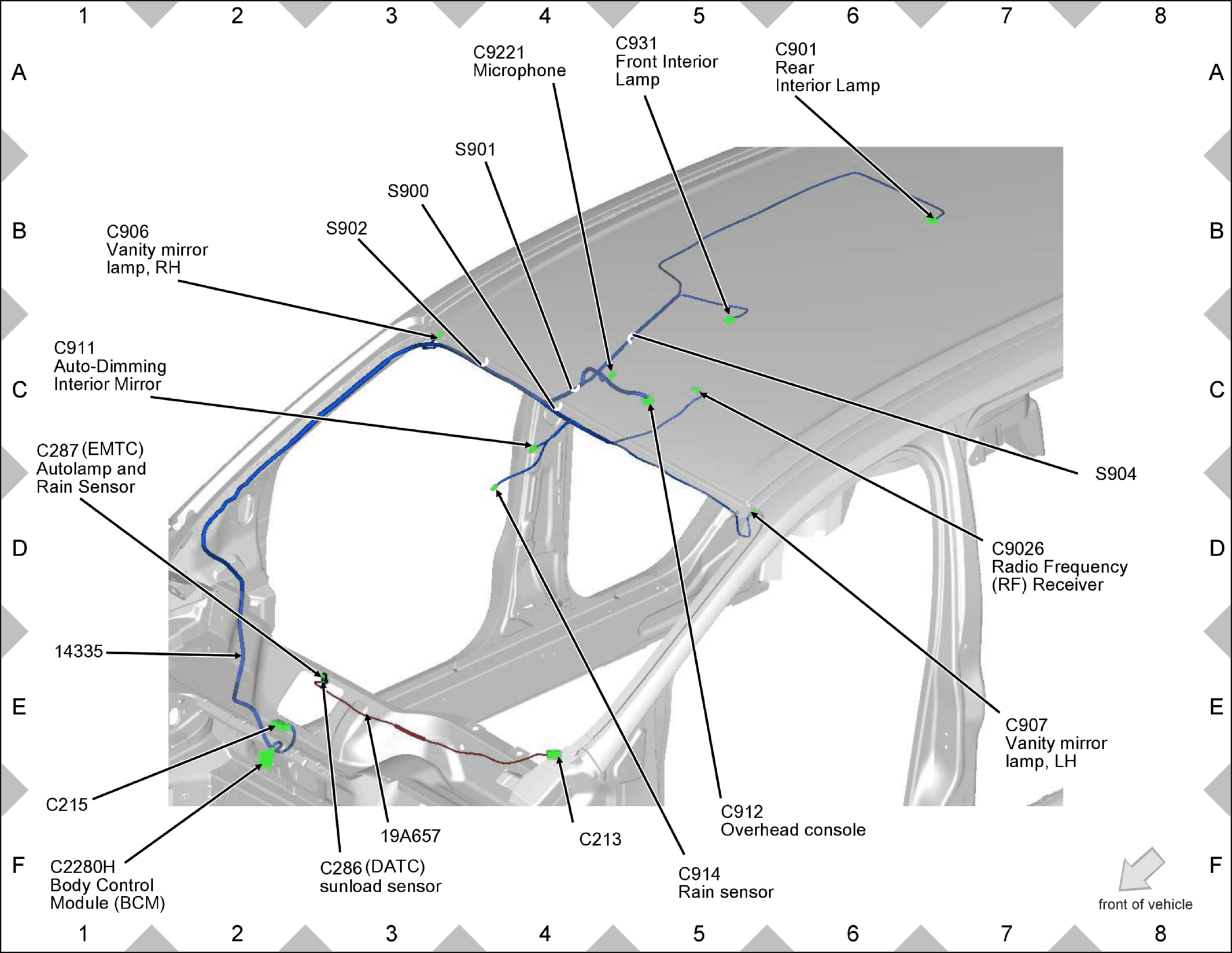

GFDW47428Courtesy of FORD MOTOR COMPANY
GFDW47429Courtesy of FORD MOTOR COMPANY
GFDW47430Courtesy of FORD MOTOR COMPANY
GFDW47431Courtesy of FORD MOTOR COMPANY
GFDW47432Courtesy of FORD MOTOR COMPANY

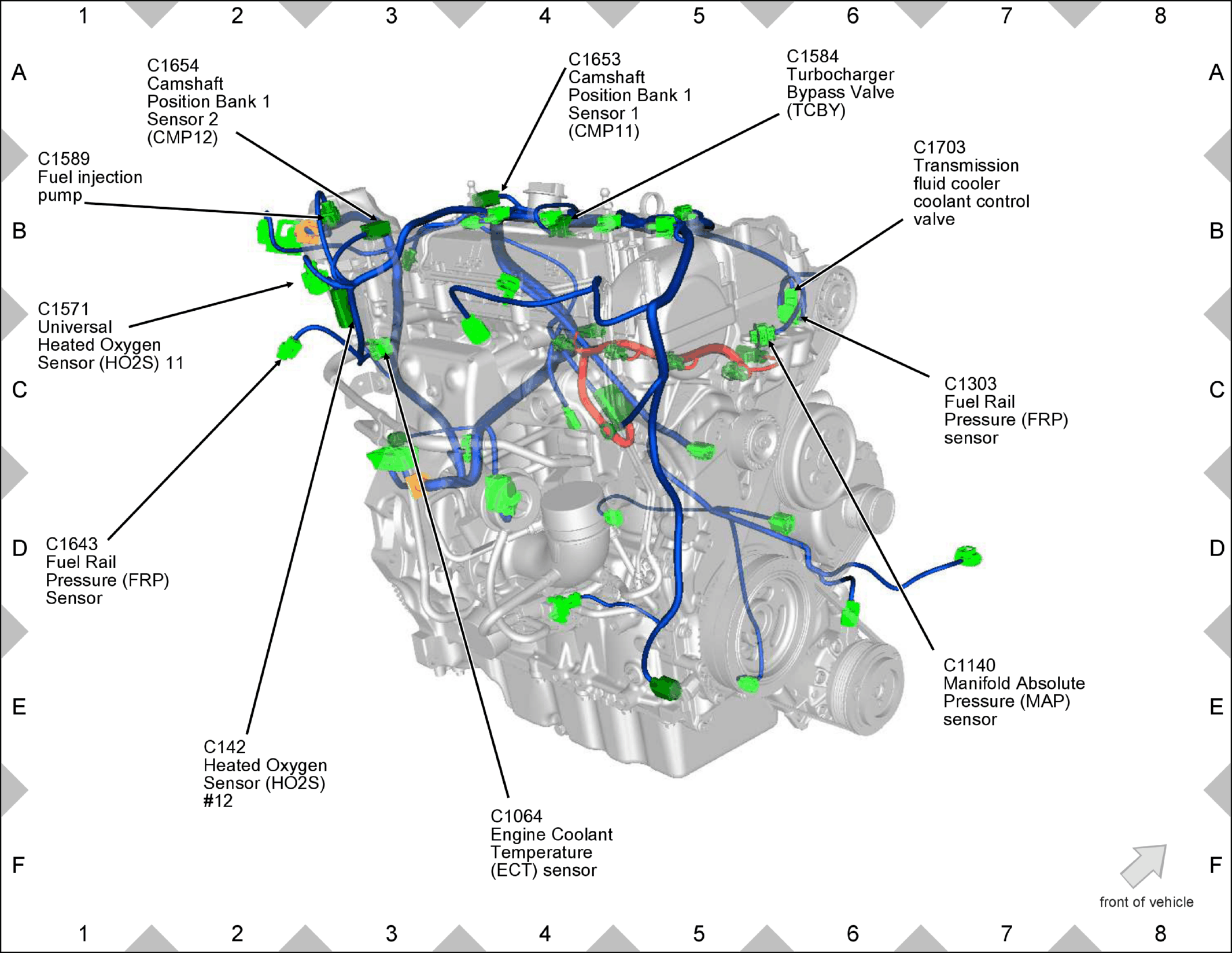

GFDW47433Courtesy of FORD MOTOR COMPANY

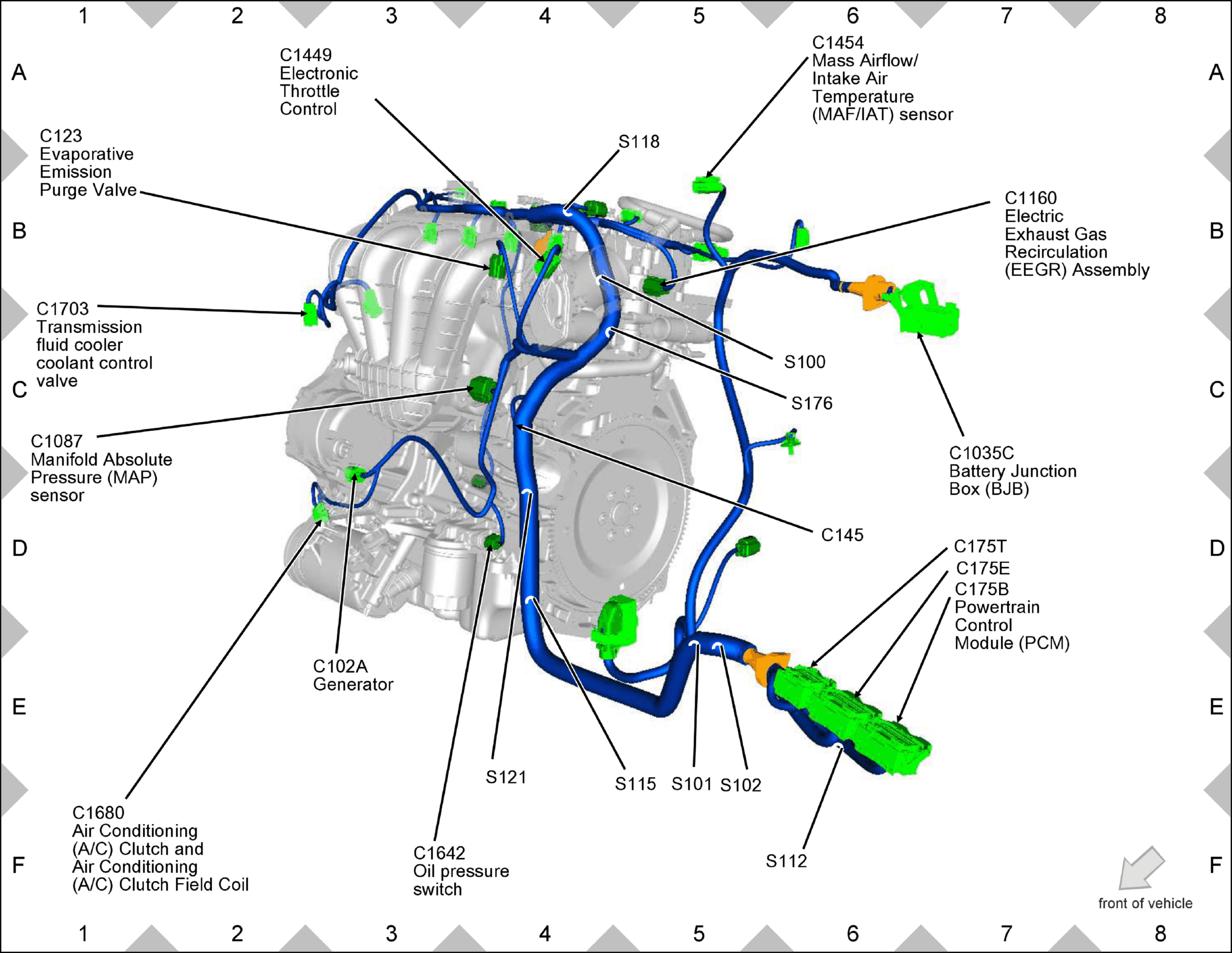

GFDW47434Courtesy of FORD MOTOR COMPANY
