Climate Control Housing: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Remove the driver knee airbag. REFER to: Driver Knee Airbag
- 3.
Remove the FCIM. REFER to: Front Controls Interface Module (FCIM)
- 4.
Remove the instrument panel. REFER to: Instrument Panel
- 5.

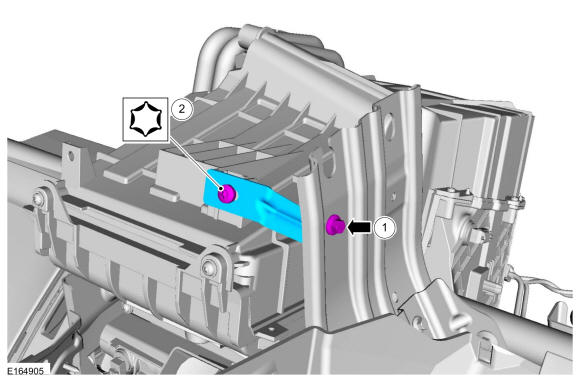

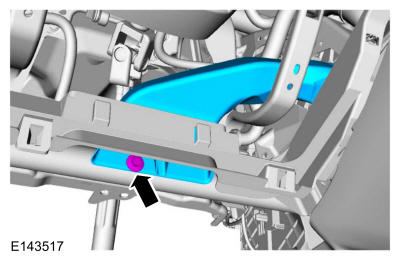

Remove the bolts and the evaporator housing bracket.Torque
1: 18 lb.ft (25 Nm) 2: 133 lb.in (15 Nm)
- 11.

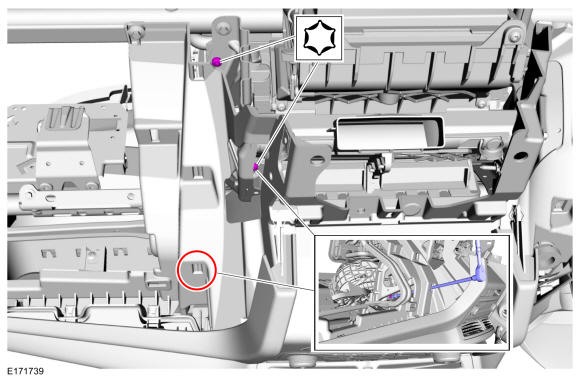

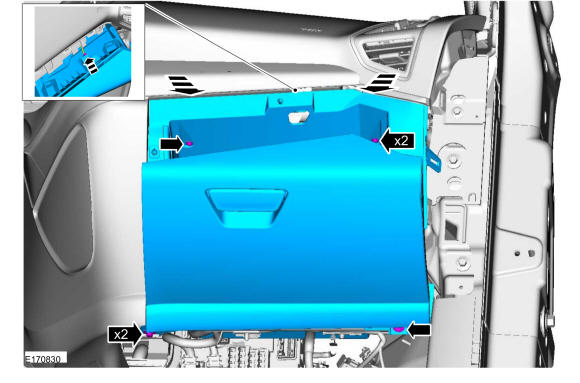

Remove the screws and the glove compartment. Disconnect the electrical connector.Torque
: 18 lb.in (2 Nm)

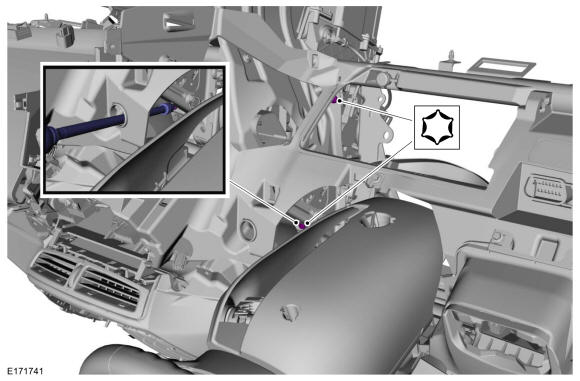

- 12.NOTE: Upper retainer access is extremely difficult, the use of wobble extention and sockets are needed for removal of this retainer.

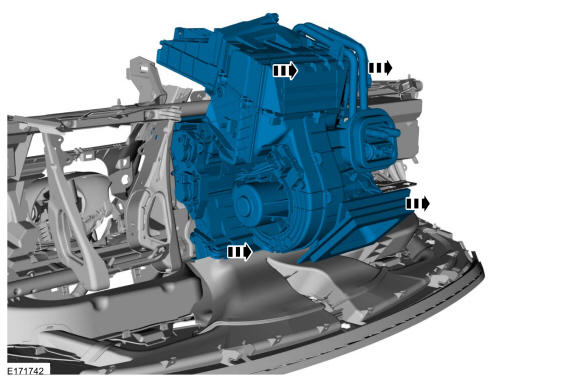

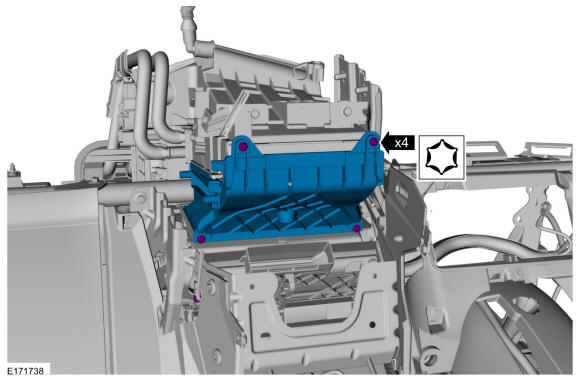

Remove the climate control housing bolts.
- 15.NOTE: Upper retainer access is extremely difficult, the use of wobble extention and sockets are needed for removal of this retainer.
Remove the climate control housing bolts.
