Transfer Case Draining and Filling

Materials

Draining

• 1.

  Follow the health and safety precautions. REFER to: Health and Safety Precautions

• 2.

  With the vehicle in N, position it on a hoist. REFER to: Jacking and Lifting - Overview

• 3.

  If equipped. Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY

• 4.

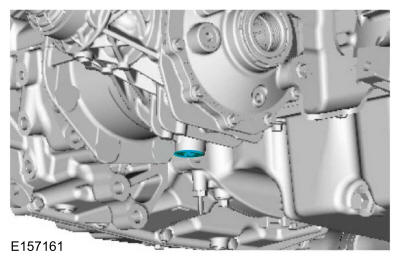

  Remove the PTU drain plug.

Courtesy of FORD MOTOR COMPANY

• 5.

  Install the PTU drain plug.

  Torque:

  33 lb.ft (45 Nm)

Courtesy of FORD MOTOR COMPANY

Filling

• 1.

  Remove the PTU fill plug.

Courtesy of FORD MOTOR COMPANY

• 2.

  Fill the PTU with clean fluid, level with the fill plug opening.

  Material

  Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant / XY-75W140-QL (WSL-M2C192-A)

Courtesy of FORD MOTOR COMPANY

• 3.

  Install the PTU fill plug.

  Torque:

  33 lb.ft (45 Nm)

Courtesy of FORD MOTOR COMPANY

• 4.

  If equipped. Install the underbody shield.

Courtesy of FORD MOTOR COMPANY
