Windshield Wiper Motor: Removal

WARNING: This page is about a different car, the 2016 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH shown in illustration, RH similar.

NOTE: Hood removed in this procedure for clarity.

1.

Remove the cowl panel. Refer to: Cowl Panel .

2.

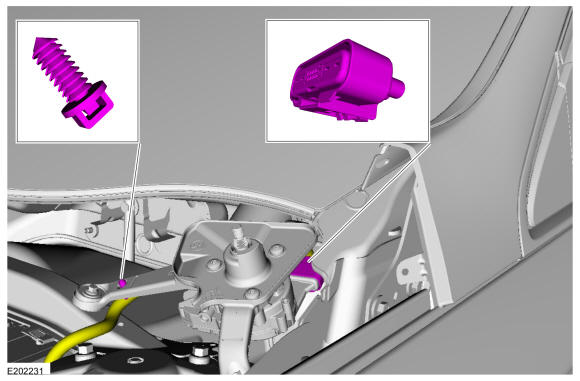

Detach the wire harness retainer and disconnect the wiper motor electrical connector.

Courtesy of FORD MOTOR COMPANY

3.

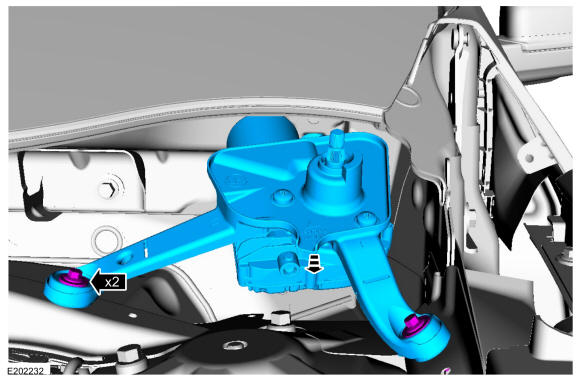

Remove the bolts and the windshield wiper motor.
Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

4.

NOTE: This step is only necessary when installing a new component.

NOTE: This step is only necessary if the wiper motor mount grommet remains in the square locator hole after the wiper motor has been removed.

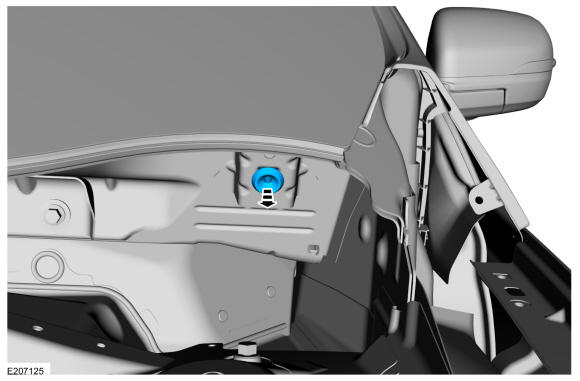

Remove the wiper motor mount grommet.

Courtesy of FORD MOTOR COMPANY
