Windshield Washer Pump: Removal

WARNING: This page is about a different car, the 2016 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Hood removed in this procedure for clarity.

1.

Siphon the windshield washer fluid out.
Use the General Equipment: Fluid Suction Gun

Use the General Equipment: Fluid Container

Courtesy of FORD MOTOR COMPANY

2.

Remove the RH fender splash shield. Refer to: Fender Splash Shield .

3.

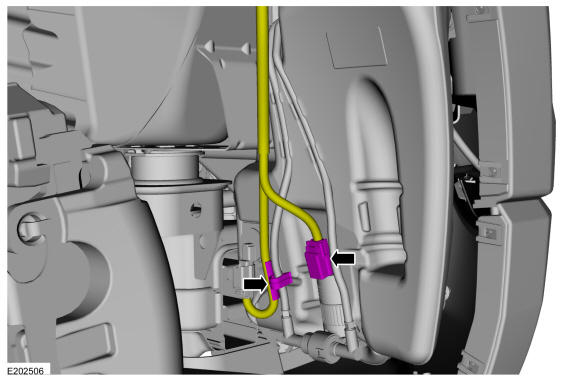

Detach the wire harness retainer and disconnect the washer pump electrical connector.

Courtesy of FORD MOTOR COMPANY

4.

NOTE: Be prepared to collect escaping fluid.

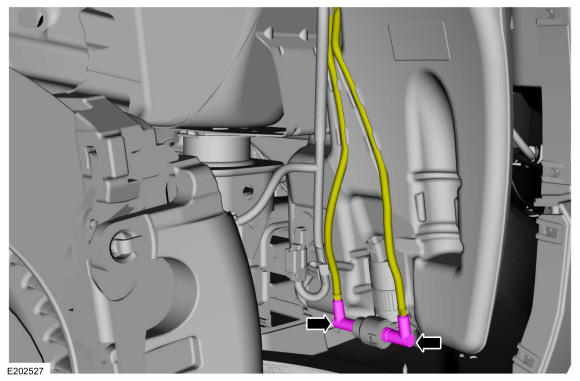

Detach the washer hoses.

Use the General Equipment: Fluid Container

Courtesy of FORD MOTOR COMPANY

5.

NOTE: Be prepared to collect escaping fluid.

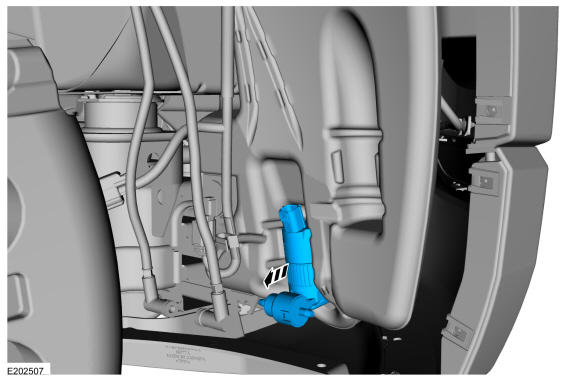

Remove the washer pump.

Use the General Equipment: Fluid Container

Courtesy of FORD MOTOR COMPANY
