Overhead Console: Removal

NOTE: Removal steps in this procedure may contain installation details.

Courtesy of FORD MOTOR COMPANY

2.

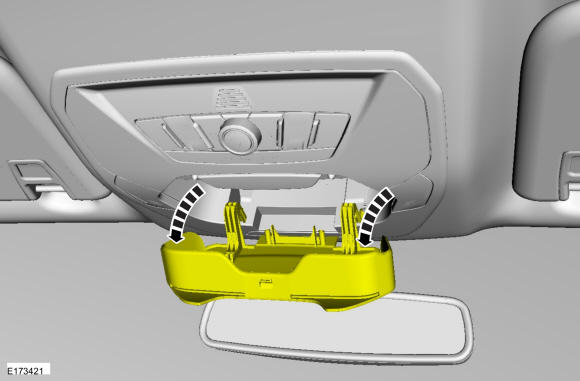

NOTE: Sunglass bin shown removed for clarity.

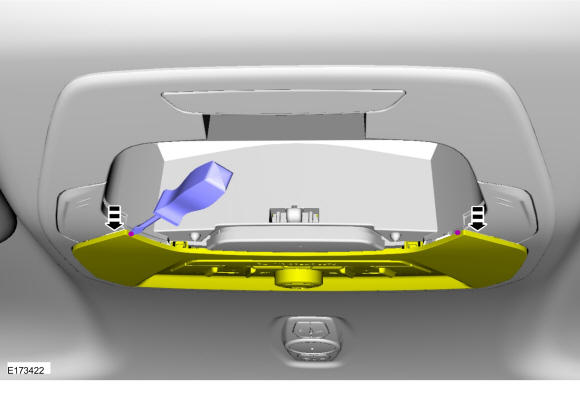

Using a suitable tool pry both corners of the switch bezel down.

Courtesy of FORD MOTOR COMPANY

3.

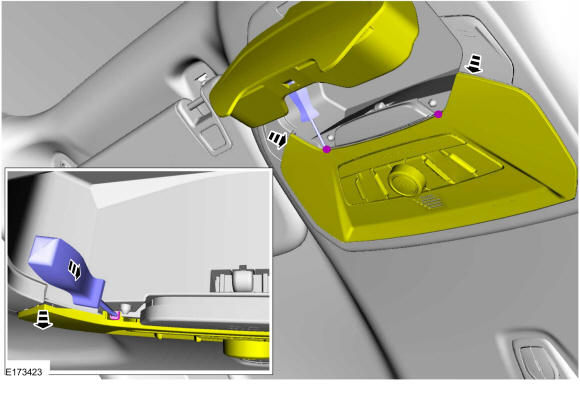

Using a suitable tool push inward on both sides on the switch panel inner tabs to release the switch panel.

Courtesy of FORD MOTOR COMPANY

4.

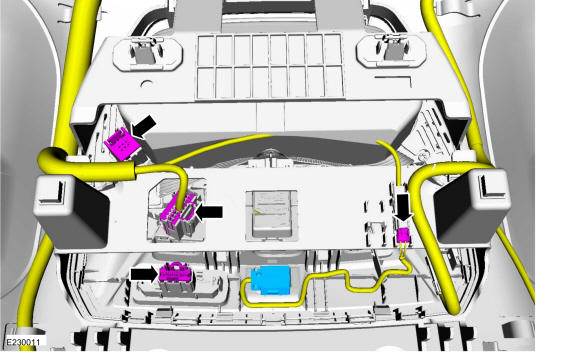

NOTE: High level overhead console shown.

Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

6.

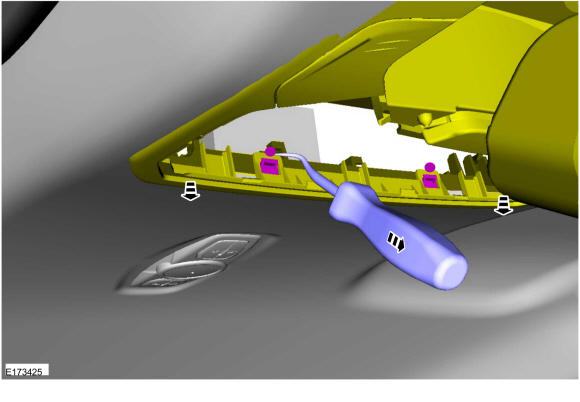

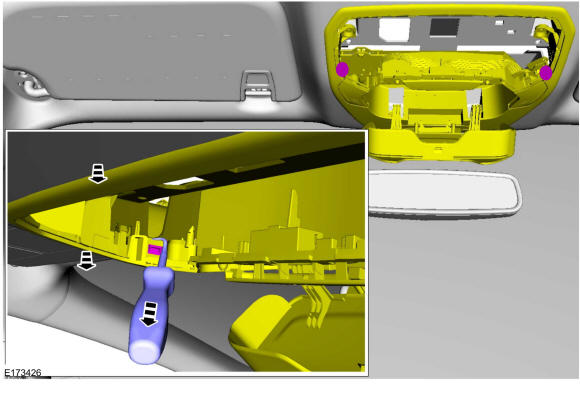

Using a suitable tool release the snap tabs facing the rear of vehicle on both sides.

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

8.

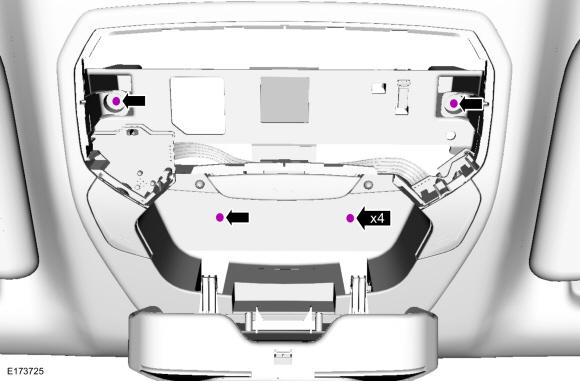

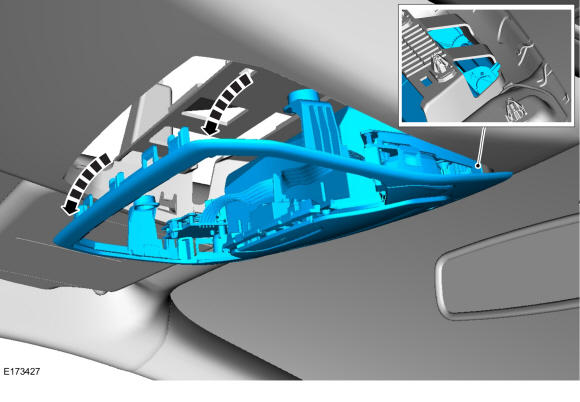

Rotate the overhead console assembly downward and pull rearward to release the clip tabs and remove the overhead console assembly.

Courtesy of FORD MOTOR COMPANY
