Rear Wheel Speed Sensor: Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
FWD vehicle shown, AWD vehicles similar.

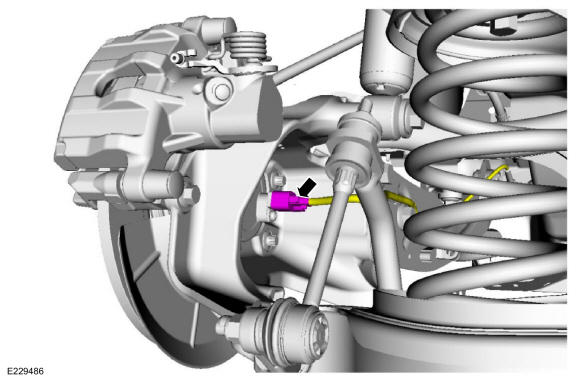

- 1.
Disconnect the electrical connector.
 Courtesy of FORD MOTOR COMPANY
|

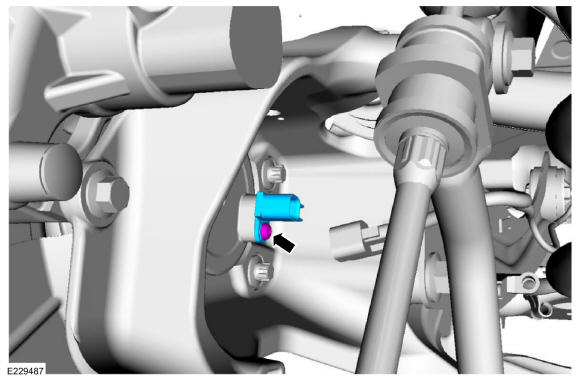

- 2.
Remove the bolt and the rear wheel speed sensor.Torque:
42 lb.in (4.8 Nm)
 Courtesy of FORD MOTOR COMPANY
|
