Front Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the wheel and tire. REFER to: Wheel and Tire

2.

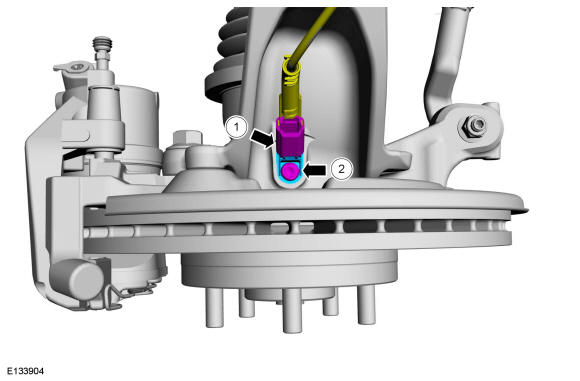

- 1.

  Disconnect the electrical connector.
- 2.

  Remove the bolt and the front wheel speed sensor.
  Torque:

  42 lb.in (4.8 Nm)

GFD48341

Courtesy of FORD MOTOR COMPANY
