Heated Front Seat Module: Removal
NOTE:
Driver seat shown, passenger seat similar.
- 1.
Position the driver front seat to the full rearward and full upward position.
 Courtesy of FORD MOTOR COMPANY
|
- 2.

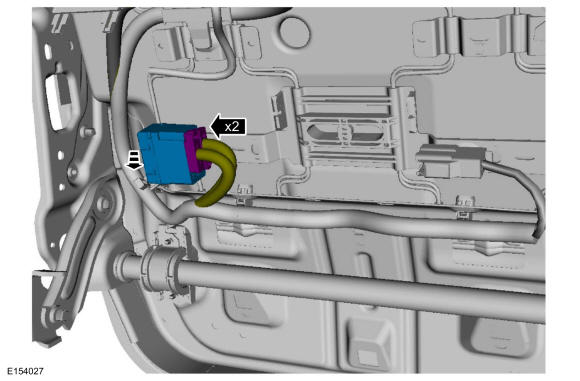

Disconnect the electrical connectors and remove the heated front seat module.
 Courtesy of FORD MOTOR COMPANY
|
