Front Seat: Installation

1.

To install, reverse the removal procedure.

2.
- 1.

  Install the front inboard bolt.
  Torque:

  41 lb.ft (55 Nm)
- 2.

  Install the front outboard bolt.
  Torque:

  41 lb.ft (55 Nm)
- 3.

  Install the rear inboard bolt.
  Torque:

  41 lb.ft (55 Nm)
- 4.

  Install the rear outboard bolt.
  Torque:

  41 lb.ft (55 Nm)

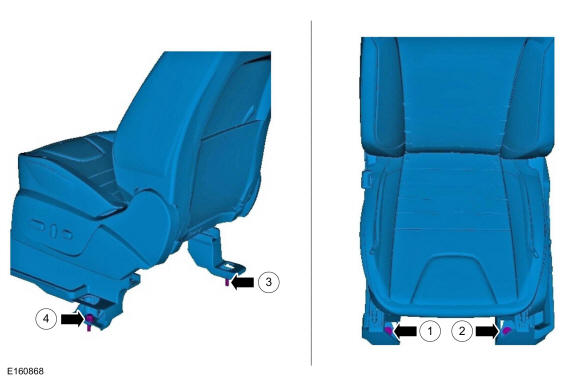

GFD51236

Courtesy of FORD MOTOR COMPANY

3.

If the SRS was depowered, repower the SRS. REFER to: Supplemental Restraint System (SRS) Depowering and Repowering
