Front Seat Backrest: Installation
All seats

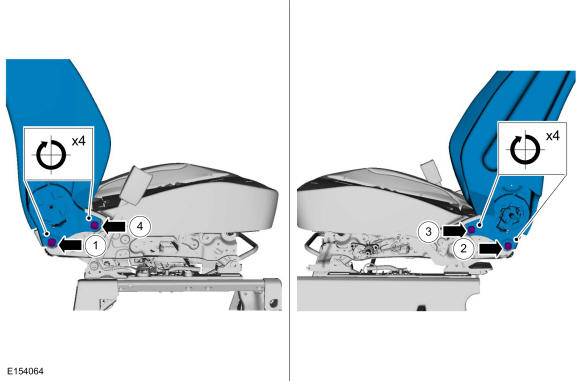

- 2.
- 1.
Install retainer and hand tighten clockwise 4 turns.
- 2.
Install retainer and hand tighten clockwise 4 turns.
- 3.
Install retainer and hand tighten clockwise 4 turns.
- 4.
Install retainer and hand tighten clockwise 4 turns.
- 1.

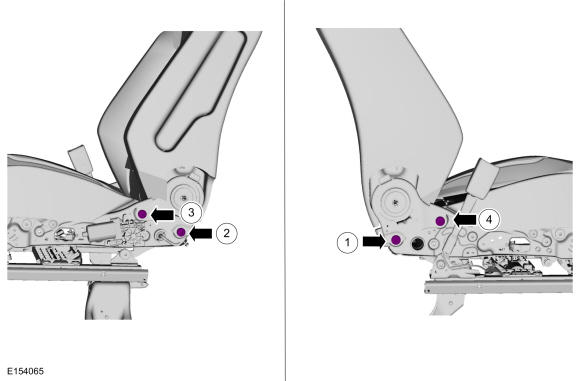

- 3.
- 1.
Tighten the bolt.Torque:
33 lb.ft (45 Nm)
- 2.
Tighten the bolt.Torque:
33 lb.ft (45 Nm)
- 3.
Tighten the bolt.Torque:
33 lb.ft (45 Nm)
- 4.
Tighten the bolt.Torque:
33 lb.ft (45 Nm)
- 1.

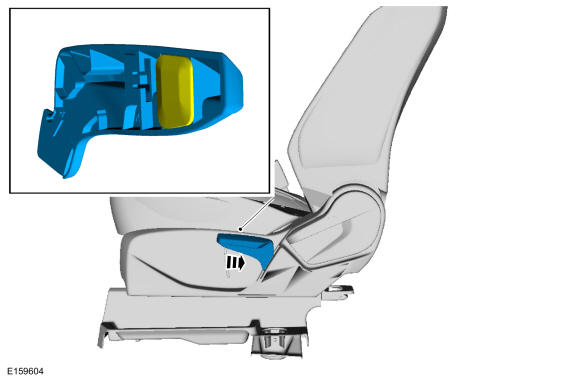

- 4.NOTE: Before installing the height adjust handle, check that the cap is positioned correctly.
Install the height adjust handle.
- 5.
Install the front seat. REFER to: Front Seat
Driver seat with memory
