Driver Front Seat Module (DSM)
>>
Removal
Driver Front Seat Module (DSM): Removal
1.

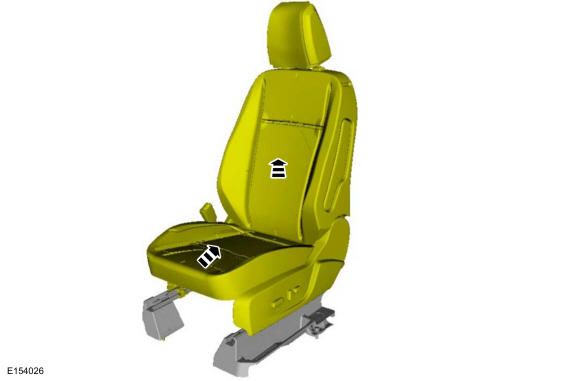

Position the driver front seat to the full rearward and full upward position.
Courtesy of FORD MOTOR COMPANY
2.

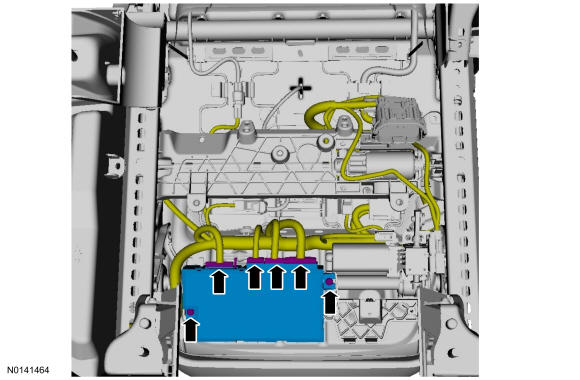

Disconnect the DSM electrical connectors, remove the screws and the DSM.
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
