Window Control Switch - With Door Modules

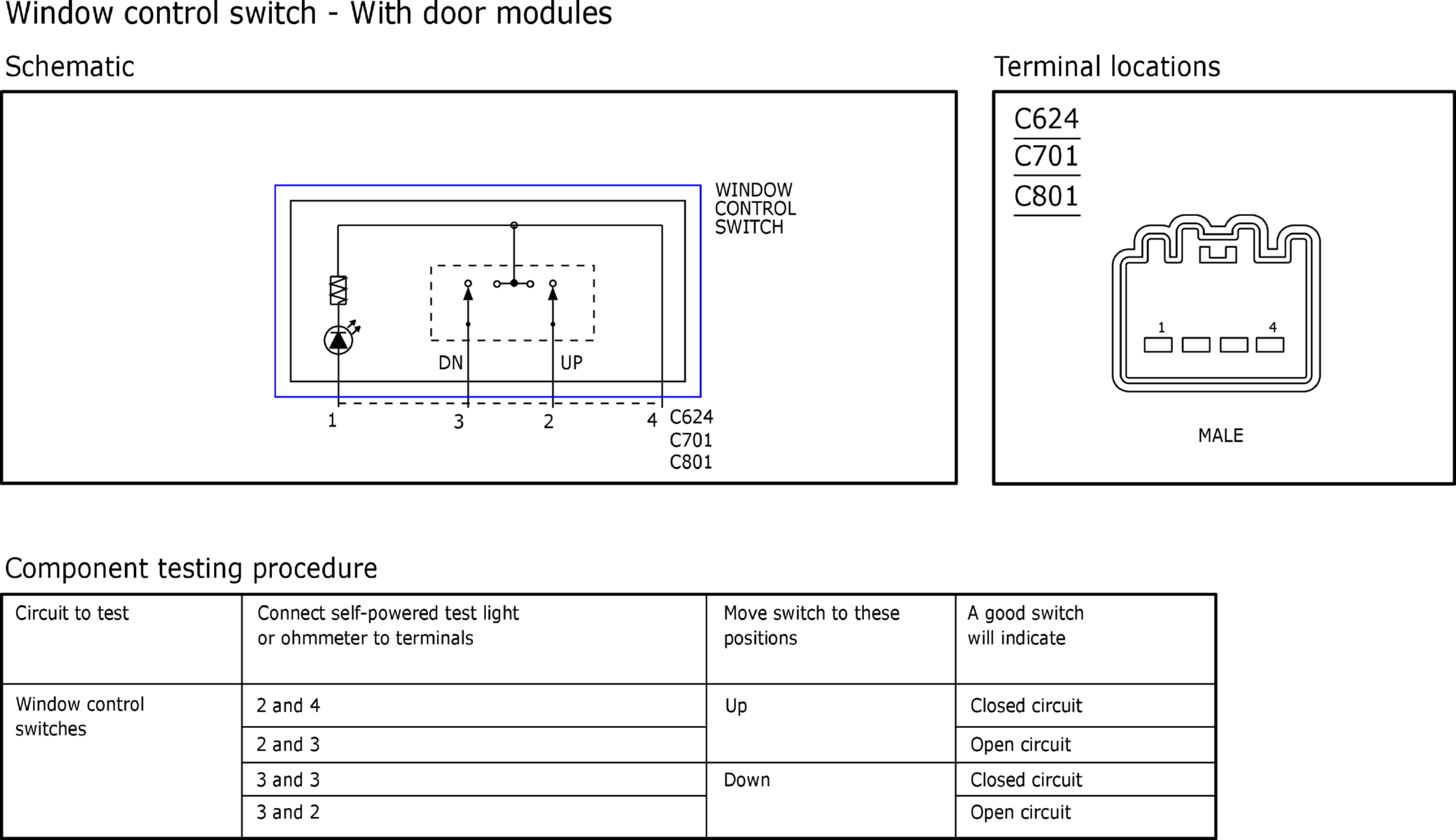

Fig 1: Window Control Switch - With Door Modules

GFDW48245

Courtesy of FORD MOTOR COMPANY
