Steering Column: Installation

All vehicles

1.

To install, reverse the removal procedure.

2.

Repower the SRS. Refer to: Supplemental Restraint System (SRS) Repowering .

Vehicles with power adjustable steering column

NOTE: This step is only necessary when installing a new component.

3.

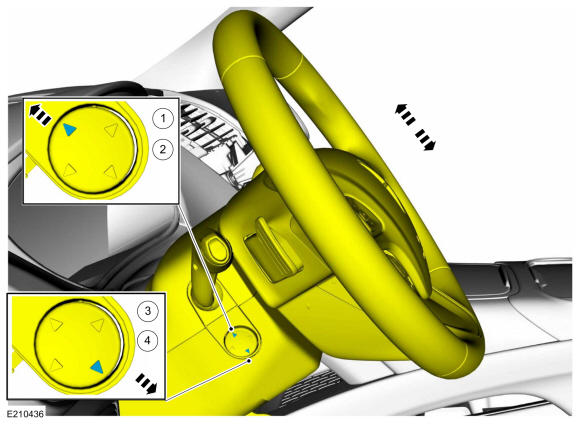

If a new memory steering column has been installed, use the steering column control switch and set the soft stops as follows.
1. 1.

  Move the column upward until it reaches the end of travel.
1. 2.

  Move the column in the same direction until it reaches the end of travel again.
1. 3.

  Move the column downward until it reaches the end of travel.
1. 4.

  Move the column in the same direction until it reaches the end of travel again.

GFD19024

Courtesy of FORD MOTOR COMPANY

4.

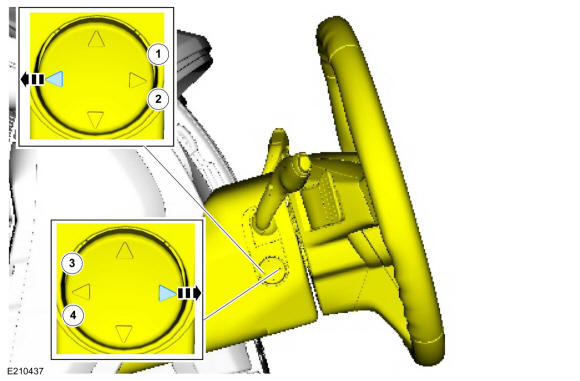

Repeat the sequence moving the column forward and rearward.

GFD19025

Courtesy of FORD MOTOR COMPANY
