Transfer Case

• 1.

  Remove the front subframe. Refer to: Front Subframe .

• 2.

  If equipped with PTU cooling system, drain the cooling system. Refer to: Cooling System Draining And Vacuum Filling .

• 3.

  Remove the RH halfshaft. Refer to: Front Halfshaft RH - 2.7L EcoBoost (238kW/324PS), All-Wheel Drive (AWD) .

• 4.

  Disconnect the HO2S electrical connector.

Courtesy of FORD MOTOR CO.

• 5.

  Disconnect the catalyst monitor electrical connector.

Courtesy of FORD MOTOR CO.

• 6.

  Remove the rear driveshaft. Refer to: Rear Driveshaft .

• 7.

  Remove the RH catalytic converter to transmission bracket bolts.

Courtesy of FORD MOTOR CO.

• 8.

  Remove the RH catalytic converter bracket through bolt and bracket.

Courtesy of FORD MOTOR CO.

• 9.

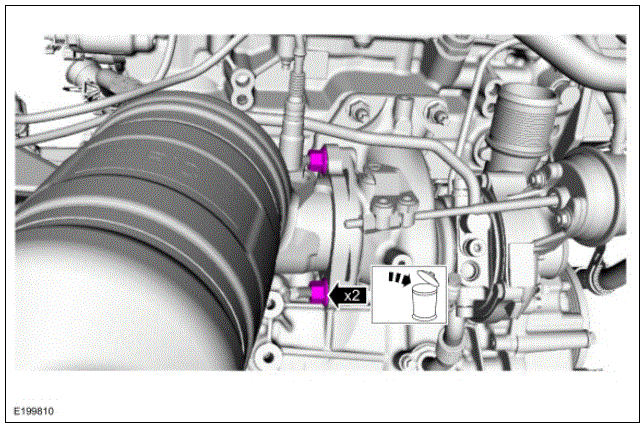

  Remove and discard the RH catalytic converter nuts. Remove the RH catalytic converter.

Courtesy of FORD MOTOR CO.

• 10.

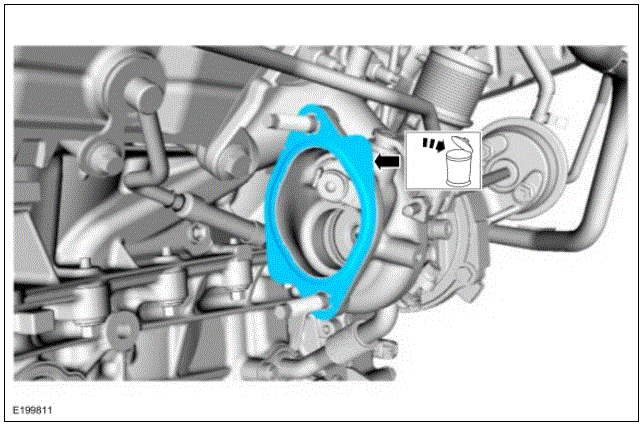

  Remove and discard the converter gasket.

Courtesy of FORD MOTOR CO.

• 11.

  Disconnect the PTU temperature sensor.

Courtesy of FORD MOTOR COMPANY

• 12.

  Remove the PTU heat shield bolts and the PTU heat shield.

Courtesy of FORD MOTOR COMPANY

• 13.

  Disconnect and position aside the PTU vent hose.

Courtesy of FORD MOTOR COMPANY

• 14.

  Remove the PTU support bracket bolts and the PTU support bracket.

Courtesy of FORD MOTOR COMPANY

• 15.

  If equipped with PTU cooling system. Release the hose clamps and position aside the PTU cooling system hoses.

Courtesy of FORD MOTOR CO.

• 16.

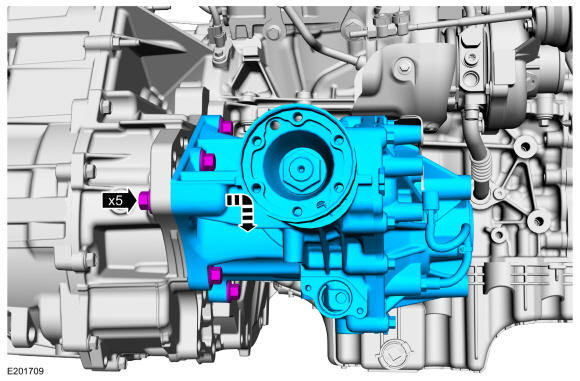

  NOTE: This is a tight fit, use care to not damage the transmission and PTU mating surfaces.

  Remove the PTU bolts and the PTU.

Courtesy of FORD MOTOR COMPANY

• 17..

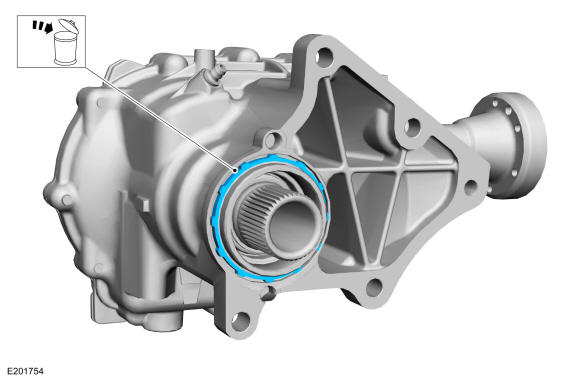

  Remove and discard the PTU to transmission compression seal.

Courtesy of FORD MOTOR COMPANY
