Transfer Case

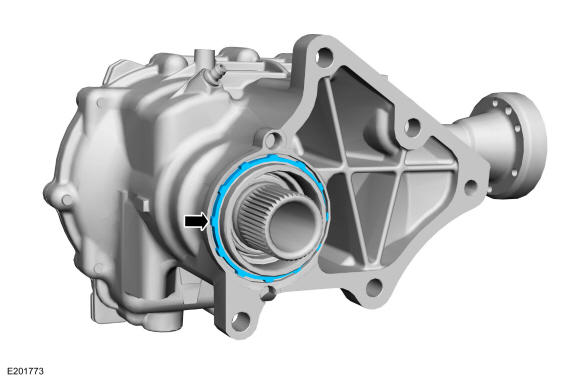

- 2.NOTE: This is a tight fit, use care to not damage the transmission and PTU mating surfaces.

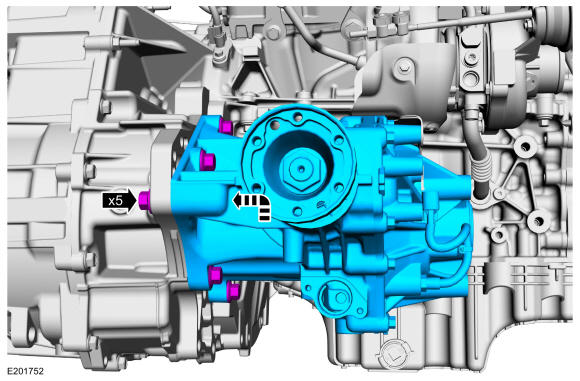

Install the PTU and the PTU bolts.
Torque: 66 lb.ft (90 Nm)
- 4.

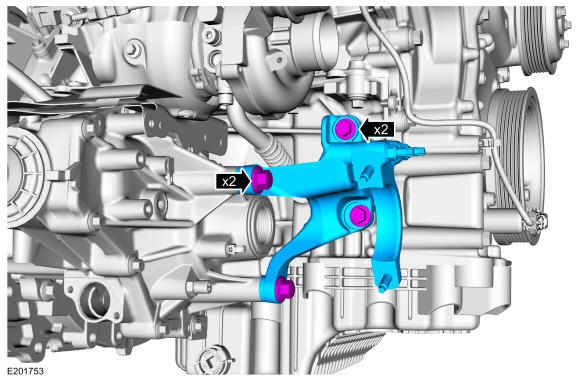

Install the PTU support bracket and the PTU support bracket bolts.Torque:
PTU support bracket to block: 35 lb.ft (48 Nm)
PTU support bracket to PTU: 59 lb.ft (80 Nm)
- 9.NOTE: Evenly tighten the fasteners during installation.

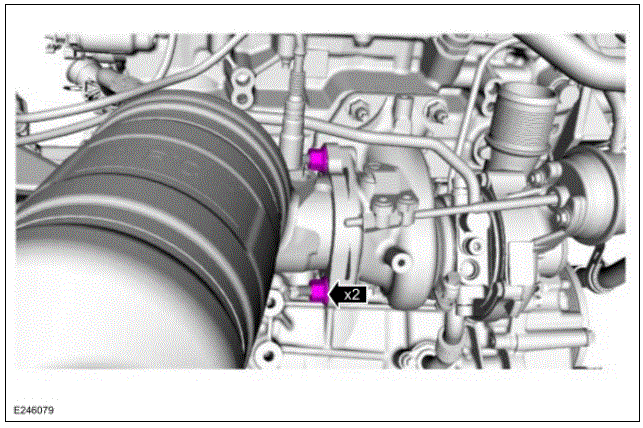

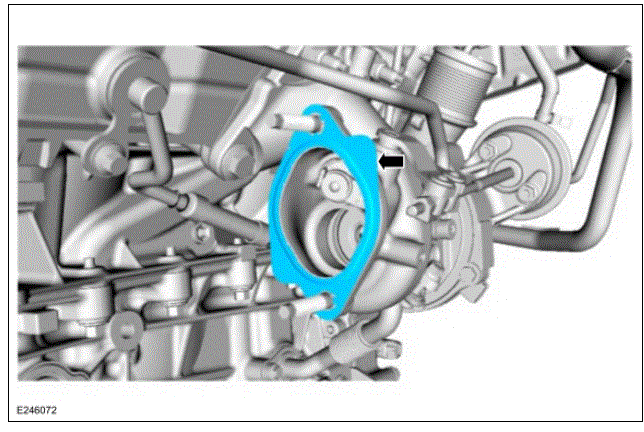

Install the RH converter and the new RH converter nuts.
Torque: 30 lb.ft (40 Nm)

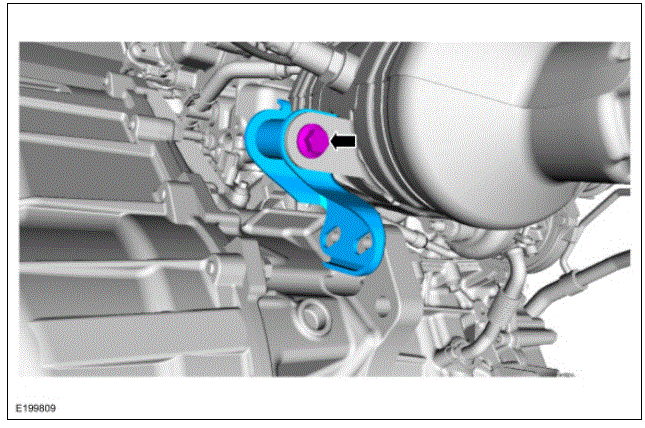

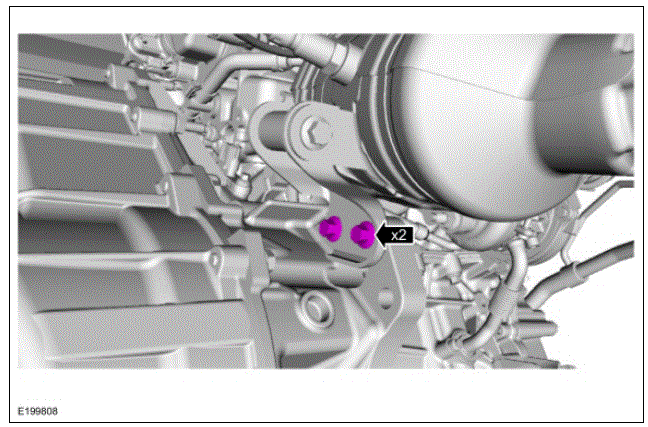

- 10.NOTE: Loosely install the RH catalytic converter to transmission bracket through bolt before the RH catalytic converter bracket bolts are installed.
Install the RH catalytic converter bracket through bolt.
Torque: 35 lb.ft (48 Nm)

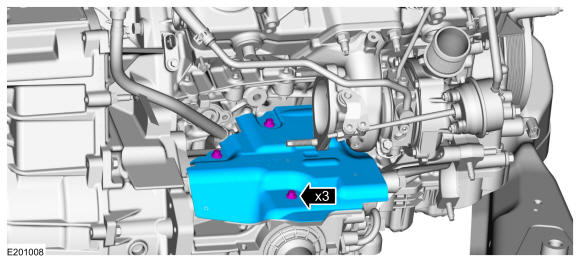

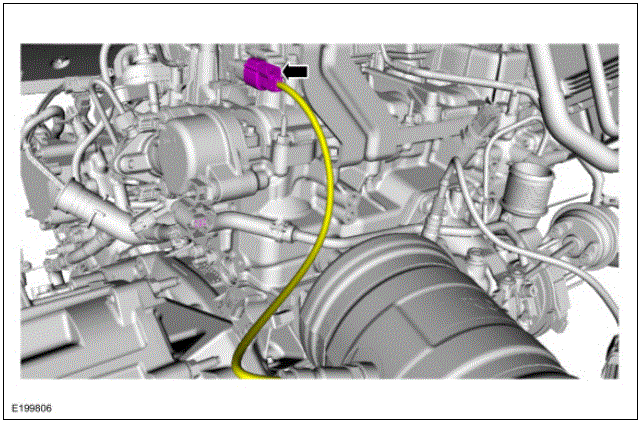

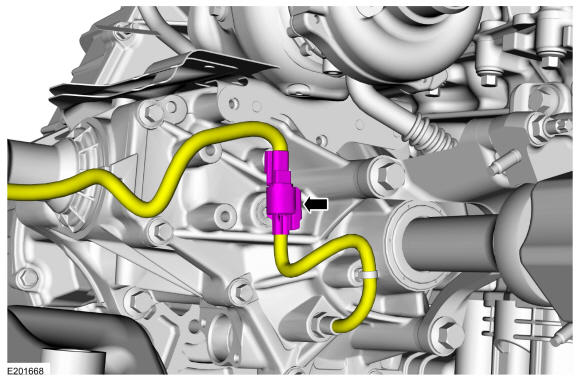

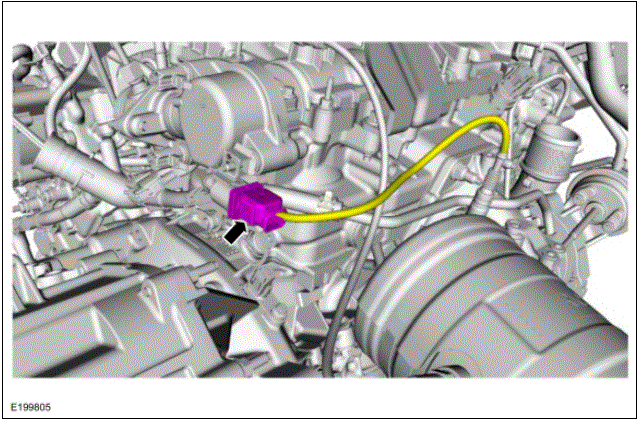

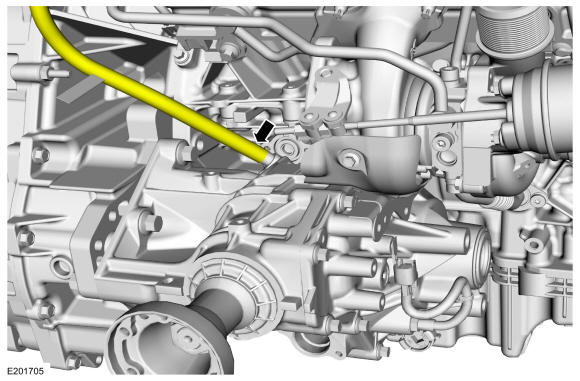

- 12.
Install the rear driveshaft. Refer to: Rear Driveshaft .
- 16.
Install the RH halfshaft. Refer to: Front Halfshaft RH - 2.7L EcoBoost (238kW/324PS), All-Wheel Drive (AWD) .
- 17.
Check the PTU fluid level. Refer to: Transfer Case Fluid Level Check .
- 18.
Install the front subframe. Refer to: Front Subframe .
- 19.

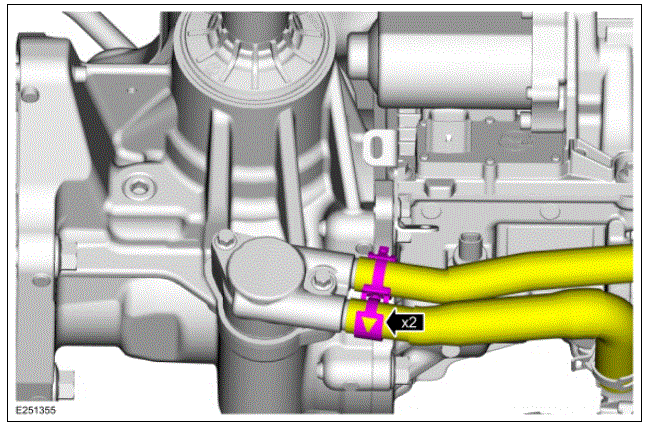

If equipped with PTU cooling system, fill the cooling system. Refer to: Cooling System Draining And Vacuum Filling .
