Driver Door Window Control Switch: Removal

1.

NOTE: LH side shown in illustration, RH side shown.

Remove the front door window control switch.
1. 1.

  Remove the front door window control switch and the bezel assembly.
1. 2.

  Disconnect the front door window control switch electrical connector.

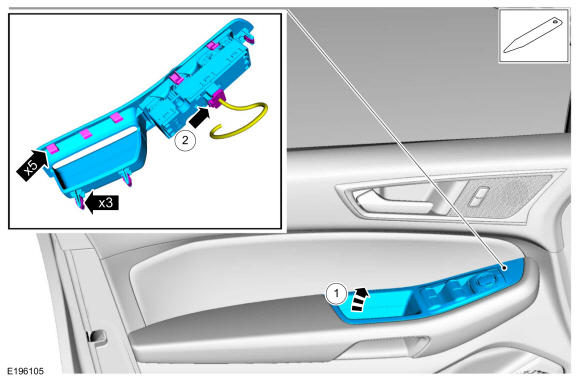

GFD17952

Courtesy of FORD MOTOR COMPANY

2.

NOTE: This step is only necessary when installing a new component.

Remove the front door window control switch.
1. 1.

  Remove the retainers.
1. 2.

  Remove the front door window control switch from the bezel.

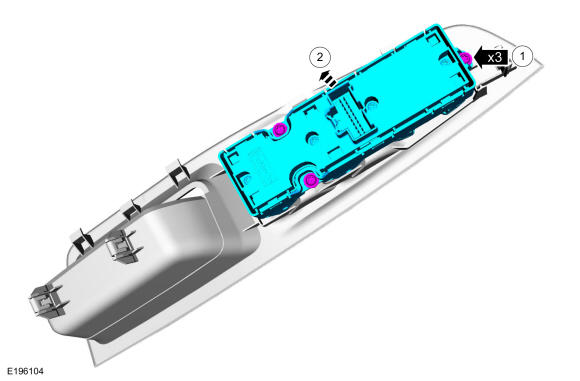

GFD17953

Courtesy of FORD MOTOR COMPANY
