Power Distribution

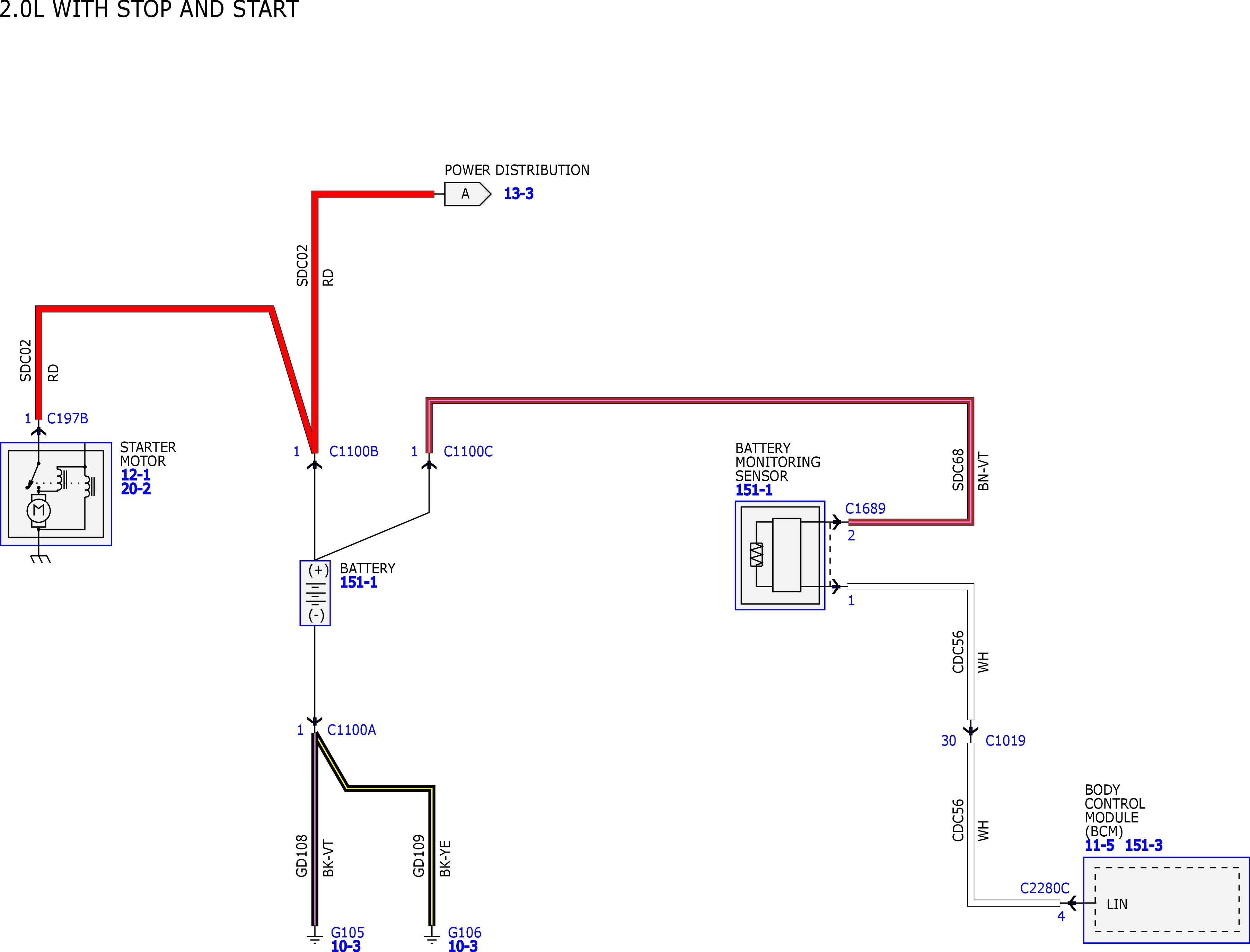

Fig 1: Power Distribution Wiring Diagrams (1 Of 51)

GFDW5259

Courtesy of FORD MOTOR COMPANY

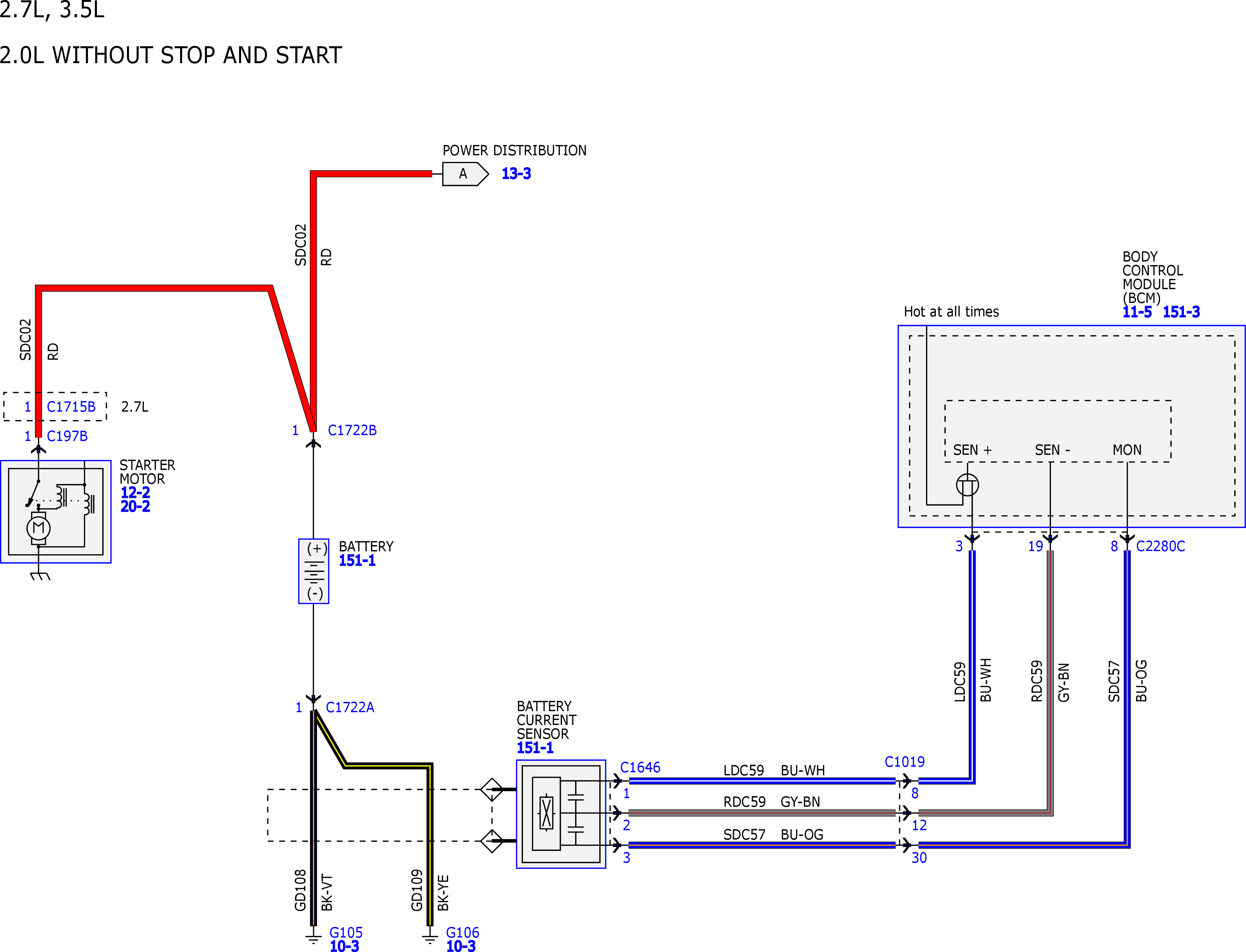

Fig 2: Power Distribution Wiring Diagrams (2 Of 51)

GFDW5260

Courtesy of FORD MOTOR COMPANY

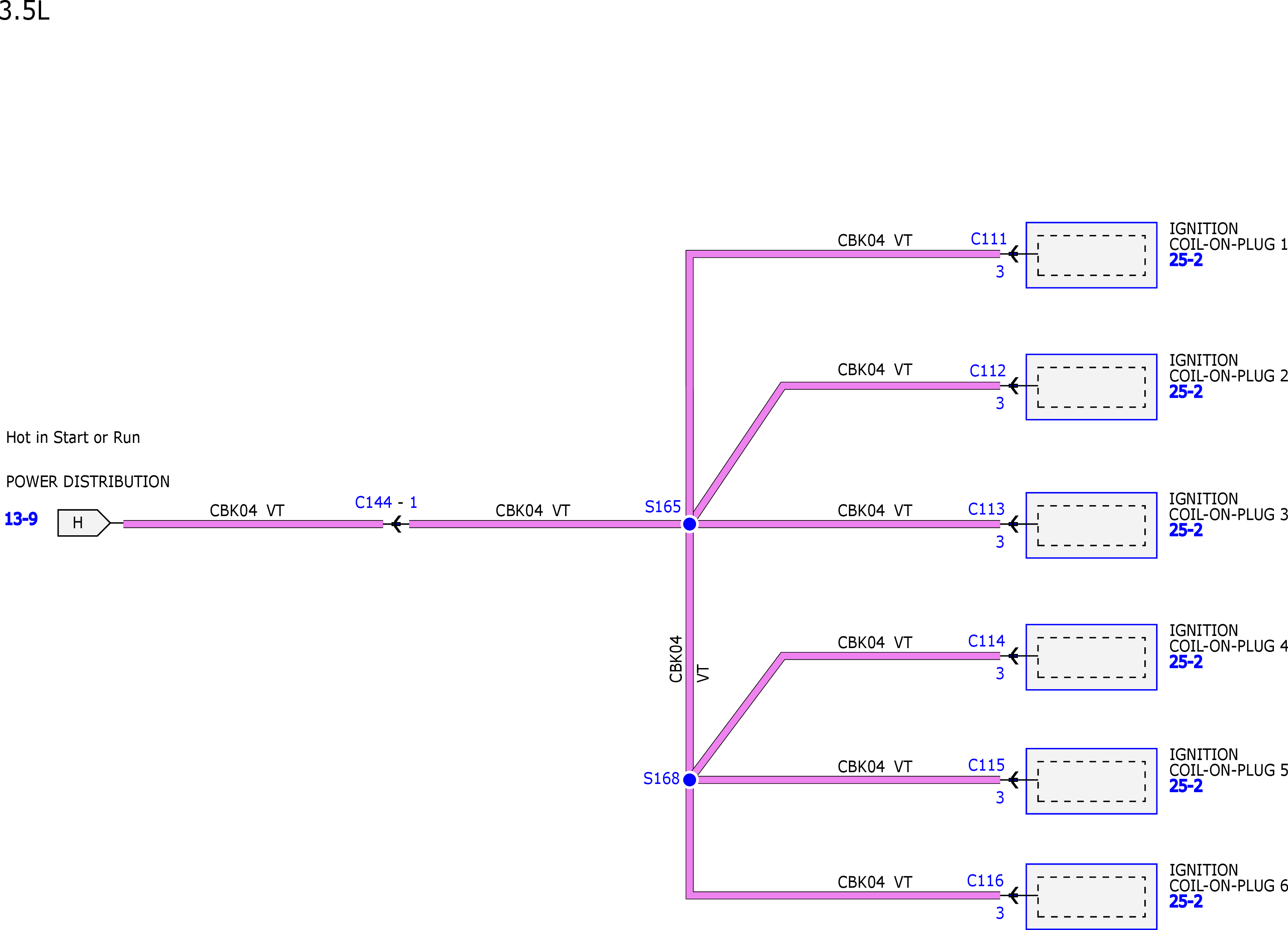

Fig 3: Power Distribution Wiring Diagrams (3 Of 51)

GFDW5261

Courtesy of FORD MOTOR COMPANY

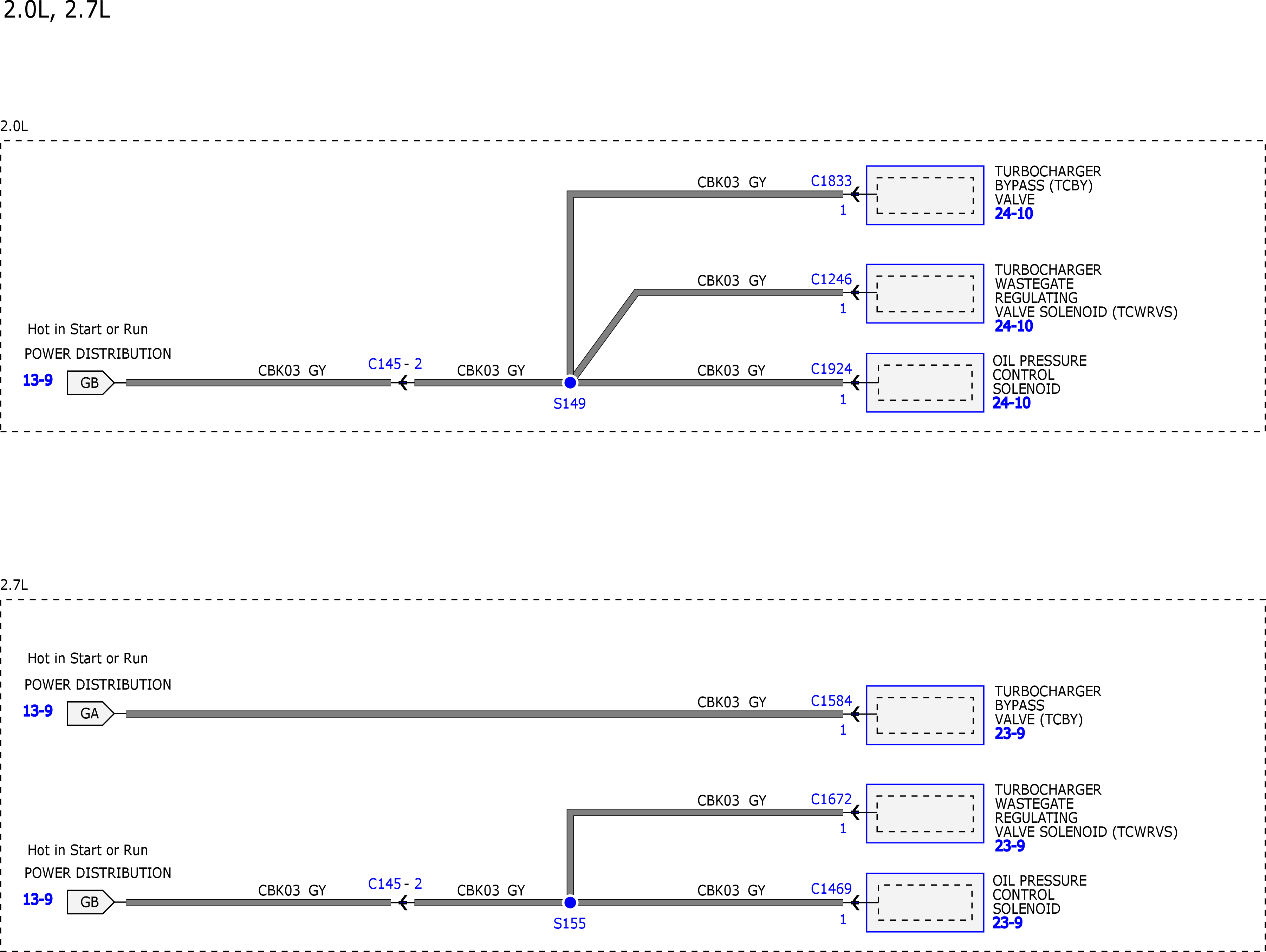

Fig 4: Power Distribution Wiring Diagrams (4 Of 51)

GFDW5262

Courtesy of FORD MOTOR COMPANY

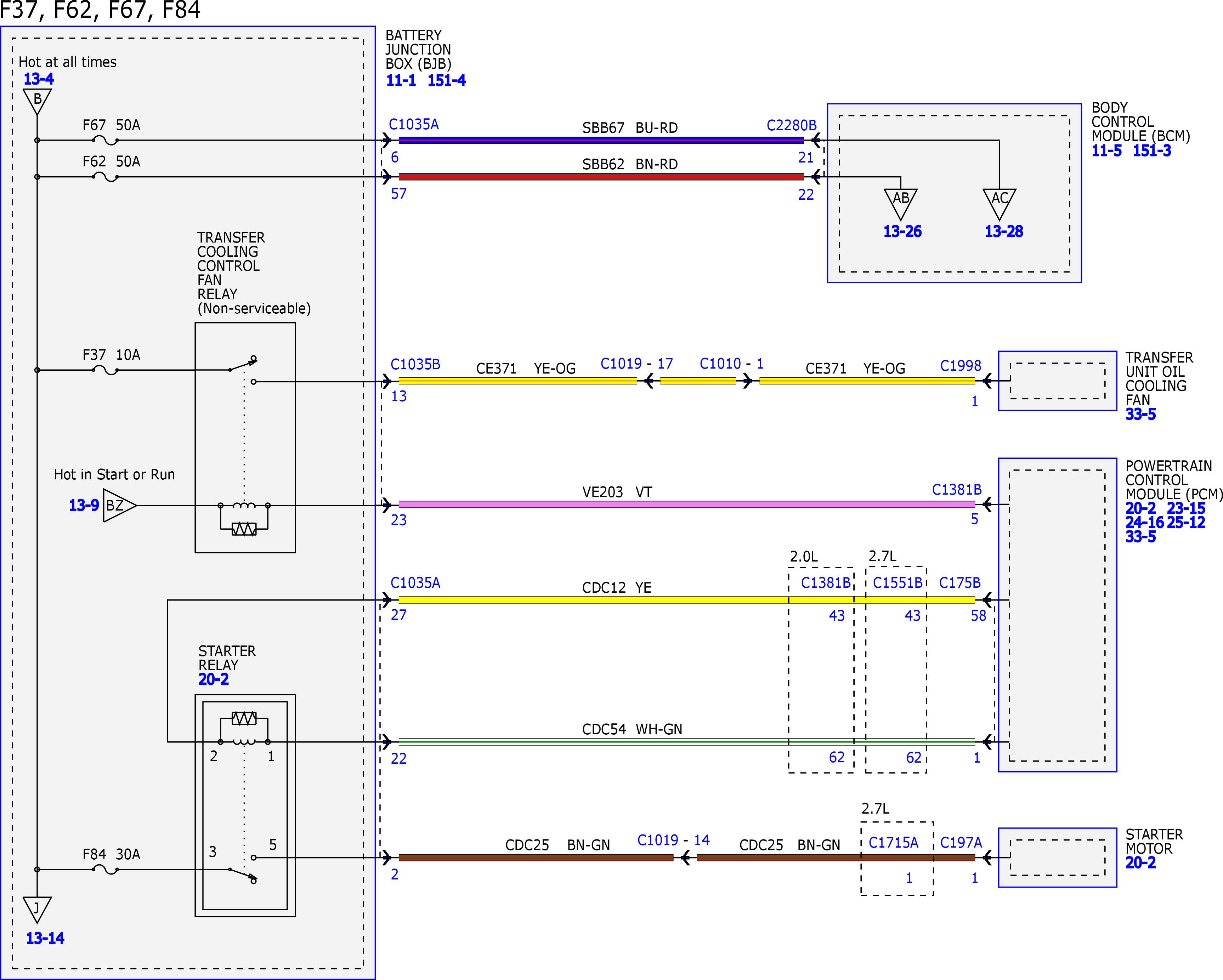

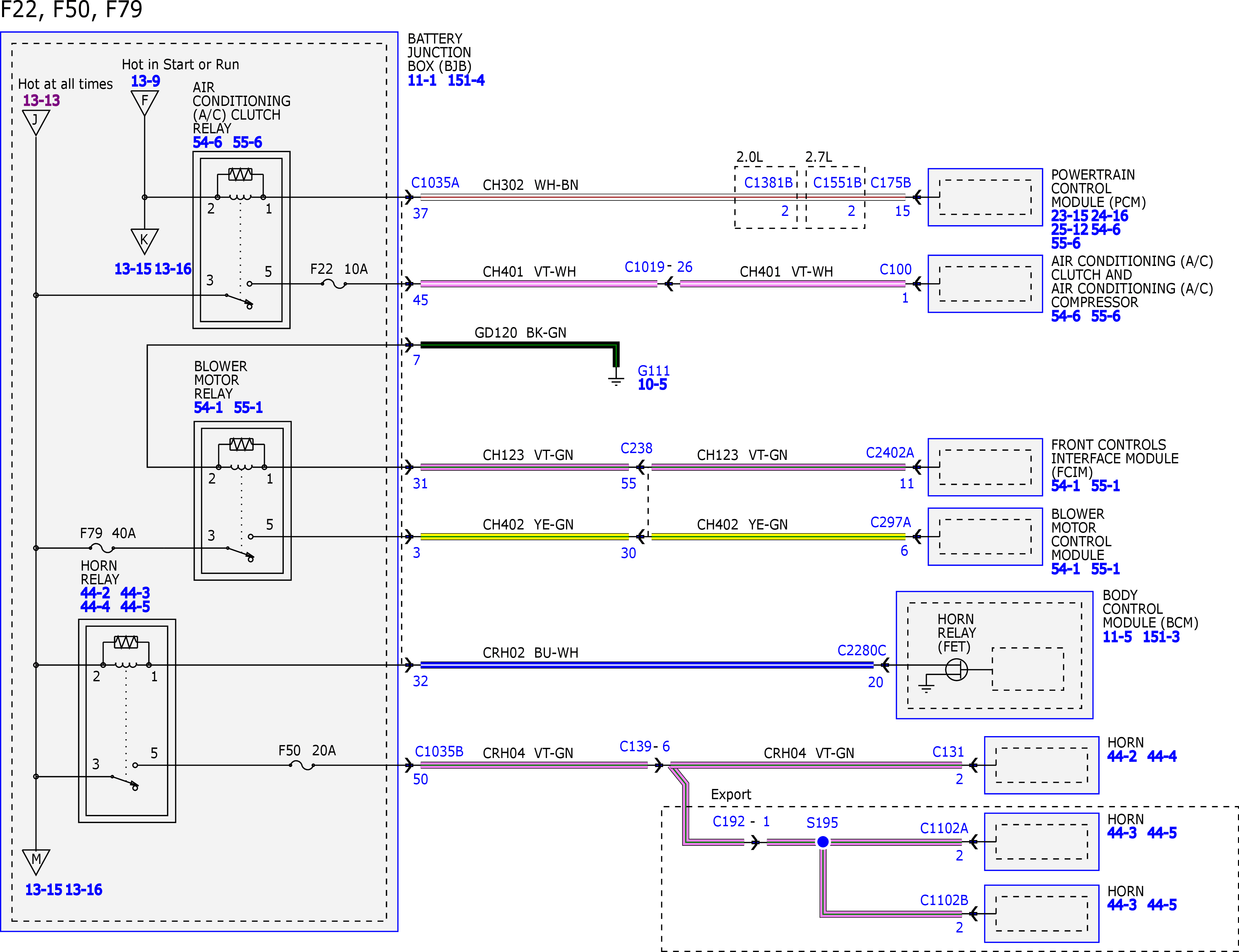

Fig 5: Power Distribution Wiring Diagrams (5 Of 51)

GFDW5263

Courtesy of FORD MOTOR COMPANY

Fig 6: Power Distribution Wiring Diagrams (6 Of 51)

GFDW5264

Courtesy of FORD MOTOR COMPANY

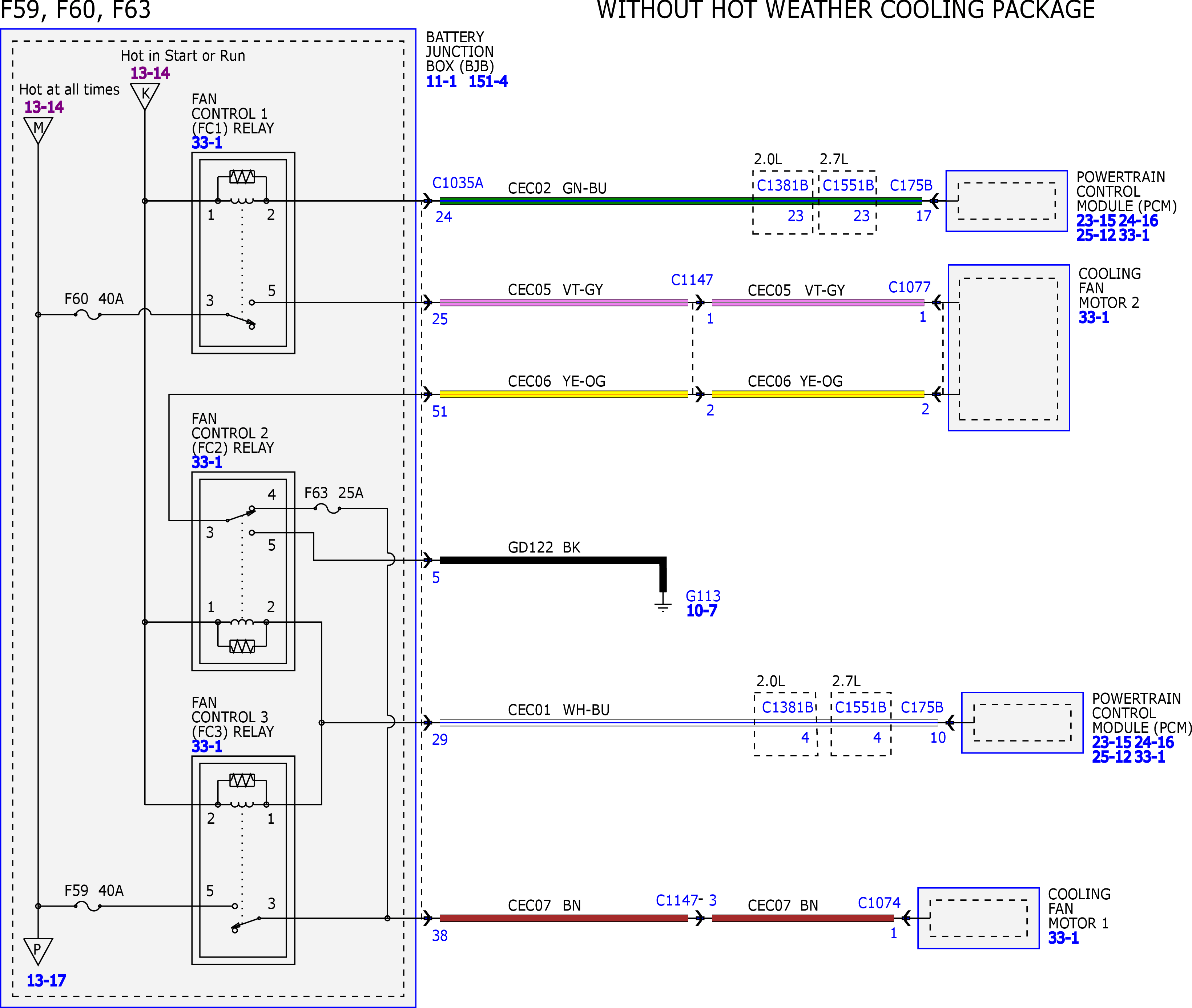

Fig 7: Power Distribution Wiring Diagrams (7 Of 51)

GFDW5265

Courtesy of FORD MOTOR COMPANY

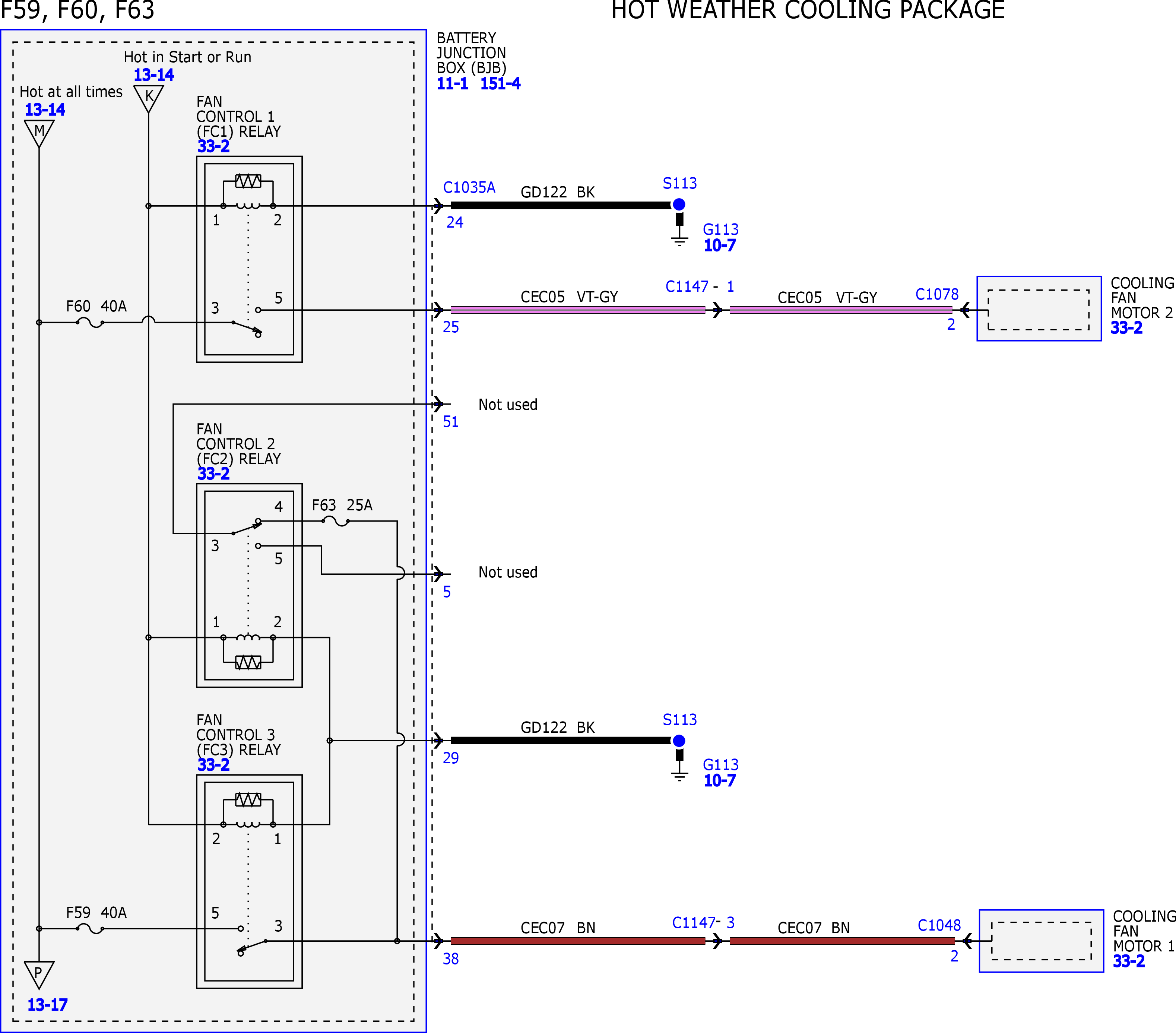

Fig 8: Power Distribution Wiring Diagrams (8 Of 51)

GFDW5266

Courtesy of FORD MOTOR COMPANY

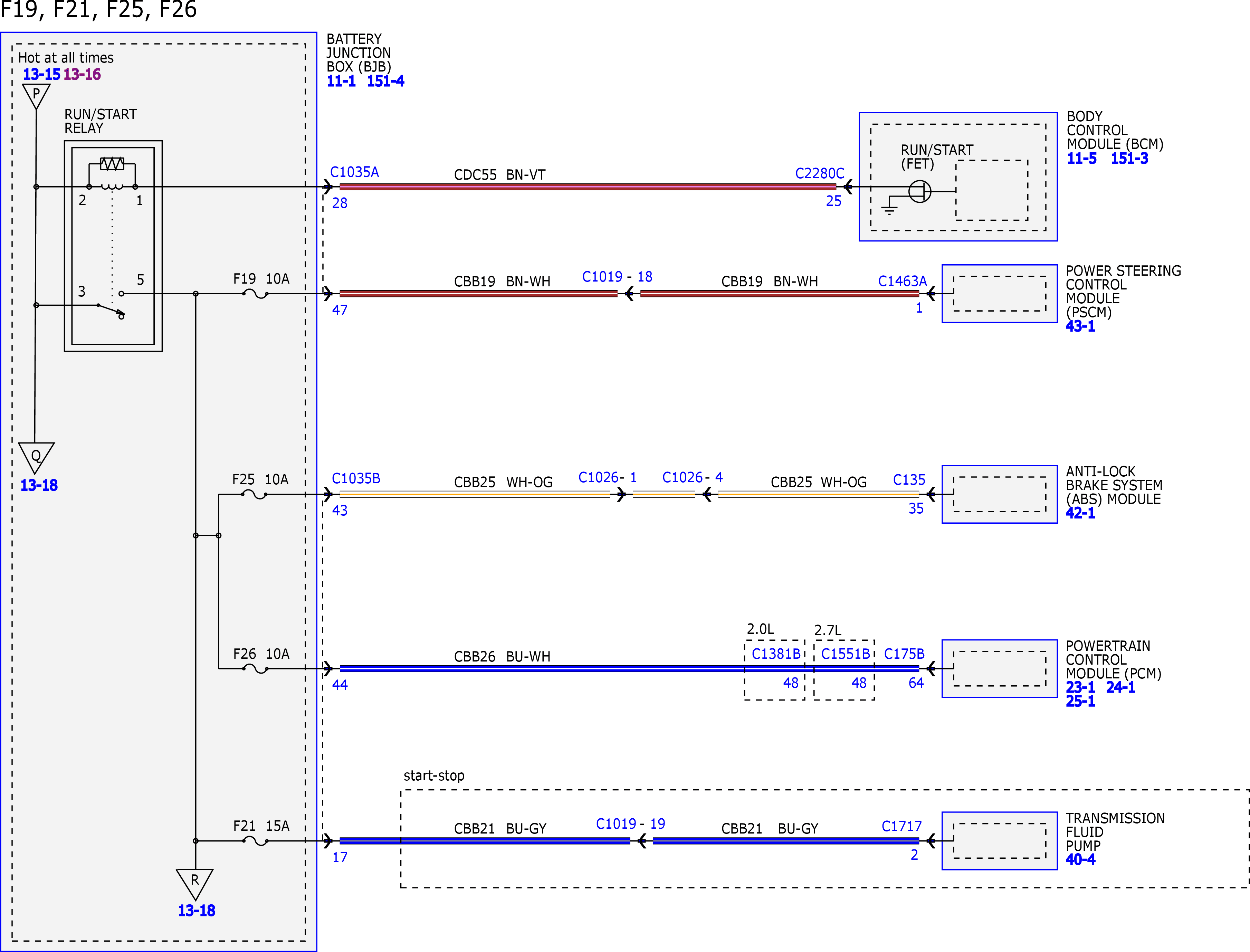

Fig 9: Power Distribution Wiring Diagrams (9 Of 51)

GFDW5267

Courtesy of FORD MOTOR COMPANY

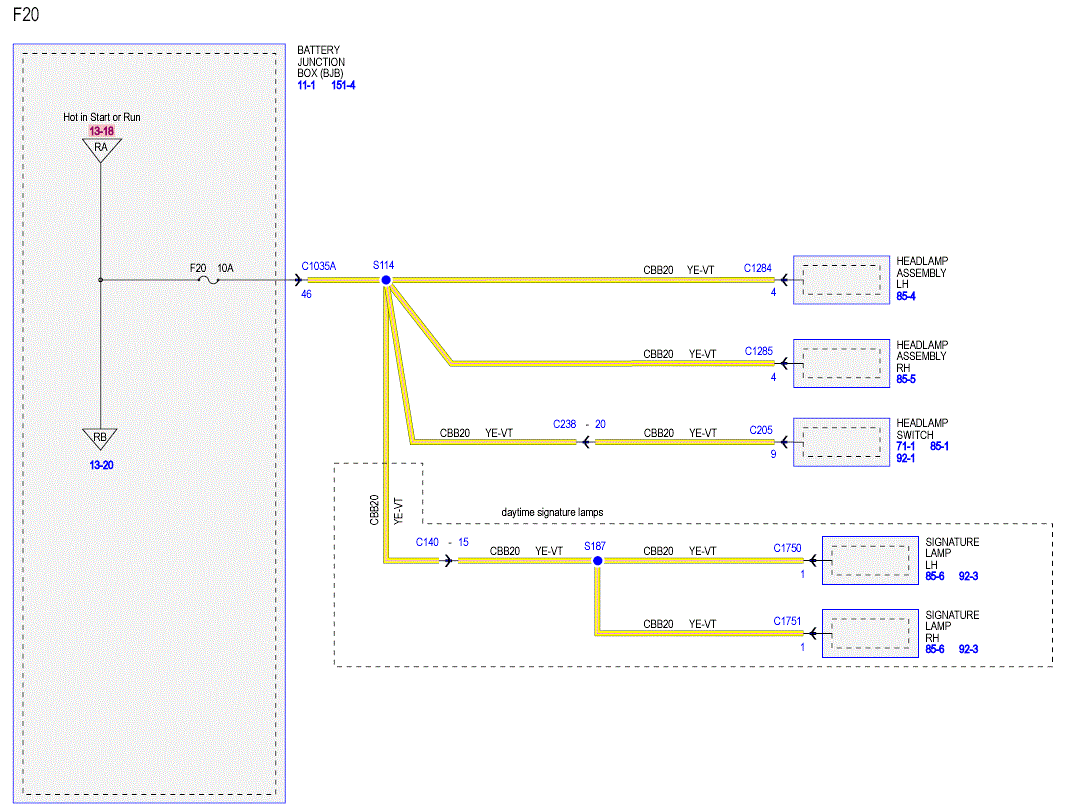

Fig 10: Power Distribution Wiring Diagrams (10 Of 51)

G00566446

Courtesy of FORD MOTOR CO.

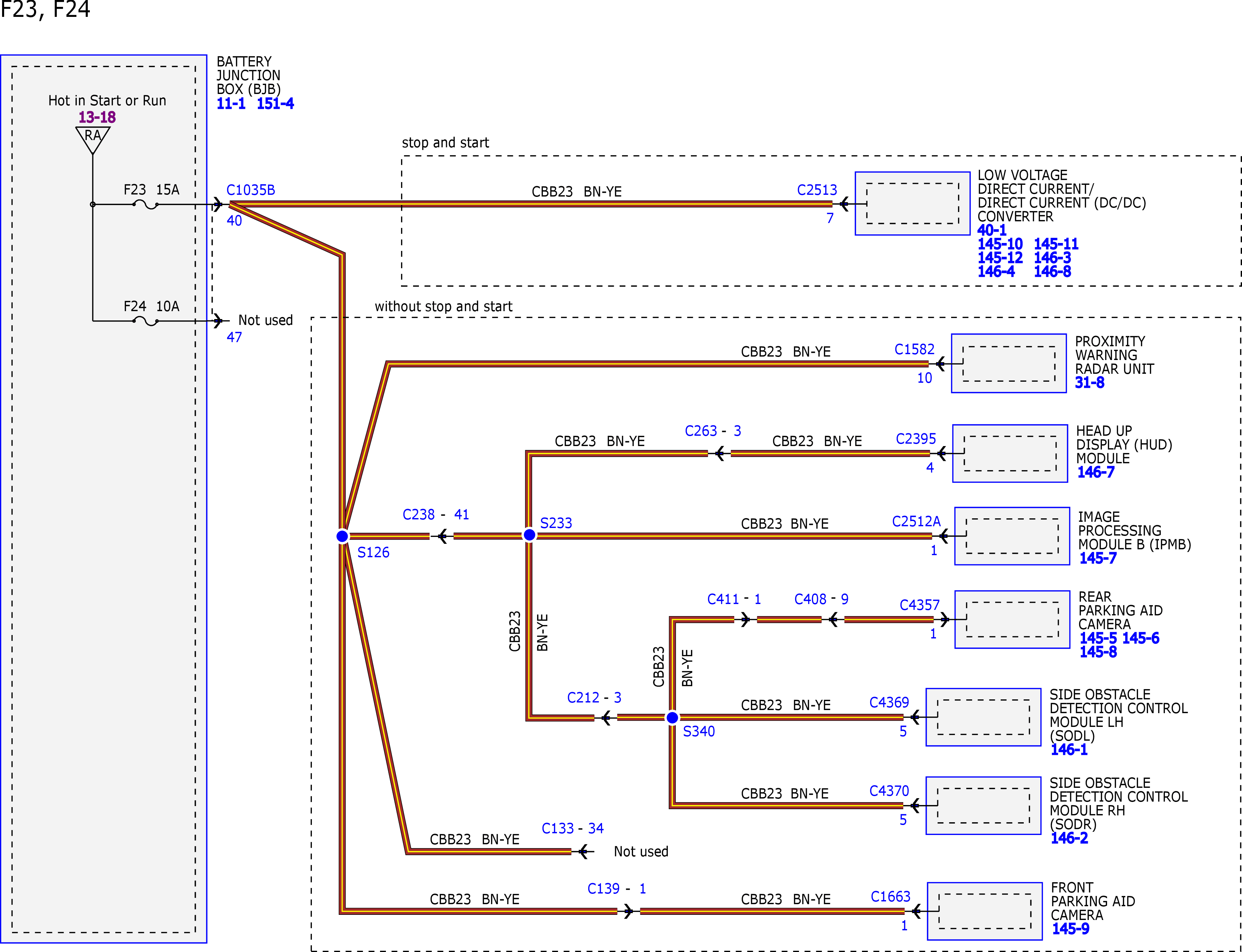

Fig 11: Power Distribution Wiring Diagrams (11 Of 51)

GFDW5269

Courtesy of FORD MOTOR COMPANY

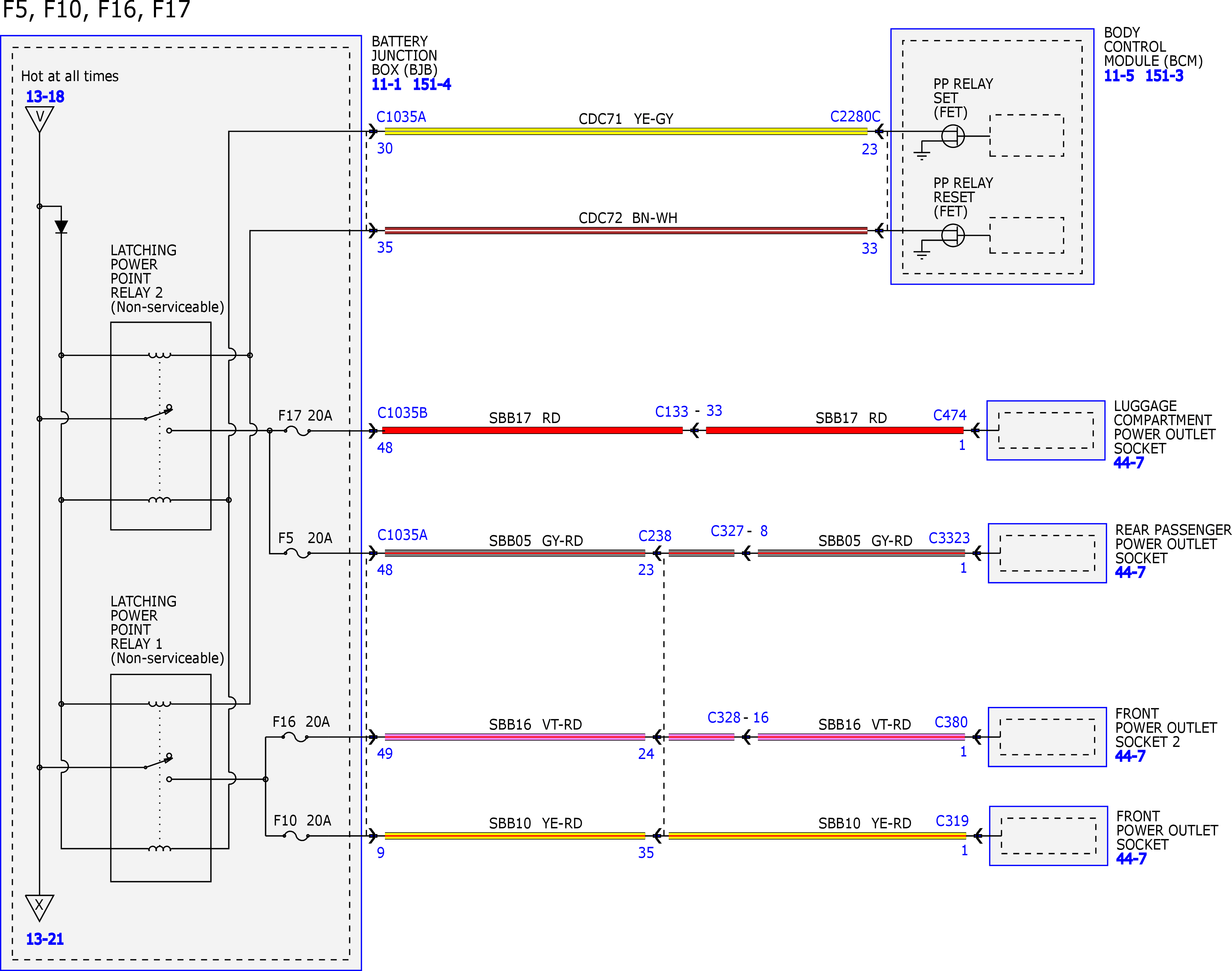

Fig 12: Power Distribution Wiring Diagrams (12 Of 51)

GFDW5270

Courtesy of FORD MOTOR COMPANY

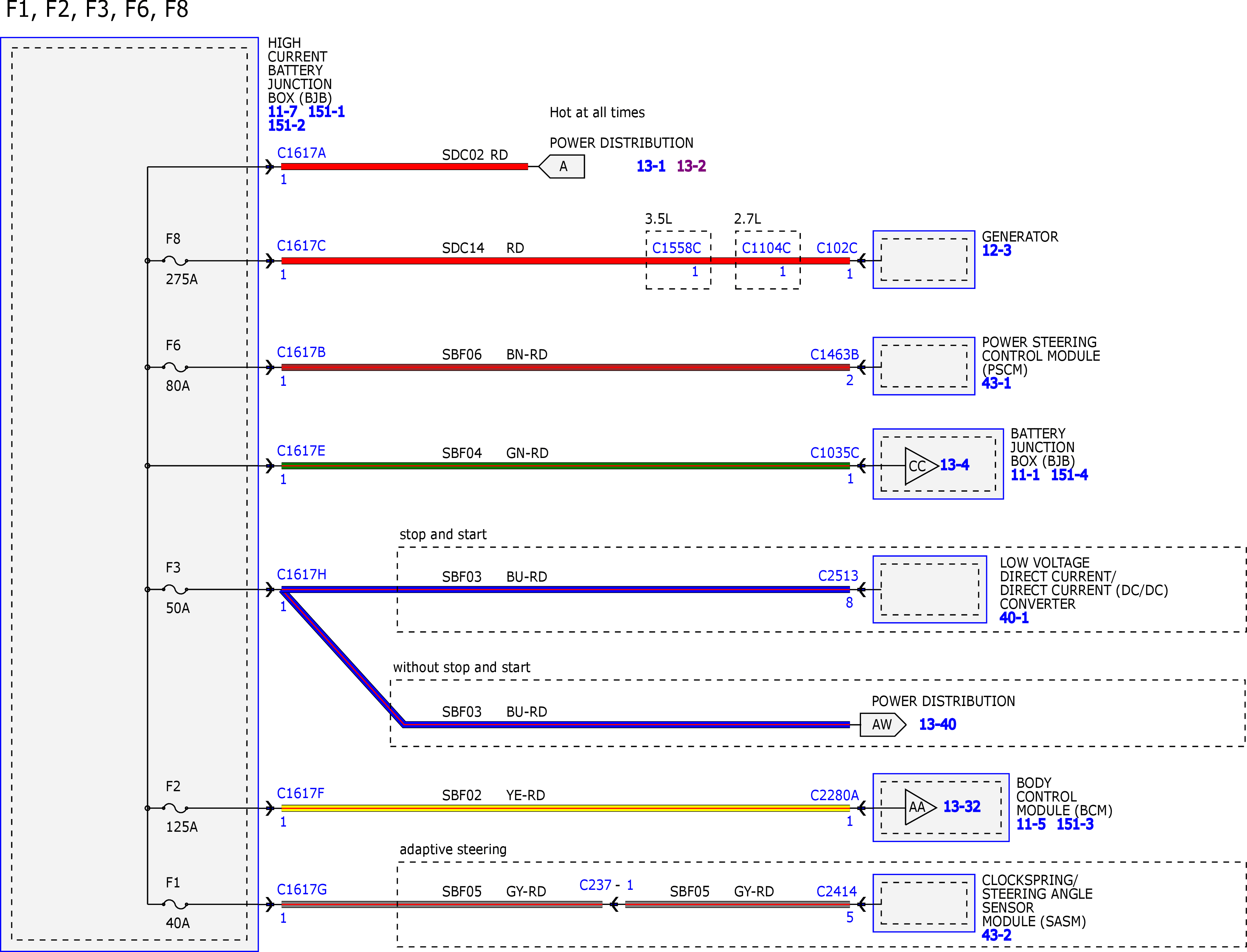

Fig 13: Power Distribution Wiring Diagrams (13 Of 51)

GFDW5271

Courtesy of FORD MOTOR COMPANY

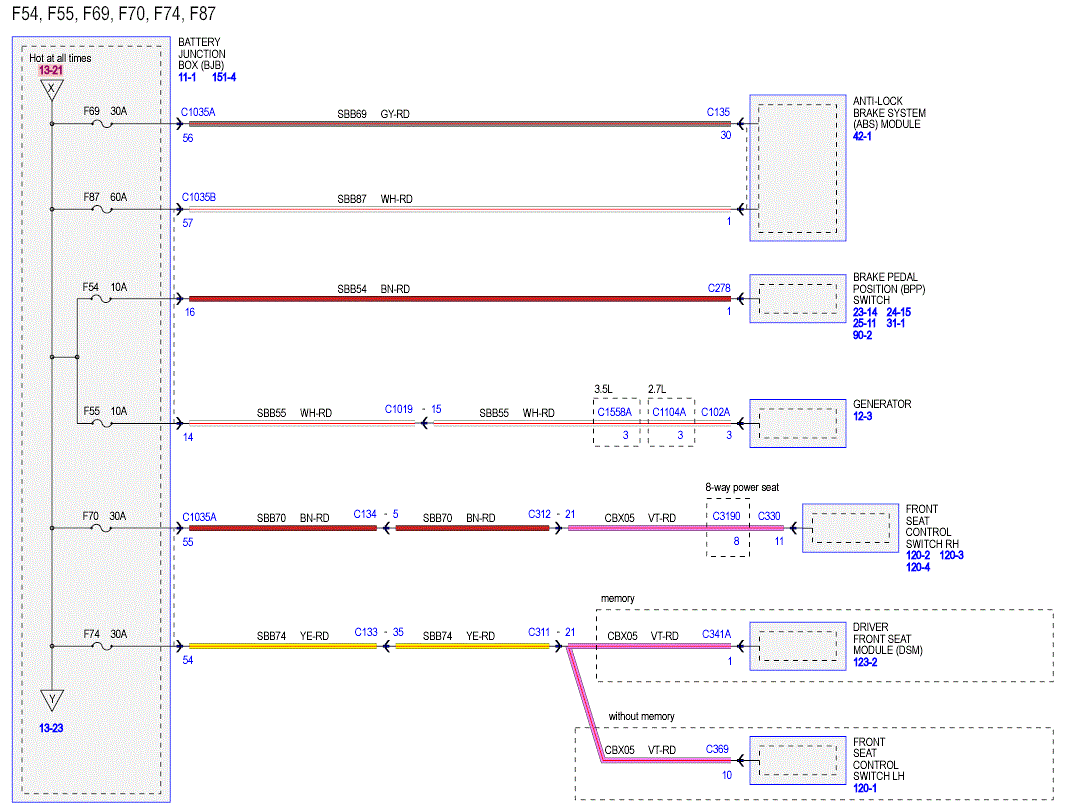

Fig 14: Power Distribution Wiring Diagrams (14 Of 51)

G00566447

Courtesy of FORD MOTOR CO.

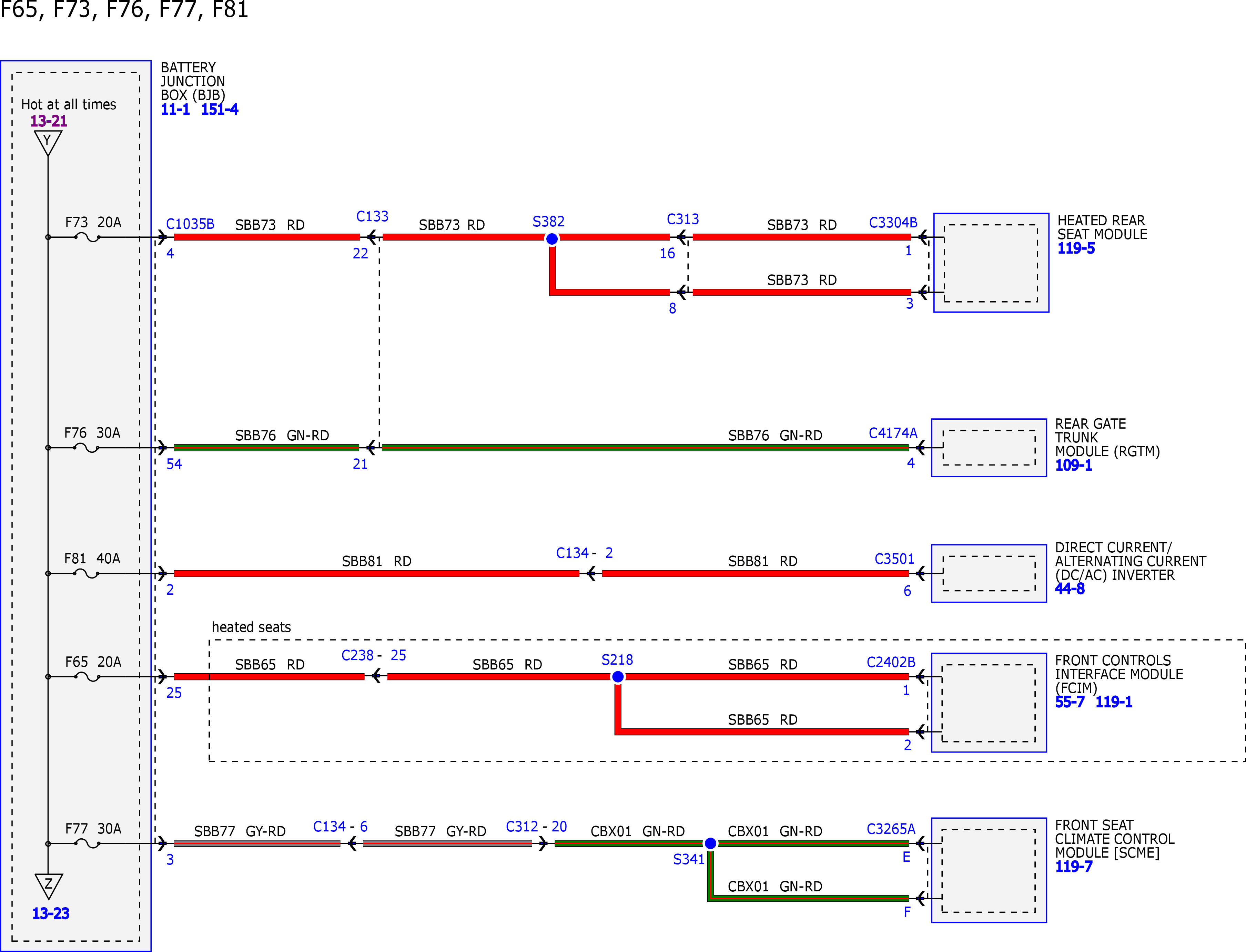

Fig 15: Power Distribution Wiring Diagrams (15 Of 51)

GFDW5273

Courtesy of FORD MOTOR COMPANY

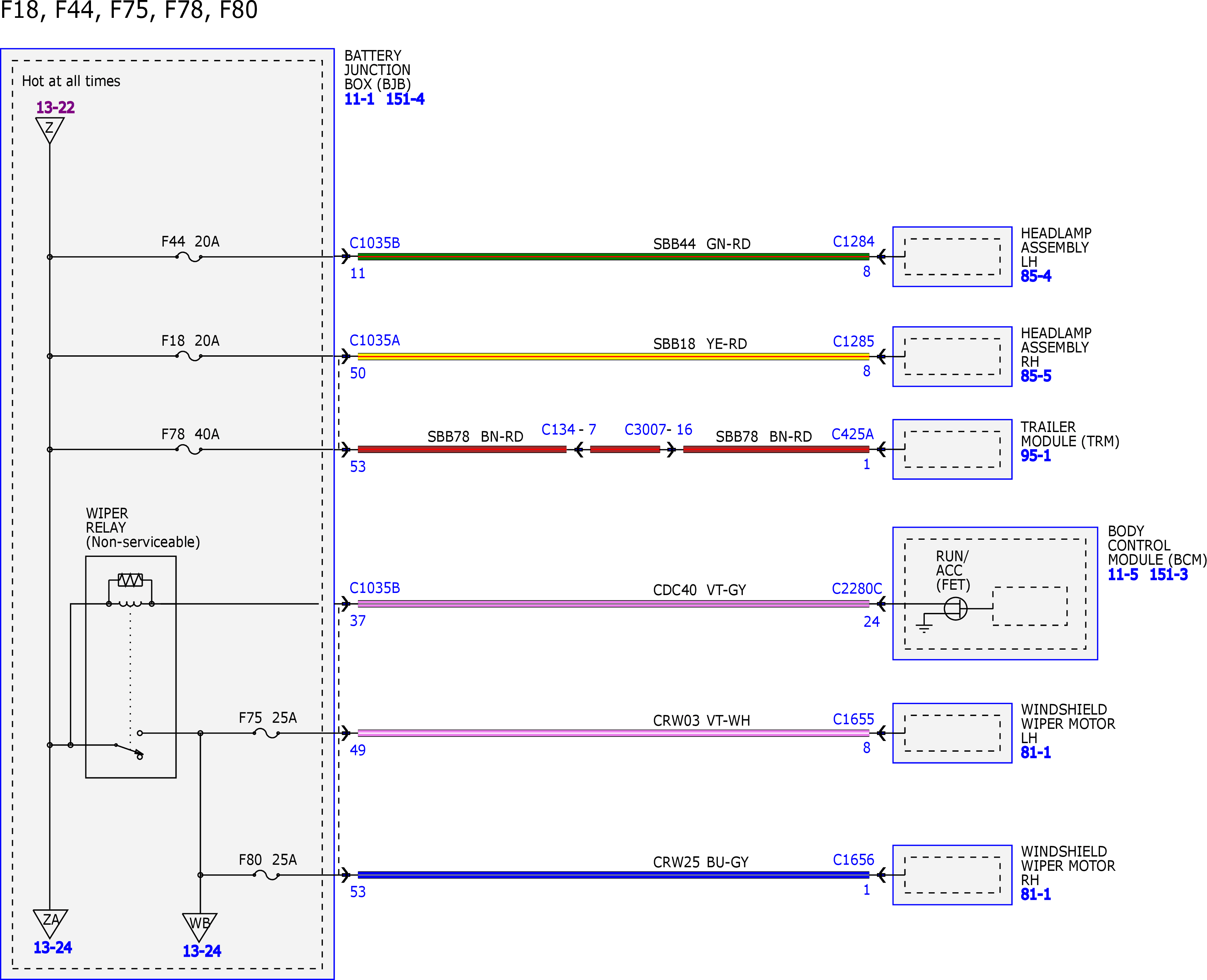

Fig 16: Power Distribution Wiring Diagrams (16 Of 51)

GFDW5274

Courtesy of FORD MOTOR COMPANY

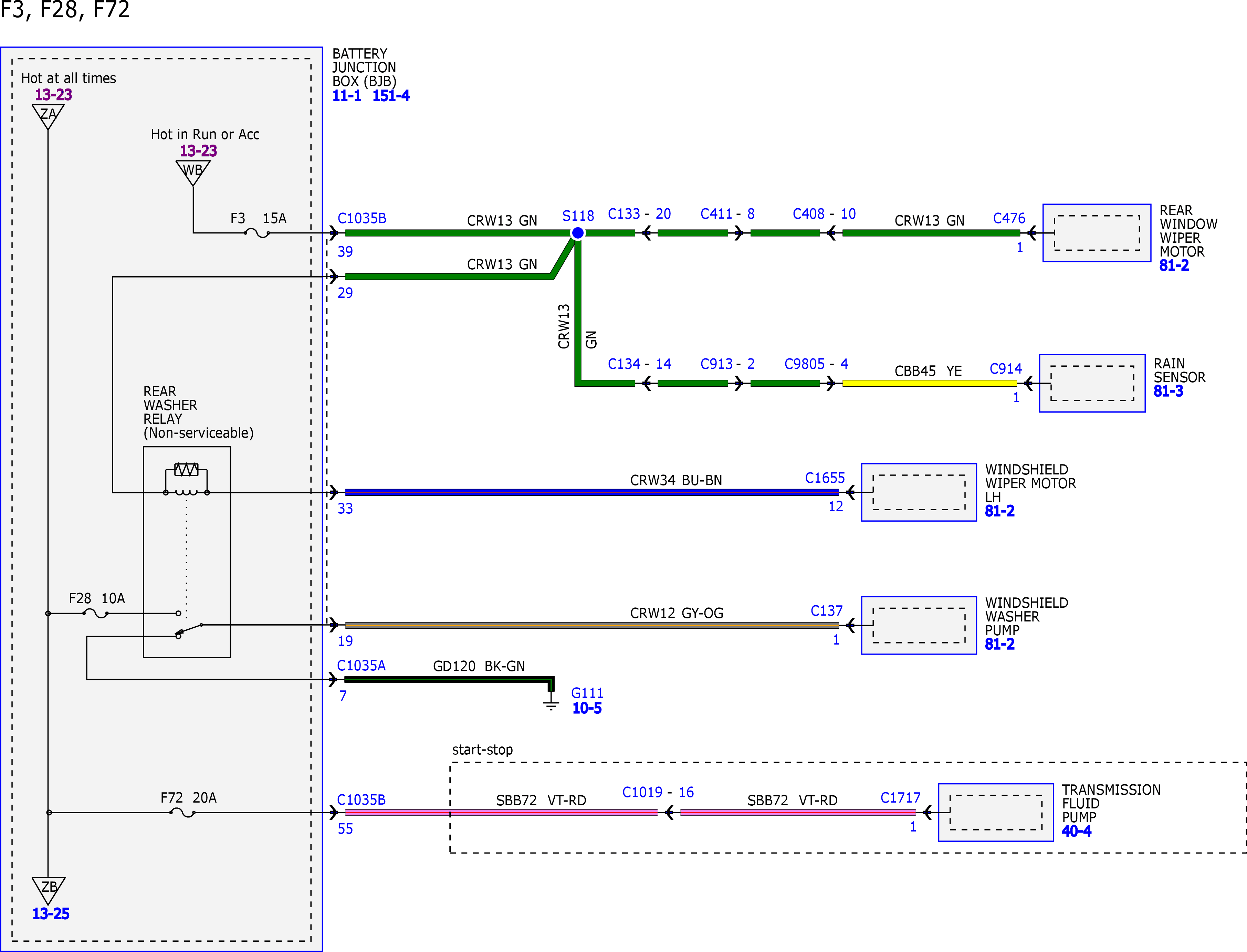

Fig 17: Power Distribution Wiring Diagrams (17 Of 51)

GFDW5275

Courtesy of FORD MOTOR COMPANY

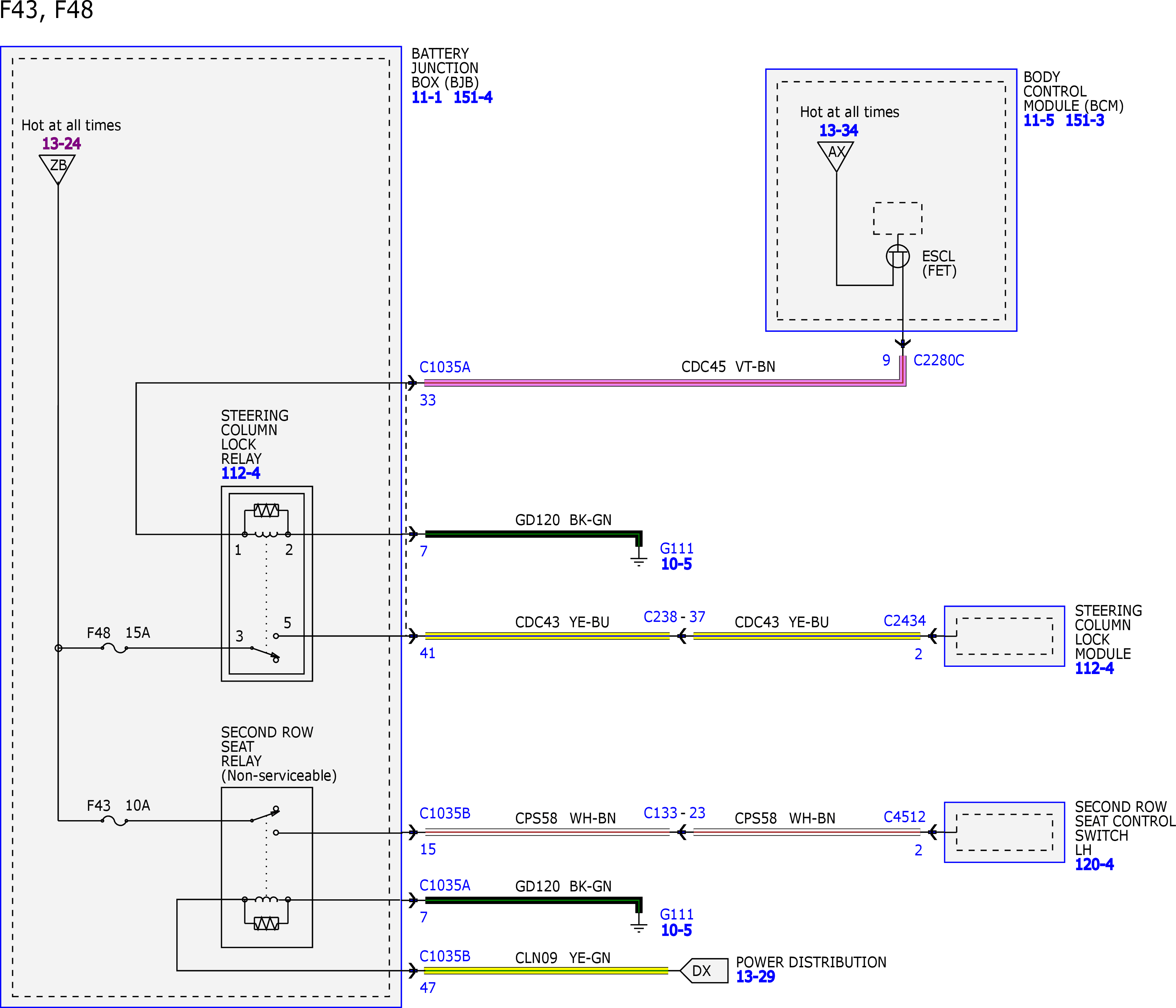

Fig 18: Power Distribution Wiring Diagrams (18 Of 51)

GFDW5276

Courtesy of FORD MOTOR COMPANY

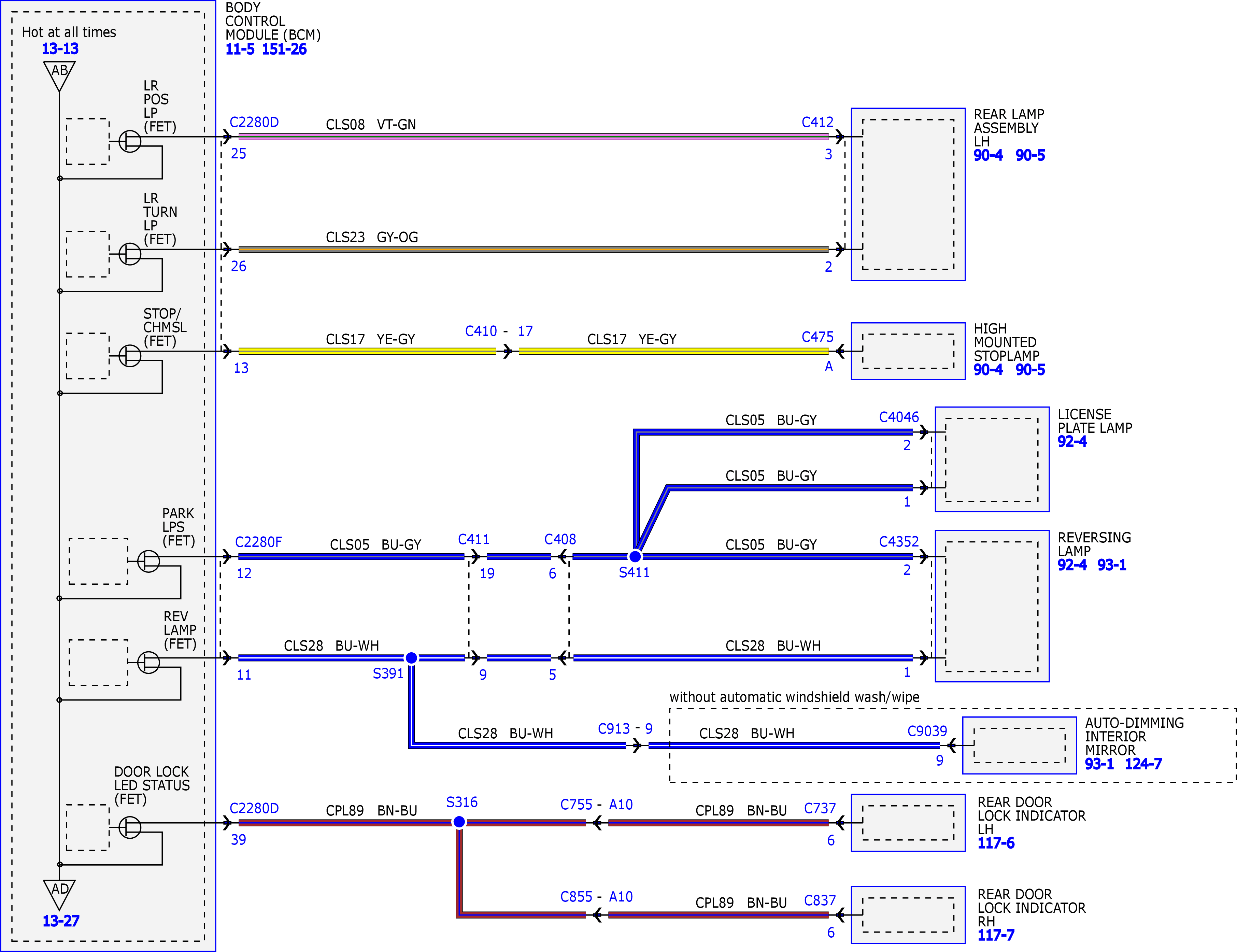

Fig 19: Power Distribution Wiring Diagrams (19 Of 51)

GFDW5277

Courtesy of FORD MOTOR COMPANY

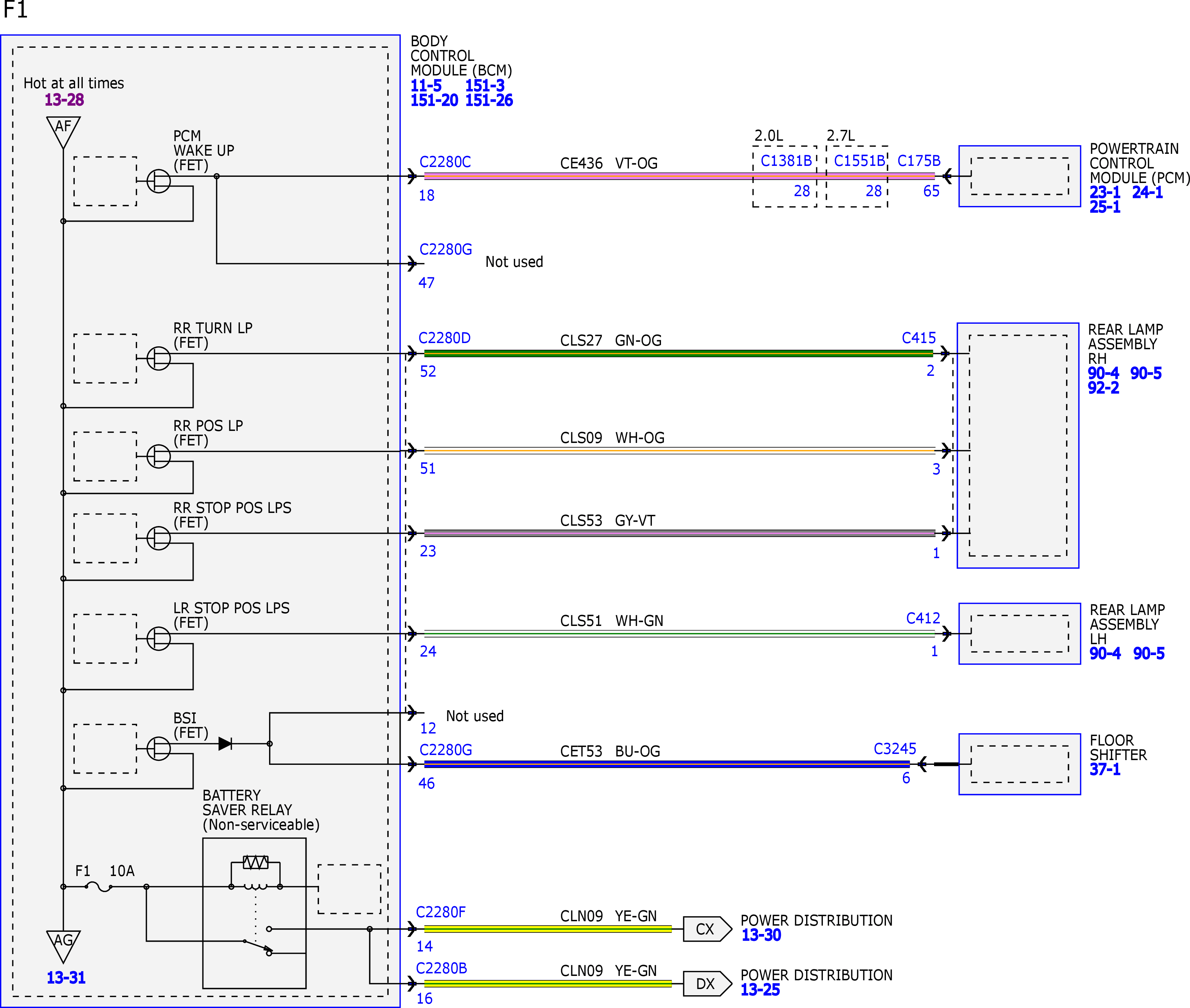

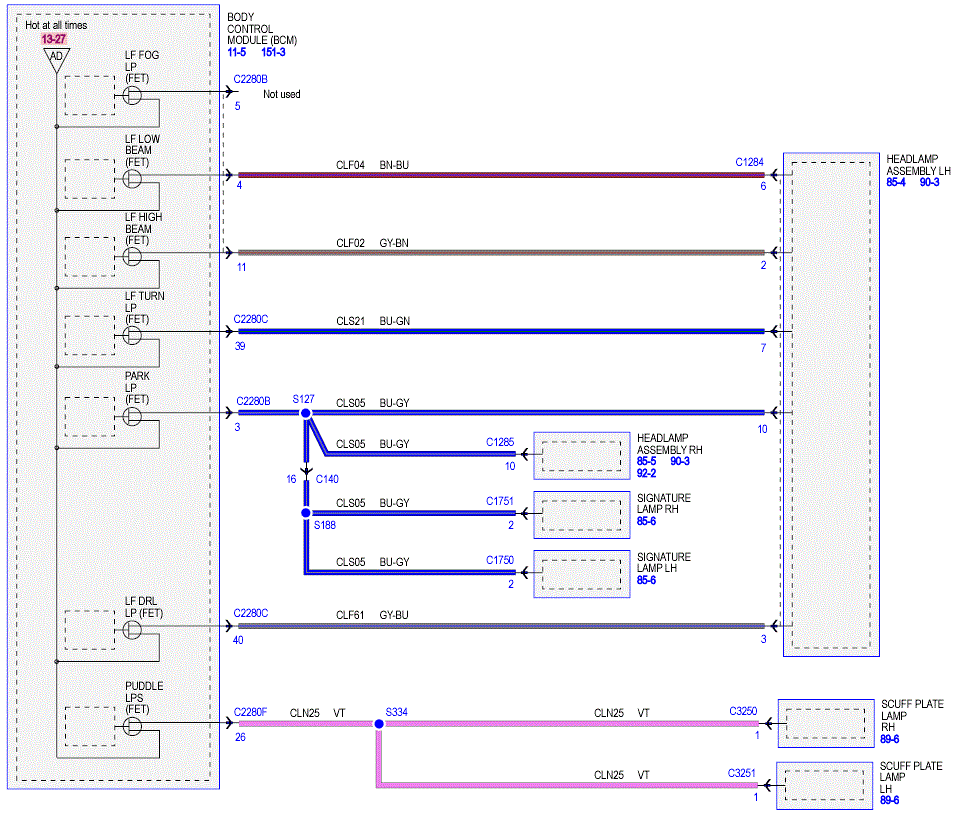

Fig 20: Power Distribution Wiring Diagrams (20 Of 51)

G00566448

Courtesy of FORD MOTOR CO.

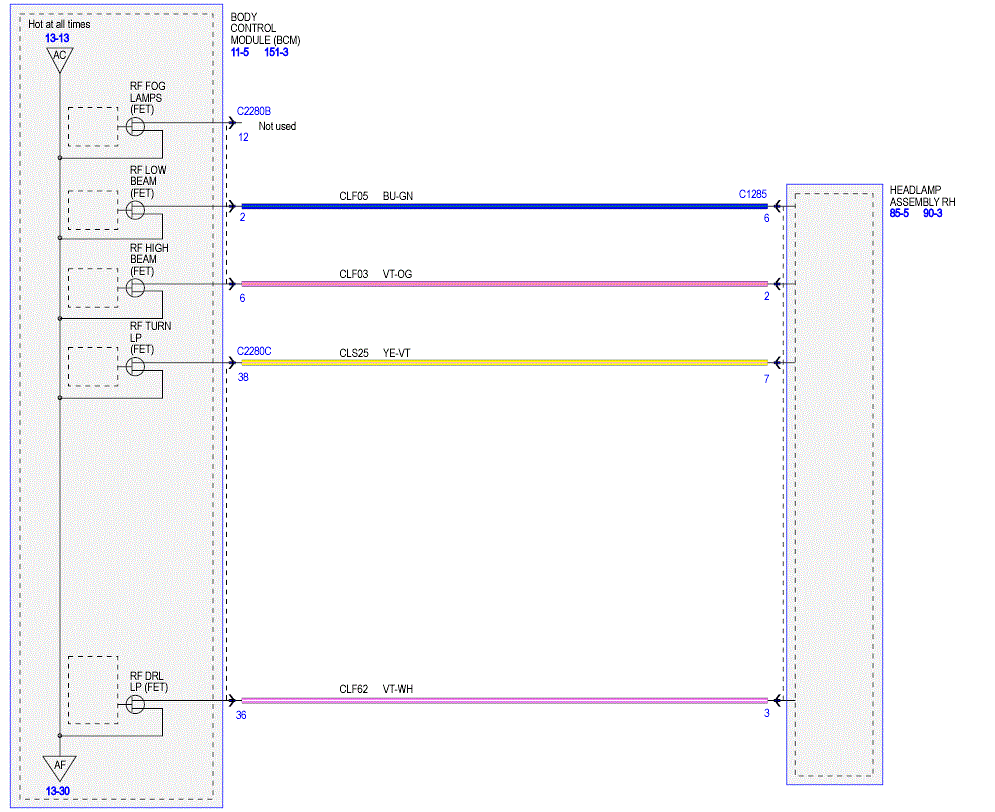

Fig 21: Power Distribution Wiring Diagrams (21 Of 51)

G00566449

Courtesy of FORD MOTOR CO.

Fig 22: Power Distribution Wiring Diagrams (22 Of 51)

GFDW5280

Courtesy of FORD MOTOR COMPANY

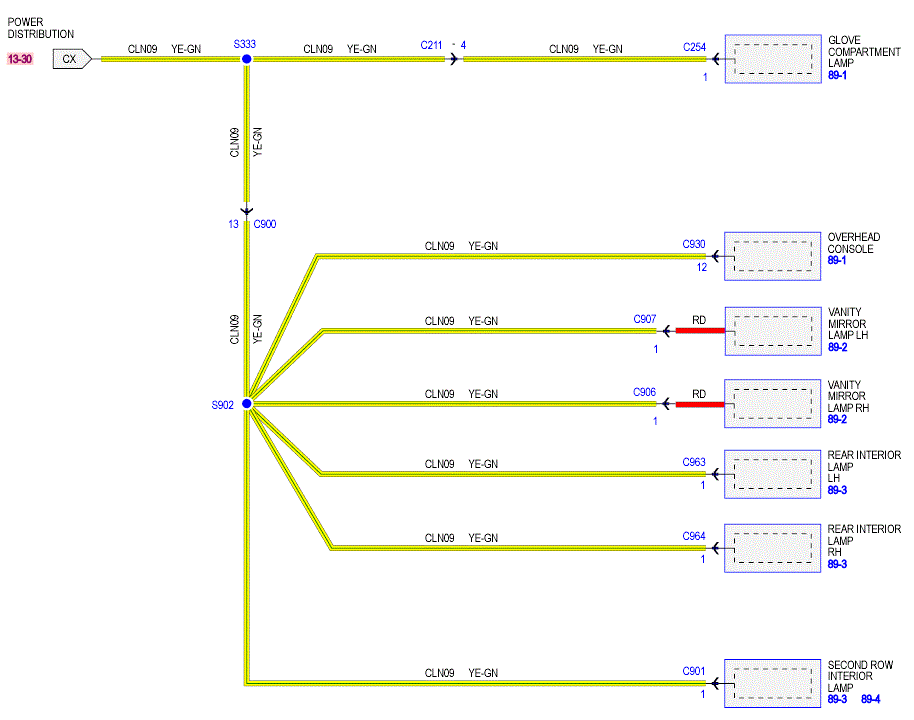

Fig 23: Power Distribution Wiring Diagrams (23 Of 51)

G00566450

Courtesy of FORD MOTOR CO.

Fig 24: Power Distribution Wiring Diagrams (24 Of 51)

GFDW5282

Courtesy of FORD MOTOR COMPANY

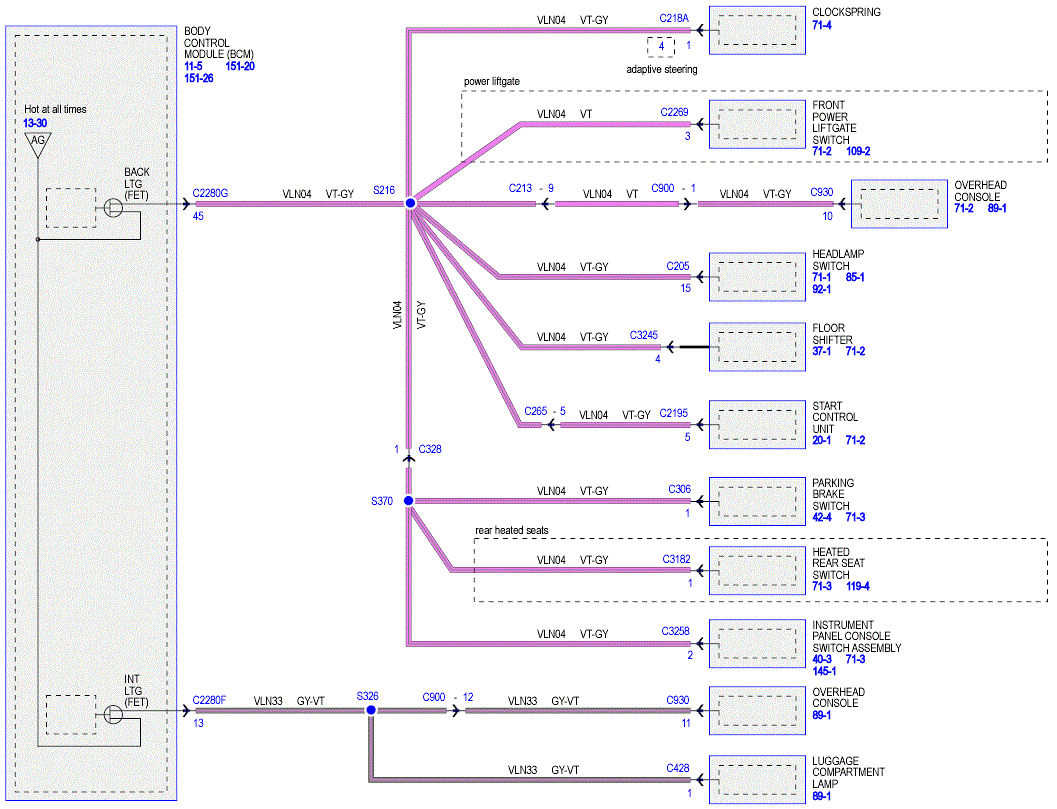

Fig 25: Power Distribution Wiring Diagrams (25 Of 51)

G00566451

Courtesy of FORD MOTOR CO.

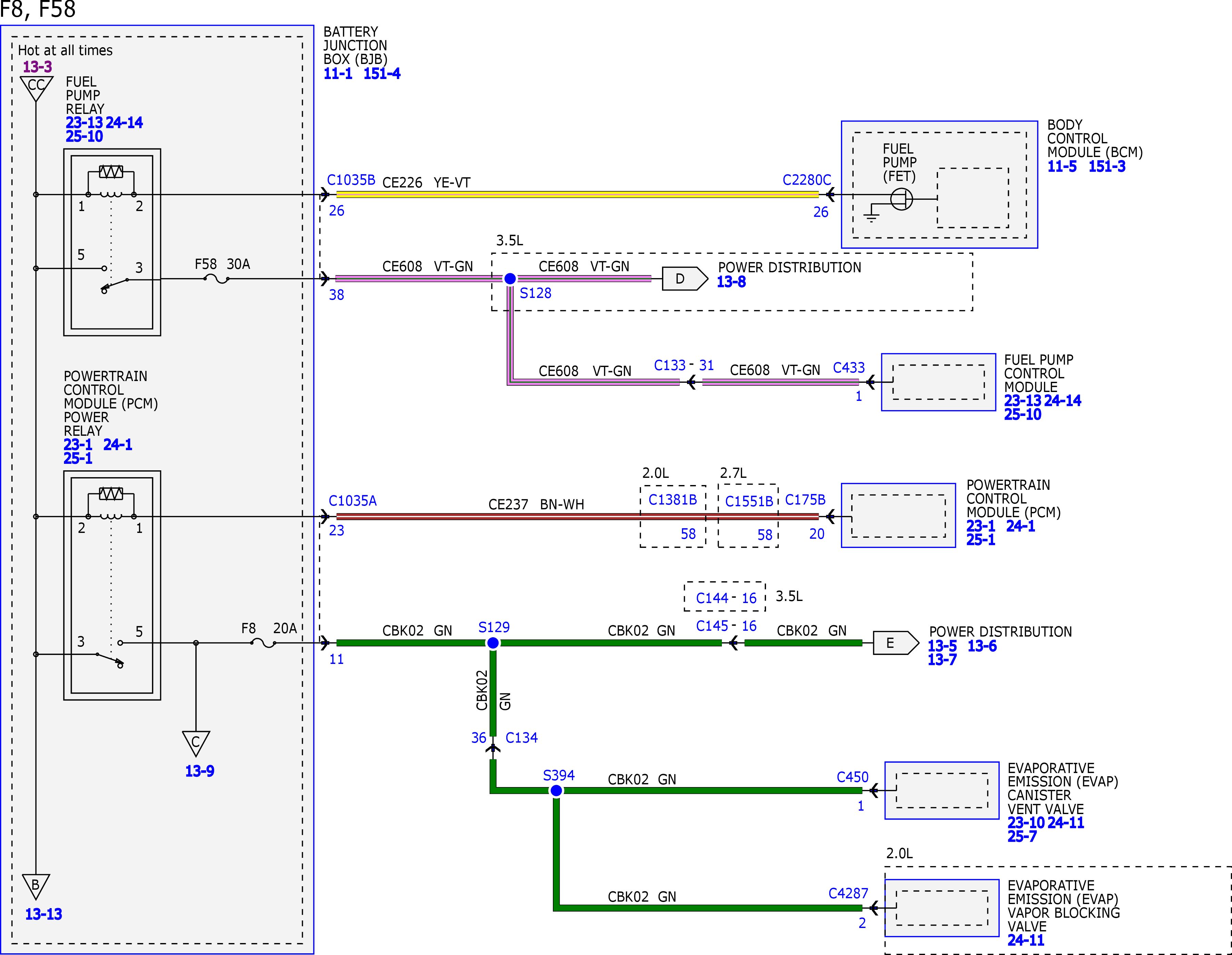

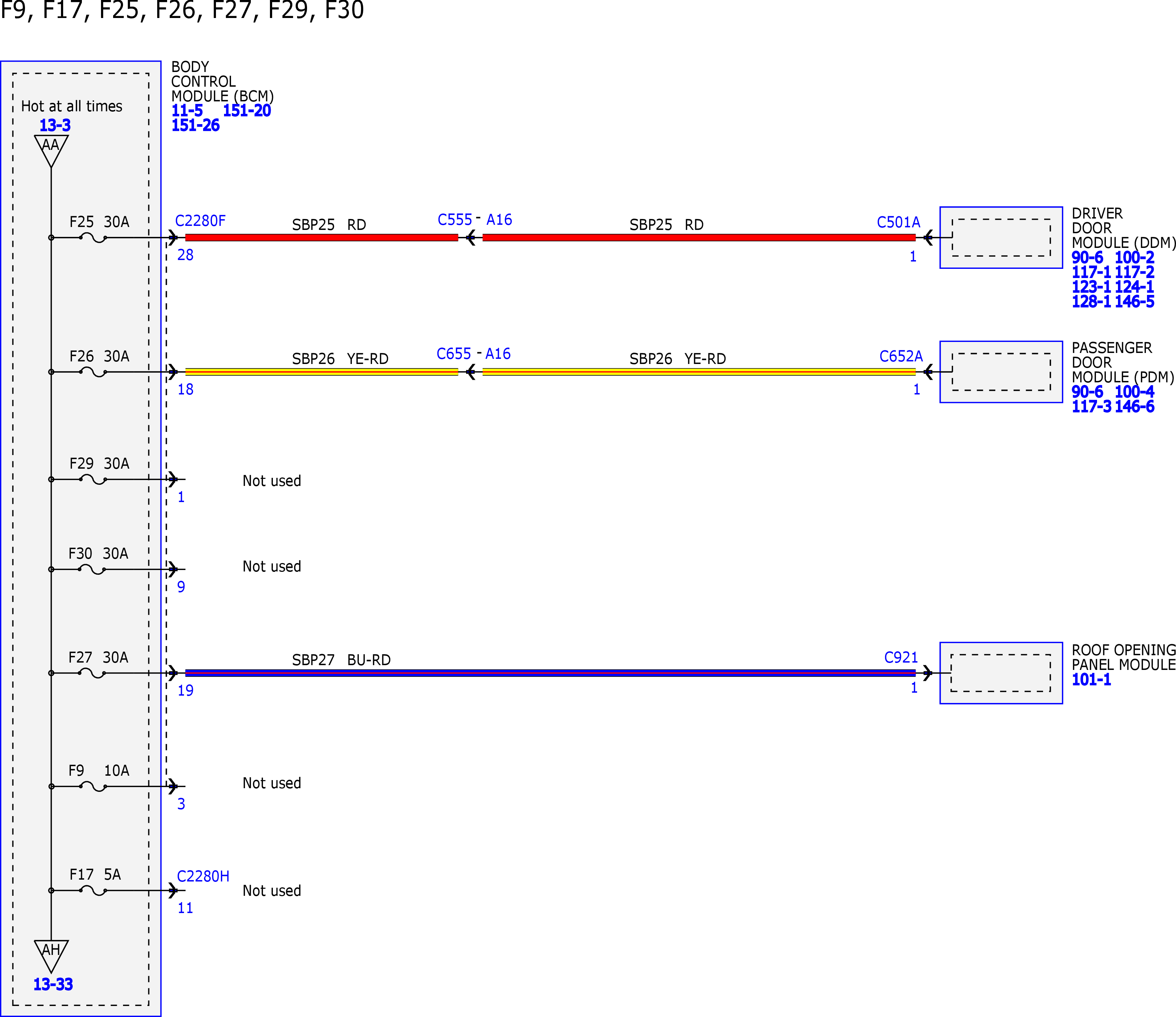

Fig 26: Power Distribution Wiring Diagrams (26 Of 51)

GFDW5284

Courtesy of FORD MOTOR COMPANY

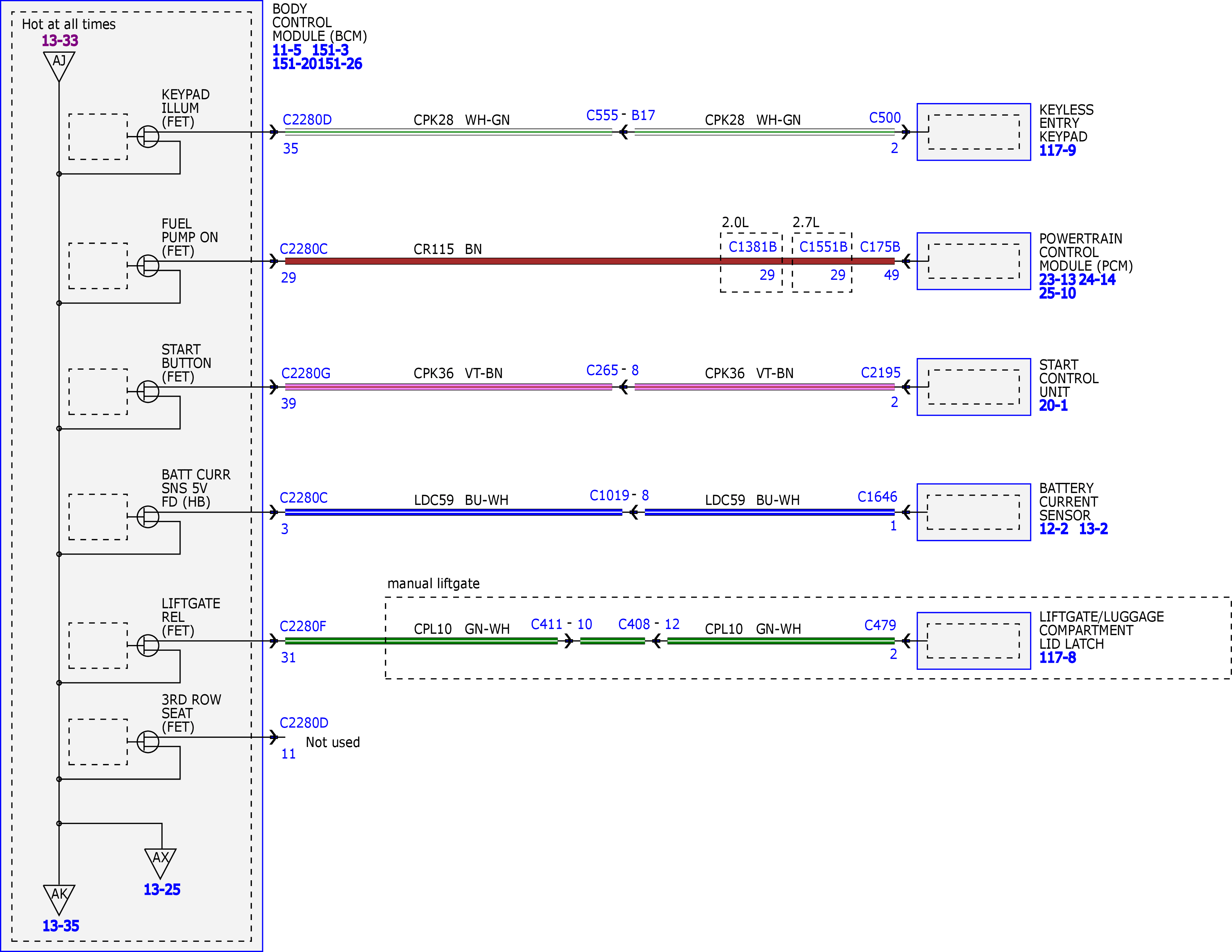

Fig 27: Power Distribution Wiring Diagrams (27 Of 51)

GFDW5285

Courtesy of FORD MOTOR COMPANY

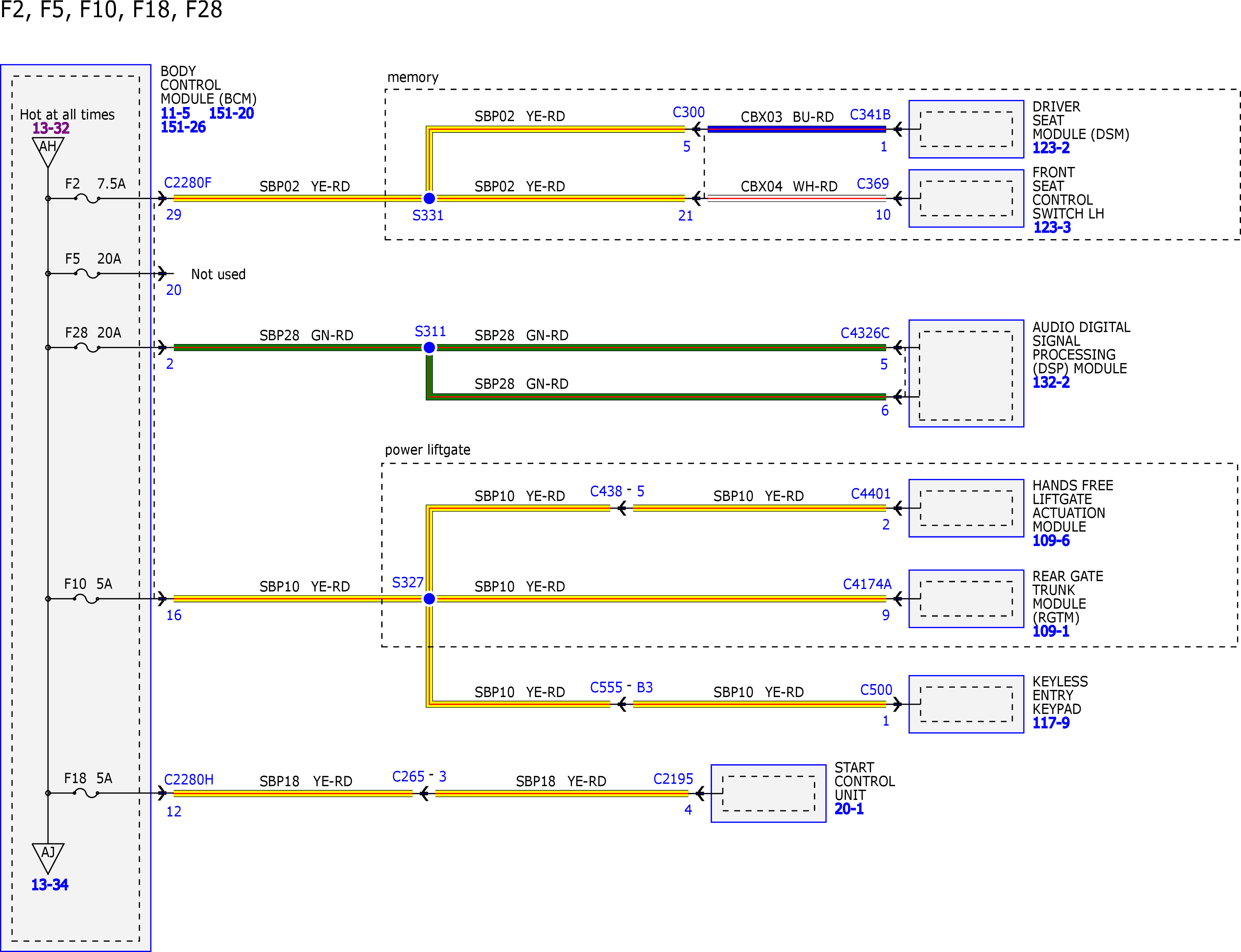

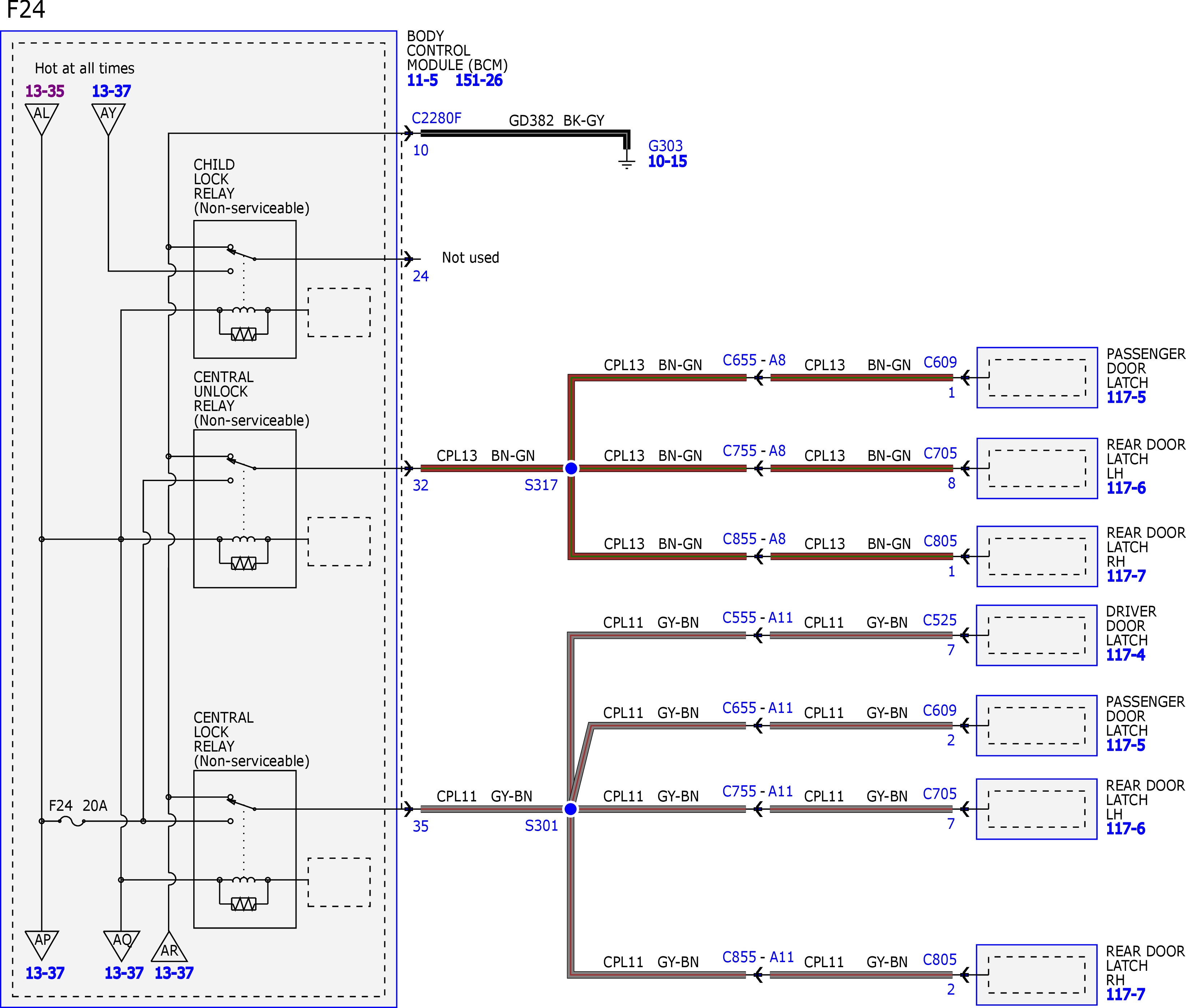

Fig 28: Power Distribution Wiring Diagrams (28 Of 51)

GFDW5286

Courtesy of FORD MOTOR COMPANY

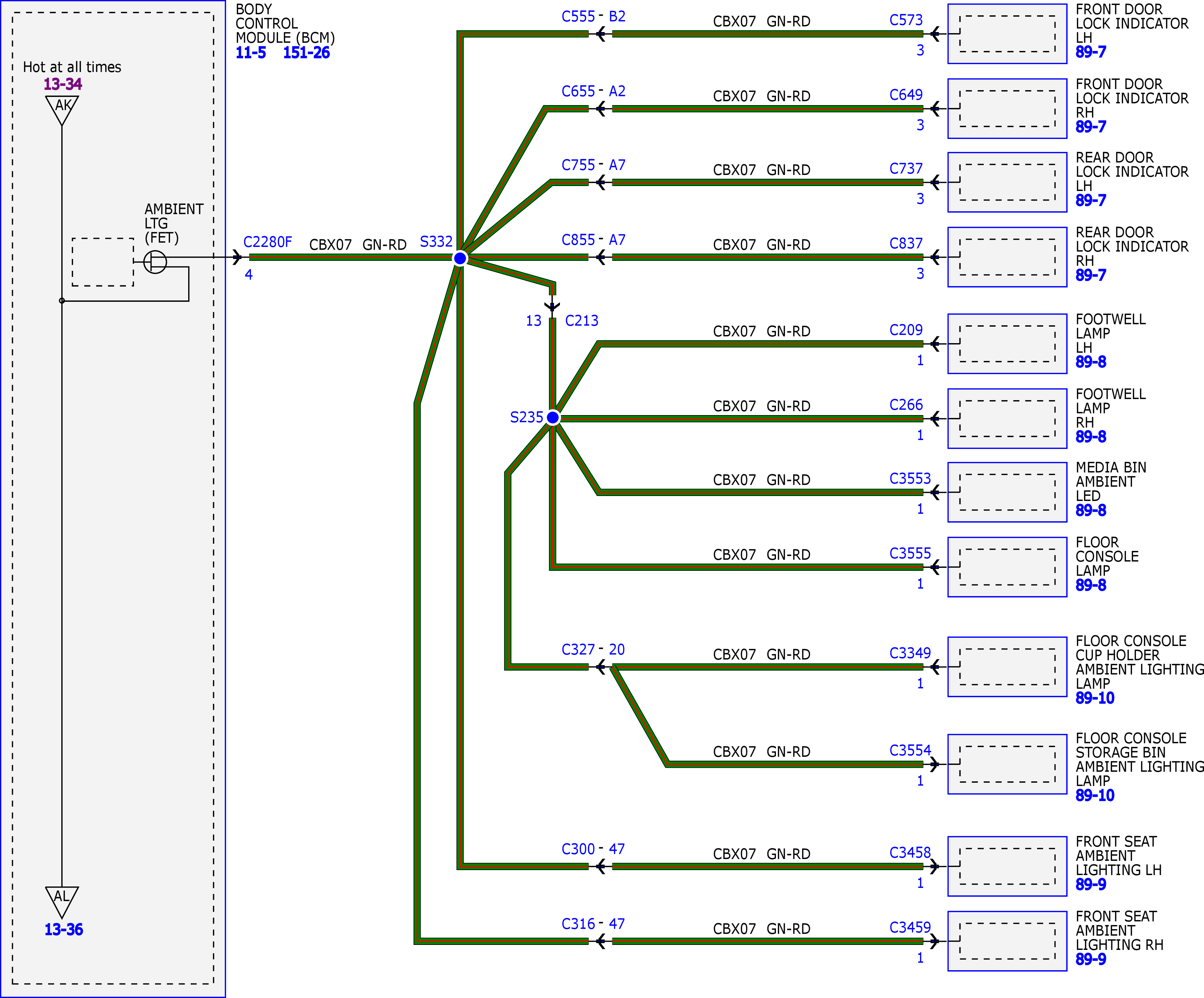

Fig 29: Power Distribution Wiring Diagrams (29 Of 51)

GFDW5287

Courtesy of FORD MOTOR COMPANY

Fig 30: Power Distribution Wiring Diagrams (30 Of 51)

GFDW5288

Courtesy of FORD MOTOR COMPANY

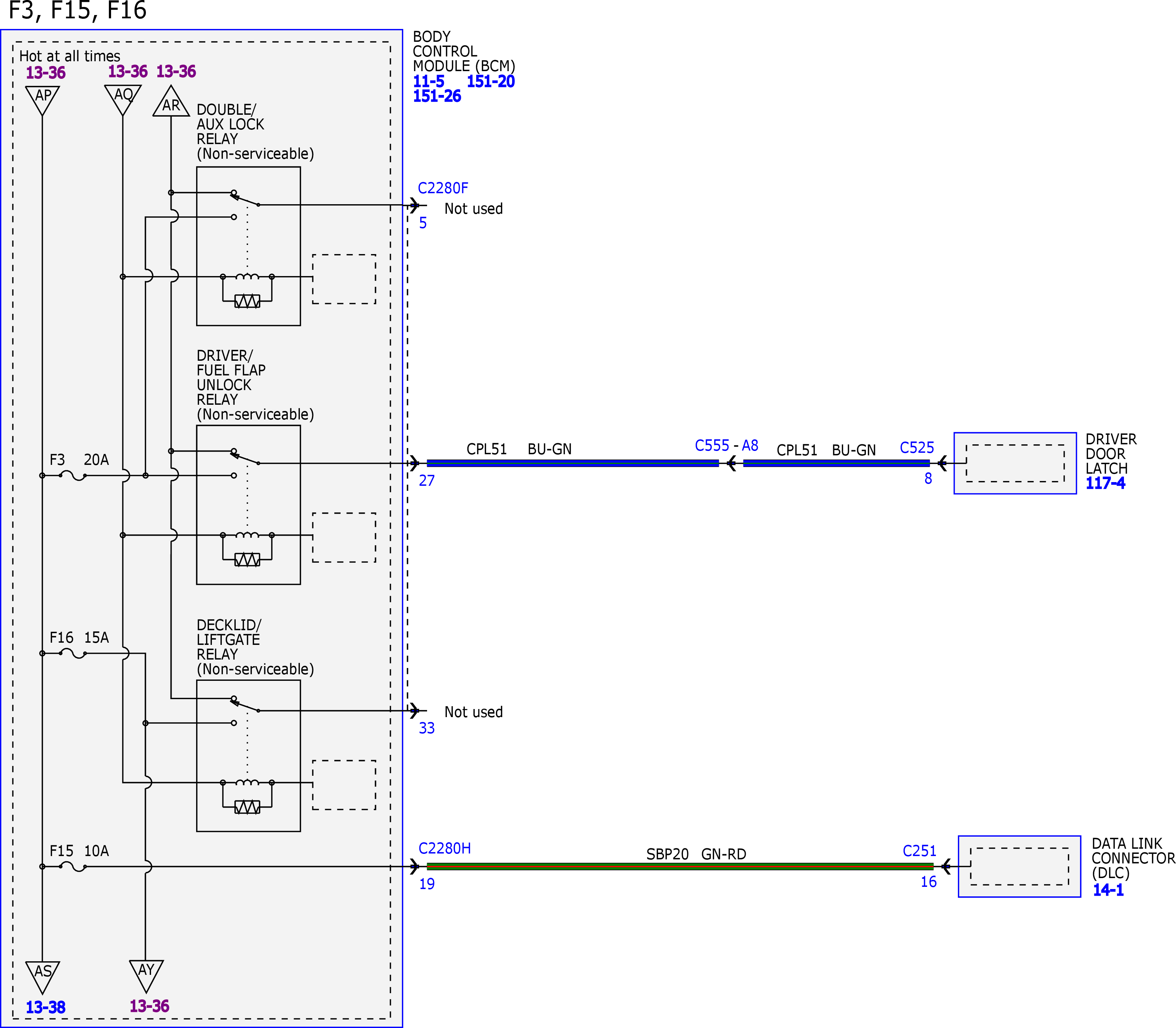

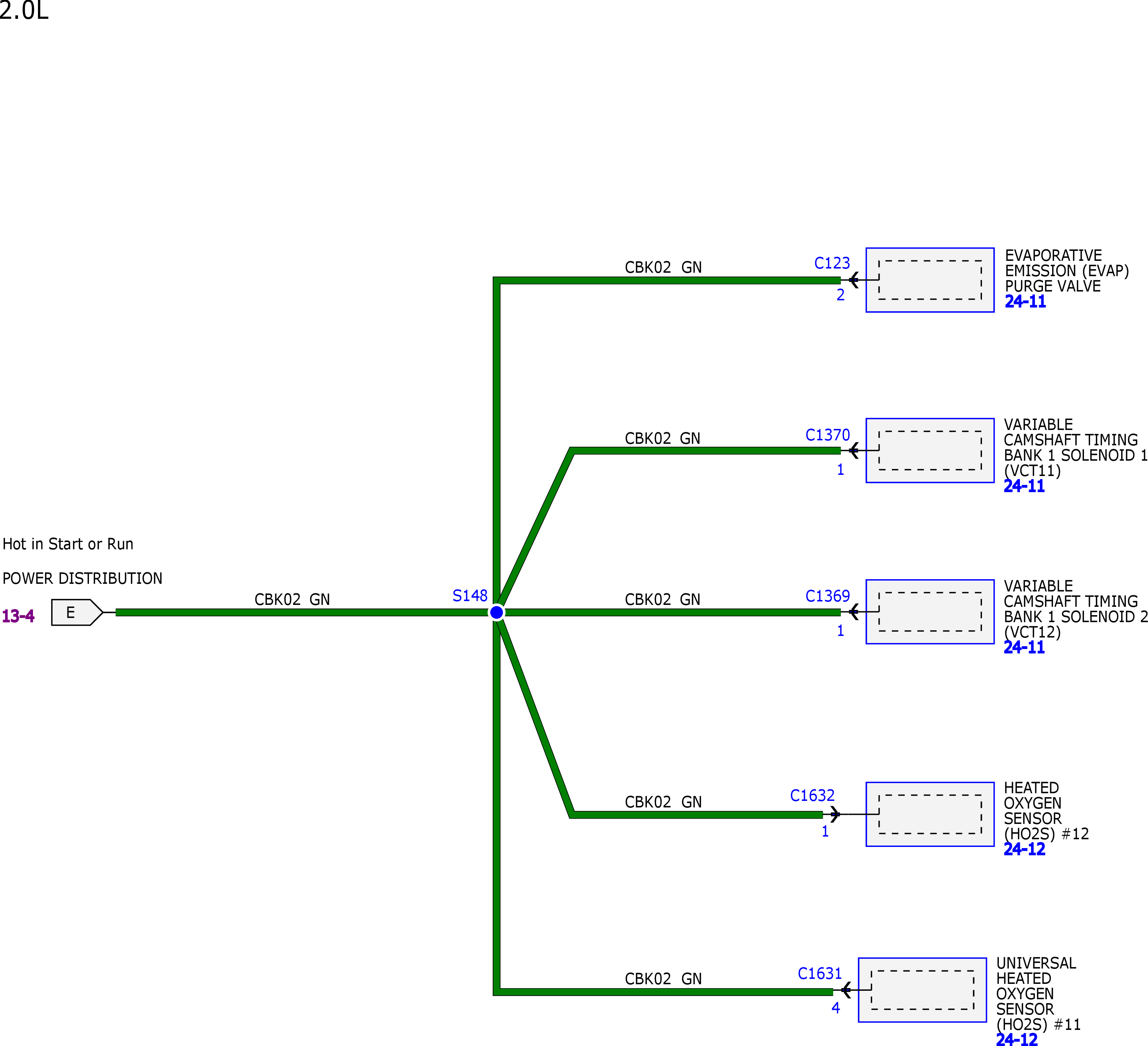

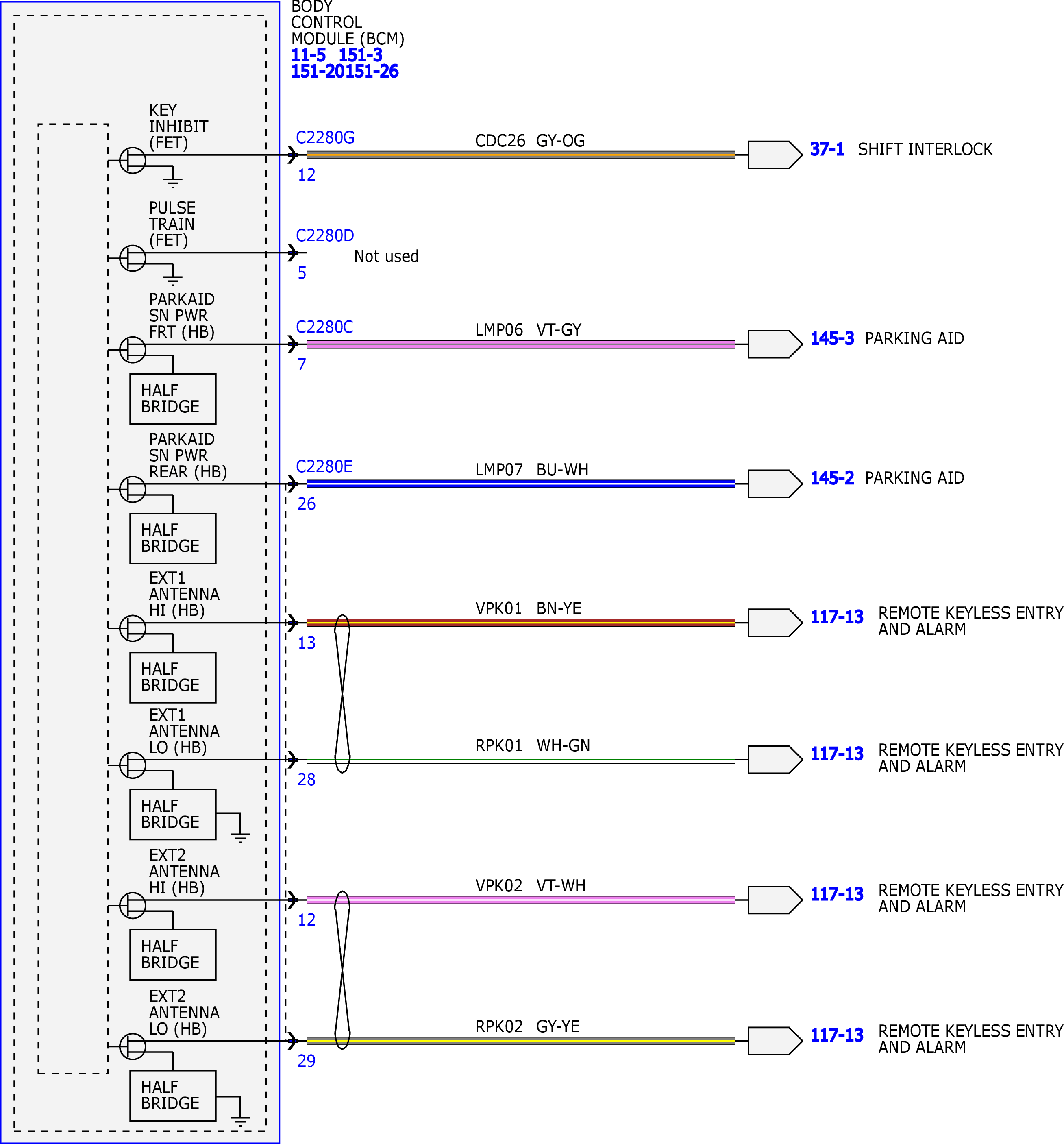

Fig 31: Power Distribution Wiring Diagrams (31 Of 51)

GFDW5289

Courtesy of FORD MOTOR COMPANY

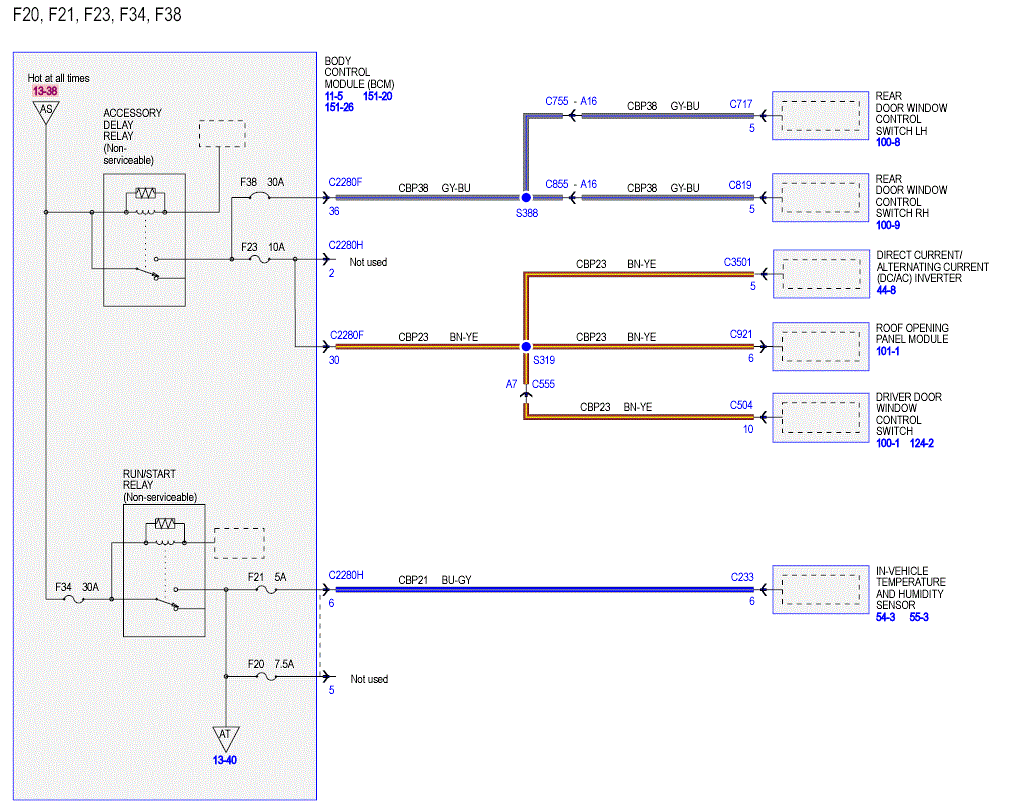

Fig 32: Power Distribution Wiring Diagrams (32 Of 51)

G00566452

Courtesy of FORD MOTOR CO.

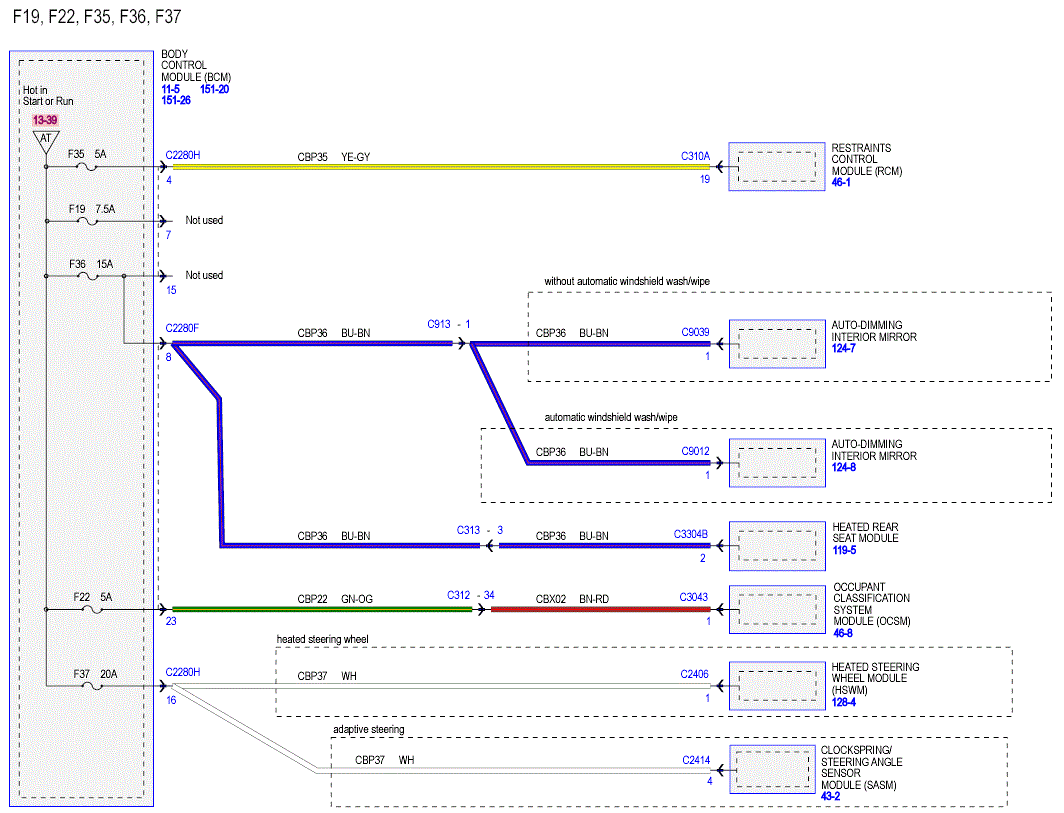

Fig 33: Power Distribution Wiring Diagrams (33 Of 51)

G00566453

Courtesy of FORD MOTOR CO.

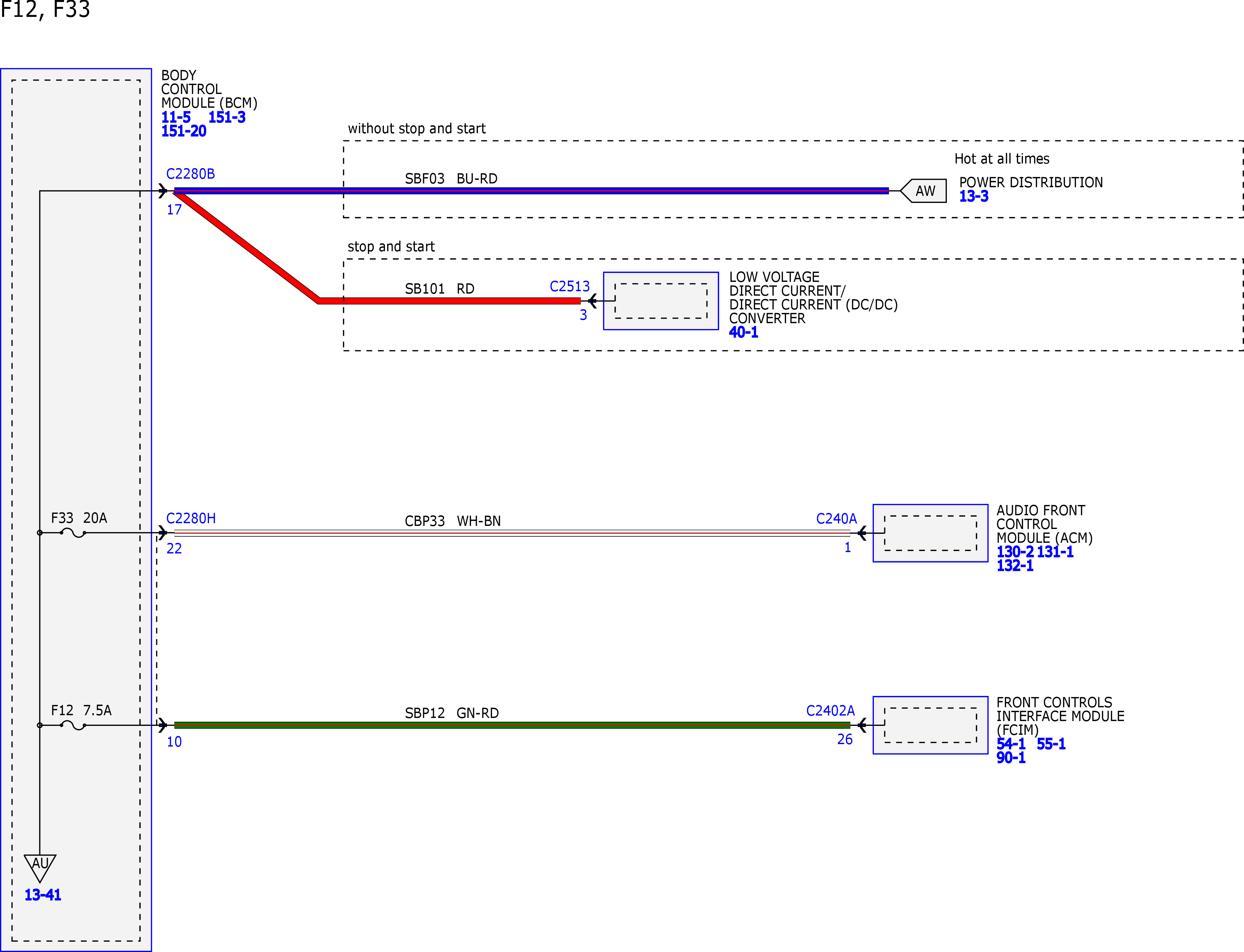

Fig 34: Power Distribution Wiring Diagrams (34 Of 51)

GFDW5292

Courtesy of FORD MOTOR COMPANY

Fig 35: Power Distribution Wiring Diagrams (35 Of 51)

GFDW5293

Courtesy of FORD MOTOR COMPANY

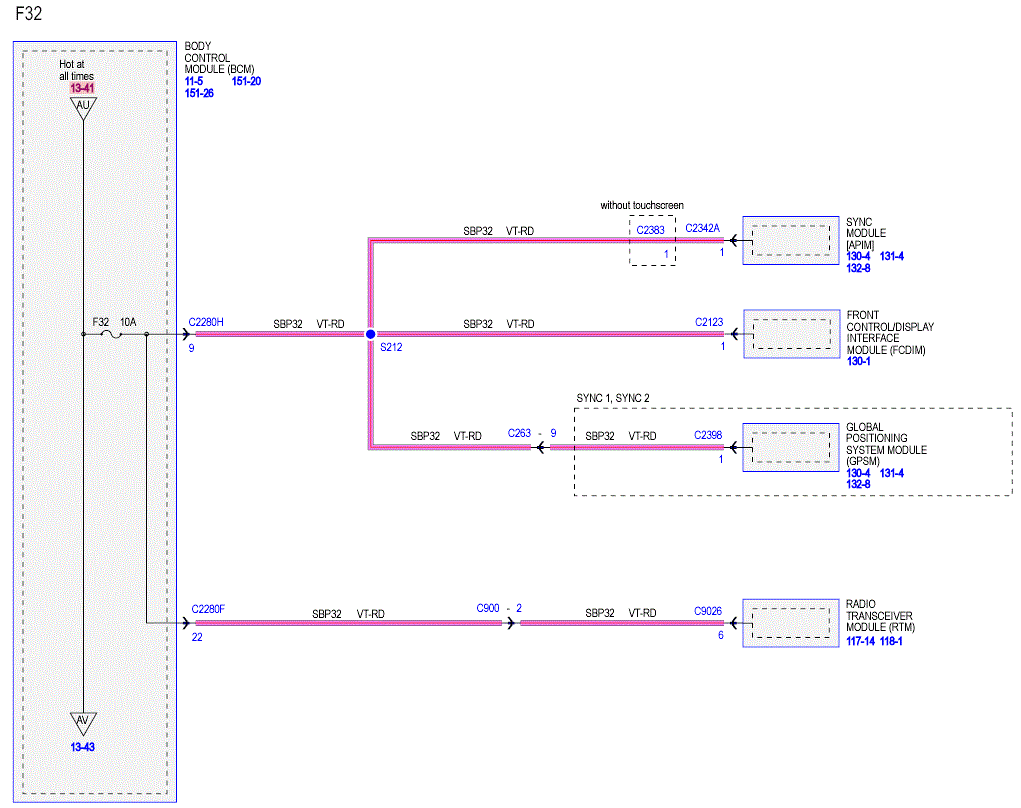

Fig 36: Power Distribution Wiring Diagrams (36 Of 51)

G00566454

Courtesy of FORD MOTOR CO.

Fig 37: Power Distribution Wiring Diagrams (37 Of 51)

GFDW5295

Courtesy of FORD MOTOR COMPANY

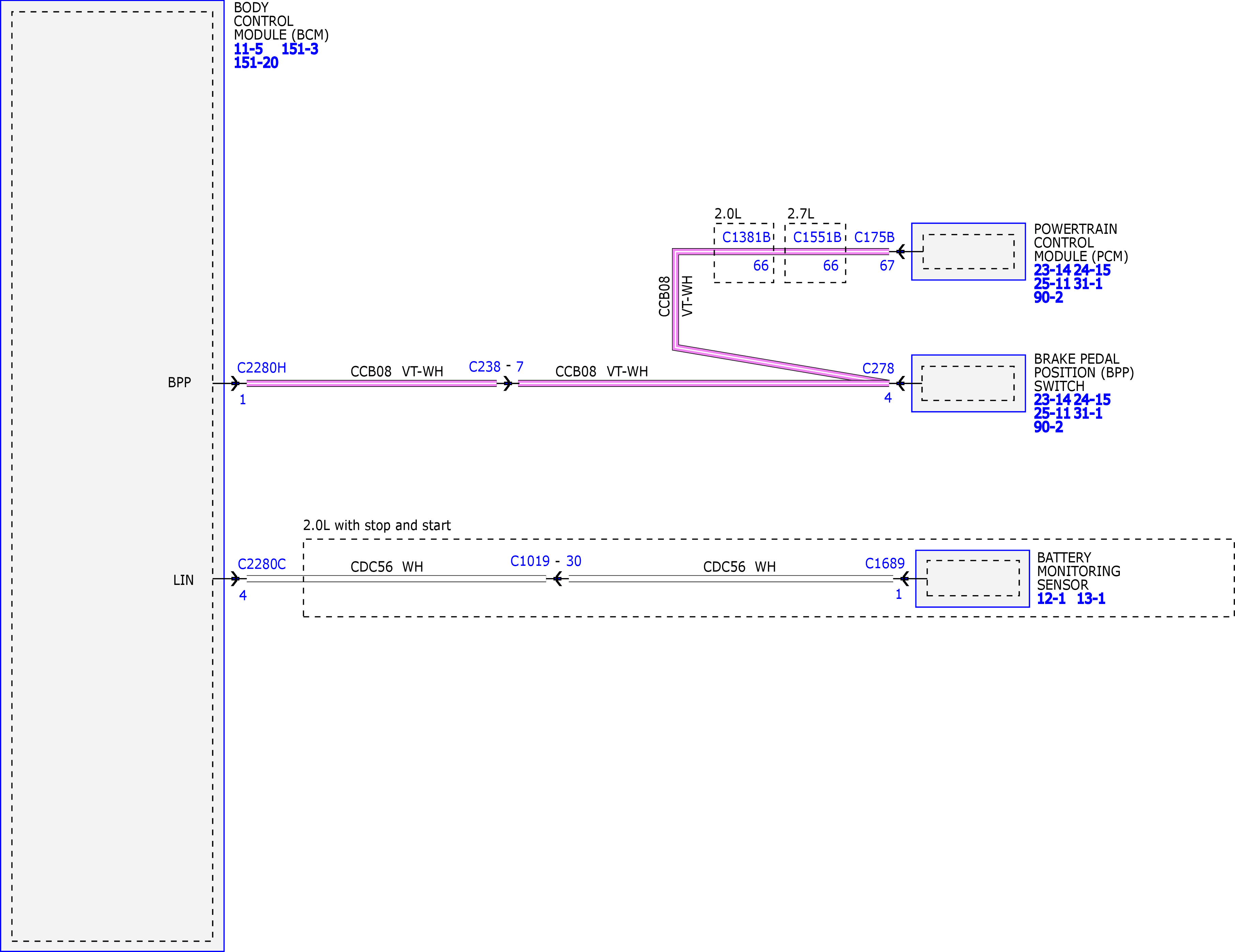

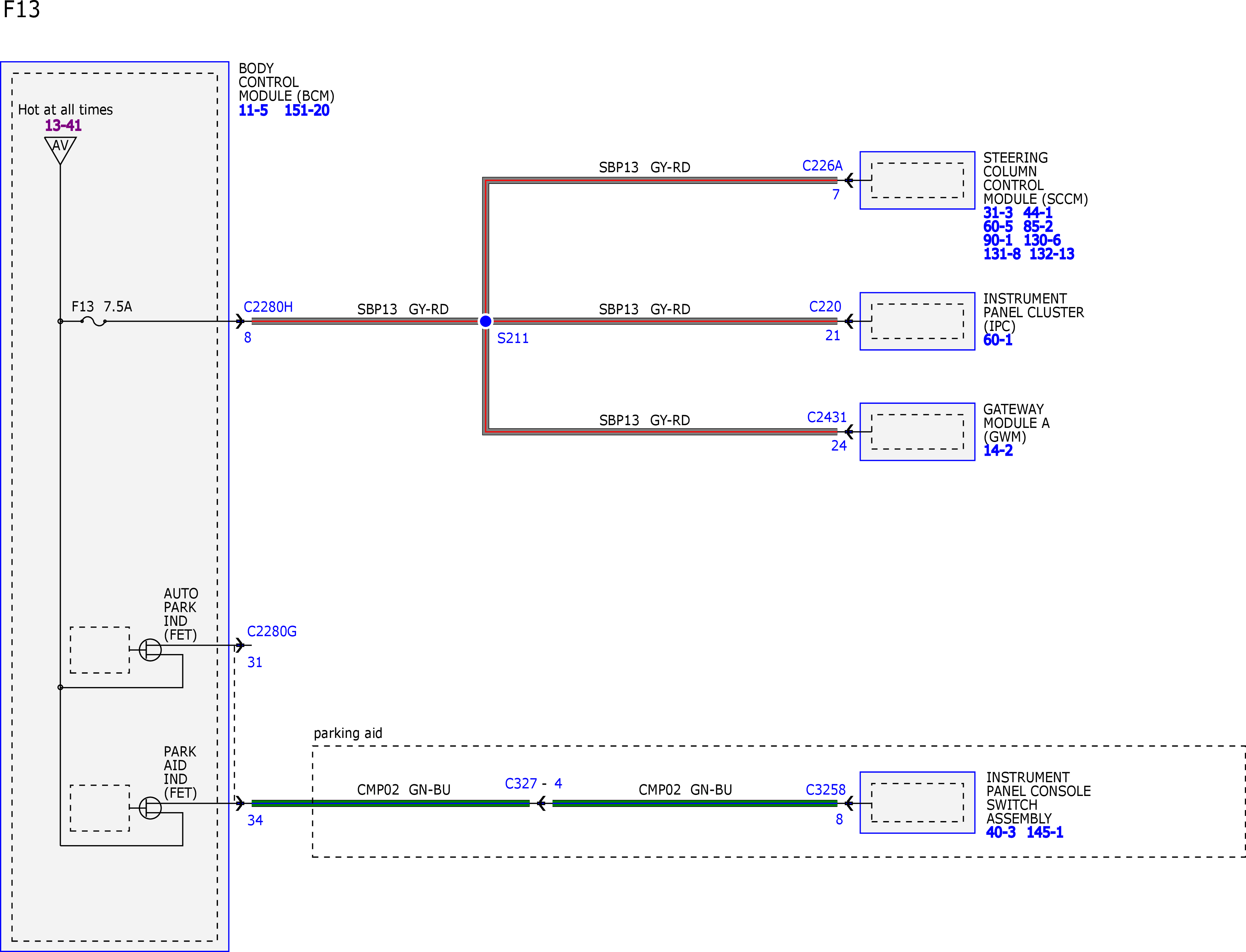

Fig 38: Power Distribution Wiring Diagrams (38 Of 51)

GFDW5296

Courtesy of FORD MOTOR COMPANY

Fig 39: Power Distribution Wiring Diagrams (39 Of 51)

GFDW5297

Courtesy of FORD MOTOR COMPANY

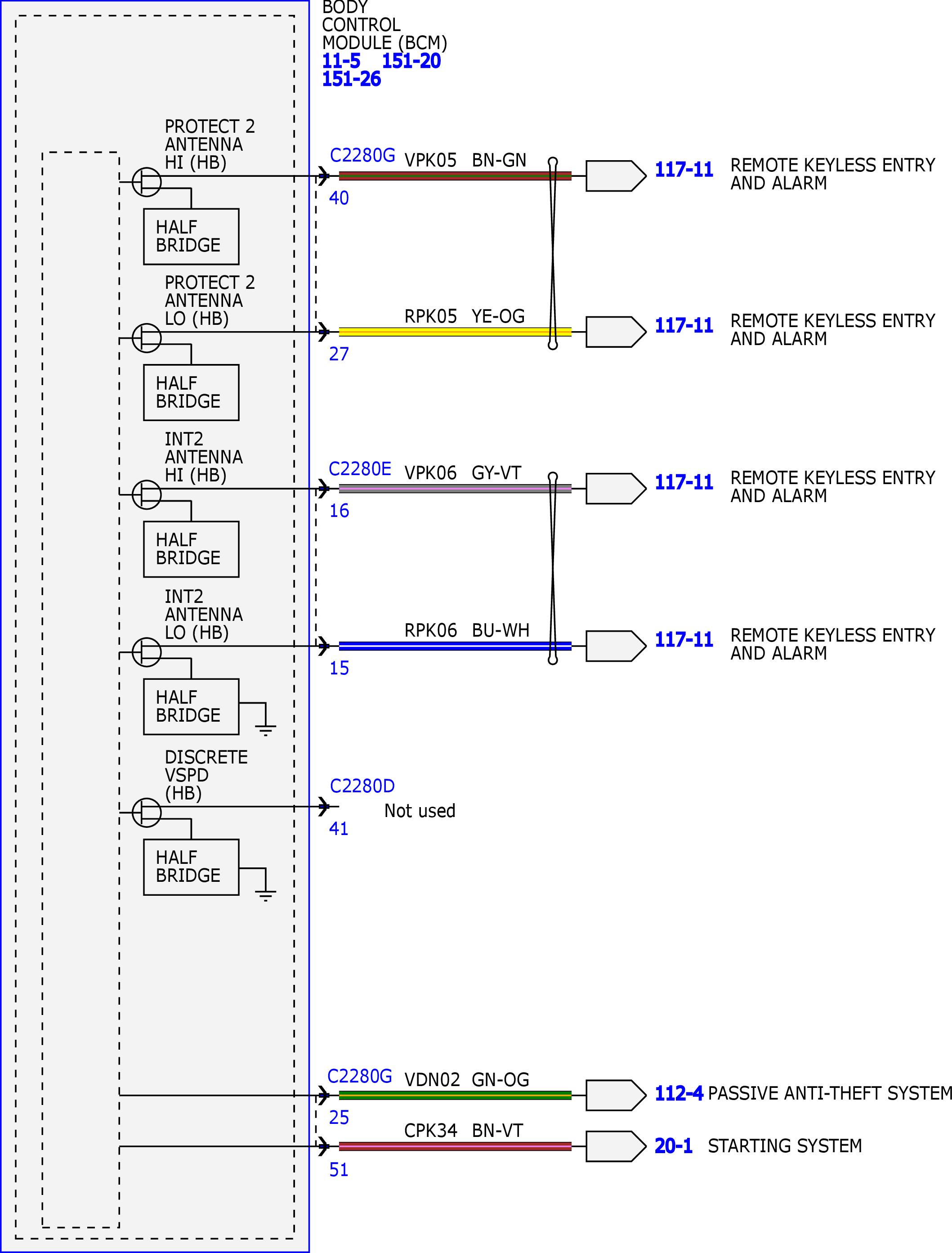

Fig 40: Power Distribution Wiring Diagrams (40 Of 51)

GFDW5298

Courtesy of FORD MOTOR COMPANY

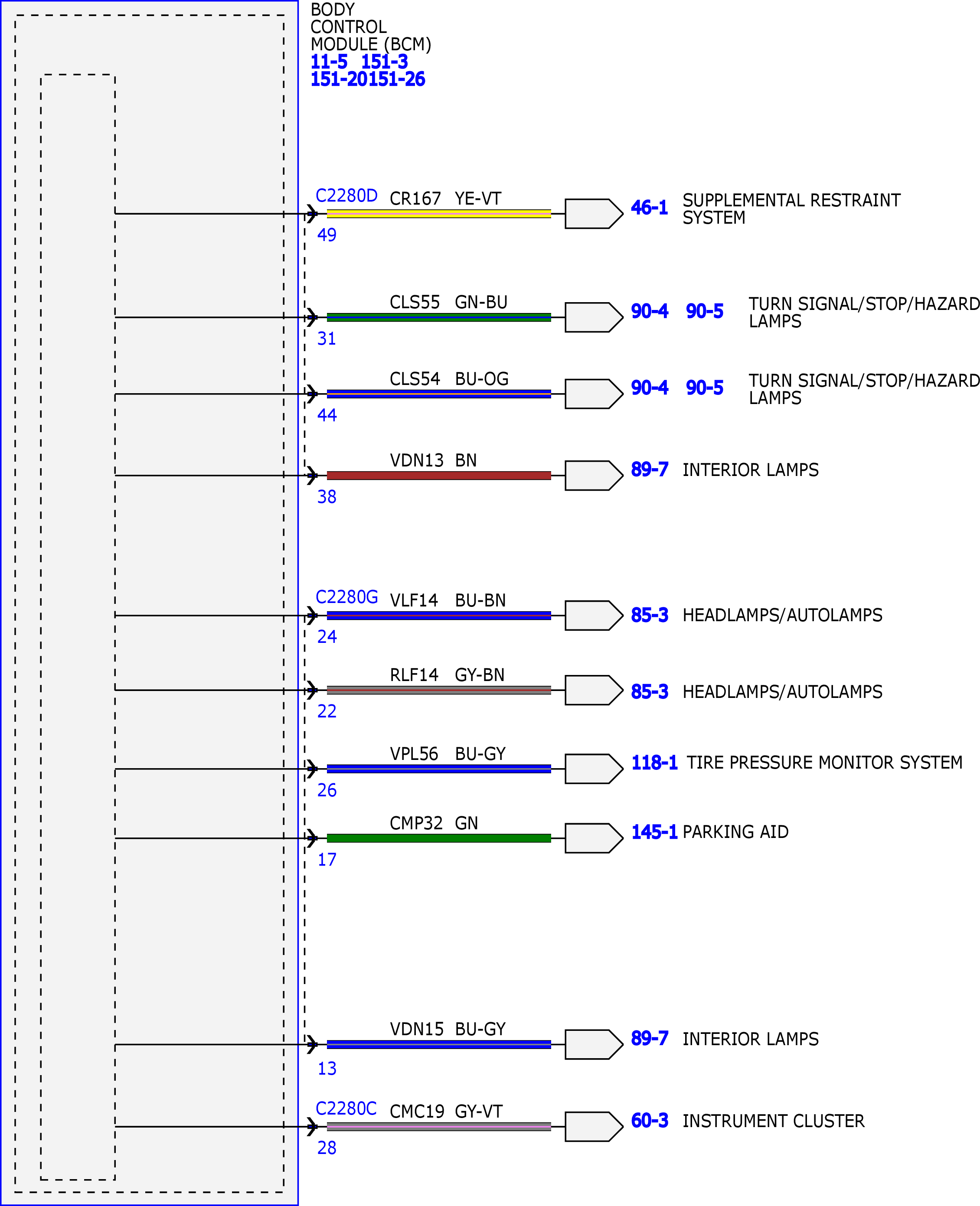

Fig 41: Power Distribution Wiring Diagrams (41 Of 51)

GFDW5299

Courtesy of FORD MOTOR COMPANY

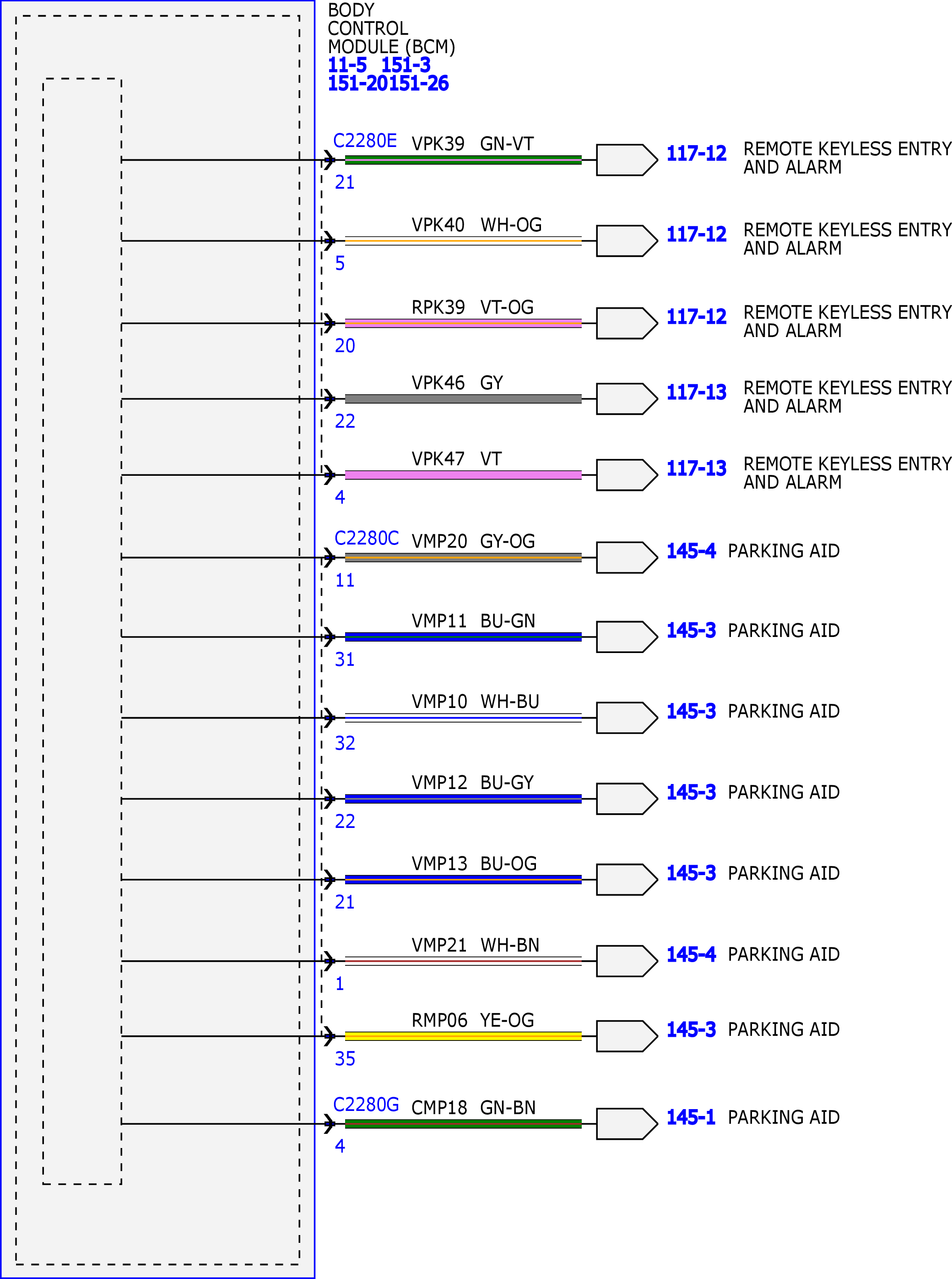

Fig 42: Power Distribution Wiring Diagrams (42 Of 51)

GFDW5300

Courtesy of FORD MOTOR COMPANY

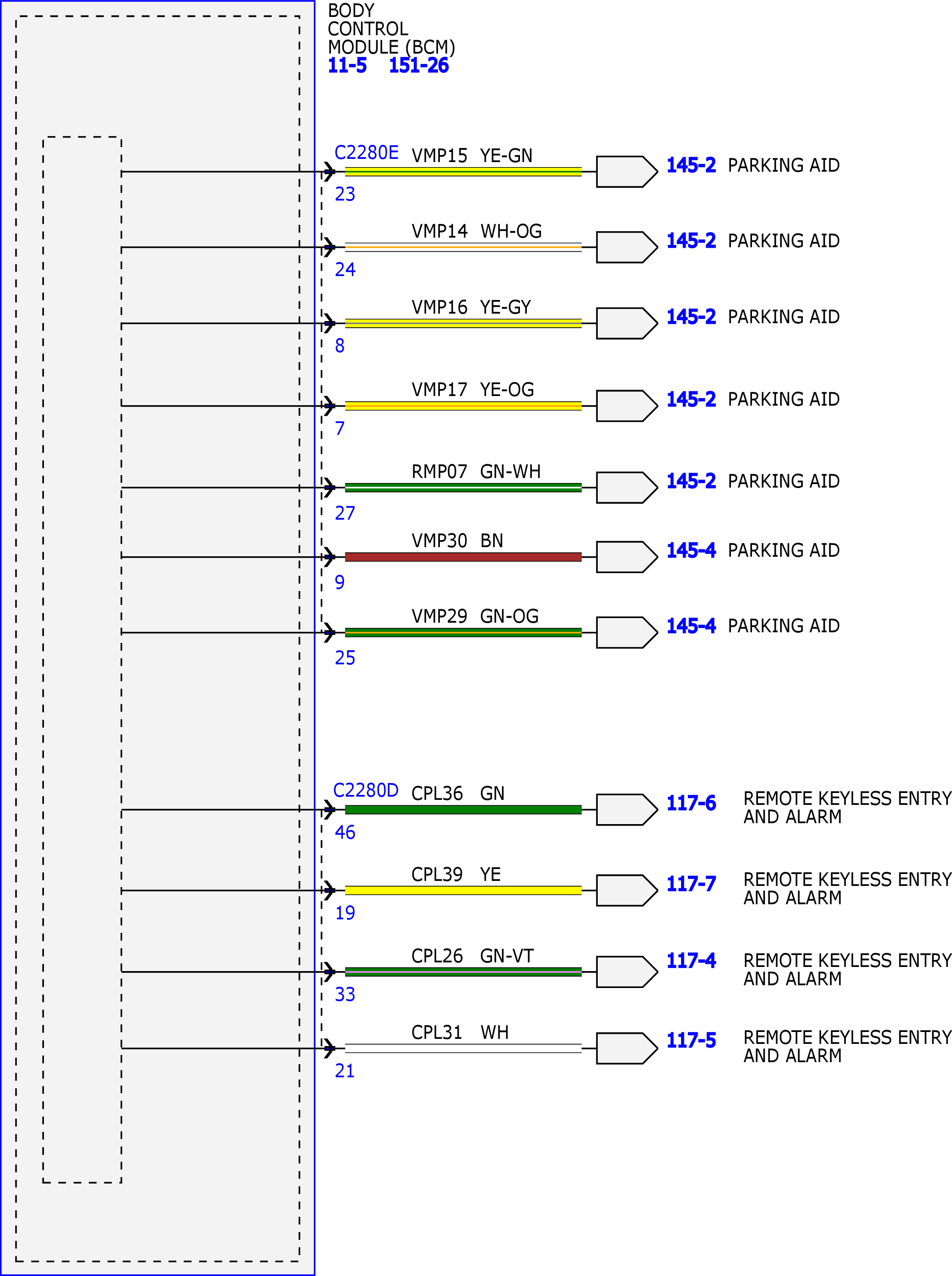

Fig 43: Power Distribution Wiring Diagrams (43 Of 51)

GFDW5301

Courtesy of FORD MOTOR COMPANY

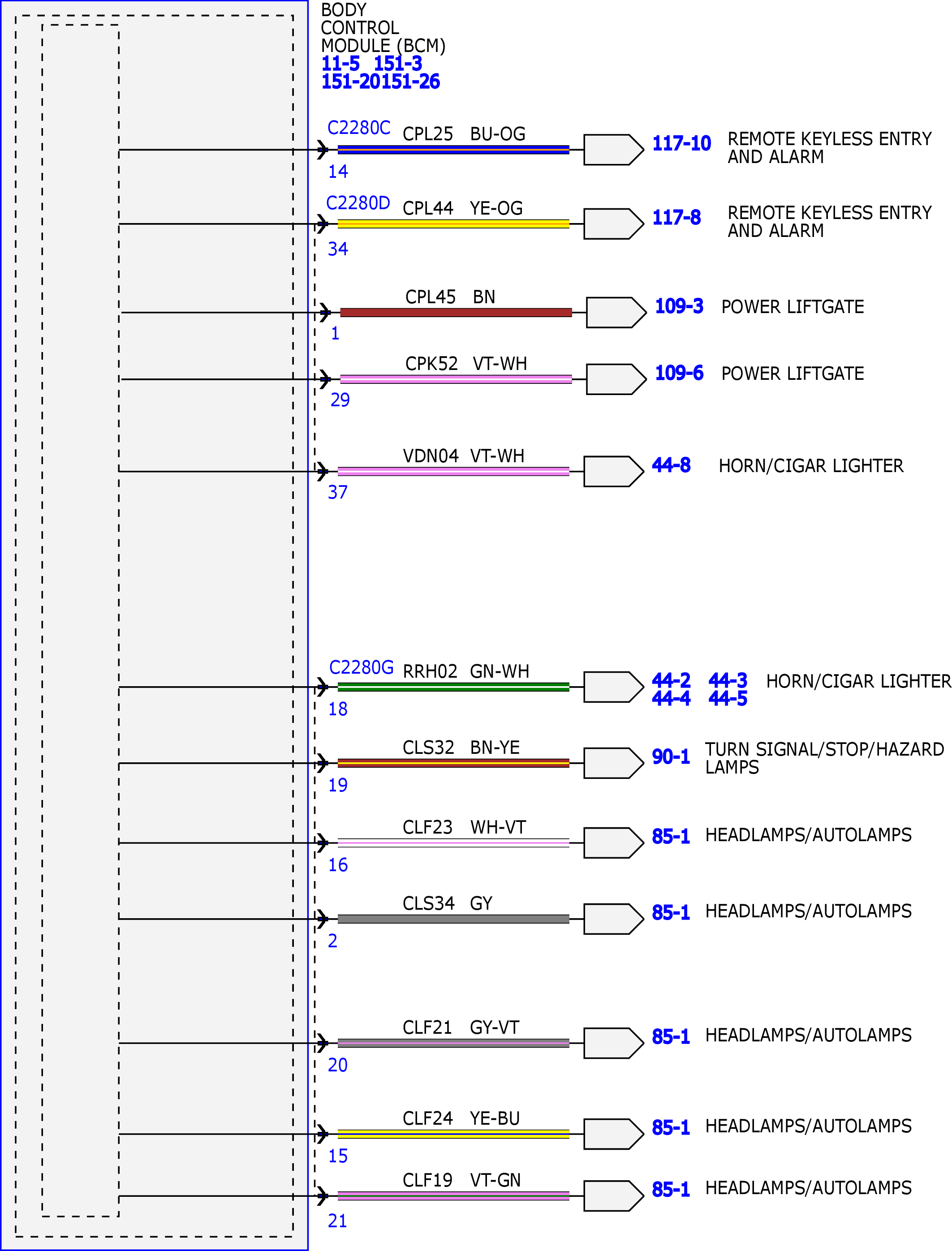

Fig 44: Power Distribution Wiring Diagrams (44 Of 51)

GFDW5302

Courtesy of FORD MOTOR COMPANY

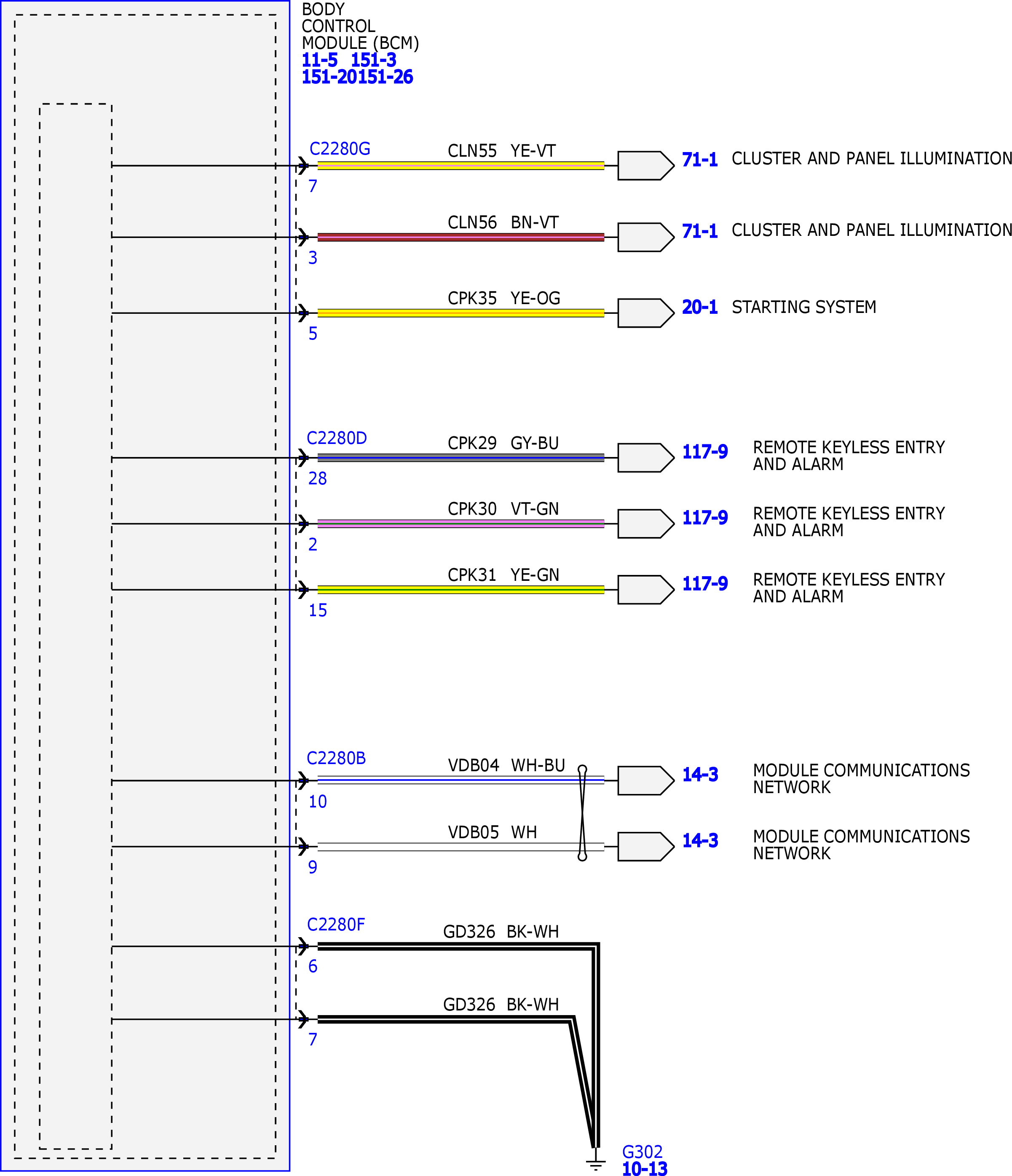

Fig 45: Power Distribution Wiring Diagrams (45 Of 51)

GFDW5303

Courtesy of FORD MOTOR COMPANY

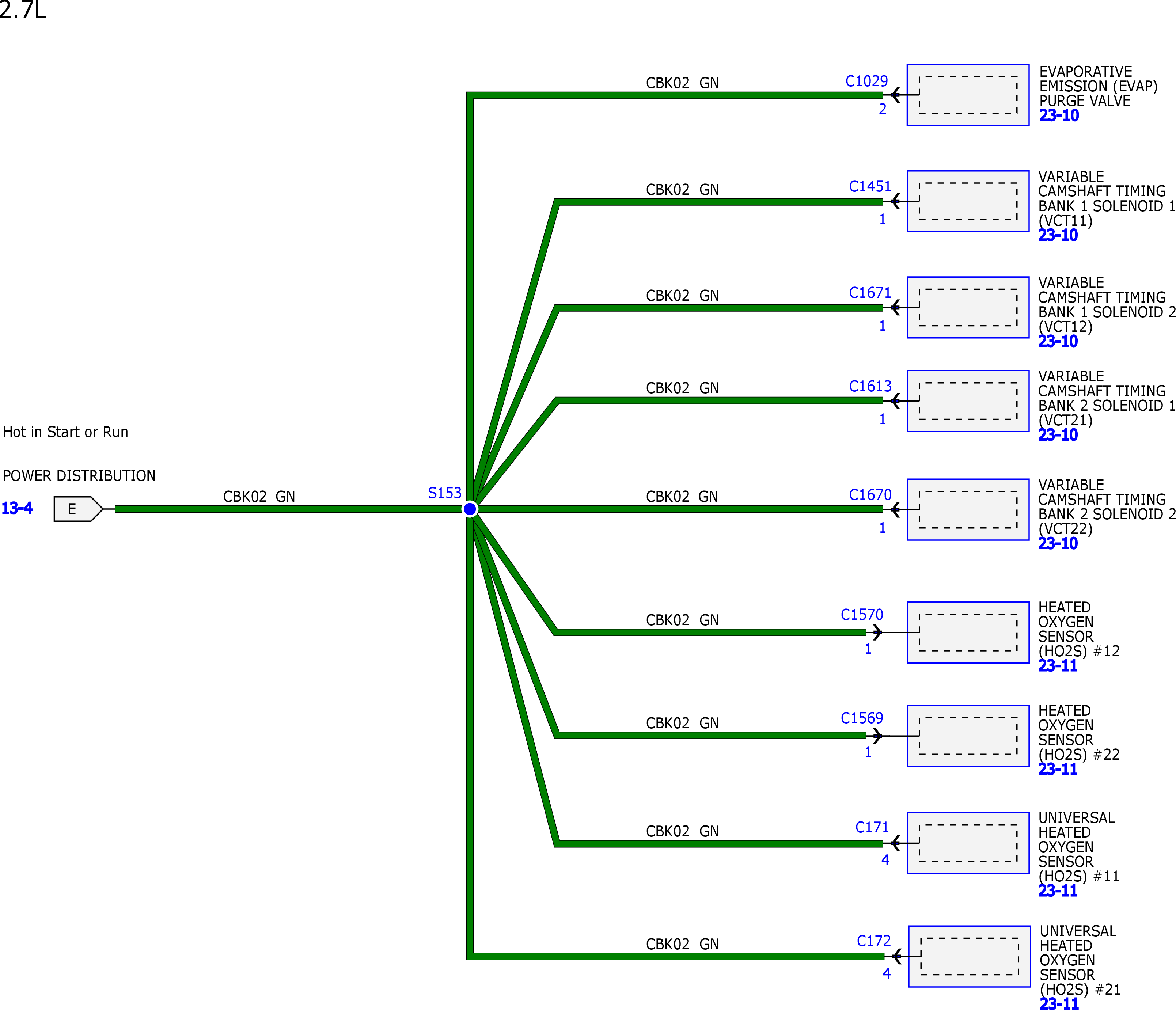

Fig 46: Power Distribution Wiring Diagrams (46 Of 51)

GFDW5304

Courtesy of FORD MOTOR COMPANY

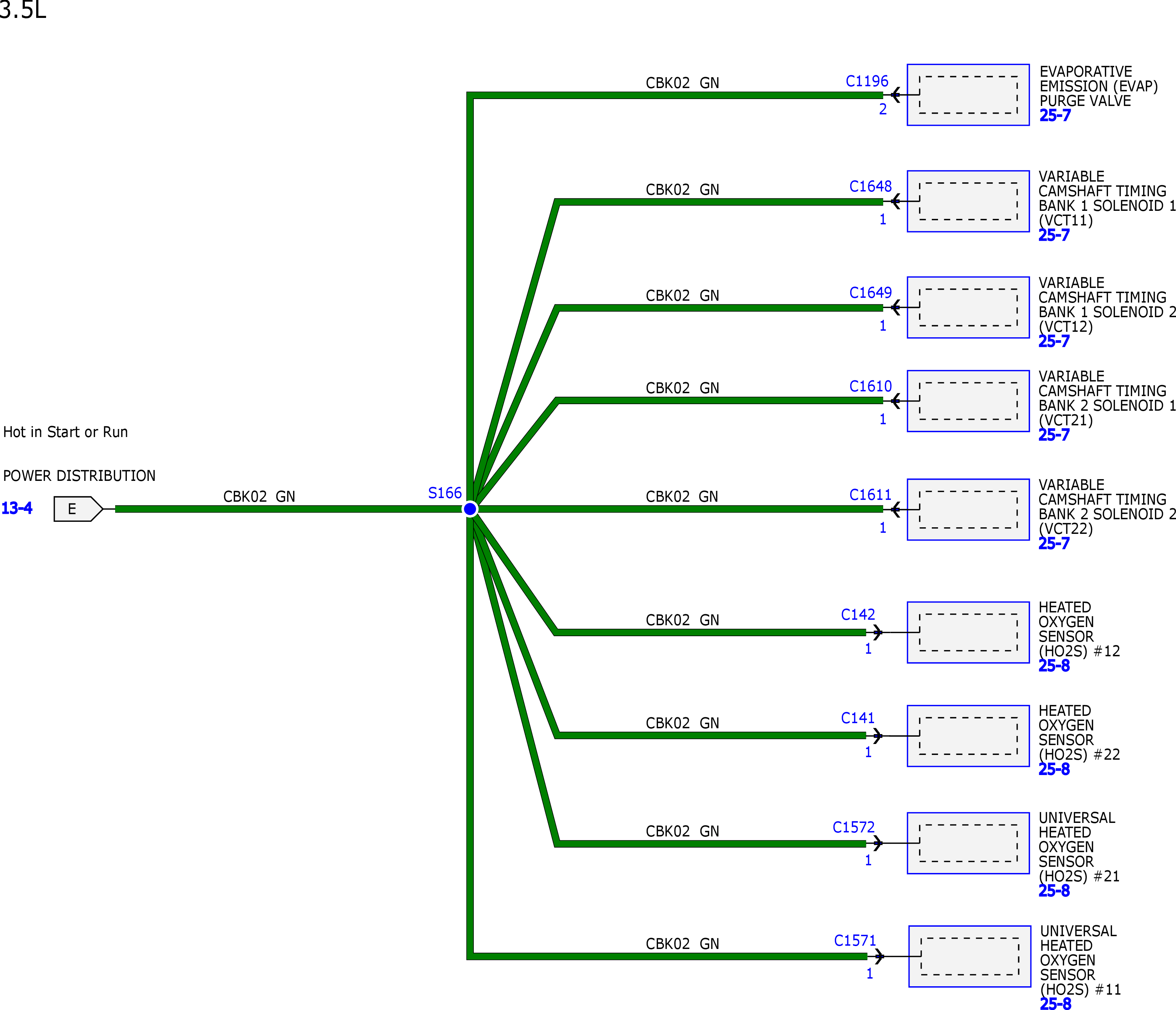

Fig 47: Power Distribution Wiring Diagrams (47 Of 51)

GFDW5305

Courtesy of FORD MOTOR COMPANY

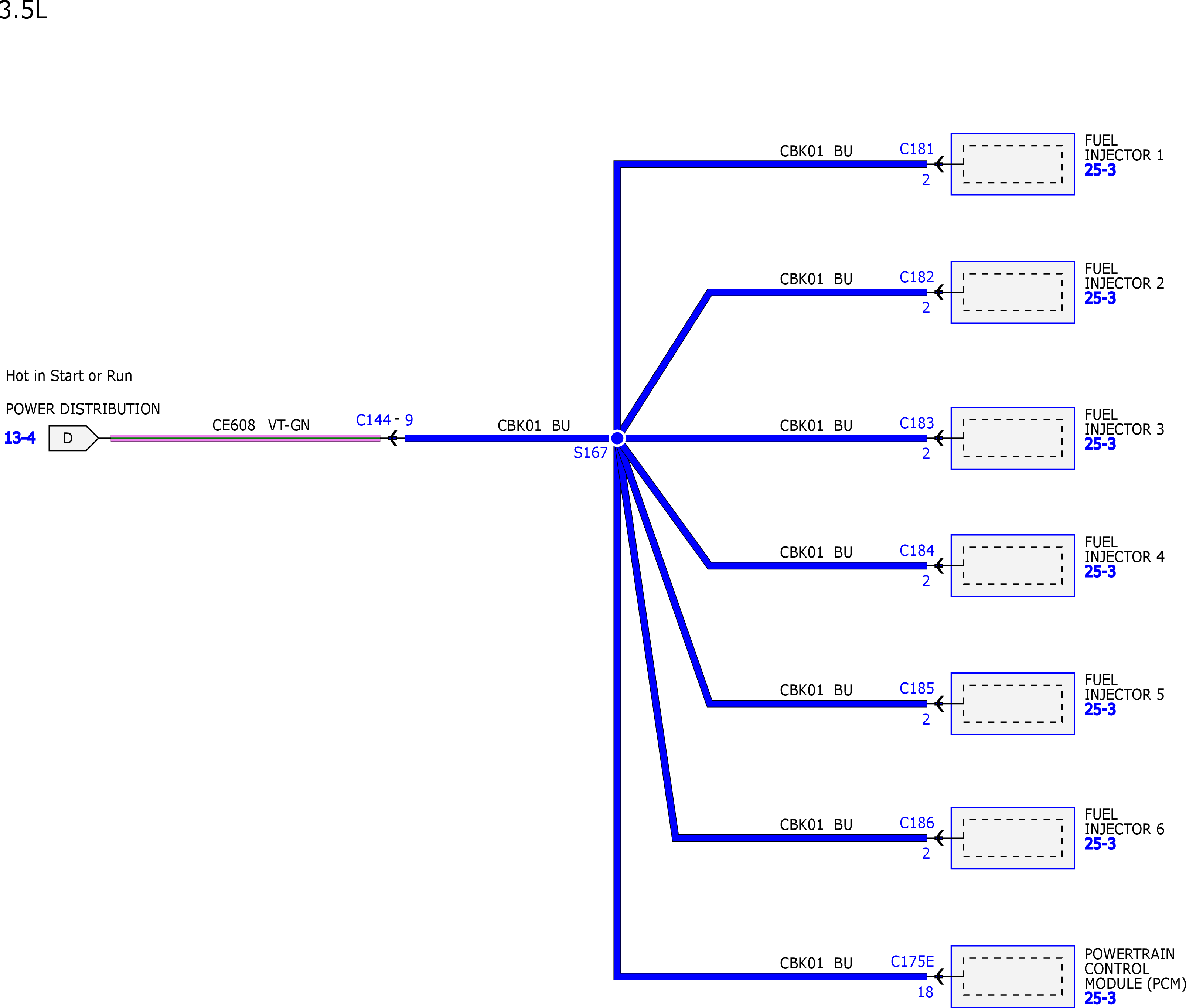

Fig 48: Power Distribution Wiring Diagrams (48 Of 51)

GFDW5306

Courtesy of FORD MOTOR COMPANY

Fig 49: Power Distribution Wiring Diagrams (49 Of 51)

GFDW5307

Courtesy of FORD MOTOR COMPANY

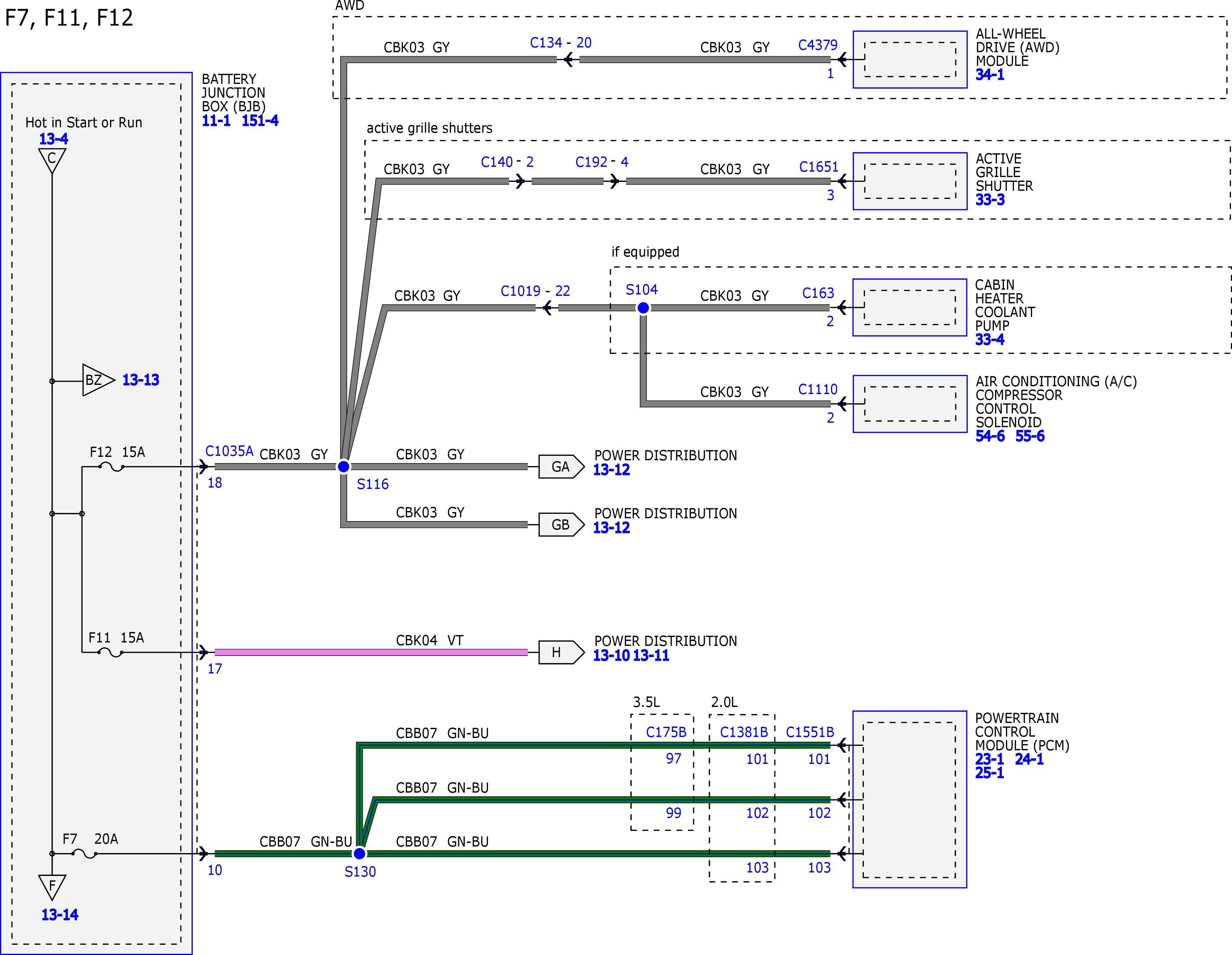

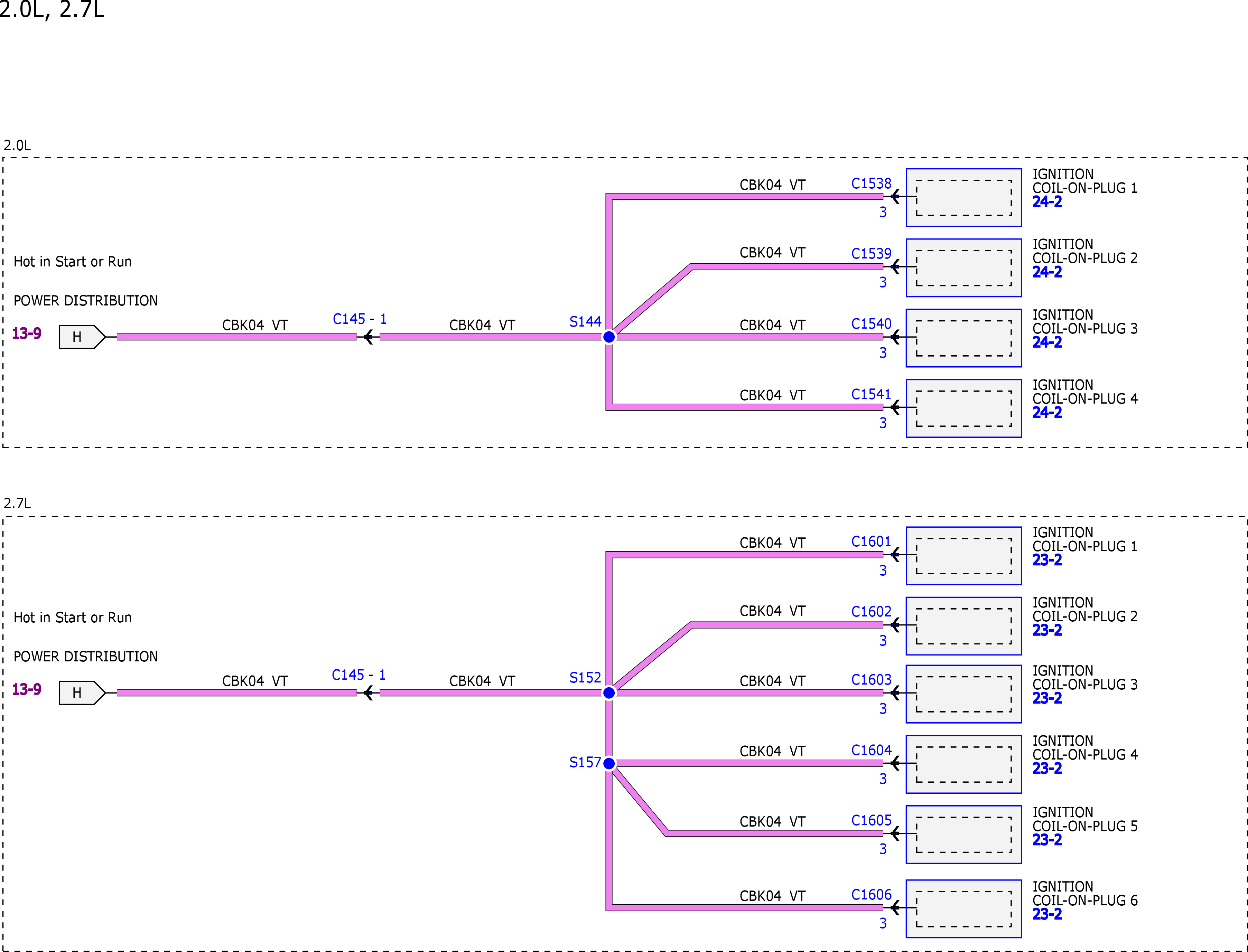

Fig 50: Power Distribution Wiring Diagrams (50 Of 51)

GFDW5308

Courtesy of FORD MOTOR COMPANY

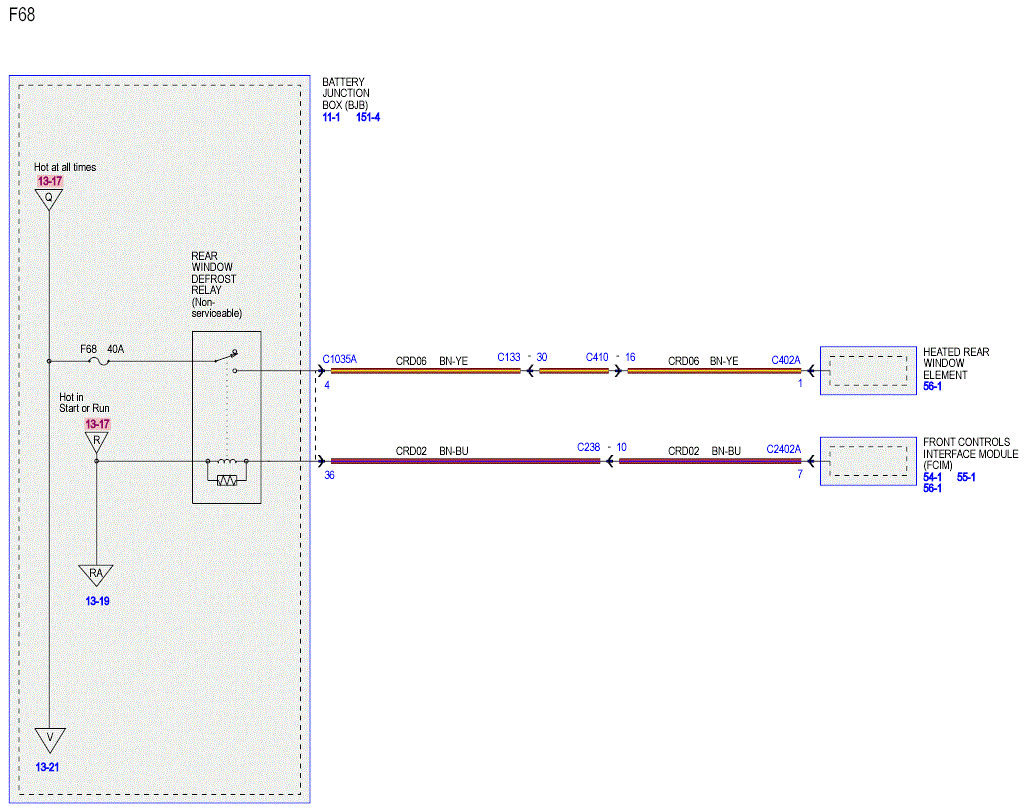

Fig 51: Power Distribution Wiring Diagrams (51 Of 51)

G00566445

Courtesy of FORD MOTOR CO.
