Head Up Display (HUD) Module: Removal

  1. 1.

    Using a non-marring tool, release and position the HUD.
GFD17504Courtesy of FORD MOTOR COMPANY

  1. 2.

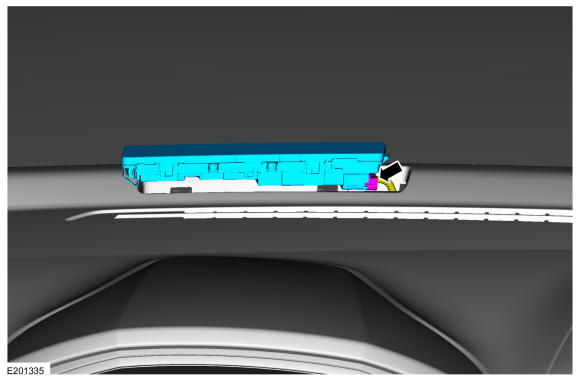

    Disconnect and remove the HUD.
GFD17505Courtesy of FORD MOTOR COMPANY
