Engine Controls - Fuel Charging And Controls - 2.0L DURATEC - Hybrid (96KW/130PS)
>>
Removal And Installation
>>
Fuel Pump Driver Module (FPDM)
>>
Removal
Fuel Pump Driver Module (FPDM): Removal
NOTE:
Removal steps in this procedure may contain installation details.

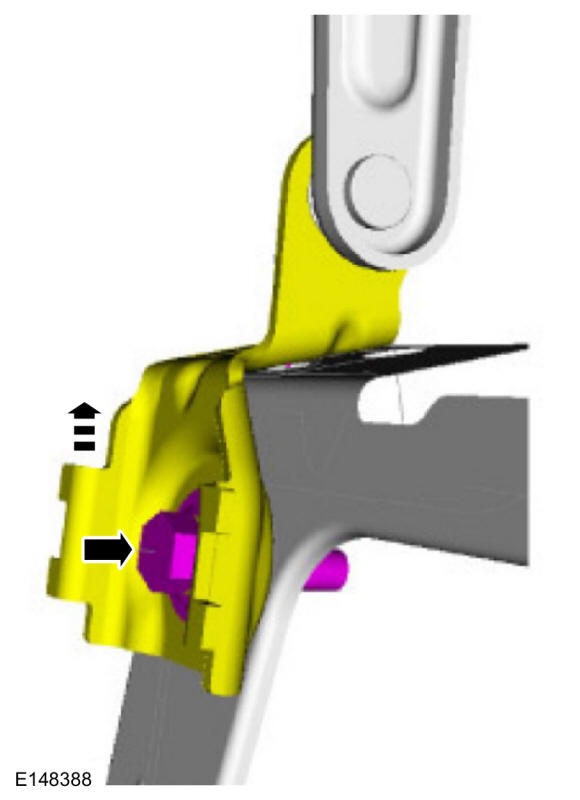

1.
Courtesy of FORD MOTOR COMPANY

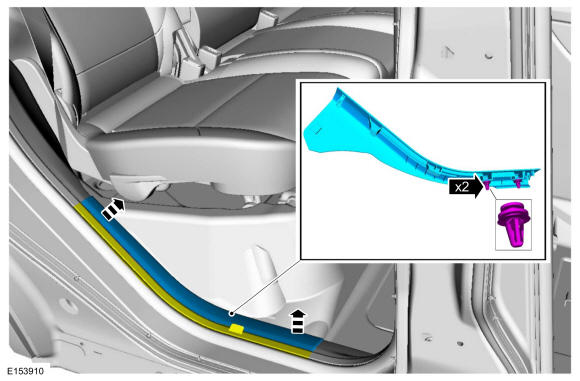

2.
Courtesy of FORD MOTOR COMPANY

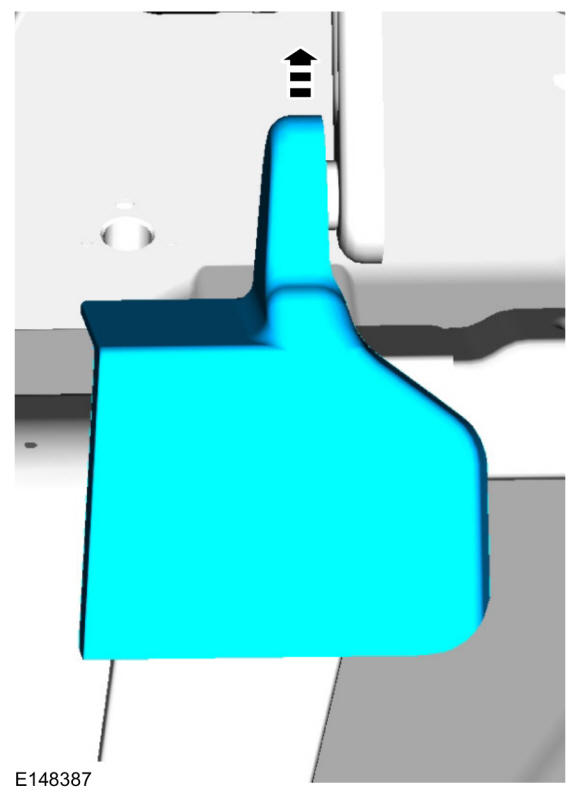

3.
Torque: 30 lb.ft (40 Nm)
Courtesy of FORD MOTOR COMPANY
4.
NOTE:
The FPDM is held in place with an adhesive backing.
Courtesy of FORD MOTOR COMPANY
