Fuel Pump Driver Module (FPDM): Installation

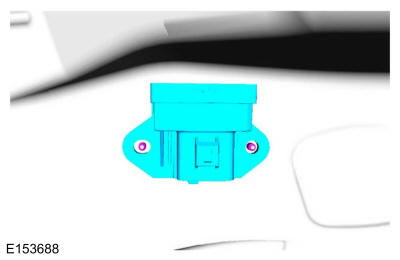

• 1.



Courtesy of FORD MOTOR COMPANY

• 2.

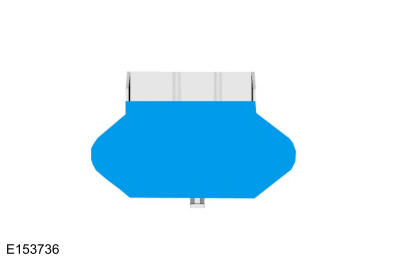

  Peel off the protective backing from the new FPDM.

Courtesy of FORD MOTOR COMPANY

• 3.

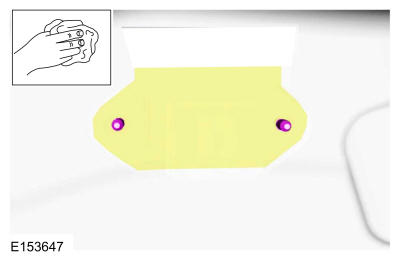

  Locate the FPDM over the 2 studs (for location purposes only) and press down firmly.

Courtesy of FORD MOTOR COMPANY

• 4.

  To install, reverse the removal procedure.
