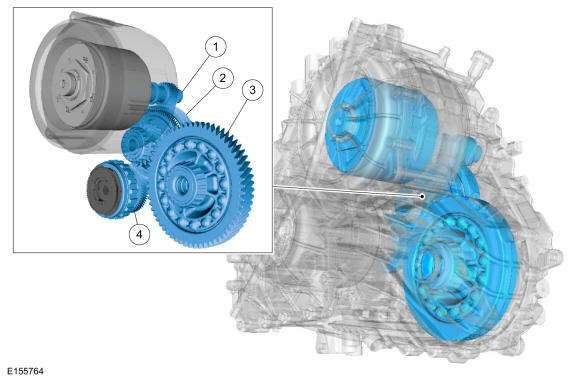

Final Drive
| Item | Part Number | Description |
|---|---|---|
| 1 | 7C098 | Traction motor drive gear assembly |
| 2 | 7H471 | Transfer shaft and gear assembly |
| 3 | 7F465 | Differential carrier and gear assembly |
| 4 | 7L437 | Ring gear assembly |
The final drive gear is meshed with the transfer shaft and bolted to the differential case. The ring gear bolts are one time use bolts. Use new bolts when installing the ring gear.
