Transmission Fluid Cooler: Installation

1.

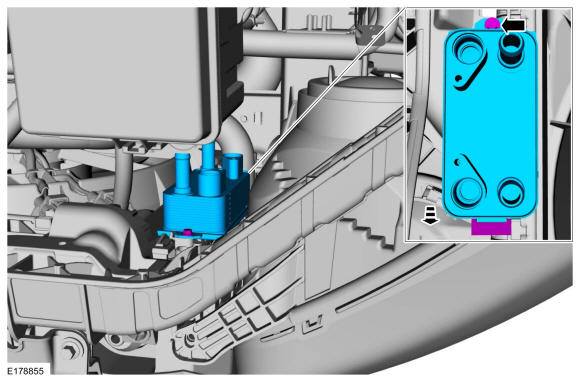

Install the transmission fluid cooler and the bolt.
Torque

: 44 lb.in (5 Nm)

GFD75955

Courtesy of FORD MOTOR COMPANY

2.

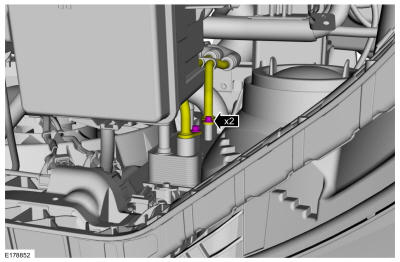

Attach the transmission fluid tubes and install the bolts.
Torque

: 89 lb.in (10 Nm)

GFD75952

Courtesy of FORD MOTOR COMPANY

3.

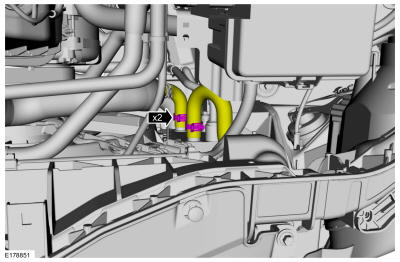

Attach the coolant hoses and position the clamps.

GFD75956

Courtesy of FORD MOTOR COMPANY

4.

Fill and bleed the cooling system. REFER to: Cooling System Draining, Vacuum Filling and Bleeding . REFER to: Cooling System Draining, Vacuum Filling and Bleeding . REFER to: Cooling System Draining, Vacuum Filling and Bleeding .

5.

Check the transmission fluid and adjust as necessary. REFER to: Transmission Fluid Level Check .
