Selector Lever Bezel: Removal

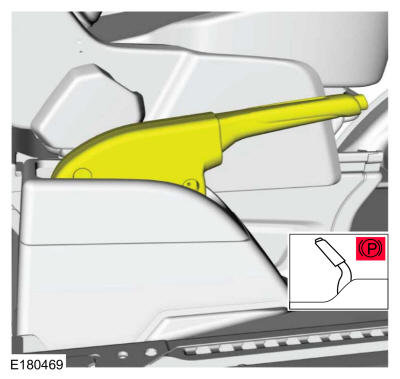

1.
Fully apply the parking brake lever.
Courtesy of FORD MOTOR COMPANY

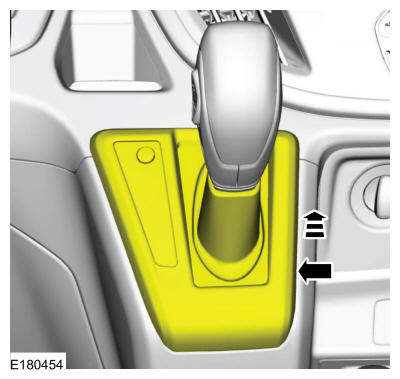

2.
Unsnap and lift the selector lever bezel up.
Courtesy of FORD MOTOR COMPANY

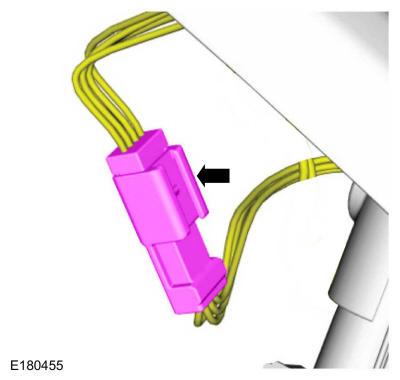

3.
If equipped, disconnect the Tow/Haul switch electrical connector.
Courtesy of FORD MOTOR COMPANY

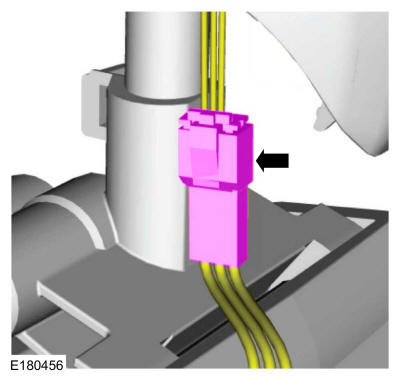

4.
Disconnect the SelectShift™ switch electrical connector.
Courtesy of FORD MOTOR COMPANY

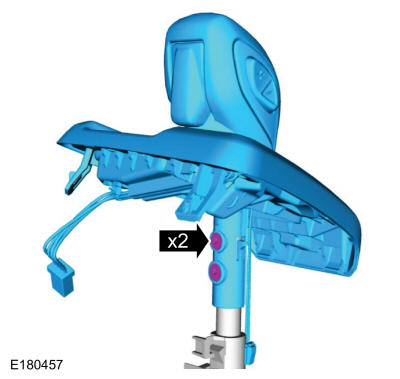

5.
Remove the screws and the selector lever knob and bezel assembly.
Courtesy of FORD MOTOR COMPANY

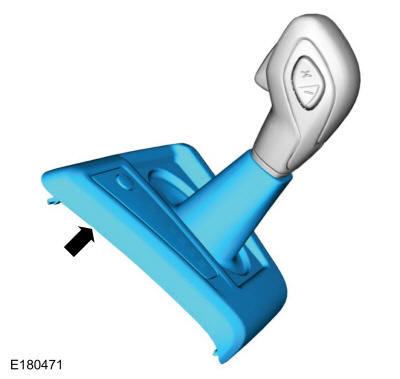

6.
Separate the selector lever bezel from the selector lever knob.
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
