Component Testing: Relays

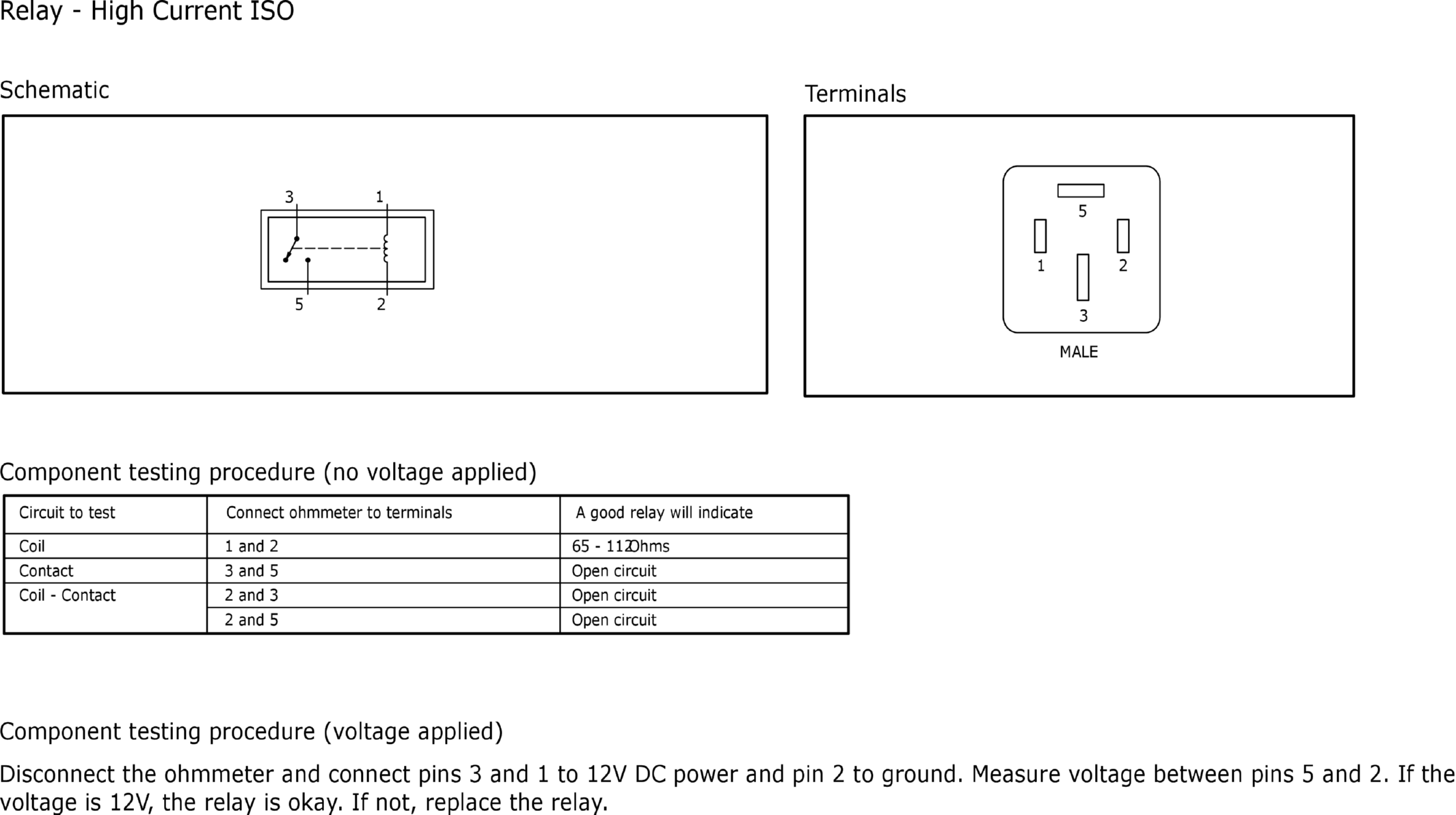

Fig 1: Relay - High Current ISO
GFDW29234Courtesy of FORD MOTOR COMPANY

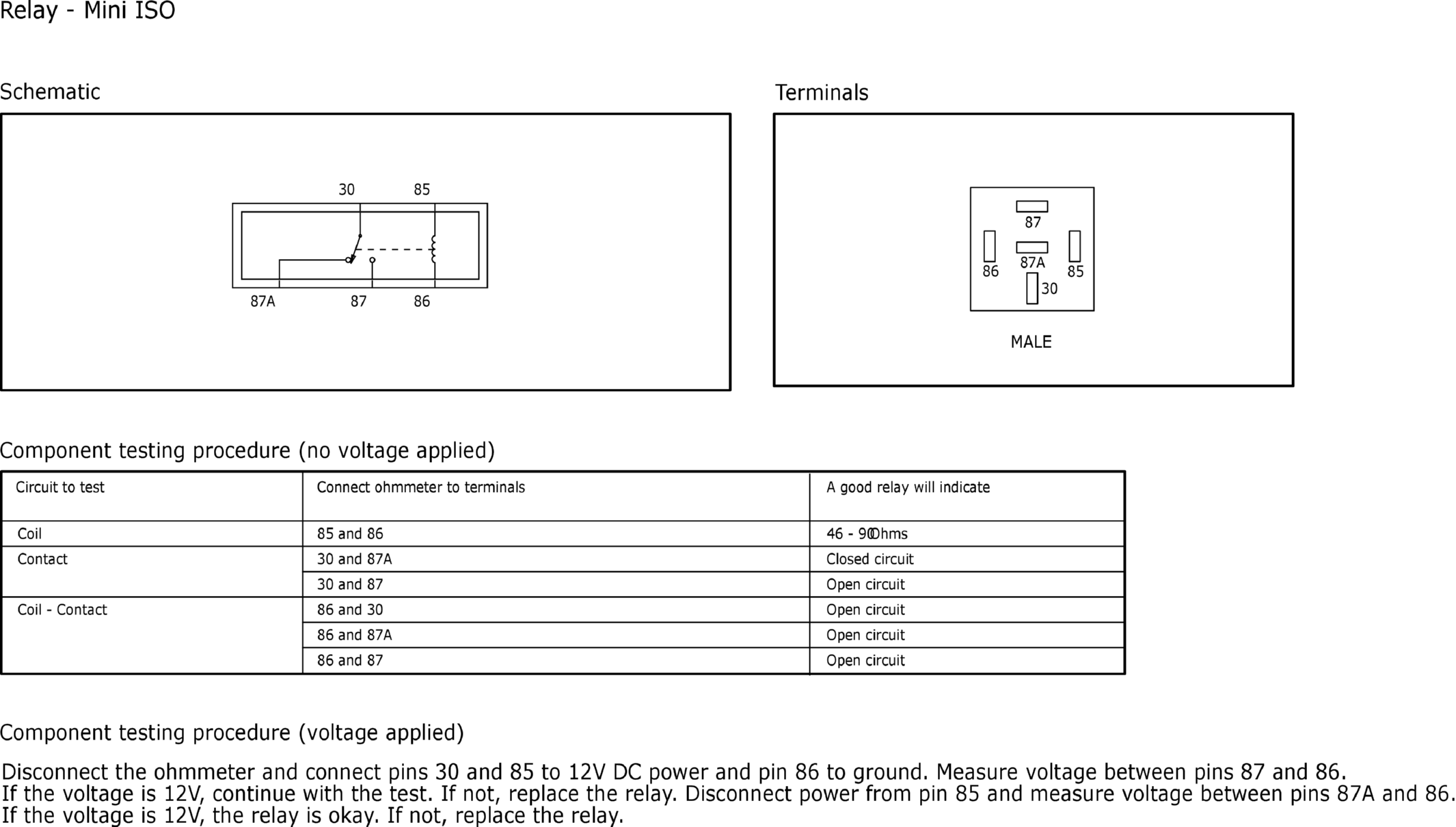

Fig 2: Relay - Mini ISO
GFDW29225Courtesy of FORD MOTOR COMPANY

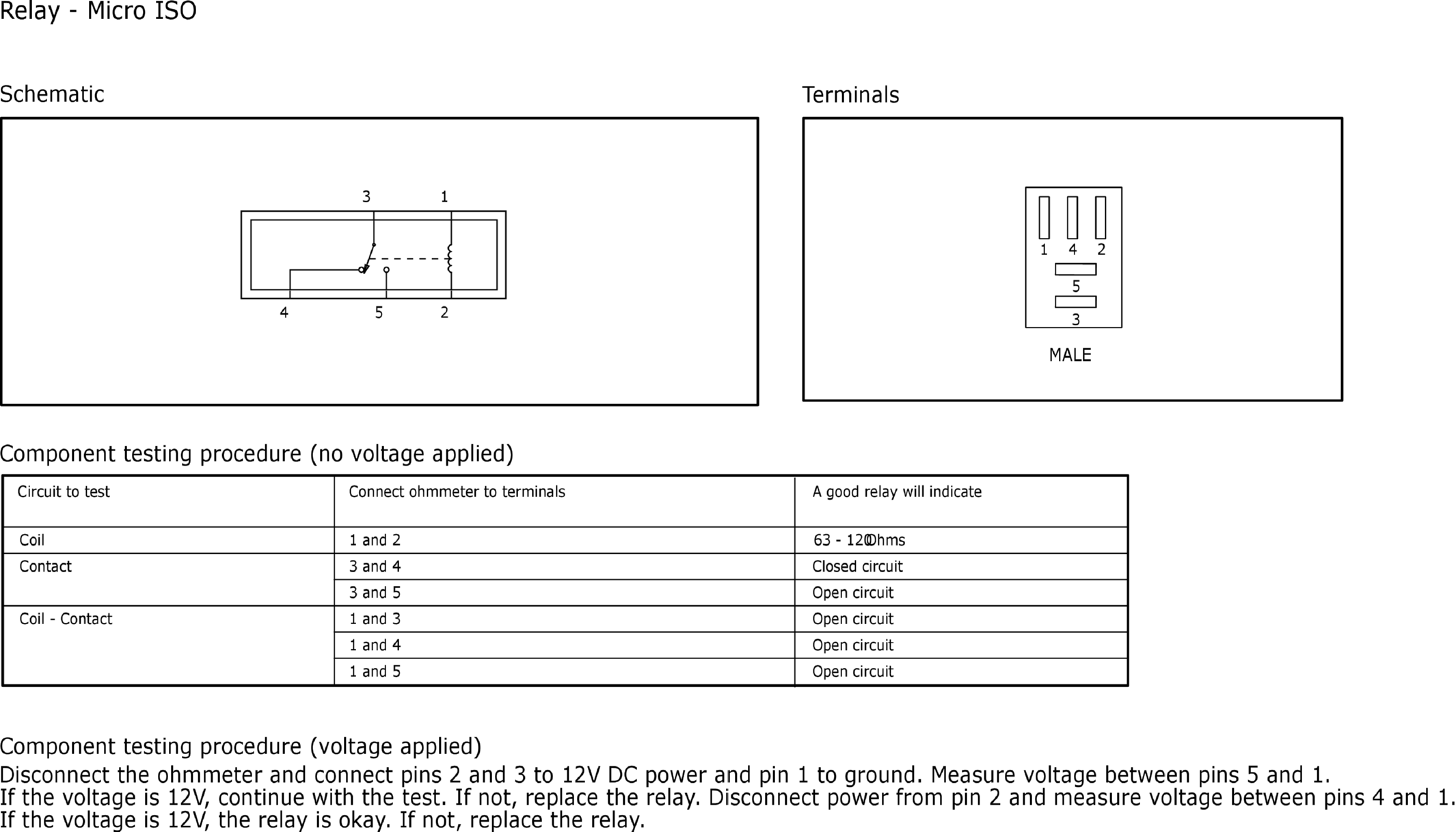

Fig 3: Relay - Micro ISO
GFDW29226Courtesy of FORD MOTOR COMPANY
