Selector Lever Bezel: Removal
WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
- 1.

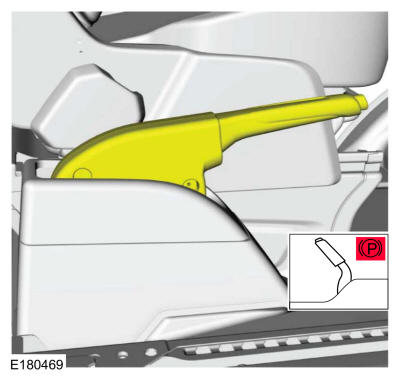

Fully apply the parking brake lever.
 Courtesy of FORD MOTOR COMPANY
|
- 2.

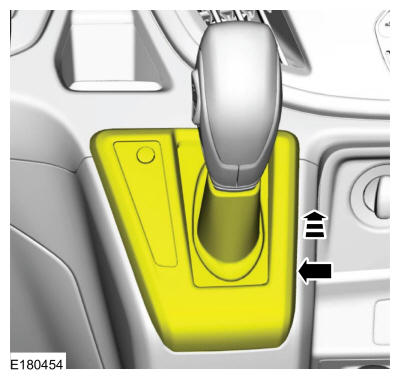

Unsnap and lift the selector lever bezel up.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

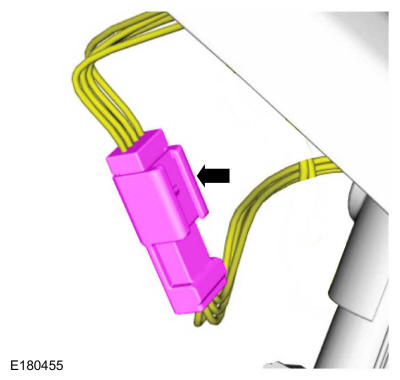

If equipped, disconnect the Tow/Haul switch electrical connector.
 Courtesy of FORD MOTOR COMPANY
|
- 4.

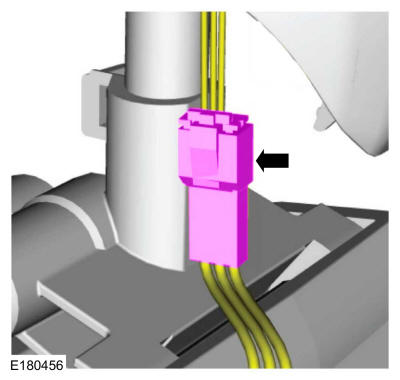

Disconnect the SelectShift™ switch electrical connector.
 Courtesy of FORD MOTOR COMPANY
|
- 5.

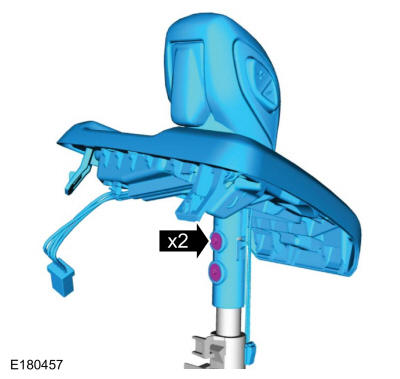

Remove the screws and the selector lever knob and bezel assembly.
 Courtesy of FORD MOTOR COMPANY
|
- 6.

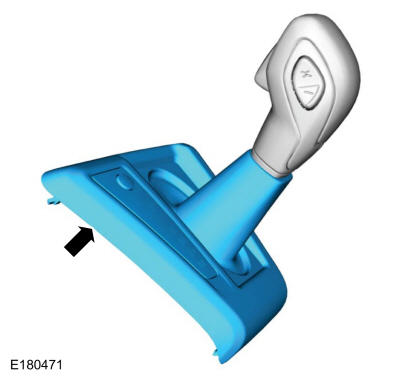

Separate the selector lever bezel from the selector lever knob.
 Courtesy of FORD MOTOR COMPANY
|
