Front Bumper Cover: Removal

WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the front fender mouldings. Refer to: Front Fender Moulding .

2.

NOTE: On both sides.

Remove the 2 screws.

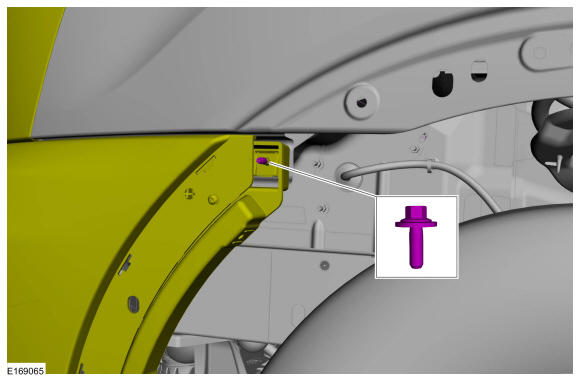

GFD147241

Courtesy of FORD MOTOR COMPANY

3.

Remove the 4 screws.

GFD147242

Courtesy of FORD MOTOR COMPANY

4.

Remove the 5 pin-type retainers.

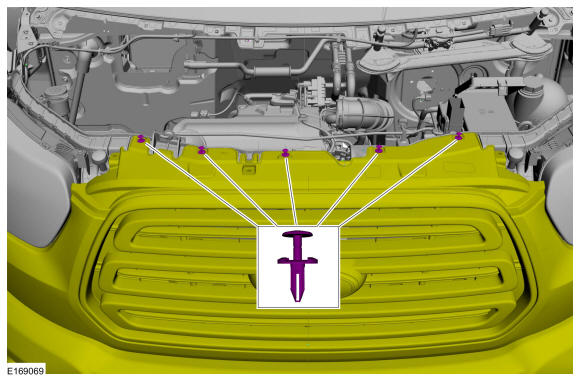

GFD147243

Courtesy of FORD MOTOR COMPANY

5.

Remove the 4 screws.
Torque: 44 lb.in (5 Nm)

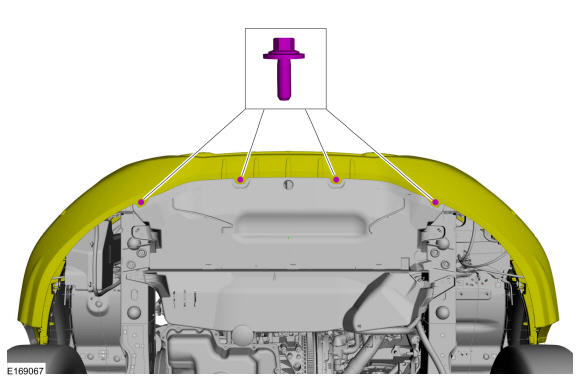

GFD147244

Courtesy of FORD MOTOR COMPANY

6.

Remove covers and the screws.

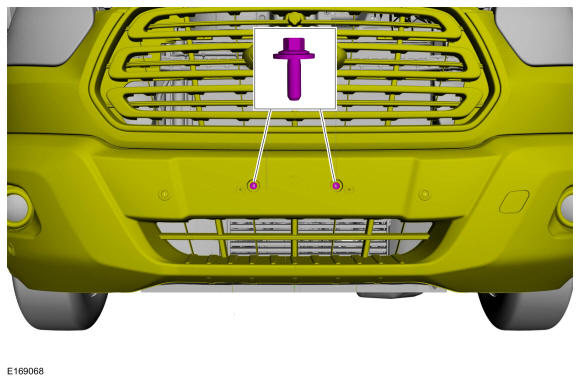

GFD147245

Courtesy of FORD MOTOR COMPANY

7.

Refer to: Headlamp Assembly .

8.

NOTE: On both sides.

Loosen 2 screws, release the tab and separate the outer edges of the front bumper cover assembly.

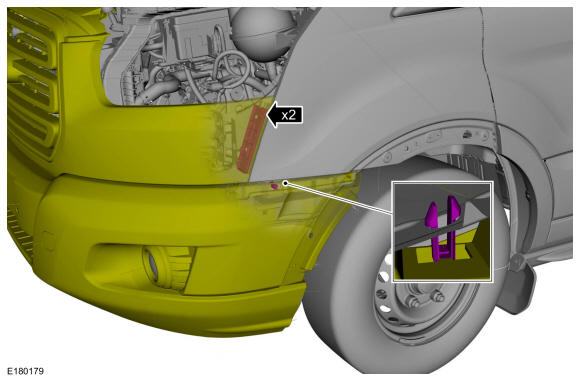

GFD147246

Courtesy of FORD MOTOR COMPANY

9.

Release the 4 tabs and remove the front bumper cover.

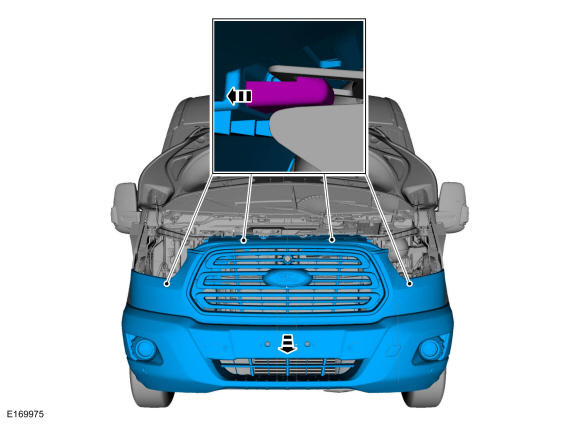

GFD147247

Courtesy of FORD MOTOR COMPANY
