Rear Bumper Cover: Disassembly

WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the rear bumper cover. Refer to: Rear Bumper Cover .

2.

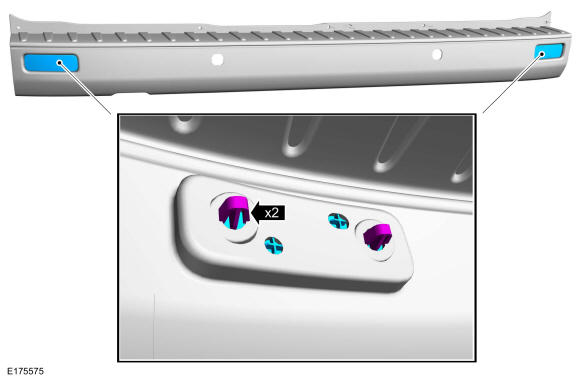

Release the tabs and remove the rear bumper reflectors.

Courtesy of FORD MOTOR COMPANY

Vehicles with rear parking aid

3.
- 1.

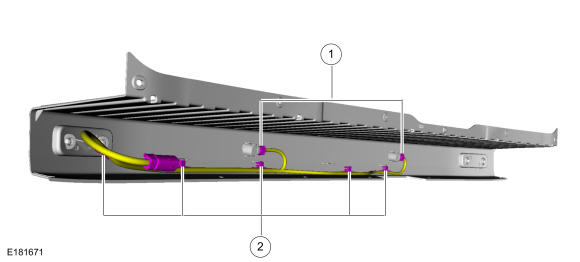

  Disconnect the rear parking aid sensor electrical connectors.
- 2.

  Release the wire harness clips and remove the rear parking aid wiring harness.

Courtesy of FORD MOTOR COMPANY

4.

NOTE: Pressure must not be applied to the outer face of the parking aid sensor.

NOTE: In 2 locations.

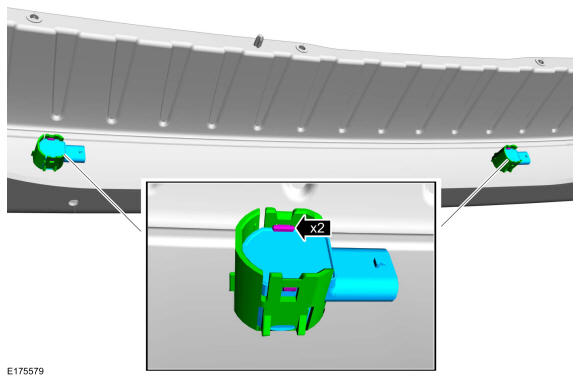

Release the tabs and remove the rear park aid sensors.

Courtesy of FORD MOTOR COMPANY

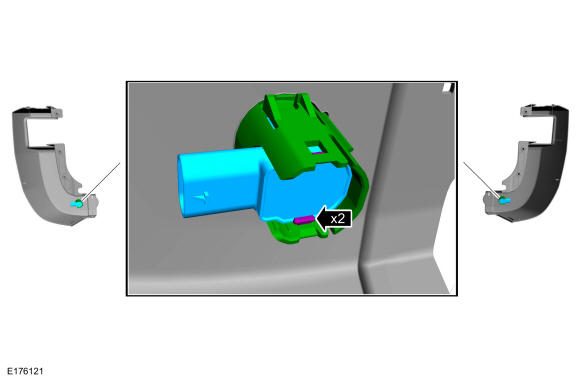

5.

NOTE: Pressure must not be applied to the outer face of the parking aid sensor.

NOTE: In 2 locations.

Courtesy of FORD MOTOR COMPANY
