Wiper Linkage Assembly: Removal

WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

NOTE: Make sure that the motor is in the park position.

Remove the cowl panel grille. Refer to: Cowl Panel Grille .

2.

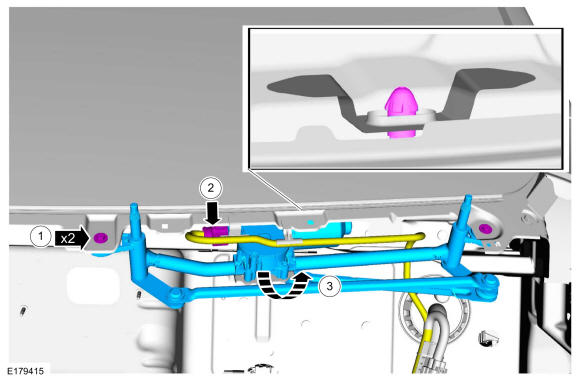

1. 1.

  Remove the wiper linkage bolts.
  Torque: 80 lb.in (9 Nm)
1. 2.

  Disconnect the windshield wiper motor electrical connector.
1. 3.

  Remove the windshield wiper motor linkage assembly.

Courtesy of FORD MOTOR COMPANY

3.

NOTE: This step is only necessary when installing a new component.
1. 1.

  Index-mark the wiper motor crank arm location to aid in wiper motor installation.
1. 2.

  Disconnect the wiper linkage from the wiper motor crank arm.
1. 3.

  Rotate the wiper motor crank arm to gain access to bolts.
1. 4.

  Remove the bolts and the wiper motor.
  Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
