Windshield Wiper Pivot Arm: Removal
WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
Remove the windshield wiper pivot arm nut cover.
 Courtesy of FORD MOTOR COMPANY
|
- 2.

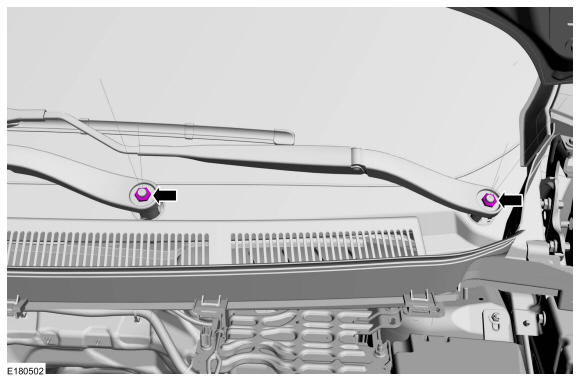

Remove the windshield wiper pivot arm nut.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

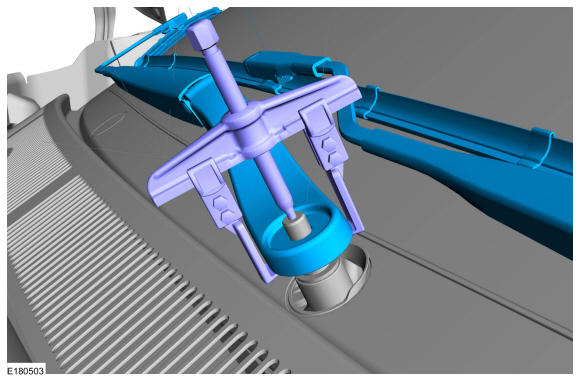

Using a suitable 2-leg puller, remove the windshield wiper motor pivot arm. Use the General Equipment: Two Leg Puller
 Courtesy of FORD MOTOR COMPANY
|
