Windshield Wiper Motor: Removal

WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the wiper linkage. Refer to: Wiper Linkage Assembly .

2.

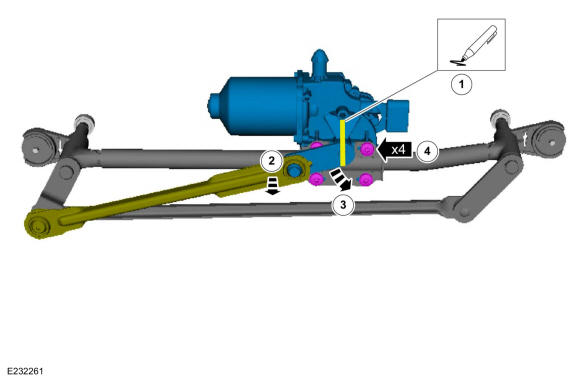

1. 1.

  Index-mark the wiper motor crank arm location to aid in wiper motor installation.
1. 2.

  Disconnect the wiper linkage from the wiper motor crank arm.
1. 3.

  Rotate the wiper motor crank arm to gain access to bolts.
1. 4.

  Remove the bolts and the wiper motor.
  Torque: 106 lb.in (12 Nm)
