Rain Sensor: Removal
WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Mirror removed for clarity.
- 1.

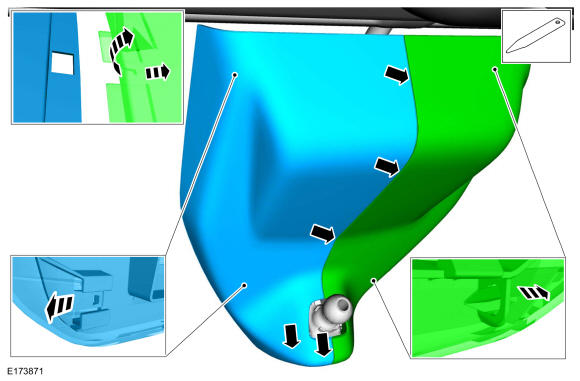

Remove the rain sensor cover. Use the General Equipment: Interior Trim Remover
 Courtesy of FORD MOTOR COMPANY
|
- 2.

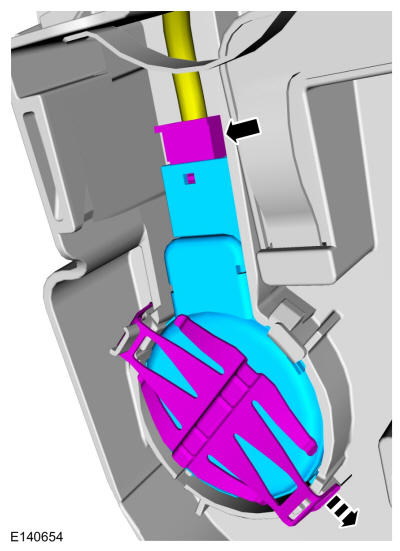

Disconnect the electrical connector, release the retaining clips and remove the rain sensor.
 Courtesy of FORD MOTOR COMPANY
|
